Product Overview

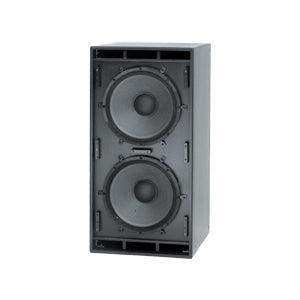

The Renkus-Heinz DR18-2B-RD-WR is the weather-resistant version of the self-powered DR18-2B-RD dual 18-inch subwoofer, combining an integrated SA2000-RD amplifier module, RHAON II network control, and dual-redundant Dante in a cabinet protected for covered outdoor and high-humidity environments. This powered 18-inch subwoofer brings deep, controlled low frequency and fault-tolerant audio transport to outdoor stages, stadiums, themed venues, and exterior worship spaces.
Product Description
The DR18-2B-RD-WR uses two RH model SSL18-7 18-inch cone woofers in a heavily braced 13-ply hardwood enclosure with weather-resistant treatment and the PM3-WRKIT-style protective amplifier cover. The integrated SA2000 amplifier module can be configured for a single channel of 2000 W into 4 ohms. The -RD configuration adds dual-redundant Dante alongside the standard analog and AES/EBU inputs, carrying audio and RHAON II control with automatic failover. Native DSP provides delay, equalization, and nine preset memories, and the proprietary Amplifier Mute engages during program pauses. Frequency response extends from 32 Hz to 120 Hz for natural, uncolored sub-bass even in exposed installations.
Key Features
- Weather-Resistant Construction — Protective treatment and amplifier cover guard the cabinet and electronics for covered outdoor and high-humidity use.
- Dual-Redundant Dante — The SA2000-RD module carries audio and RHAON II control over a redundant Dante network for fault-tolerant operation.
- Integrated SA2000 Amplifier — Onboard amplification configurable for a single channel of 2000 W into 4 ohms drives the dual-18 load.
- RHAON II Network Control — Ethernet-based control, monitoring, and loudspeaker management for networked AV systems.
- Native DSP — Onboard delay, equalization, and nine preset memories tailor performance to the venue.
- Dual 18-Inch Woofers — Two SSL18-7 long-throw woofers deliver high-impact sub-bass with linear excursion.
- Deep Extension — Frequency response from 32 Hz to 120 Hz for natural low-frequency support.
Typical Applications
- House of worship
- Auditorium
- Multi-purpose room
Technical Specifications
| Configuration | Weather-resistant self-powered dual 18-inch subwoofer |
| Amplifier Module | SA2000-RD, configurable for single channel 2000 W into 4 ohms |
| LF Drivers | Dual model SSL18-7, 18-inch cone woofer |
| Frequency Response | 32 Hz to 120 Hz |
| Inputs | Analog, AES/EBU, and dual-redundant Dante |
| Control | RHAON II over Ethernet; native DSP with delay, EQ, 9 preset memories |
| Enclosure | 13-ply hardwood, heavily braced; perforated metal grille; weather-resistant |
| Dimensions | 24 in. H x 48 in. W x 24 in. D (61 x 121.9 x 61 cm) |
Frequently Asked Questions
What does the WR designation provide?
Weather-resistant construction and a protective amplifier cover allow installation in covered outdoor and high-humidity environments. Confirm placement and protection requirements for your specific site.
What does dual-redundant Dante add?
It carries audio and RHAON II control over two network paths for automatic failover. Daisy-chaining is not available when operating in redundant mode.
Does it require an external amplifier?
No. It is self-powered with an integrated SA2000-RD amplifier module configurable for 2000 W into 4 ohms.
How is it configured?
RHAON II software provides Ethernet-based control, DSP configuration, and system monitoring, including delay, EQ, and nine preset memories.
What warranty and support are available?
Warranty terms vary by configuration. Contact Creation Networks for current Renkus-Heinz warranty details and system support.
