Renkus-Heinz SA118‐RD Self‐Powered with RHAON & Dante Redundant, SA2000‐RD

Availability: Call for Availability
Availability: Direct Ship
Renkus-Heinz SKU: SA118‐RD-BK
No reviews

Model: Black
Price:
Sale price$5,518.00

Description

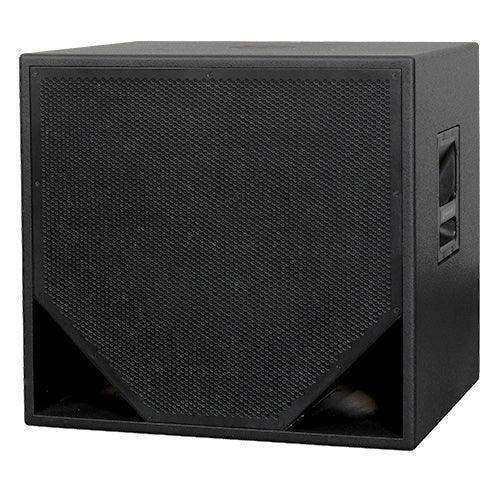

The SX/SA118 subwoofer provides the power and punch of an 18 inch woofer in a cabinet that is easy to integrate into any project. Large ports insure that this forceful bass is never marred by any chuffing or fluttering noises.

Designed in Power & Flexibility

Sixteen, M10 Universal Mounting Points allow the SX/SA118 to be flown using M10 eyebolts, while the recessed handles top-mounted pole adapter and available casters make portable use easy and practical.

The optional SA2000 power amplifier precisely matches the power needs of the SA118, provides optimal damping of the woofer and has factory optimized, multi-band limiting. The built-in amp eliminates the need for additional rack space and speaker cable runs, making adding a subwoofer to existing installs as simple as plugging it into power and running a signal to it.

Controlled via RHAON II, the SA2000’s built-in DSP has eight, fully parametric EQ filters, high and low shelf and high and low pass filters and up to 340 ms. of delay. All easily accessed via a Windows computer running RHAON II.

The SA118-RD1 and SA118-RD add Dante digital signal distribution capability including AES67 compatibility and network redundancy (RD Model.).

Technical Data

Frequency Response: SX118
SA118-RN
SA118-RD
36 Hz to 110 Hz (-3 dB)

32 Hz to 130 Hz (-10 dB)

Sensitivity: SX118 98 dB (1 W @ 1 m, Half-Space)
SA118-RN
SA118-RD
1.4 volt for rated output, analog
Maximum Peak SPL: SX118
SA118-RN
SA118-RD
132 dB (Half-space)
Connections: SX118 2 x Neutrik Speakon NL4 in parallel with terminal strip
SA118-RN
SA118-RD
See SA2000 amplifier specifications
Transducers: SX118
SA118-RN
SA118-RD
Woofer: SSL18-11
Crossover Frequency: SX118 120 Hz or lower recommended
SA118-RN
SA118-RD
100 Hz. Active
Enclosure: SX118
SA118-RN
SA118-RD
3/4 in./19 mm Lite Ply plywood
Grille: SX118
SA118-RN
SA118-RD
16 GA powder coated, plated steel
Finish: SX118
SA118-RN
SA118-RD
Black (RAL9010) or White (RAL9011) paint, standard. Custom colors optional.
Mounting: SX118
SA118-RN
SA118-RD
16 x M10 UMH points; M20 pole mount.
Weight: SX118
SA118-RN
SA118-RD
104 lbs / 47 kg
Dimensions: SX118
SA118-RN
SA118-RD
25-1/4 in. / 640 mm wide
23-1/2 in. / 597 mm high
20 in. / 508 mm deep

SA2000 Amplifier Specifications

Audio Connections: SA118-RN 2 x XLR-3, In & Loop-out, Analog and AES
SA118-RD 2 x XLR-3, In & Loop-out, Analog and AES
2 x RJ45 Dante Primary & Secondary Ethernet
Maximum Input Level: SA118-RN
SA118-RD
+22 dBu, Analog, 0 dBFS digital
Network Connections: SA118-RN 2 x RJ45, Looping Ethernet/RHAON
SA118-RD 2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.)
User DSP: SA118-RN
SA118-RD
Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
Software: SA118-RN
SA118-RD
RHAON II
Latency: SA118-RN 6.25 ms
SA118-RD 6.25 ms + Dante transport latency
Power Output: All Models 2000 watts @ 8 ohms
Mains Voltage: SA118-RN
SA118-RD
100-240 volts, 50/60 Hz auto-switching
Power Consumption: SA118-RN
SA118-RD
Idle: 200 mW. 1/8 power: 480 W (onset of limiting) 1/3 power: 1200 W (hard limiting)
Power Connector: SA118-RN
SA118-RD
Neutrik powerCON TRUE-1
Temprature Limits: SA118-RN
SA118-RD
Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
