Renkus-Heinz CX82 Non‐Powered, 500W Pgm @ 8 Ohms; Sensitivity 99dB 1W/1m, whole space
Renkus-Heinz CX82 Non‐Powered, 500W Pgm @ 8 Ohms; Sensitivity 99dB 1W/1m, whole space - Black is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Renkus-Heinz CX82 Non‐Powered, 500W Pgm @ 8 Ohms; Sensitivity 99dB ...
Product Overview

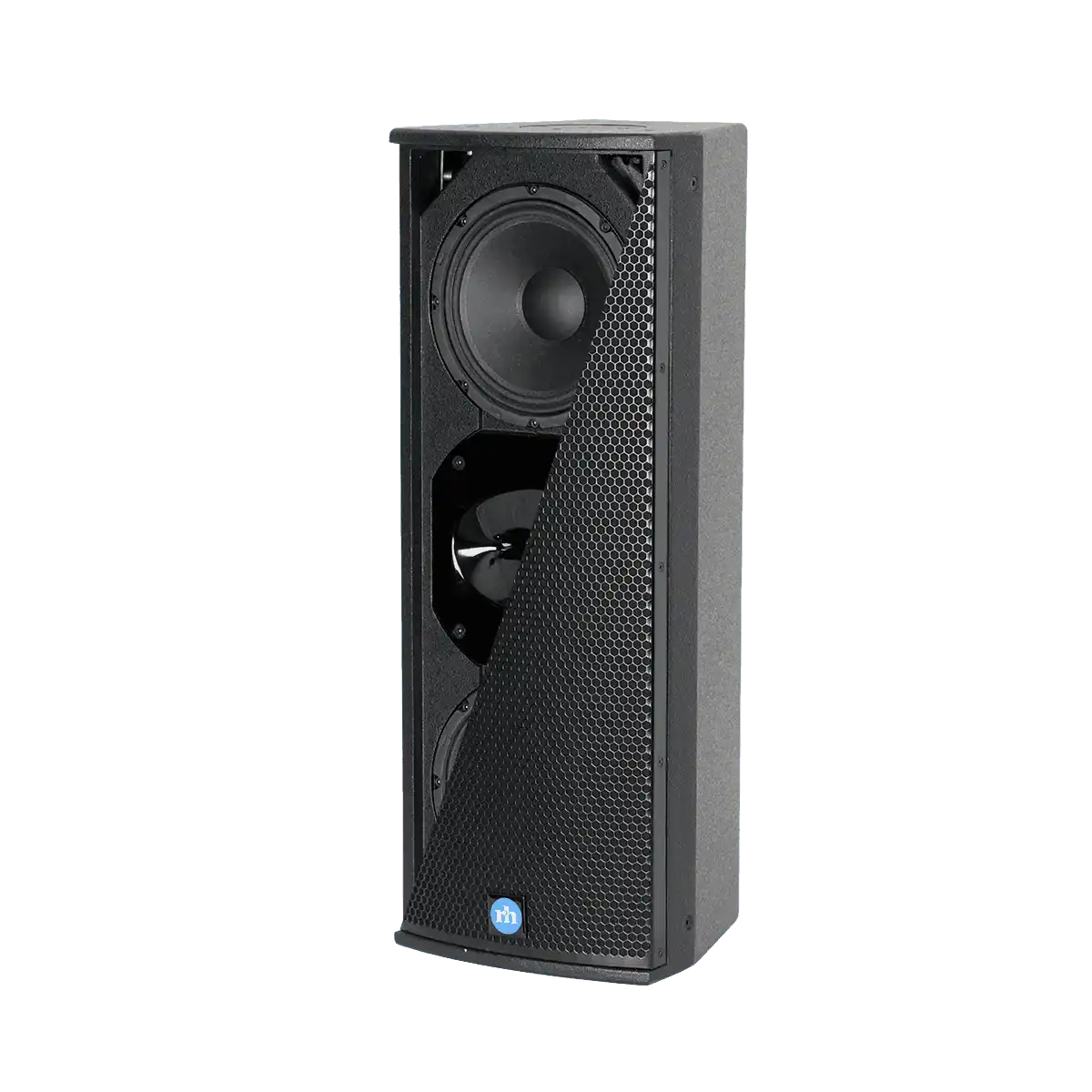

The Renkus-Heinz CX82 is an externally powered dual eight-inch two-way point-source loudspeaker, part of the in-stock C Series for permanent install applications. It combines dual 8-inch carbon-fiber woofers and a 1-inch titanium HF driver on a rotatable Complex Conic waveguide, with a built-in passive crossover. As an install loudspeaker, it suits main, fill, and distributed systems in houses of worship, multi-purpose rooms, and conference rooms.
Product Description
The C Series delivers premium point-source performance for installation at a competitive price, kept in stock for immediate shipment in black or white. The CX82 features dual heavy-duty 8-inch woofers with carbon-fiber cones and a 1-inch Extended Range titanium HF driver, with a 120° x 60° Complex Conic horn that rotates 90° for wide or deep rooms. A built-in crossover eliminates the need for a separate electronic crossover and bi-amplification. Connections are made through screw terminals and looping 4-pin Neutrik Speakon-style connectors. The CX82 can be field-upgraded to a self-powered CA82 using a Renkus-Heinz SA625 amplifier module. The compact cabinet mounts inconspicuously in walls, ceilings, or under balconies.
Key Features
- Dual 8-Inch Two-Way Design — Twin carbon-fiber 8-inch woofers and a 1-inch titanium HF driver deliver full-range ± 3 dB output from 90 Hz to 20 kHz.
- Rotatable Complex Conic Horn — The 120° x 60° / 90° x 60° horn rotates 90° for wide or deep coverage.
- Built-In Passive Crossover — The integrated crossover removes the need for an external crossover and bi-amplification.
- Field-Upgradeable to Powered — The cabinet can be converted to a self-powered CA82 with a Renkus-Heinz SA625 amplifier module.
- Standard Speakon Connectivity — Screw terminals and looping Neutrik Speakon-style connectors simplify passive system wiring.
- In-Stock Install Loudspeaker — Kept in stock for immediate shipment in black or white for fast project turnaround.
Typical Applications
- House of worship
- Multi-purpose room
- Conference room
- Commercial meeting space
- Auditorium
Technical Specifications
| LF Drivers | Dual SSL8-20, 8 in., 125 W AES @ 16 ohms each |
| HF Driver | SSD1445-16, 1 in. titanium, 20 W AES |
| Sensitivity | 99 dB (1 W / 1 m) |
| Frequency Response | ± 3 dB, 90 Hz to 20 kHz |
| Dispersion | 120° x 60° or 90° x 60°, rotatable |
| Maximum SPL | 129 dB peak |
| Power Handling | 250 W AES / 500 W program @ 8 ohms |
| Connectors | Screw terminals & looping 4-pin Neutrik Speakon-style |
| Enclosure | 19 mm Lite Ply, perforated metal grille |
| Mounting | 12-point Universal Mounting Hardware (M6); M10 U-bracket points |
| Dimensions | 28-1/2 in. H x 10-5/16 in. W x 10-1/2 in. D (724 x 262 x 267 mm) |
| Weight | 34 lbs / 15.4 kg |
Frequently Asked Questions
Is the CX82 powered? No. It is an externally powered (passive) loudspeaker requiring an external amplifier. For a self-powered version, choose the CA82 with an integrated SA625 amplifier module.
Does it need an external crossover? No. A built-in passive crossover removes the need for a separate electronic crossover and bi-amplification.
Can it be mounted discreetly? Yes. The compact cabinet supports flown, bracket, wall, and balcony mounting for fill and distributed applications.
Can it be paired with a subwoofer? Yes. It integrates well with Renkus-Heinz C and S Series subwoofers. See the Renkus-Heinz collection.
What warranty applies? Warranty terms vary by product and region. Contact Creation Networks for current warranty and support details.
