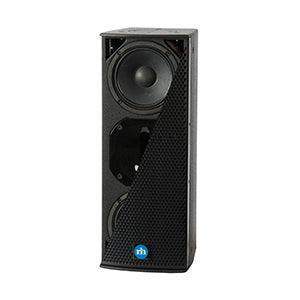

Renkus-Heinz CX62 2‐Way, Full Range Loudspeaker 2 x 6.5" LF, 1" HF

Renkus-Heinz SKU: CX62-BK
No reviews

Model: Black
Price:
Sale price$662.00

Description

The C62 features dual 6.5-inch Heavy-Duty LF drivers with carbon fiber cones and a 1-inch Extended Range Titanium HF Driver.

C Series loudspeakers employ advanced technology and application-driven engineering to bring live sound closer to the ultimate reference point: reality. Cutting-edge driver technology and unique innovations like our Complex Conic horns deliver natural sounding music and intelligible speech.

Versatile enclosure designs, combined with a wide range of mounting options and associated hardware, provide unrestricted flexibility for both portable and installed applications. Wherever audiences and operators demand superior performance and ease of use, C Series loudspeakers are the choice for unequalled value.

Features

• Miniaturized Design
Outstanding, full-range 100 Hz to 18 kHz performance in a extremely compact, space-saving design.
• Exclusive Complex Conic Design
Complex Conic Horn provides superior pattern control with low distortion.
• Wide-Angle 150º x 60º Coverage
Complex Conic Horn provides smooth 150º x 60º coverage.
• 1-inch Extended Range Titanium HF Driver
Provides smooth, low distortion high frequency performance to 20 kHz and beyond.
• Heavy-Duty 6.5-inch Woofers
With carbon fiber cone easily handles 400 Watts of program power.
• Built-in Crossover
Eliminates need for a separate electronic crossover and bi-amplification.

Applications

• Virtually any application where size is a critical issue and outstanding sonic performance is required.

• Ideal for many side and front fill applications; mounts inconspicuously in walls or ceilings, under and
over balconies, etc.

• Foreground music systems in shopping malls, retail stores, offices, etc.

Technical Information

Sensitivity: CX62 97 dB (1W/1m)
Max SPL: CX62 126 dB Peak
CA62-A
CA62-RN
CA62-RD
124 dB Peak
Dispersion: CX62
CA62-A
CA62-RN
CA62-RD
150° x 60°, rotatable horn, configured for speaker horizontal application
Freq. Response: CX62
CA62-A
CA62-RN
CA62-RD
± 3 dB, 100 Hz to 20 kHz
HF Driver: CX62
CA62-A
CA62-RN
CA62-RD
1″ Titanium driver, model SSD1445-16; 20 W AES
LF Driver: CX62
CA62-A
CA62-RN
CA62-RD
Dual, 6.5″ woofer, model SSL6.5-18; 1″ VC; 100 W AES @ 16 Ohms
Power Rating: CX62 200 W AES @ 8 Ohms
400 W Pgm @ 8 Ohms
CA62-A
CA62-RN
CA62-RD
See SA625 Amplifier
Enclosure: CX62
CA62-A
CA62-RN
CA62-RD
Poplar Ply, perforated metal grille
Connectors: CX62 Screw terminals & looping 4-pin Neutrik Speakon style connectors
CA62-A
CA62-RN
CA62-RD
See SA625 Amplifier
Finish: CX62
CA62-A
CA62-RN
CA62-RD
Black or White Paint
Hardware: CX62
CA62-A
CA62-RN
CA62-RD
12-point Universal Mounting Hardware
(Metric M6 threads)
M10 U-bracket attachment points
Dimensions: CX62
CA62-A
CA62-RN
CA62-RD
21″ H x 7-7/8″ W x 9-3/8″ D
200 mm H x 533 mm W x 238 mm D
Weight: CX62 26 lbs. / 11.8 kg, Net
CA62-A
CA62-RN
CA62-RD
25 lbs. / 11.3 kg, Net

SA625 Amplifier Specifications

Audio Connections: CA62-A 2 x XLR-3, In & Loop-out, Analog
CA62-RN 2 x XLR-3, In & Loop-out, Analog & AES
CA62-RD 2 x XLR-3, In & Loop-out, Analog and AES
2 x RJ45 Dante Primary & Secondary Ethernet
Network Connections: CA62-RN 2 x RJ45, Looping Ethernet/RHAON
CA62-RD 2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.)
Maximum Input Level: CA62-A +22 dBu, Analog
CA62-RN
CA62-RD
+22 dBu, Analog, 0 dBFS digital
User DSP: CA62-RN
CA62-RD
Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
Software: CA62-RN
CA62-RD
RHAON II
Latency: CA62-A
CA62-RN
6.25 ms
CA62-RD 6.25 ms + Dante transport latency
Power Output: CA62-A
CA62-RN
CA62-RD
LF= 500 watts, @ 8 ohms / HF = 250 watts @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
Mains Voltage: CA62-A
CA62-RN
CA62-RD
100-240 volts, 50/60 Hz auto-switching
Power Consumption: CA62-A
CA62-RN
CA62-RD
Idle: 200 mW. 1/8 power: 120 W (onset of limiting) 1/3 power: 240 W (hard limiting)
Power Connector: CA62-A
CA62-RN
CA62-RD
Neutrik powerCON TRUE-1
Temprature Limits: CA62-A
CA62-RN
CA62-RD
Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
