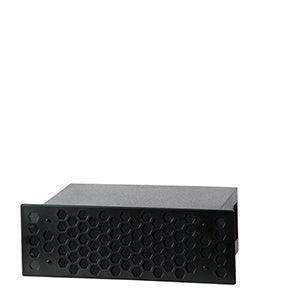

Renkus-Heinz CX42 2‐Way, "Stair‐step" loudspeaker 2 x 4" LF, 1" HF

Product Overview

The Renkus-Heinz CX42 is a compact, passive two-way stair-step loudspeaker built for in-wall mounting in stair risers and stage lips. Its dual 4-inch woofers and 1-inch titanium high-frequency driver provide wide 150-degree by 60-degree coverage, making it a discreet front-fill and side-fill loudspeaker for auditoriums, houses of worship, and commercial meeting spaces where speakers must mount inconspicuously.

Product Description

The CX42 belongs to the Renkus-Heinz C Series of premium installation loudspeakers and was developed specifically for in-wall mounting in stair risers and stage lips. Its angled stair-step enclosure positions sound toward the audience while keeping the loudspeaker out of sight. Two heavy-duty 4-inch woofers (SSL4-6) and a 1-inch titanium high-frequency driver (SDA105-8) reproduce 300 Hz to 18 kHz, and a high-frequency diffraction slot produces smooth 150-degree by 60-degree coverage. A built-in crossover removes the need for a separate electronic crossover and bi-amplification, while screw terminals and looping 4-pin Neutrik SpeakOn-style connectors support reliable wiring. The hardwood enclosure with perforated metal grille is finished in black or white paint and is rated at 120 W AES and 240 W program at 16 ohms. An optional 18-gauge metal back box, the CFX42-BACKBX, is concrete-pour ready for new construction. The wide coverage and low profile make the CX42 well suited to side-fill and front-fill duty as well as foreground music in retail and office environments.

Key Features

• Stair-Step In-Wall Design — The angled enclosure mounts inconspicuously in stair risers and stage lips while aiming sound at the audience.
• Dual 4-Inch Woofers — Two SSL4-6 woofers handle 240 watts of program power for high output from a small footprint.
• 1-Inch Titanium HF Driver — The SDA105-8 driver delivers smooth, low-distortion high frequencies to 18 kHz and beyond.
• Wide 150° x 60° Coverage — A high-frequency diffraction slot spreads sound evenly across nearby seating for fill applications.
• Built-In Crossover — An integrated crossover removes the need for a separate electronic crossover and bi-amplification.
• Professional Connectors — Screw terminals and looping 4-pin Neutrik SpeakOn-style connectors support reliable, daisy-chained wiring.
• Optional Metal Back Box — The 18-gauge CFX42-BACKBX is concrete-pour ready for integration into new construction.
• Black or White Finish — Painted finishes let the loudspeaker blend into a range of architectural surfaces.

Typical Applications

• Auditorium — Mounts in stage lips for front-fill coverage of the first rows.
• House of Worship — Provides discreet fill where loudspeakers must stay out of sightlines.
• Conference Room — Delivers even foreground audio from an in-wall position.
• Multi-Purpose Room — Supplies side-fill and front-fill coverage in flexible spaces.
• Commercial Meeting Space — Serves foreground music and paging in offices and retail areas.

Technical Specifications

Competitor Comparison

Competitor details reflect general product positioning and should be verified directly with each manufacturer; they are not measured test data.

Frequently Asked Questions

Where is the CX42 meant to be installed? It was developed for in-wall mounting in stair risers and stage lips, and works well for side-fill and front-fill coverage.

Is a back box available? Yes. The optional 18-gauge CFX42-BACKBX metal back box is concrete-pour ready for new construction.

Does it need an external crossover? No. The CX42 has a built-in passive crossover, so no separate electronic crossover or bi-amplification is required.

What amplifier does it require? It is a passive loudspeaker rated at 120 W AES / 240 W program at 16 ohms and is driven by an external amplifier.

Is technical support and warranty assistance available? Yes. Contact Creation Networks for current warranty terms and installation guidance.
