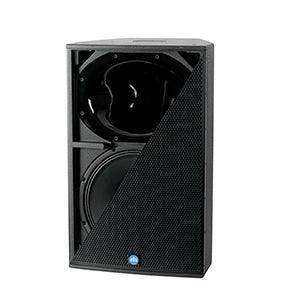

Renkus-Heinz CX151 2‐Way, Full Range Loudspeaker 15" LF, 1" HF
Renkus-Heinz CX151 2‐Way, Full Range Loudspeaker 15" LF, 1" HF - Black is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Renkus-Heinz CX151 2‐Way, Full Range Loudspeaker 15" LF, 1&quo...
Product Overview
The Renkus-Heinz CX151 is an externally powered 15-inch two-way point-source loudspeaker, part of the in-stock C Series for permanent install applications. It combines a heavy-duty 15-inch woofer and a 2-inch titanium HF driver on a Complex Conic waveguide, with a built-in passive crossover. As an install loudspeaker, it works as a compact main system or distributed coverage in auditoriums, houses of worship, and multi-purpose venues.
Product Description
The C Series delivers premium point-source performance for installation at a competitive price, kept in stock for immediate shipment in black or white. The CX151 features a heavy-duty 15-inch woofer and a 2-inch titanium HF driver, with the exclusive Complex Conic horn delivering constant beamwidth and directivity without the artifacts of conventional rectangular horns. A built-in passive crossover with EQ and high-frequency protection eliminates the need for a separate electronic crossover and bi-amplification, and can be bypassed with an internal jumper for bi-amplified operation. Connections are made through screw terminals and looping 4-pin Neutrik Speakon-style connectors. The CX151 can be field-upgraded to a self-powered CA151 using a Renkus-Heinz SA1250 amplifier module. Twelve-point Universal Mounting Hardware with M10 threads supports flown and bracket-mounted installation.
Key Features
- 15-Inch Two-Way Point Source — A heavy-duty 15-inch woofer and 2-inch titanium HF driver deliver full-range ± 3 dB output from 55 Hz to 20 kHz.
- Complex Conic Waveguide — The exclusive horn provides constant beamwidth and directivity, selectable as 60° x 40° or 90° x 40° coverage.
- Built-In Passive Crossover — Integrated EQ and HF protection remove the need for an external crossover; an internal jumper enables bi-amplified operation.
- Field-Upgradeable to Powered — The cabinet can be converted to a self-powered CA151 with a Renkus-Heinz SA1250 amplifier module.
- Standard Speakon Connectivity — Screw terminals and looping Neutrik Speakon-style connectors simplify passive system wiring.
- In-Stock Install Loudspeaker — Kept in stock for immediate shipment in black or white for fast project turnaround.
Typical Applications
- Auditorium
- House of worship
- Multi-purpose room
- Commercial meeting space
- Broadcast studio
Technical Specifications
| LF Driver | SSL15-24, 15 in., 350 W AES @ 8 ohms |
| HF Driver | SSD1747-8, 2 in. titanium, 60 W AES @ 8 ohms |
| Sensitivity | 98 dB (1 W / 1 m) |
| Frequency Response | ± 3 dB, 55 Hz to 20 kHz |
| Dispersion | 60° H x 40° V or 90° H x 40° V |
| Maximum SPL | 129 dB peak |
| Power Handling | 350 W AES / 700 W program @ 8 ohms |
| Connectors | Screw terminals & looping 4-pin Neutrik Speakon-style |
| Enclosure | 19 mm Lite Ply, perforated metal grille |
| Mounting | 12-point Universal Mounting Hardware (M10); M10 U-bracket points |
| Dimensions | 28-1/2 in. H x 17-1/2 in. W x 17 in. D (724 x 445 x 432 mm) |
| Weight | 52 lbs / 23.6 kg |
Frequently Asked Questions
Is the CX151 powered? No. It is an externally powered (passive) loudspeaker requiring an external amplifier. For a self-powered version, choose the CA151 with an integrated SA1250 amplifier module.
Does it need an external crossover? No. A built-in passive crossover removes the need for one; an internal jumper allows bi-amplified operation.
Can the coverage pattern be changed? Yes. The Complex Conic horn provides 60° x 40° or 90° x 40° coverage to suit the room.
Can it be paired with a subwoofer? Yes. It integrates well with Renkus-Heinz C and S Series subwoofers. See the Renkus-Heinz collection.
What warranty applies? Warranty terms vary by product and region. Contact Creation Networks for current warranty and support details.
