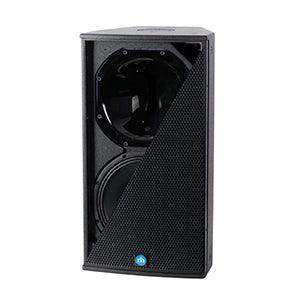

Renkus-Heinz CX121 2‐Way, Full Range Loudspeaker 12" LF, 1" HF
Renkus-Heinz CX121 2‐Way, Full Range Loudspeaker 12" LF, 1" HF - Black is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Renkus-Heinz CX121 2‐Way, Full Range Loudspeaker 12" LF, 1&quo...
Product Overview
The Renkus-Heinz CX121 is an externally powered 12-inch two-way point-source loudspeaker, part of the in-stock C Series for permanent install applications. It combines a heavy-duty 12-inch woofer and a 2-inch titanium HF driver on a rotatable Complex Conic waveguide, with a built-in passive crossover. As an install loudspeaker, it works as a compact main system or distributed coverage in auditoriums, houses of worship, and multi-purpose venues.
Product Description
The C Series delivers premium point-source performance for installation at a competitive price, kept in stock for immediate shipment in black or white. The CX121 features a heavy-duty 12-inch woofer and a 2-inch titanium HF driver. Its 90° x 40° Complex Conic horn provides constant beamwidth and directivity, and can be rotated 90° within the cabinet for wide or deep listening spaces. A built-in passive crossover with EQ and high-frequency protection eliminates the need for a separate electronic crossover and bi-amplification, and can be bypassed with an internal jumper for bi-amplified operation. Connections are made through screw terminals and looping 4-pin Neutrik Speakon-style connectors. The CX121 can be field-upgraded to a self-powered CA121 using a Renkus-Heinz SA1250 amplifier module. Twelve-point Universal Mounting Hardware with M10 threads supports flown and bracket-mounted installation.
Key Features
- 12-Inch Two-Way Point Source — A heavy-duty 12-inch woofer and 2-inch titanium HF driver deliver full-range ± 3 dB output from 60 Hz to 20 kHz.
- Rotatable Complex Conic Horn — The 60° x 40° / 90° x 40° horn rotates 90° within the cabinet for wide or deep rooms.
- Built-In Passive Crossover — Integrated EQ and HF protection remove the need for an external crossover; an internal jumper enables bi-amplified operation.
- Field-Upgradeable to Powered — The cabinet can be converted to a self-powered CA121 with a Renkus-Heinz SA1250 amplifier module.
- Standard Speakon Connectivity — Screw terminals and looping Neutrik Speakon-style connectors simplify passive system wiring.
- In-Stock Install Loudspeaker — Kept in stock for immediate shipment in black or white for fast project turnaround.
Typical Applications
- Auditorium
- House of worship
- Multi-purpose room
- Commercial meeting space
- Training room
Technical Specifications
| LF Driver | SSL12-26, 12 in., 350 W AES @ 8 ohms |
| HF Driver | SSD1747-8, 2 in. titanium, 60 W AES @ 8 ohms |
| Sensitivity | 97 dB (1 W / 1 m) |
| Frequency Response | ± 3 dB, 60 Hz to 20 kHz |
| Dispersion | 60° x 40° or 90° x 40°, rotatable |
| Maximum SPL | 128 dB peak |
| Power Handling | 350 W AES / 700 W program @ 8 ohms |
| Connectors | Screw terminals & looping 4-pin Neutrik Speakon-style |
| Enclosure | 19 mm Lite Ply, perforated metal grille |
| Mounting | 12-point Universal Mounting Hardware (M10); M10 U-bracket points |
| Dimensions | 27 in. H x 14-3/8 in. W x 14-1/4 in. D (686 x 365 x 362 mm) |
| Weight | 45 lbs / 20.4 kg |
Frequently Asked Questions
Is the CX121 powered? No. It is an externally powered (passive) loudspeaker requiring an external amplifier. For a self-powered version, choose the CA121 with an integrated SA1250 amplifier module.
Does it need an external crossover? No. A built-in passive crossover removes the need for one; an internal jumper allows bi-amplified operation.
Can the horn be rotated? Yes. The Complex Conic horn rotates 90° within the cabinet to provide 60° x 40° or 90° x 40° coverage.
Can it be paired with a subwoofer? Yes. It integrates well with Renkus-Heinz C and S Series subwoofers. See the Renkus-Heinz collection.
What warranty applies? Warranty terms vary by product and region. Contact Creation Networks for current warranty and support details.
