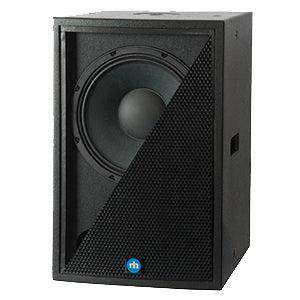

Renkus-Heinz CX118S 18 Inch High-Performance Subwoofer
Roll over image to zoom in Click on image to zoom
Renkus-Heinz CX118S 18 Inch High-Performance Subwoofer
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Renkus-Heinz CX118S 18 Inch High-Performance Subwoofer

Renkus-Heinz SKU: CX118S
No reviews
Price:
$1,104.00

Description

18-inch High Performance Subwoofer

Sound that makes performances and audiences truly come alive doesn’t come easy. But C Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.

C118S subwoofers were developed as companion pieces to full range C series loudspeakers. They provide the high impact sub bass energy needed in many venues.

CX118S Non-Powered Loudspeakers
For use with external amplification

C118S subwoofers were developed as companion pieces to full range C Series loudspeakers. They provide the high impact sub bass energy needed in many venues.

Features

• Powerful 18-inch Subwoofers
Outstanding 35 Hz to 120 Hz, 131 dB peak SPL sub-bass performance.

• High Performance, High Power Woofers
With 4-inch voice coils, rigid cast-alloy frames and long throw magnetic structures easily handle 900 Watts of program power.

• Built-In Lo-Pass Filter
Eliminates the need for an external electronic crossover.

If you need an outstanding high-power 18-inch subwoofer, order the C118S.

Applications

• Virtually any application where high-output, low frequency content is required

Permanent Installations

• High quality music/speech systems and surround systems for houses of worship, schools, performing art centers, night clubs, etc.

Portable Applications

• Live music reinforcement, DJ systems, houses of worship, schools, etc.

Technical Information
Sensitivity: CX118S 97 dB (1W/1m)
CA118S-A
CA118S-RN
CA118S-RD		 1.4 volt for rated output, analog
Max SPL: CX118S 131 dB peak, half space
CA118S-A
CA118S-RN
CA118S-RD		 128 dB peak, half space
Freq. Response: CX118S
CA118S-A
CA118S-RN
CA118S-RD		 35 Hz to 120 Hz
LF Drivers: CX118S
CA118S-A
CA118S-RN
CA118S-RD		 SSL18-10, 450 W AES @ 8 Ohms, 900 W Pgm
Enclosure: CX118S
CA118S-A
CA118S-RN
CA118S-RD		 11 Ply Hardwood, perforated metal grille
Finish: CX118S
CA118S-A
CA118S-RN
CA118S-RD		 Black Paint
Power: CX118S 450 W AES @ 8 Ohms
900 W Pgm @ 8 Ohms
CA118S-A
CA118S-RN
CA118S-RD		 See SA1250 Amplifier Specs
Connectors: CX118S Screw terminals & looping Neutrik 4-pin SpeakOn style connectors
CA118S-A
CA118S-RN
CA118S-RD		 See SA1250 Amplifier Specs
Hardware: CX118S
CA118S-A
CA118S-RN
CA118S-RD		 12 x M10 UMH Points, 35 mm Pole Socket
Dimensions: CX118S
CA118S-A
CA118S-RN
CA118S-RD		 22-1/4″ w x 29-3/8″ h x 23-1/2″ d
565 mm w x 746 mm h x 597 mm d
Weight: CX118S
CA118S-A
CA118S-RN
CA118S-RD		 88 lbs. / 39.9 kg, net

SA1250 Amplifier Specifications
Audio Connections: CA118S-A 2 x XLR-3, In & Loop-out, Analog
CA118S-RN 2 x XLR-3, In & Loop-out, Analog and AES
CA118S-RD 2 x XLR-3, In & Loop-out, Analog and AES
2 x RJ45 Dante Primary & Secondary Ethernet
Network Connections: CA118S-RN 2 x RJ45, Looping Ethernet/RHAON
CA118S-RD 2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.)
Maximum Input Level: CA118S-A +22 dBu, Analog
CA118S-RN
CA118S-RD		 +22 dBu, Analog, 0 dBFS digital
User DSP: CA118S-RN
CA118S-RD		 Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
Software: CA118S-RN
CA118S-RD		 RHAON II
Latency: CA118S-A
CA118S-RN		 6.25 ms
CA118S-RD 6.25 ms + Dante transport latency
Power Output: CA118S-A
CA118S-RN
CA118S-RD		 LF= 1000 watts, @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
Mains Voltage: CA118S-A
CA118S-RN
CA118S-RD		 100-240 volts, 50/60 Hz auto-switching
Power Consumption: CA118S-A
CA118S-RN
CA118S-RD		 Idle: 300 mW. 1/8 power: 240 W (onset of limiting) 1/3 power: 550 W (hard limiting)
Power Connector: CA118S-A
CA118S-RN
CA118S-RD		 Neutrik powerCON TRUE-1
Temprature Limits: CA118S-A
CA118S-RN
CA118S-RD		 Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
