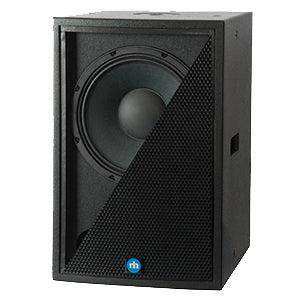

Renkus-Heinz CX112S 12 Inch High-Performance Subwoofer
Renkus-Heinz CX112S 12 Inch High-Performance Subwoofer is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Renkus-Heinz CX112S 12 Inch High-Performance Subwoofer
Product Overview
The Renkus-Heinz CX112S is an externally powered 12-inch subwoofer, part of the in-stock C Series and a companion to C Series full-range loudspeakers. It provides high-impact sub-bass in a compact cabinet for permanent commercial installations, pairing a 12-inch high-power woofer with a built-in, bypassable low-pass filter. As an install subwoofer, it extends low-frequency reach in houses of worship, multi-purpose rooms, and commercial meeting spaces.
Product Description
The C Series is kept in stock for immediate shipment in black. The 112S subwoofer was developed as a companion to full-range C Series loudspeakers, providing high-impact sub-bass from a space-saving cabinet. Its high-power woofer uses a long-throw magnetic structure for tight, controlled low-frequency output and easily handles 500 watts of program power. A built-in low-pass filter can be bypassed to allow use of an external electronic crossover. Connections are made through screw terminals and looping 4-pin Neutrik Speakon-style connectors. The CX112S can be field-upgraded to a self-powered CA112S using a Renkus-Heinz SA625 amplifier module. Twelve M10 mounting points and a 20 mm pole socket support flexible deployment.
Key Features
- Compact 12-Inch Subwoofer — A high-power 12-inch woofer delivers 40 Hz to 120 Hz output in a space-saving cabinet.
- Bypassable Low-Pass Filter — The built-in crossover can be bypassed to use an external electronic crossover when required.
- High Program Handling — The long-throw woofer handles 500 watts of program power for reliable sub-bass.
- Field-Upgradeable to Powered — The cabinet can be converted to a self-powered CA112S with a Renkus-Heinz SA625 amplifier module.
- Standard Speakon Connectivity — Screw terminals and looping Neutrik Speakon-style connectors simplify passive system wiring.
- In-Stock Install Subwoofer — Kept in stock for immediate shipment for fast project turnaround.
Typical Applications
- House of worship
- Multi-purpose room
- Commercial meeting space
- Auditorium
- Broadcast studio
Technical Specifications
| LF Driver | SSL12-23, 12 in., 250 W AES / 500 W Pgm @ 8 ohms |
| Frequency Response | 40 Hz to 120 Hz |
| Maximum SPL | 127 dB peak, half-space |
| Power Handling | 250 W AES / 500 W program @ 8 ohms |
| Connectors | Screw terminals & looping 4-pin Neutrik Speakon-style |
| Enclosure | 19 mm Lite Ply, perforated metal grille |
| Mounting | 12 x M10 points; 20 mm pole socket |
| Dimensions | 15 in. W x 23-1/8 in. H x 17-1/4 in. D (381 x 587 x 438 mm) |
| Weight | 52 lbs / 23.6 kg |
Frequently Asked Questions
Is the CX112S powered? No. It is an externally powered (passive) subwoofer requiring an external amplifier. For a self-powered version, choose the CA112S with an integrated SA625 amplifier module.
Can the built-in crossover be bypassed? Yes. The low-pass filter can be bypassed to use an external electronic crossover when needed.
Does it pair with C Series loudspeakers? Yes. It was designed as a companion to full-range C Series systems. See the Renkus-Heinz collection.
How is it mounted? Twelve M10 points and a 20 mm pole socket support stacked and pole-mounted use.
What warranty applies? Warranty terms vary by product and region. Contact Creation Networks for current warranty and support details.
