Renkus-Heinz CA81‐A Self‐Powered Analog, SA625‐A Amp Module
Product Overview

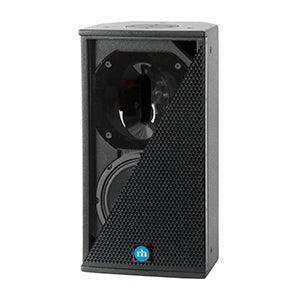

The Renkus-Heinz CA81-A is a self-powered 8-inch two-way point-source loudspeaker with an analog-input amplifier module, part of the in-stock C Series for permanent install applications. It combines an 8-inch woofer and a 1-inch titanium HF driver on a rotatable Complex Conic waveguide with an integrated SA625-A amplifier module. As a plug-and-play powered install loudspeaker, it suits fills, delays, and distributed systems in conference rooms, boardrooms, and house-of-worship spaces without external amplifier racks.
Product Description
The C Series delivers premium point-source performance for installation at a competitive price, kept in stock for immediate shipment in black or white. The CA81 features an 8-inch heavy-duty woofer and a 1-inch Extended Range titanium HF driver, with a 120° x 60° Complex Conic horn that rotates 90° for wide or deep rooms. The integrated SA625 amplifier supplies 250 watts to the low-frequency section and 125 watts to the high-frequency section at 16 ohms, with factory-optimized multi-band peak and thermal limiting. The A model accepts balanced analog input through looping XLR-3 connectors, making it a straightforward self-powered choice where network control is not required. Twelve-point Universal Mounting Hardware supports flown, bracket, and discreet wall mounting.
Key Features
- Compact 8-Inch Two-Way — An 8-inch woofer and 1-inch titanium HF driver deliver full-range ± 3 dB output from 90 Hz to 20 kHz.
- Rotatable Complex Conic Horn — The 120° x 60° / 90° x 60° horn rotates 90° for wide or deep coverage.
- Integrated SA625-A Amplifier — The built-in amplifier supplies 250 W LF and 125 W HF at 16 ohms with factory-optimized multi-band limiting.
- Analog Input — Looping XLR-3 connectors accept balanced analog signal for simple, network-free integration.
- No External Amplifier Racks — The self-powered design removes outboard amplification and long speaker-cable runs.
- In-Stock Install Loudspeaker — Kept in stock for immediate shipment in black or white for fast project turnaround.
Typical Applications
- Conference room
- Boardroom
- House of worship
- Commercial meeting space
- Training room
Technical Specifications
| LF Driver | SSL8-20, 8 in., 125 W AES @ 16 ohms |
| HF Driver | SSD1445-16, 1 in. titanium, 20 W AES |
| Frequency Response | ± 3 dB, 90 Hz to 20 kHz |
| Dispersion | 120° x 60° or 90° x 60°, rotatable |
| Maximum SPL | 123 dB peak |
| Amplifier Output | SA625: LF 250 W @ 16 ohms; HF 125 W @ 16 ohms |
| Audio Connections | 2 x XLR-3 in & loop-out, analog |
| Latency | 6.25 ms |
| Mains Voltage | 100-240 V, 50/60 Hz auto-switching; powerCON TRUE-1 |
| Enclosure | 18 mm Lite Ply, perforated metal grille |
| Mounting | 12-point Universal Mounting Hardware (M6); M10 U-bracket points |
| Dimensions | 21 in. H x 10-5/16 in. W x 10-1/2 in. D (533 x 262 x 267 mm) |
| Weight | 25 lbs / 11.3 kg |
Frequently Asked Questions
What amplifier powers the CA81-A? It uses the integrated Renkus-Heinz SA625-A analog-input module supplying 250 W LF and 125 W HF at 16 ohms with factory-optimized limiting.
Does the CA81-A have network control? No. The A model is analog-input only. For RHAON II network control choose the CA81-RN, or the CA81-RD for Dante.
Can the horn be rotated? Yes. The Complex Conic horn rotates 90° within the cabinet to provide 120° x 60° or 90° x 60° coverage.
Can it be paired with a subwoofer? Yes. It integrates well with Renkus-Heinz C and S Series subwoofers. See the Renkus-Heinz collection.
What warranty applies? Warranty terms vary by product and region. Contact Creation Networks for current warranty and support details.
