Renkus-Heinz CA61‐RN Self‐Powered with RHAON, SA625‐RN Amp Module

Product Overview

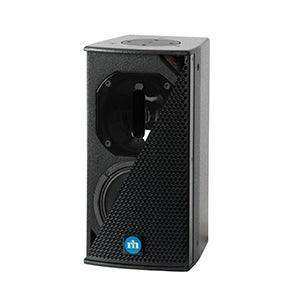

The Renkus-Heinz CA61-RN is a compact, self-powered 6.5-inch two-way point-source loudspeaker with integrated RHAON II network control, part of the in-stock C Series for permanent install applications. It combines a 6.5-inch woofer and a 1-inch titanium HF driver on a wide-angle Complex Conic waveguide with an SA625-RN amplifier module and onboard DSP. As a networked install loudspeaker, it suits fills, delays, and distributed playback in huddle rooms, conference rooms, and house-of-worship spaces.

Product Description

The C Series delivers premium point-source performance for installation at a competitive price, kept in stock for immediate shipment in black or white. The CA61 features a 6.5-inch heavy-duty woofer and a 1-inch Extended Range titanium HF driver, with a wide 150° x 60° Complex Conic horn for broad, even coverage from a very compact enclosure. The integrated SA625 amplifier supplies 250 watts to the low-frequency section and 125 watts to the high-frequency section at 16 ohms, with factory-optimized multi-band peak and thermal limiting. Controlled through RHAON II, the onboard DSP provides eight fully parametric filters, high and low shelf and pass filters, and up to 340 ms of delay, accessed over Ethernet. The RN model uses analog and AES inputs with RHAON network control. The small cabinet mounts discreetly for fill, delay, and playback duties.

Key Features

• Compact 6.5-Inch Two-Way — A 6.5-inch woofer and 1-inch titanium HF driver deliver full-range ± 3 dB output from 100 Hz to 18 kHz in a small enclosure.
• Wide 150° x 60° Coverage — The rotatable Complex Conic horn provides smooth, wide-angle pattern control with low distortion.
• Integrated SA625-RN Amplifier — The built-in amplifier supplies 250 W LF and 125 W HF at 16 ohms with driver-protecting multi-band limiting.
• RHAON II Network Control — Onboard DSP with eight parametric filters, shelving and pass filters, and up to 340 ms of delay is configured over Ethernet from RHAON II software.
• Analog and AES Inputs — Looping XLR-3 connectors accept analog and AES sources for flexible system wiring.
• In-Stock Install Loudspeaker — Kept in stock for immediate shipment in black or white for fast project turnaround.

Typical Applications

• Huddle room
• Conference room
• Boardroom
• House of worship
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

What amplifier powers the CA61-RN? It uses the integrated Renkus-Heinz SA625-RN module supplying 250 W LF and 125 W HF at 16 ohms, with RHAON II network control.

Does it support Dante? The RN model uses analog and AES inputs with RHAON control. For Dante digital audio with redundancy, choose the CA61-RD.

What is the difference between CA61 and CX61? The CA61 is self-powered with the SA625 amplifier module; the CX61 is the externally powered (passive) version.

Does it integrate with other Renkus-Heinz systems? Yes. It pairs with Renkus-Heinz subwoofers and steerable systems over RHAON II. See the Renkus-Heinz collection.

What warranty applies? Warranty terms vary by product and region. Contact Creation Networks for current warranty and support details.
