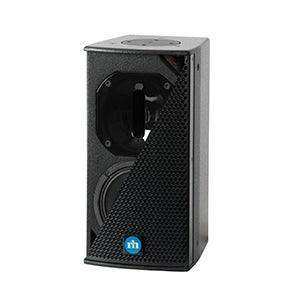

The CA61-RD is a 6.5-inch 2-way full-range loudspeaker with a built-in crossover and a 1-inch titanium HF driver. Built to Renkus-Heinz's exacting standards, the compact CA61-RD has an integrated 625 watt Class-D amplifier for plenty of power.
An exclusive 150° x 60° horn design provides constant beamwidth/directivity that delivers smooth high-frequency coverage across the listening area to avoid hot spots and can be rotated 90° to accommodate wide or deep listening spaces. This makes the CA61-RD ideal for mobile sound reinforcement where room dimensions change with the venue.
With 625 watts of power, the CA61-RD is well suited for use as a main PA component for live music and speech or fill coverage in larger systems.
The RD features RHAON (Renkus-Heinz Audio Operations Network) software control and monitoring with Dante connectivity supporting Dante redundant network. Analog connectivity is provided via 2 x 3-pin XLR connectors with loop-out.
- Outstanding, full-range performance in an extremely compact, space-saving design
- Exclusive 150° by 60° rotatable horn provides constant beamwidth/directivity to avoid hot spots
- 1-inch Extended Range Titanium HF Driver provides smooth, low distortion high frequency performance to 18 kHz and beyond
- Heavy-Duty 6.5-inch Woofer easily handles 120 Watts of program power
- 2 x XLR-3, In & Loop-out, Analog and AES
- 2 x RJ45, primary & secondary
- Sensitivity: 1.0 volt for rated output, analog
- Weight: 19 lbs (8.6 kg)
- Crossover Frequency: 2.2 kHz active electronic
- Frequency Response: 100 Hz to 20 kHz (+/- 3dB)
- Max. SPL: 120 dB (peak, whole space)
- Dispersion 150° horizontal x 60° vertical, Rotatable Complex Conic Horn
- Enclosure: 11 ply birch plywood
- Grille: 16 GA powder-coated, plated steel
- Transducers: Woofer: SSL6.5-18; High Frequency Driver: SSD1445-16; Replacement HF Diaphragm CD1445-16
- Finish: Black (RAL9010) or White (RAL9011) paint
- Mounting: 12 x M6 UMH points; 2 x M10 u-bracket nutplate. Optional: UBRKT/CT61B (black), UBRKT/CT61W (white)
- Dimensions (WxHxD): 7.88" x 16.00" x 9.38" (200 x 406 x 238 mm)
