Renkus-Heinz CA121‐A Self‐Powered Analog, SA1250‐A Amp Module
Product Overview

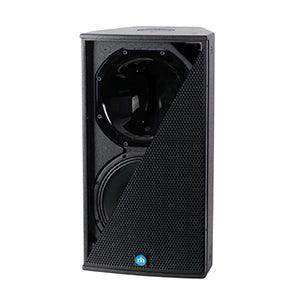

The Renkus-Heinz CA121-A is a self-powered 12-inch two-way point-source loudspeaker with an analog-input amplifier module, part of the in-stock C Series for permanent install applications. It combines a 12-inch heavy-duty woofer and 2-inch titanium HF driver on a rotatable Complex Conic waveguide with an integrated SA1250-A amplifier module. As a plug-and-play powered install loudspeaker, it serves as a compact main system or distributed coverage in auditoriums, houses of worship, and multi-purpose venues without external amplifier racks.
Product Description
The C Series delivers premium point-source performance for installation at a competitive price, kept in stock for immediate shipment in black or white. The CA121 features a heavy-duty 12-inch woofer and a 2-inch titanium HF driver, with a 90° x 40° Complex Conic horn that rotates 90° within the cabinet for wide or deep listening spaces. The integrated SA1250 amplifier supplies 1000 watts to the low-frequency section and 250 watts to the high-frequency section, with factory-optimized multi-band peak and thermal limiting that protects the drivers. The A model accepts balanced analog input through looping XLR-3 connectors, making it a straightforward self-powered choice where network control is not required. Twelve-point Universal Mounting Hardware with M10 threads supports flown and bracket-mounted installation.
Key Features
- 12-Inch Two-Way Point Source — A heavy-duty 12-inch woofer and 2-inch titanium HF driver deliver full-range ± 3 dB output from 60 Hz to 20 kHz.
- Rotatable Complex Conic Horn — The 60° x 40° / 90° x 40° horn rotates 90° within the cabinet for wide or deep rooms.
- Integrated SA1250-A Amplifier — The built-in amplifier supplies 1000 W LF and 250 W HF with factory-optimized multi-band limiting.
- Analog Input — Looping XLR-3 connectors accept balanced analog signal for simple, network-free integration.
- No External Amplifier Racks — The self-powered design removes outboard amplification and long speaker-cable runs.
- In-Stock Install Loudspeaker — Kept in stock for immediate shipment in black or white for fast project turnaround.
Typical Applications
- Auditorium
- House of worship
- Multi-purpose room
- Commercial meeting space
- Training room
Technical Specifications
| LF Driver | SSL12-26, 12 in., 350 W AES @ 8 ohms |
| HF Driver | SSD1747-8, 2 in. titanium, 60 W AES @ 8 ohms |
| Frequency Response | ± 3 dB, 60 Hz to 20 kHz |
| Dispersion | 60° x 40° or 90° x 40°, rotatable |
| Maximum SPL | 127 dB peak |
| Amplifier Output | SA1250: LF 1000 W @ 8 ohms; HF 250 W @ 8 ohms |
| Audio Connections | 2 x XLR-3 in & loop-out, analog |
| Latency | 6.25 ms |
| Mains Voltage | 100-240 V, 50/60 Hz auto-switching; powerCON TRUE-1 |
| Enclosure | 19 mm Lite Ply, perforated metal grille |
| Mounting | 12-point Universal Mounting Hardware (M10); M10 U-bracket points |
| Dimensions | 27 in. H x 14-3/8 in. W x 14-1/4 in. D (686 x 365 x 362 mm) |
| Weight | 45 lbs / 20.4 kg |
Frequently Asked Questions
What amplifier powers the CA121-A? It uses the integrated Renkus-Heinz SA1250-A analog-input module supplying 1000 W LF and 250 W HF with factory-optimized limiting.
Does the CA121-A have network control? No. The A model is analog-input only. For RHAON II network control choose the CA121-RN, or the CA121-RD for Dante.
Can the horn be rotated? Yes. The Complex Conic horn rotates 90° within the cabinet to provide 60° x 40° or 90° x 40° coverage.
Can it be paired with a subwoofer? Yes. It integrates well with Renkus-Heinz C and S Series subwoofers. See the Renkus-Heinz collection.
What warranty applies? Warranty terms vary by product and region. Contact Creation Networks for current warranty and support details.
