Renkus-Heinz CA118S‐A Self‐Powered Analog, SA1250‐A Amp Module
Product Overview

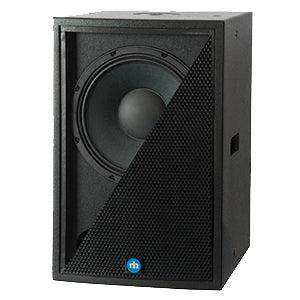

The Renkus-Heinz CA118S-A is a self-powered 18-inch subwoofer with an analog-input amplifier module, part of the in-stock C Series and a companion to C Series full-range loudspeakers. It provides high-impact sub-bass for permanent commercial installations, pairing an 18-inch high-power woofer with an integrated SA1250-A amplifier module. As a plug-and-play powered install subwoofer, it extends low-frequency reach in auditoriums, houses of worship, and multi-purpose venues without external amplifier racks.
Product Description
The C Series is kept in stock for immediate shipment in black. The 118S subwoofer was developed as a companion to full-range C Series loudspeakers, providing the high-impact sub-bass energy many venues require. Its high-performance woofer uses a 4-inch voice coil, rigid cast-alloy frame, and long-throw magnetic structure. The integrated SA1250 amplifier supplies 1000 watts to the low-frequency section with factory-optimized multi-band peak and thermal limiting, and a built-in low-pass filter eliminates the need for an external electronic crossover. The A model accepts balanced analog input through looping XLR-3 connectors, making it a straightforward self-powered choice where network control is not required. Twelve M10 Universal Mounting points and a 35 mm pole socket support flown and ground-stacked deployment.
Key Features
- High-Power 18-Inch Woofer — A 4-inch voice coil and long-throw magnetic structure deliver deep 35 Hz to 100 Hz sub-bass.
- Integrated SA1250-A Amplifier — The built-in amplifier supplies 1000 watts to the low-frequency section with factory-optimized multi-band limiting.
- Analog Input — Looping XLR-3 connectors accept balanced analog signal for simple, network-free integration.
- Built-In Low-Pass Filter — The integrated crossover removes the need for an external electronic crossover.
- No External Amplifier Racks — The self-powered design removes outboard amplification and long speaker-cable runs.
- In-Stock Install Subwoofer — Kept in stock for immediate shipment for fast project turnaround.
Typical Applications
- Auditorium
- House of worship
- Multi-purpose room
- Commercial meeting space
- Broadcast studio
Technical Specifications
| LF Driver | SSL18-10, 18 in., 450 W RMS / 900 W Pgm @ 8 ohms |
| Frequency Response | 35 Hz to 100 Hz |
| Maximum SPL | 129 dB peak, half-space |
| Amplifier Output | SA1250: LF 1000 W @ 8 ohms |
| Audio Connections | 2 x XLR-3 in & loop-out, analog |
| Latency | 6.25 ms |
| Mains Voltage | 100-240 V, 50/60 Hz auto-switching; powerCON TRUE-1 |
| Enclosure | 19 mm Lite Ply, perforated metal grille |
| Mounting | 12 x M10 UMH points; 35 mm pole socket |
| Dimensions | 22-1/4 in. W x 29-3/8 in. H x 23-1/2 in. D (565 x 746 x 597 mm) |
| Weight | 88 lbs / 39.9 kg |
Frequently Asked Questions
What amplifier powers the CA118S-A? It uses the integrated Renkus-Heinz SA1250-A analog-input module supplying 1000 W to the low-frequency section with factory-optimized limiting.
Does the CA118S-A have network control? No. The A model is analog-input only. For RHAON II network control choose the CA118S-RN, or the CA118S-RD for Dante.
Does it need an external crossover? No. A built-in low-pass filter integrates the subwoofer without a separate electronic crossover.
Does it pair with C Series loudspeakers? Yes. It is designed as a companion to full-range C Series systems. See the Renkus-Heinz collection.
What warranty applies? Warranty terms vary by product and region. Contact Creation Networks for current warranty and support details.
