Renkus-Heinz A112‐RD Self‐Powered with RHAON & Dante Redundant, SA2000‐RD
Roll over image to zoom in Click on image to zoom
Renkus-Heinz A112‐RD Self‐Powered with RHAON & Dante Redundant, SA2000‐RD
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Renkus-Heinz A112‐RD Self‐Powered with RHAON & Dante Redundant, SA2000‐RD

Availability: Call for Availability
Availability: Direct Ship
Renkus-Heinz SKU: SA112‐RD-BK
No reviews
Model: Black
Price:
$4,526.00

Description

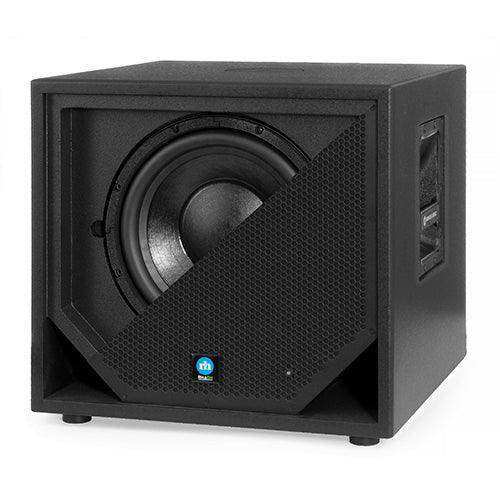

The SX/SA112 subwoofer provides the power and punch of a 12 inch woofer in a cabinet that is easy to integrate into any project. Large ports insure that this forceful bass is never marred by any chuffing or fluttering noises.
Designed in Power & Flexibility

Sixteen, M10 Universal Mounting Points allow the SX/SA112 to be flown using M10 eyebolts, while the recessed handles top-mounted pole adapter and available casters make portable use easy and practical.

The optional SA2000 power amplifier precisely matches the power needs of the SA112, provides optimal damping of the woofer and has factory optimized, multi-band limiting. The built-in amp eliminates the need for additional rack space and speaker cable runs, making adding a subwoofer to existing installs as simple as plugging it into power and running a signal to it.

Controlled via RHAON II, the SA2000’s built-in DSP has eight, fully parametric EQ filters, high and low shelf and high and low pass filters and up to 340 ms. of delay. All easily accessed via a Windows computer running RHAON II.
The SA112-RD1 and SA112-RD add Dante digital signal distribution capability including AES67 compatibility and network redundancy (RD Model.).

Technical Data
Frequency Response: SX112
SA112-RN
SA112-RD		 45 Hz to 110 Hz (-3 dB)

37 Hz to 130 Hz (-10 dB)
Sensitivity: SX112 92 dB (1 W @ 1 m, Half-space)
SA112-RN
SA112-RD		 1.4 volt for rated output, analog
Maximum Peak SPL: SX112
SA112-RN
SA112-RD		 126 dB (Half-space)
Connections: SX112 2 x Neutrik Speakon NL4 in parallel with terminal strip
SA112-RN
SA112-RD		 See SA2000 amplifier specifications
Transducers: SX112
SA112-RN
SA112-RD		 Woofer: SSL12-11
Crossover Frequency: SX112 120 Hz or lower recommended
SA112-RN
SA112-RD		 100 Hz. Active
Enclosure: SX112
SA112-RN
SA112-RD		 3/4 in./19 mm Lite Ply plywood
Grille: SX112
SA112-RN
SA112-RD		 16 GA powder coated, plated steel
Finish: SX112
SA112-RN
SA112-RD		 Black (RAL9010) or White (RAL9011) paint, standard. Custom colors optional.
Mounting: SX112
SA112-RN
SA112-RD		 16 x M10 UMH points; M20 pole mount.
Weight: SX112
SA112-RN
SA112-RD		 55 lbs / 25 kg
Dimensions: SX112
SA112-RN
SA112-RD		 19-1/4 in. / 489 mm wide
17-1/2 in. / 445 mm high
20 in. / 508 mm deep

SA2000 Amplifier Specifications
Audio Connections: SA112-RN 2 x XLR-3, In & Loop-out, Analog and AES
SA112-RD 2 x XLR-3, In & Loop-out, Analog and AES
2 x RJ45 Dante Primary & Secondary Ethernet
Maximum Input Level: SA112-RN
SA112-RD		 +22 dBu, Analog, 0 dBFS digital
Network Connections: SA112-RN 2 x RJ45, Looping Ethernet/RHAON
SA112-RD 2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.)
User DSP: SA112-RN
SA112-RD		 Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
Software: SA112-RN
SA112-RD		 RHAON II
Latency: SA112-RN 6.25 ms
SA112-RD 6.25 ms + Dante transport latency
Power Output: SA112-RN
SA112-RD		 2000 watts @ 8 ohms
Mains Voltage: SA112-RN
SA112-RD		 100-240 volts, 50/60 Hz auto-switching
Power Consumption: SA112-RN
SA112-RD		 Idle: 200 mW. 1/8 power: 480 W (onset of limiting) 1/3 power: 1200 W (hard limiting)
Power Connector: SA112-RN
SA112-RD		 Neutrik powerCON TRUE-1
Temprature Limits: SA112-RN
SA112-RD		 Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
