Sonance R10SUB Kit – In-Wall Subwoofer System with DSP Amp

Product Overview

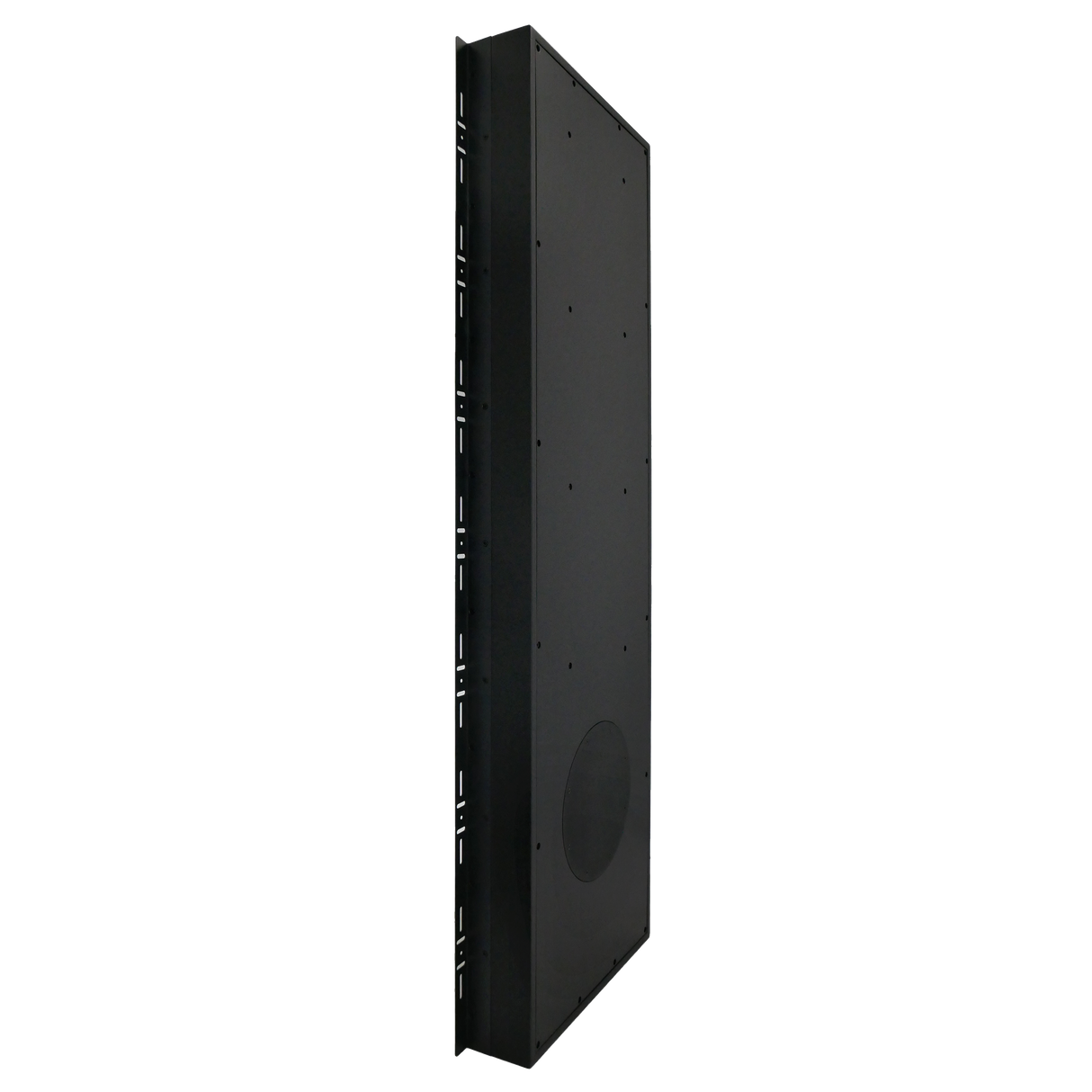

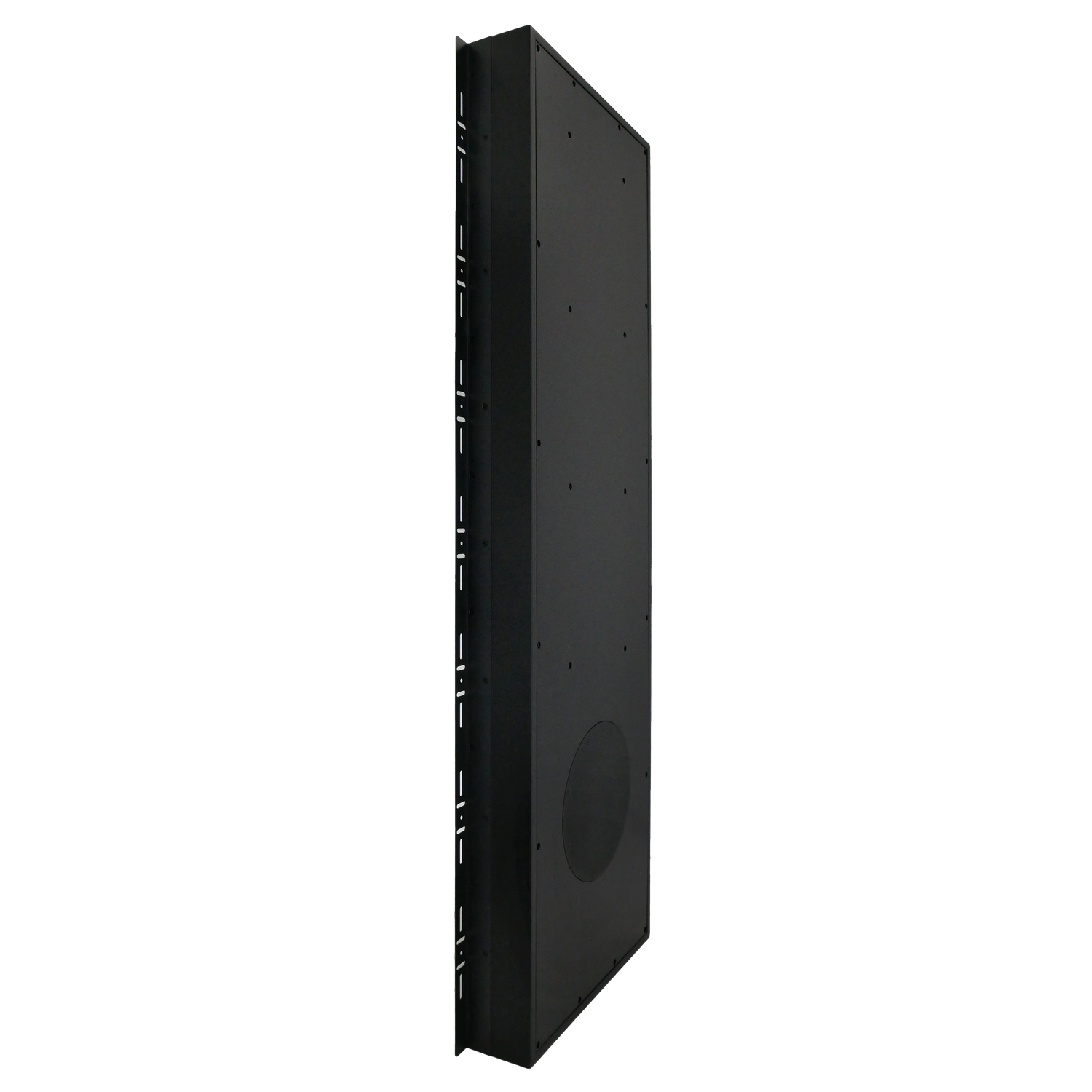

The Sonance R10SUB Kit bundles two R10SUB in-wall subwoofer drivers, two matching R10SUB enclosures, and a Sonance DSP 2-150 MKIII amplifier into a single, ready-to-specify system. It is intended for integrators who want dual in-wall subwoofers with matched amplification without sourcing each component separately. The kit is built around the R10SUB's 10-inch laminated carbon fiber driver, rated 30Hz to 250Hz.

Product Description

Specifying a dual in-wall subwoofer system typically means ordering drivers, enclosures, and an amplifier as separate line items; the Sonance R10SUB Kit simplifies that by packaging two R10SUB drivers, two R10SUB enclosures, and a DSP 2-150 MKIII amplifier together. Each R10SUB driver uses a 10-inch laminated carbon fiber cone with an individual crossover network, rated 30Hz to 250Hz (±3dB) at 88dB sensitivity. The matched enclosures use dual-thickness MDF with aluminum bracing to control airflow and limit vibration transfer into adjoining rooms, while the included DSP amplifier lets integrators tune both subwoofers to the room's acoustics from a single point. Because the components are matched by the manufacturer, integrators avoid guesswork on amplifier compatibility or enclosure fit. The kit mixes and matches with other Sonance Reference Series speakers for projects that need consistent sound across a full room layout. Sonance's limited lifetime warranty applies to the included drivers and enclosures, with a 5-year warranty on the grilles when purchased through an authorized dealer such as Creation Networks.

Key Features

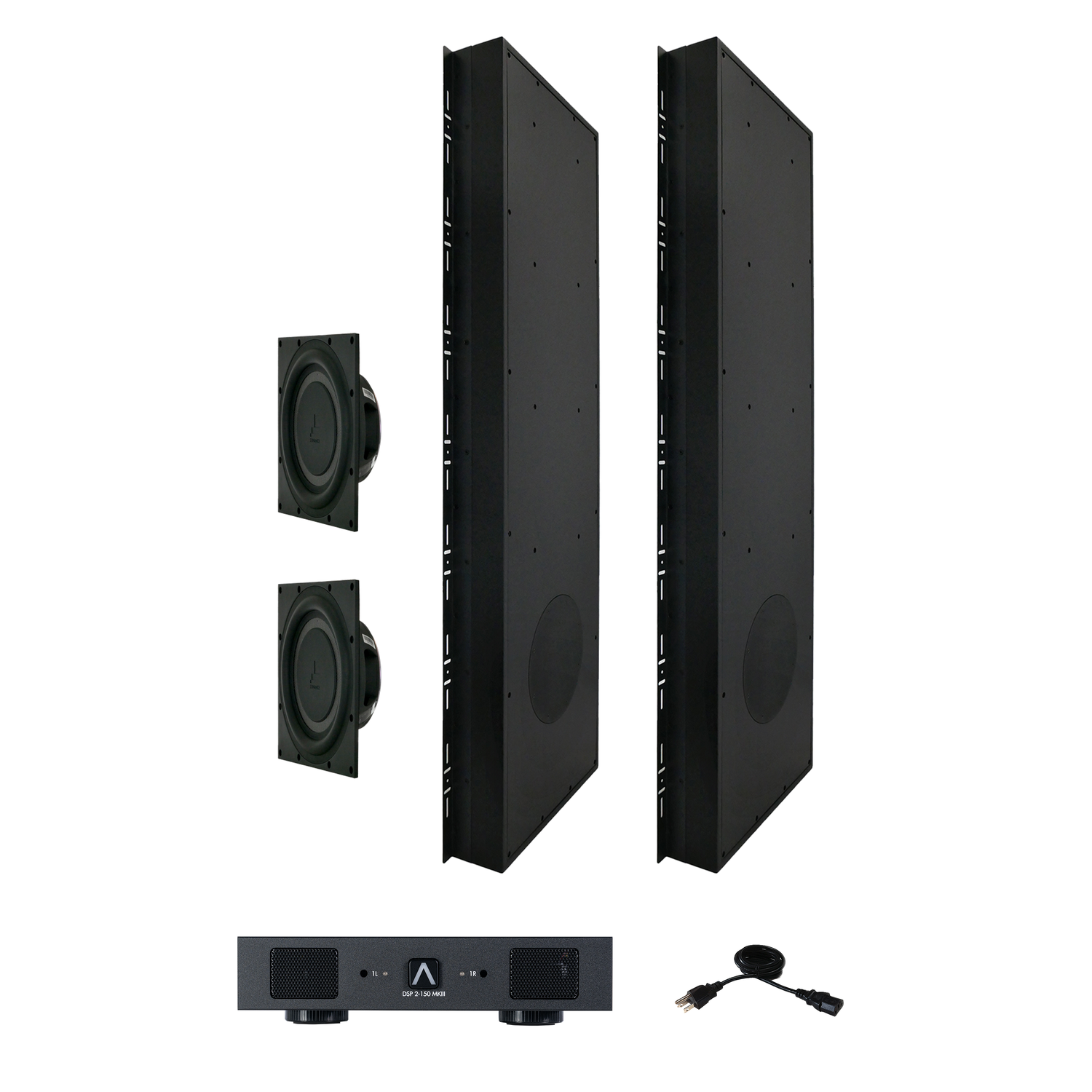

• Complete Dual-Subwoofer System — Includes two R10SUB drivers, two enclosures, and a DSP amplifier in one kit.

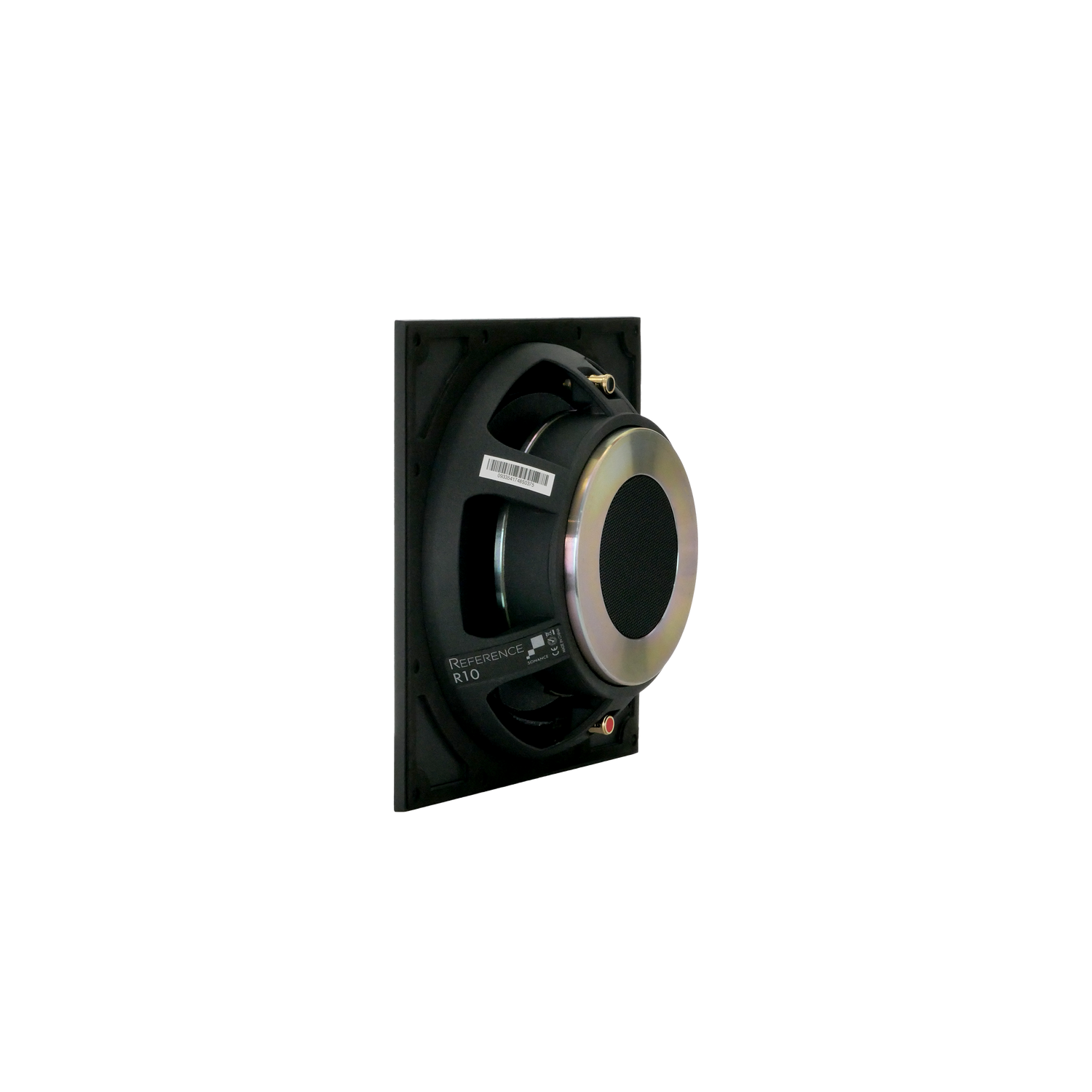

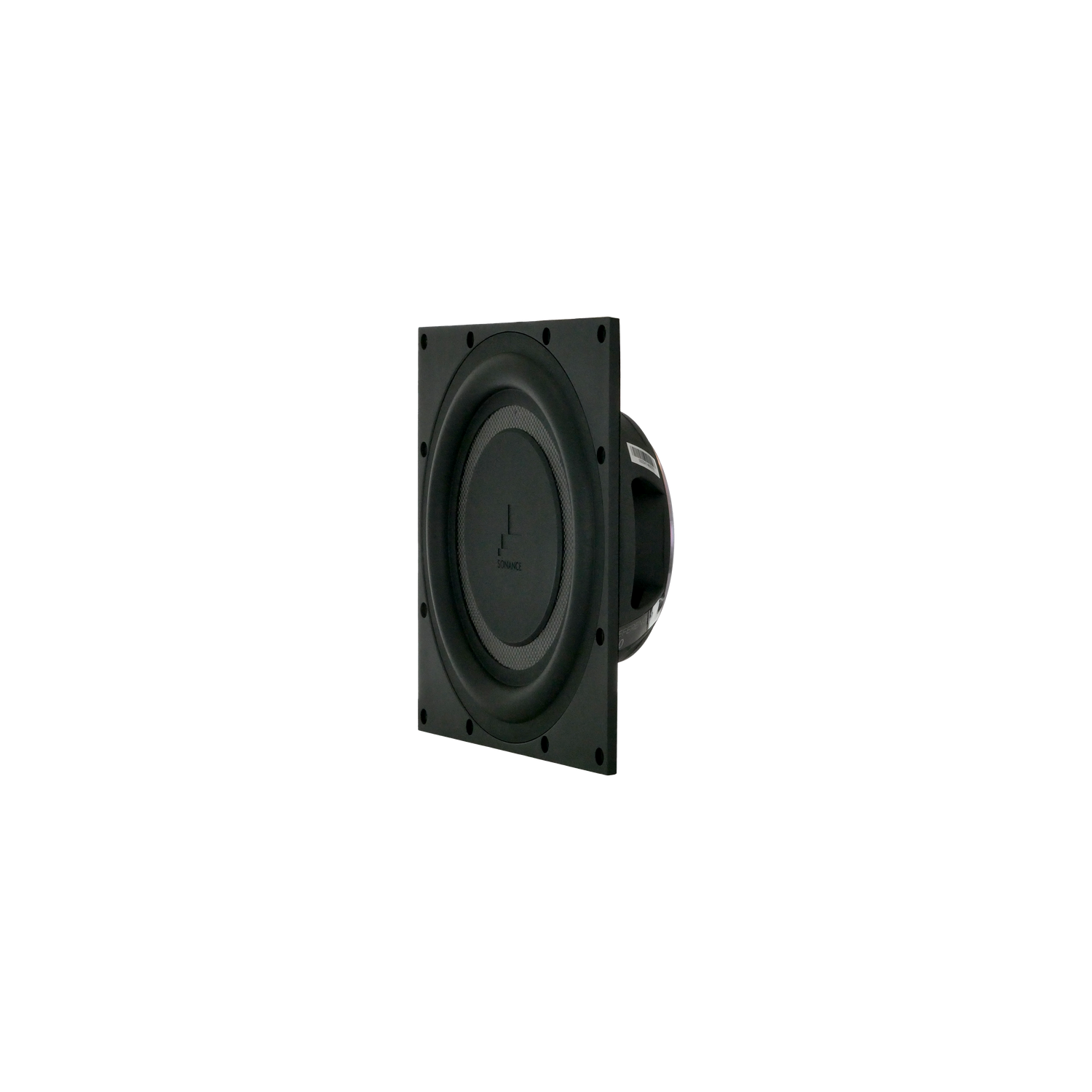

• 10-Inch Carbon Fiber Drivers — Rated 30Hz–250Hz (±3dB) at 88dB sensitivity.
• Matched DSP Amplification — DSP 2-150 MKIII amplifier is pre-selected to drive both subwoofers.
• Isolated Enclosures — Dual-thickness MDF construction with aluminum bracing reduces vibration transfer.
• Simplified Specification — One SKU covers drivers, enclosures, and amplification for a dual-sub system.

Typical Applications

Suited to home theaters and larger media rooms where dual in-wall subwoofers with matched, tunable amplification are specified as a system.

• Dedicated home theaters
• Larger media rooms and great rooms
• Whole-home audio projects requiring dual-sub balance

Technical Specifications

Frequently Asked Questions

What is included in the R10SUB Kit?

The kit includes two R10SUB in-wall subwoofer drivers, two matching R10SUB enclosures, and one DSP 2-150 MKIII amplifier.

Do I need to buy anything else to install this kit?

The kit includes the drivers, enclosures, and amplifier; standard speaker cable and an amplifier location are still required for installation.

What is the frequency response of the R10SUB drivers in this kit?

Each R10SUB driver is rated 30Hz to 250Hz (±3dB).

Can the DSP amplifier be tuned to the room?

Yes, the included DSP 2-150 MKIII amplifier allows integrators to tune output for the specific room.

Can this kit be combined with other Sonance Reference speakers?

Yes, the R10SUB drivers mix and match with other Reference Series models for a consistent room layout.
