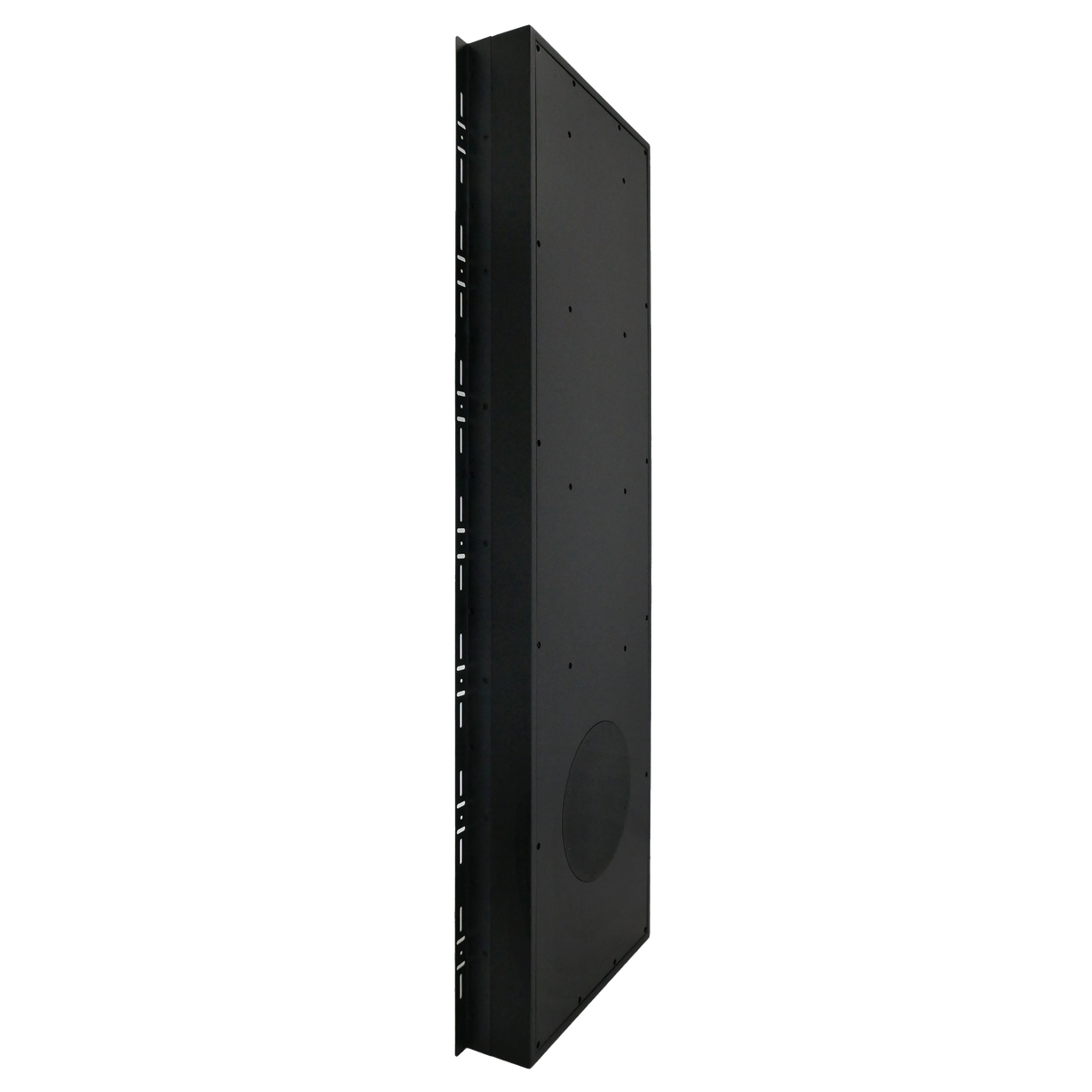

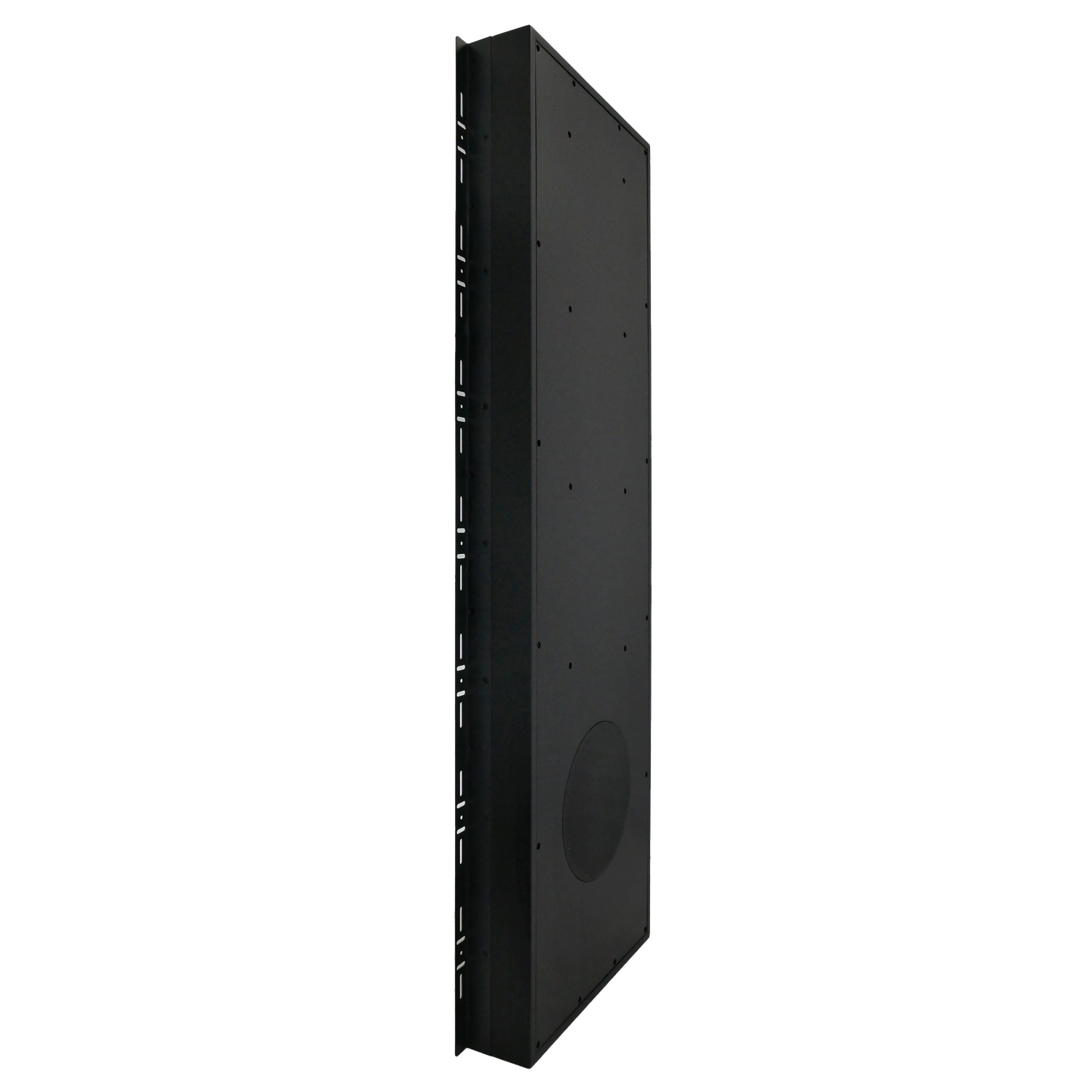

Sonance R10SUB – Reference In-Wall Subwoofer Enclosure

Product Overview

The Sonance R10SUB Enclosure is the matching in-wall enclosure for the R10SUB Reference Series subwoofer driver. It is intended for integrators completing an R10SUB installation who need the correct acoustic loading and vibration control between rooms. Built from dual-thickness MDF with aluminum bracing, the enclosure seals the driver into the wall cavity for controlled bass response.

Product Description

The R10SUB driver requires a dedicated enclosure to perform correctly in a wall or ceiling cavity, and this Sonance R10SUB Enclosure is purpose-built for that role. It combines 1/2-inch and 1-inch MDF panels with long-strand fiberglass acoustic dampening and extruded aluminum bracing to isolate the driver's output and reduce vibration transfer into adjoining rooms. At 14.25 inches wide by 47.25 inches tall by 3.44 inches deep, it is sized to fit within a standard 2x4 stud bay for straightforward new-construction or retrofit installation. The enclosure ships in black and includes a blank pre-construction plate so framers can rough in the opening before the driver arrives on site. Dual terminals on the enclosure simplify wiring and give installers flexibility when running speaker cable. Pairing the R10SUB driver with this enclosure and a compatible Sonance DSP amplifier lets integrators tune output for the room. Sonance backs the enclosure with a limited lifetime warranty when purchased through an authorized dealer such as Creation Networks.

Key Features

• Dual-Thickness MDF Construction — Combines 1/2-inch and 1-inch MDF for improved bass isolation.
• Extruded Aluminum Bracing — Reduces vibration transfer into adjoining rooms.
• Standard Stud Bay Fit — 3.44-inch depth fits a standard 2x4 wall cavity.
• Pre-Construction Plate Included — Simplifies framing before the driver is installed.
• Dual Terminals — Adds wiring flexibility during installation.
• Limited Lifetime Warranty — Backed by Sonance through authorized dealers.

Typical Applications

Required alongside the R10SUB driver for home theaters, media rooms, and whole-home audio systems using in-wall subwoofers.

Technical Specifications

Frequently Asked Questions

Is the R10SUB driver included with this enclosure?

No. This is the enclosure only; the R10SUB driver is sold separately.

What size wall cavity does the R10SUB Enclosure require?

It fits a standard 2x4 stud bay at 3.44 inches deep, 14.25 inches wide, and 47.25 inches tall.

What is the enclosure made from?

It uses 1/2-inch and 1-inch MDF panels with long-strand fiberglass acoustic dampening and extruded aluminum bracing.

Does the enclosure come with a pre-construction plate?

Yes, a blank pre-construction plate is included so the opening can be framed before the driver is installed.

What color is the R10SUB Enclosure?

It ships in black.

What warranty applies to the R10SUB Enclosure?

Sonance provides a limited lifetime warranty when purchased through an authorized dealer.
