Sound Control Technologies RCV-UNI – VESA Camera Mount for Round-Base Cameras

Product Overview

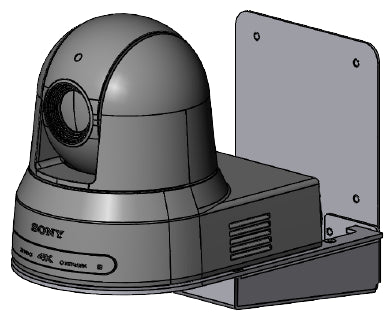

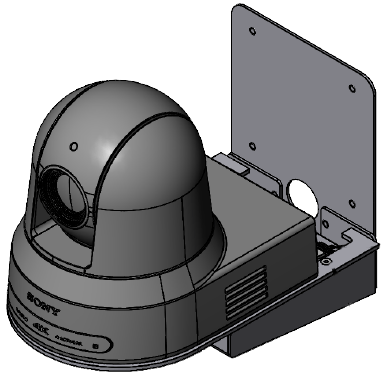

The Sound Control Technologies RCV-UNI is a universal VESA camera mount for round-base PTZ cameras in commercial video conferencing and AV installations. Part of the SCT RCV Series of VESA mounts, it integrates with standard VESA plates and ceiling poles to provide a streamlined camera mounting solution. Cabling and SCT camera-end extension modules are concealed within the mount's base, producing a polished, professional camera installation.

Product Description

VESA mounting hardware is everywhere in commercial AV — display poles, ceiling drops, and articulating arms all terminate in the same standard hole pattern. The RCV-UNI takes advantage of that: it attaches to a standard VESA plate, letting integrators suspend a round-base PTZ camera from existing ceiling pole infrastructure instead of specifying camera-specific hardware. The base of the mount conceals cabling and houses the camera-end (CE) modules of SCT RC4, RC5, RCU2S, RCUSE, and RCU3SL extension kits, so a remotely extended camera needs no visible electronics at the mounting point.

Camera compatibility is broad. Sound Control Technologies lists support for round-base PTZ models including the AVer CAM520 PRO/Advanced and CAM540, Cisco Webex PTZ 4K, HP Poly EagleEye IV USB, Lumens VC-A50/A52/A60/A61/A70 series, Marshall CV620, Panasonic AW-HE38/HE40/UE40/HE42/HE60/UE70/UN70, PTZOptics 12X/20X/30X SDI and USB models, QSC PTZ 12x72 and 20x60, and Sony SRG-120DH, SRG-X40UH, SRG-X120, SRG-300H, and SRG-X400. That coverage makes the RCV-UNI a safe universal specification for multi-room rollouts with mixed camera fleets.

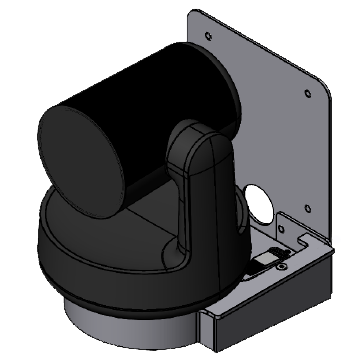

SCT publishes PDF and CAD drawings for the RCV-UNI along with the RCV-VESA plate drawing. For the Logitech Rally Camera, specify the dedicated RCV-LRC; for the Cisco Precision 60, the RCV-CP6.

Key Features

• Standard VESA Integration — Attaches to standard VESA plates and ceiling poles, reusing common commercial mounting infrastructure.
• Broad Round-Base Camera Support — Vendor-listed compatibility spans AVer, Cisco, HP Poly, Lumens, Marshall, Panasonic, PTZOptics, QSC, and Sony PTZ models.
• Concealed Module Storage — The base houses SCT RC4, RC5, RCU2S, RCUSE, and RCU3SL camera-end modules along with cabling.
• Clean, Streamlined Appearance — No exposed electronics or cable loops at the camera position, suitable for client-facing rooms.
• Full Camera Movement Preserved — The mount secures the camera base without restricting motorized pan, tilt, or zoom.
• Design Documentation Available — Vendor-published PDF and CAD drawings plus the VESA plate drawing support AV design coordination.

Typical Applications

• Conference rooms with ceiling-pole camera drops
• Boardrooms and executive meeting spaces
• Training rooms and multi-purpose rooms
• All-hands rooms with suspended camera positions
• Broadcast studios using pole-mounted PTZ cameras
• Auditoriums and house of worship venues

Technical Specifications

Frequently Asked Questions

Which cameras does the RCV-UNI support?
Round-base PTZ cameras from AVer, Cisco (Webex PTZ 4K), HP Poly (EagleEye IV USB), Lumens, Marshall, Panasonic, PTZOptics, QSC, and Sony — see the specifications table for vendor-listed models. For the Logitech Rally, use the RCV-LRC variant.

What mounting hardware does it attach to?
The RCV-UNI integrates with standard VESA plates, making it compatible with common ceiling poles and VESA-pattern mounting hardware used throughout commercial AV.

Can it hide my camera extension electronics?
Yes. The mount base conceals the camera-end modules of SCT RC4, RC5, RCU2S, RCUSE, and RCU3SL extension kits along with cabling.

Does the mount restrict camera movement?
No. The camera retains its full motorized pan, tilt, and zoom range when installed.

Is design documentation available?
Yes. SCT publishes PDF and CAD drawings for the RCV-UNI and the RCV-VESA plate to support AV system design.

How do I get volume pricing?
Contact the Creation Networks sales team for availability, project pricing, and deployment guidance.
