Sound Control Technologies RCU3SL-C40 – USB3 Camera Extension Kit for Biamp and ClearOne Cameras
Sound Control Technologies RCU3SL-C40 – USB3 Camera Extension Kit for Biamp and ClearOne Cameras is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RCU3SL-C40 – USB3 Camera Extension Kit f...
Product Overview
The Sound Control Technologies RCU3SL-C40 RemoteCamUSB3SL is a USB 3.2 Gen1 camera extension kit configured for Biamp and ClearOne cameras. It extends USB 3.2 Gen1 (5 Gbps), RS-232 VISCA PTZ camera control, and camera power delivery up to 100 meters over a single CAT cable, enabling Biamp and ClearOne USB cameras to be positioned at the optimal location in commercial conference rooms without being constrained by USB cable length limits.
Product Description
The RCU3SL-C40 carries USB 3.2 Gen1 data, RS-232 VISCA control, and USB Power Delivery simultaneously over a single structured CAT cable between the camera-end (CE) and head-end (HE) modules. The CE module is configured specifically for the connector and power interface of Biamp and ClearOne cameras, ensuring compatibility without additional adapters or power injectors.
For integrators working with Biamp or ClearOne unified communications systems, the RCU3SL-C40 provides a purpose-matched extension solution that maintains USB 3.2 Gen1 bandwidth and full VISCA PTZ control over extended runs. Power Delivery supports 5V/9V/12V at 3A (36W maximum) and 15V at 2.4A, with a separate 5V camera power path at up to 1.2A. MSRP: $2,155. Country of origin: USA/Taiwan.
Key Features
- Configured for Biamp and ClearOne Cameras — CE module cabling matched to the interface requirements of Biamp and ClearOne USB cameras.
- Up to 100m USB 3.2 Gen1 Extension — Extends USB 3.2 Gen1 (5 Gbps) data up to 100 meters over a single CAT cable.
- RS-232 VISCA Camera Control — Carries VISCA PTZ control alongside USB data and power delivery over the same CAT cable.
- USB Power Delivery (USB-PD) — Supplies 5V/9V/12V at 3A or 15V at 2.4A (36W maximum) over the cable run.
- 5V Camera Power Path — Separate 5V at up to 1.2A for auxiliary camera power needs.
- Complete CE/HE Kit — Ships with camera-end and head-end modules for a ready-to-install extension system.
Typical Applications
- Conference room with Biamp or ClearOne USB camera requiring extended cabling to the codec
- Commercial or government meeting space with ClearOne camera-based conferencing
- Boardroom with Biamp audio/video infrastructure and remote camera placement
- Multi-purpose room using Biamp or ClearOne cameras with structured CAT cabling
Technical Specifications
| Specification | Detail |
|---|---|
| Model/SKU | RCU3SL-C40 |
| Compatible Cameras | Biamp cameras, ClearOne cameras |
| USB Standard | USB 3.2 Gen1 (5 Gbps) |
| Maximum Extension Distance | Up to 100 meters |
| Camera Control | RS-232 VISCA |
| USB-PD Output | 5V/9V/12V @ 3A or 15V @ 2.4A (36W max) |
| 5V Camera Power | Up to 1.2A |
| Cable Infrastructure | Single CAT cable (CE to HE) |

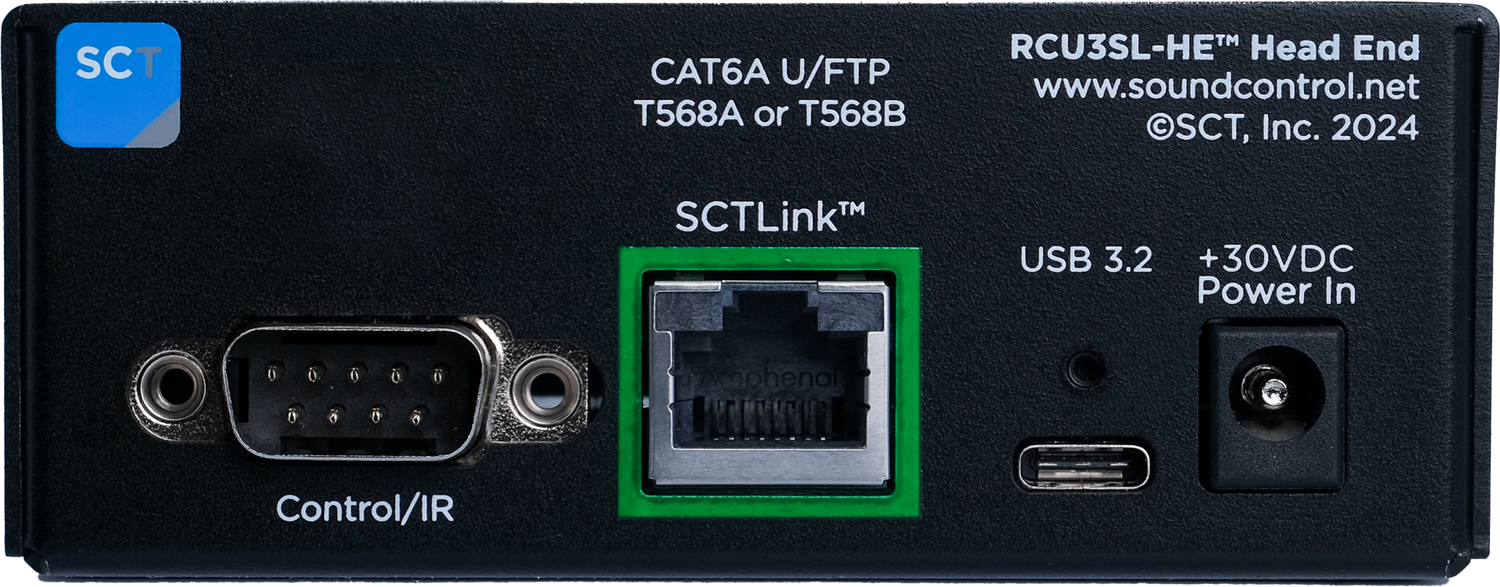

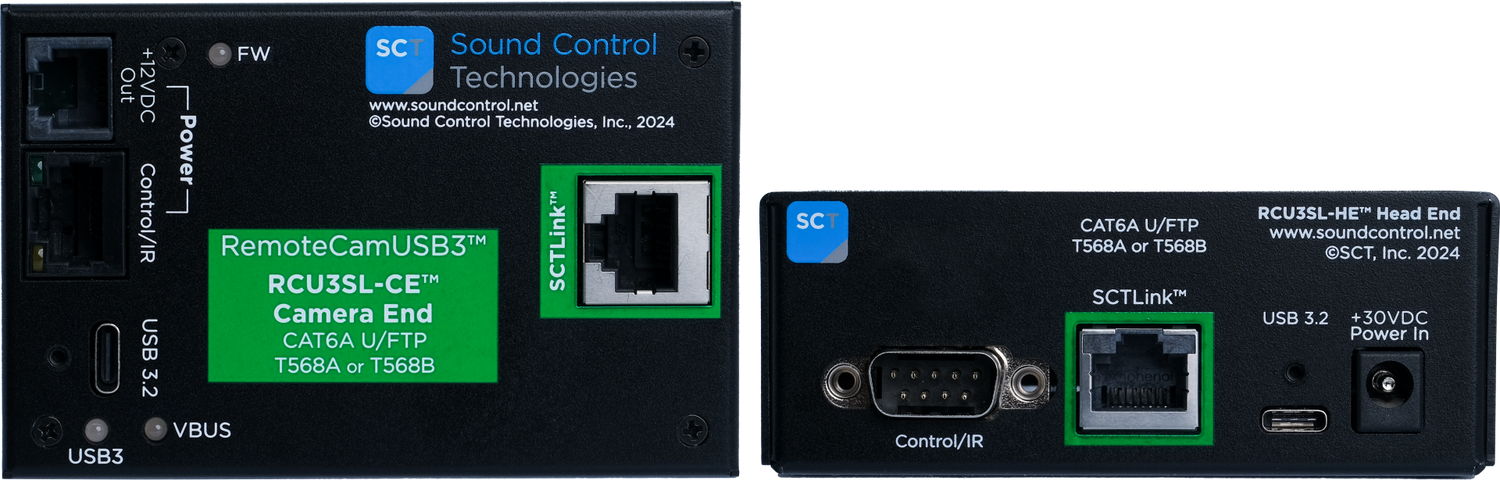

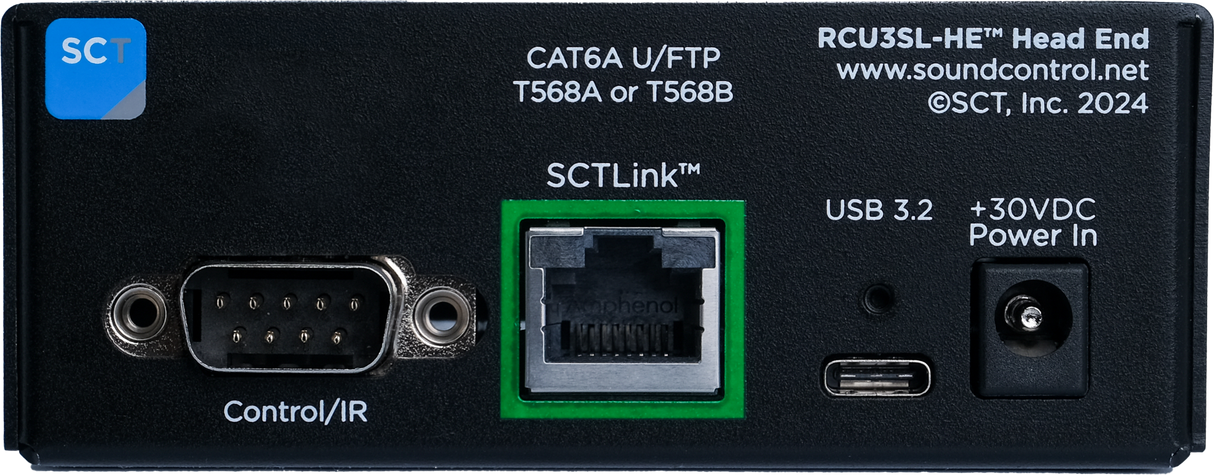

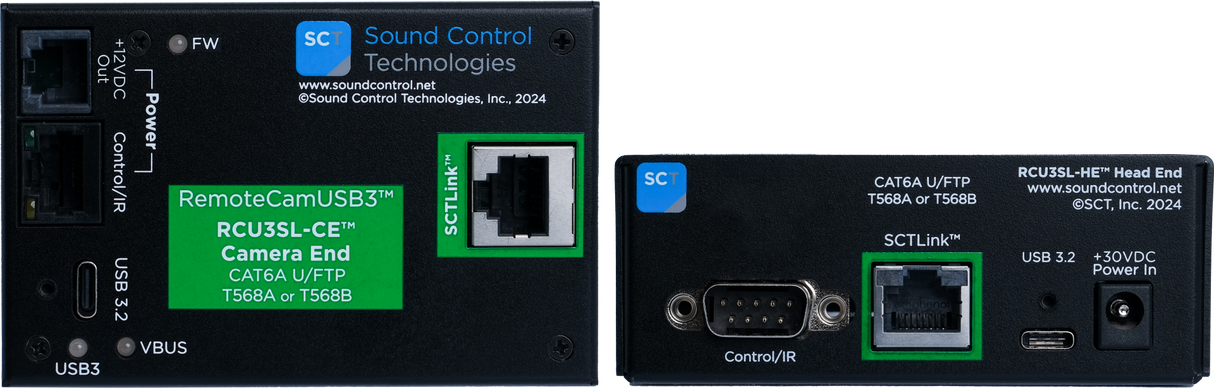

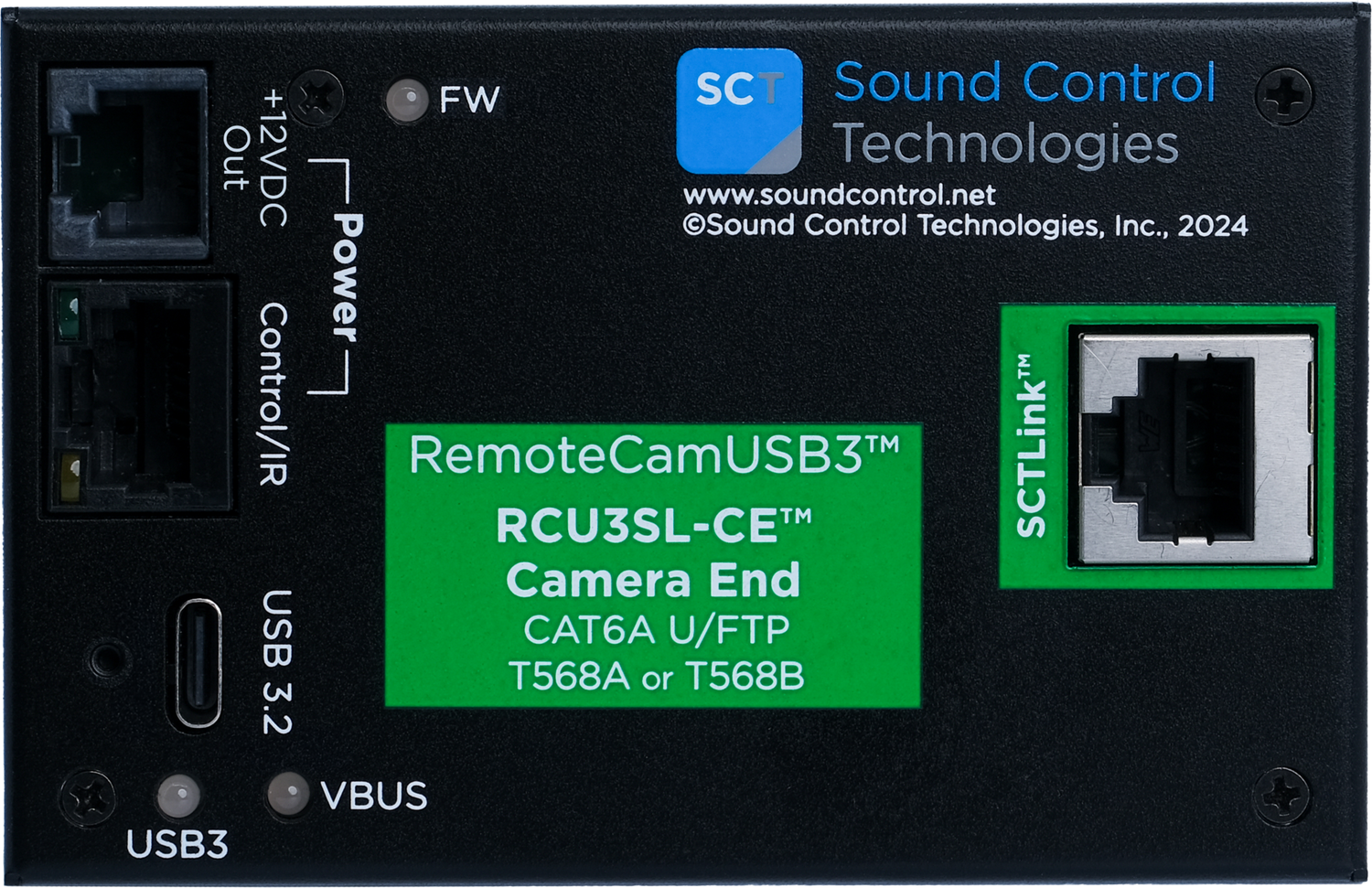

| Kit Includes | RCU3SL-CE (Camera End), RCU3SL-HE (Head End) |
| MSRP | $2,155 |
| Unit of Measure | Each (kit) |
| Country of Origin | USA/Taiwan |
Frequently Asked Questions
Which Biamp and ClearOne cameras are supported?
The RCU3SL-C40 is configured for Biamp and ClearOne cameras. Contact Creation Networks to confirm compatibility with your specific camera model before ordering.
Does the RCU3SL-C40 carry PTZ control?
Yes. RS-232 VISCA PTZ control signals are extended over the same CAT cable alongside USB data and power.
What is the maximum extension distance?
Up to 100 meters over a single CAT cable for USB 3.2 Gen1, VISCA control, and power simultaneously.
Are individual replacement modules available?
Yes. The RCU3SL-CE and RCU3SL-HE replacement modules are available separately through Creation Networks.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for the RCU3SL-C40.
