Sound Control Technologies RCU3SL-C30 – USB3 Camera Extension Kit for Panasonic and Poly Studio
Sound Control Technologies RCU3SL-C30 – USB3 Camera Extension Kit for Panasonic and Poly Studio is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RCU3SL-C30 – USB3 Camera Extension Kit f...
Product Overview
The Sound Control Technologies RCU3SL-C30 RemoteCamUSB3SL is a USB 3.2 Gen1 camera extension kit configured for Panasonic cameras and a range of Poly Studio video bar models including the Poly Studio, X30, X50, X52, X70, X72, V52, and V72. It extends USB 3.2 Gen1 (5 Gbps), RS-232 VISCA PTZ control, and camera power delivery up to 100 meters over a single CAT cable, making it suitable for conference rooms where the camera must be positioned at a distance from the host codec.
Product Description
The RCU3SL-C30 carries USB 3.2 Gen1 data, RS-232 VISCA control, and USB Power Delivery simultaneously over a single structured CAT cable between the camera-end (CE) and head-end (HE) modules. The camera-end module is configured to match the connector and power interfaces of Panasonic cameras and the Poly Studio, X30, X50, X52, X70, X72, V52, and V72 video bars.
This variant covers a wide range of Poly Studio camera/codec combinations in addition to Panasonic cameras, making it a practical choice for integrators standardizing on Poly Studio platforms across multiple room types. Power Delivery supports 5V/9V/12V at 3A (36W maximum) and 15V at 2.4A, plus a separate 5V camera power path at up to 1.2A. MSRP: $2,155. Country of origin: USA/Taiwan.
Key Features
- Broad Poly Studio and Panasonic Compatibility — CE module configured for Panasonic cameras and Poly Studio, X30, X50, X52, X70, X72, V52, and V72 video bars.
- Up to 100m USB 3.2 Gen1 Extension — Extends USB 3.2 Gen1 (5 Gbps) data up to 100 meters over a single CAT cable.
- RS-232 VISCA Camera Control — Carries PTZ control signals over the same CAT cable for full pan, tilt, and zoom control.
- USB Power Delivery (USB-PD) — Delivers 5V/9V/12V at 3A or 15V at 2.4A (36W maximum) over the CAT cable run.
- 5V Camera Power Path — Separate 5V at up to 1.2A for cameras requiring independent power.

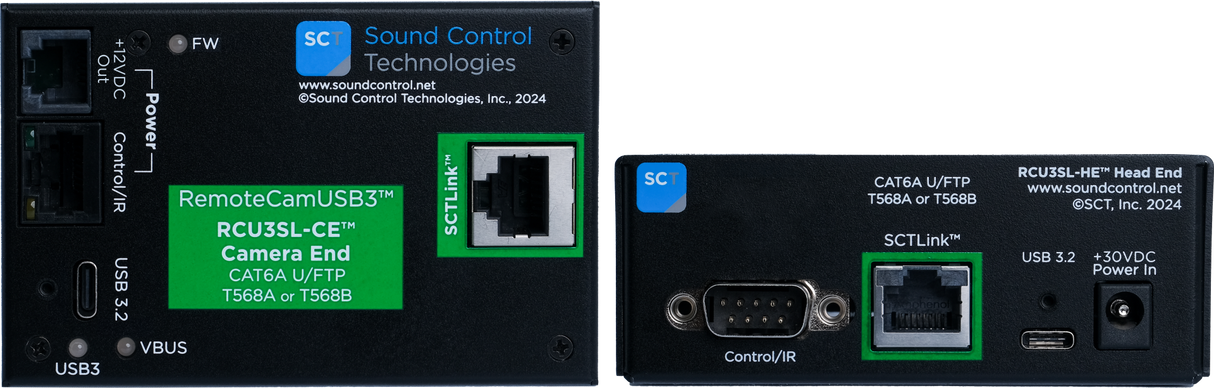

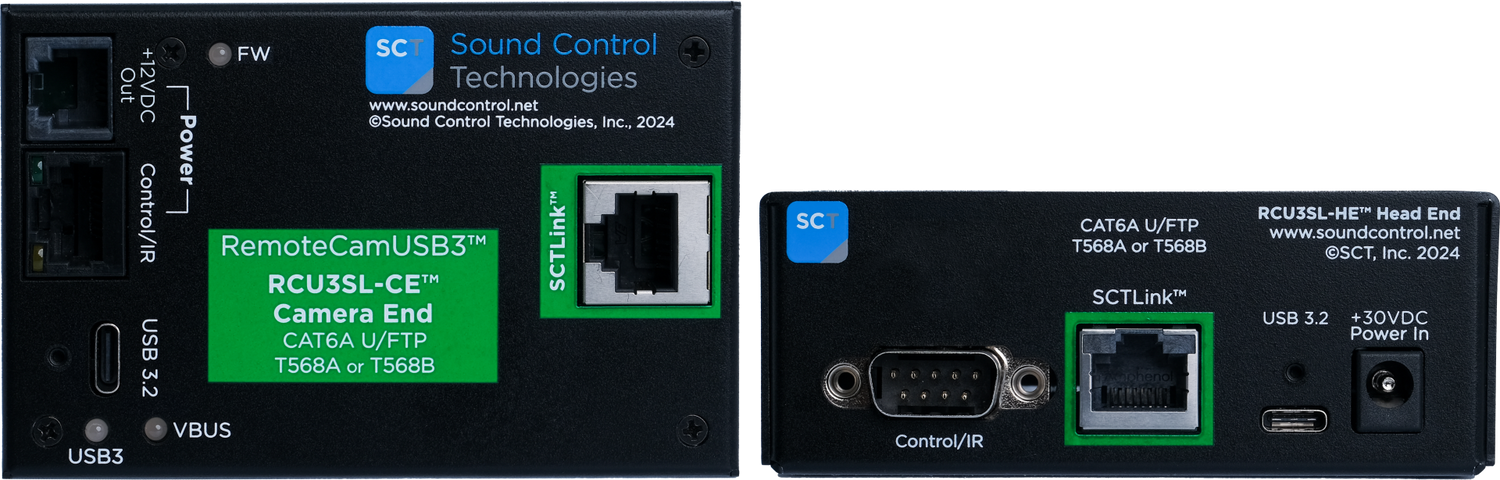

- Complete CE/HE Kit — Ships with both camera-end and head-end modules for a complete installation.
Typical Applications
- Conference room with Poly Studio X50/X70 requiring extended USB camera cabling
- Boardroom with Panasonic PTZ camera positioned away from the codec rack
- Commercial or government meeting space using Poly Studio V-series video bars
- Multi-purpose room with Poly Studio X30 or X52 and structured CAT cabling
Technical Specifications
| Specification | Detail |
|---|---|
| Model/SKU | RCU3SL-C30 |
| Compatible Cameras/Codecs | Panasonic cameras; Poly Studio, X30, X50, X52, X70, X72, V52, V72 |
| USB Standard | USB 3.2 Gen1 (5 Gbps) |
| Maximum Extension Distance | Up to 100 meters |
| Camera Control | RS-232 VISCA |
| USB-PD Output | 5V/9V/12V @ 3A or 15V @ 2.4A (36W max) |
| 5V Camera Power | Up to 1.2A |
| Cable Infrastructure | Single CAT cable (CE to HE) |

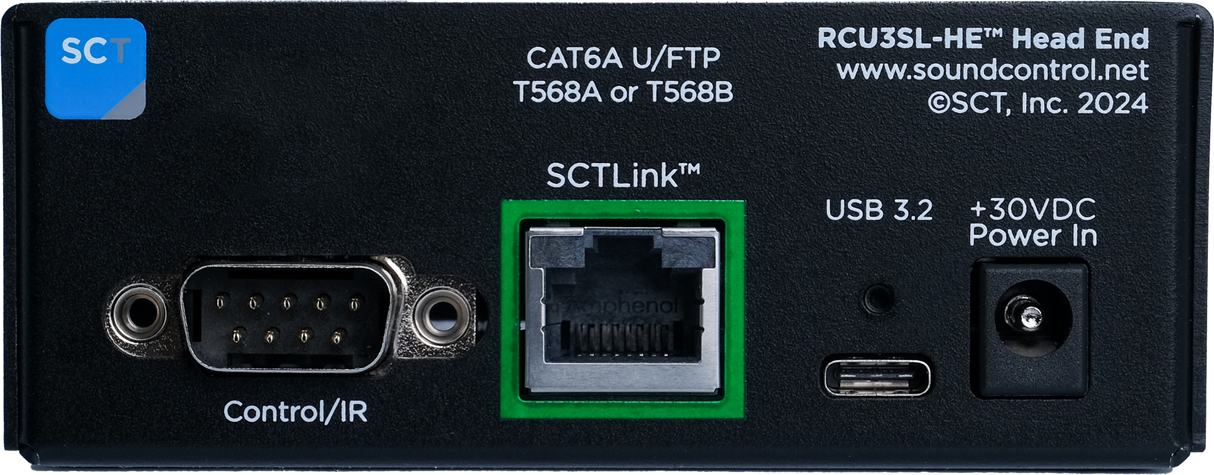

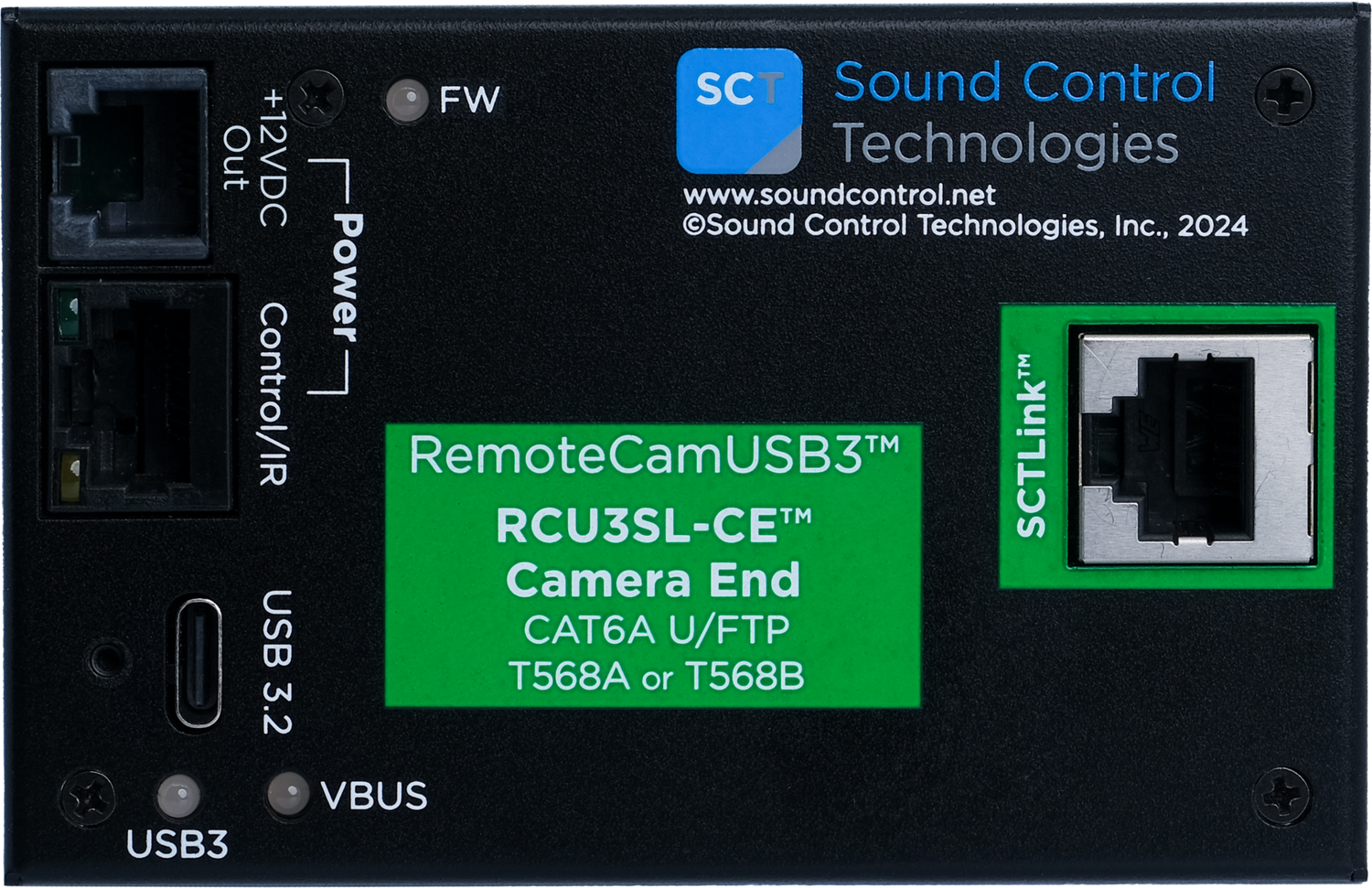

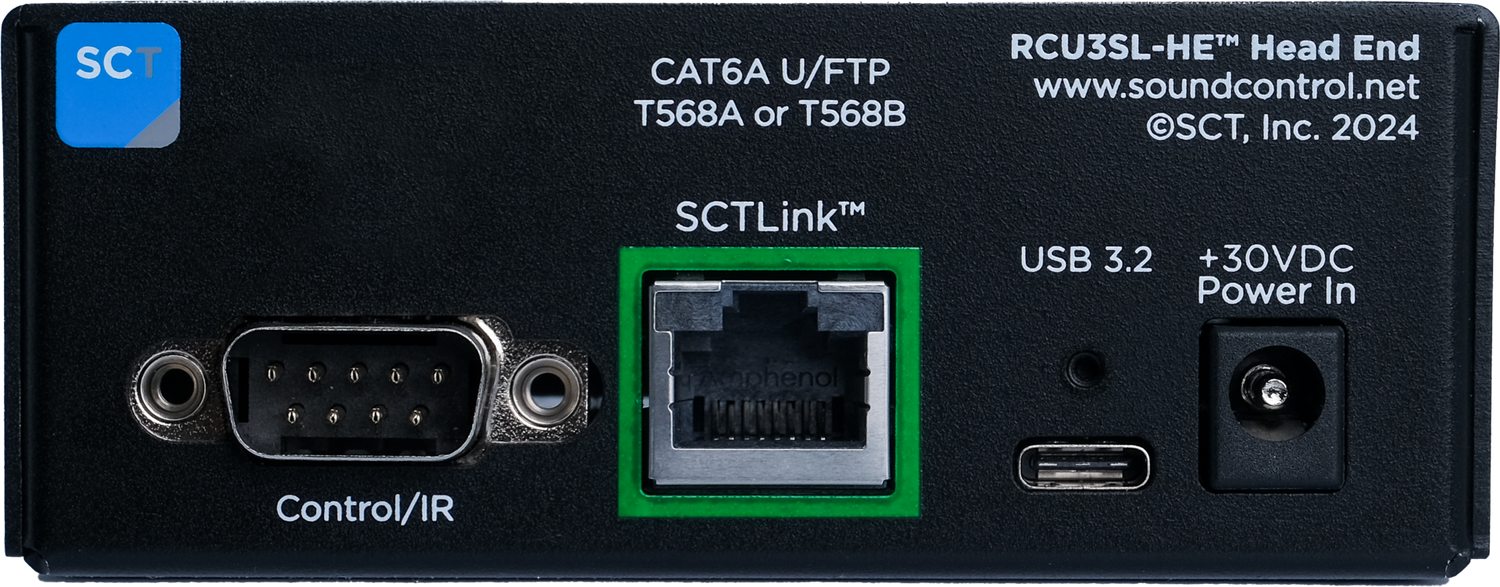

| Kit Includes | RCU3SL-CE (Camera End), RCU3SL-HE (Head End) |
| MSRP | $2,155 |
| Unit of Measure | Each (kit) |
| Country of Origin | USA/Taiwan |
Frequently Asked Questions
Which Poly Studio models are supported by the RCU3SL-C30?
The RCU3SL-C30 supports the Poly Studio, X30, X50, X52, X70, X72, V52, and V72. For Poly Studio E60 or E70, different RCU3SL variants are available — contact Creation Networks for guidance.
Does the RCU3SL-C30 support Panasonic cameras as well?
Yes. The camera-end module is configured for both Panasonic cameras and the Poly Studio models listed above.
What is the maximum extension distance?
Up to 100 meters over a single CAT cable for USB 3.2 Gen1 data, VISCA control, and camera power simultaneously.
Are replacement modules available?
Yes. The RCU3SL-CE and RCU3SL-HE are available separately through Creation Networks.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for the RCU3SL-C30.
