Sound Control Technologies RCU3SL-C20 – USB3 Camera Extension Kit for Logitech MeetUp and MeetUp 2
Sound Control Technologies RCU3SL-C20 – USB3 Camera Extension Kit for Logitech MeetUp and MeetUp 2 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RCU3SL-C20 – USB3 Camera Extension Kit f...
Product Overview
The Sound Control Technologies RCU3SL-C20 RemoteCamUSB3SL is a USB 3.2 Gen1 camera extension kit configured specifically for the Logitech MeetUp and MeetUp 2 conference cameras. It extends USB 3.2 Gen1 (5 Gbps), RS-232 VISCA camera control, and camera power delivery up to 100 meters over a single CAT cable, enabling the Logitech MeetUp or MeetUp 2 to be deployed at the ideal location in a conference room regardless of distance from the host codec or huddle system.
Product Description

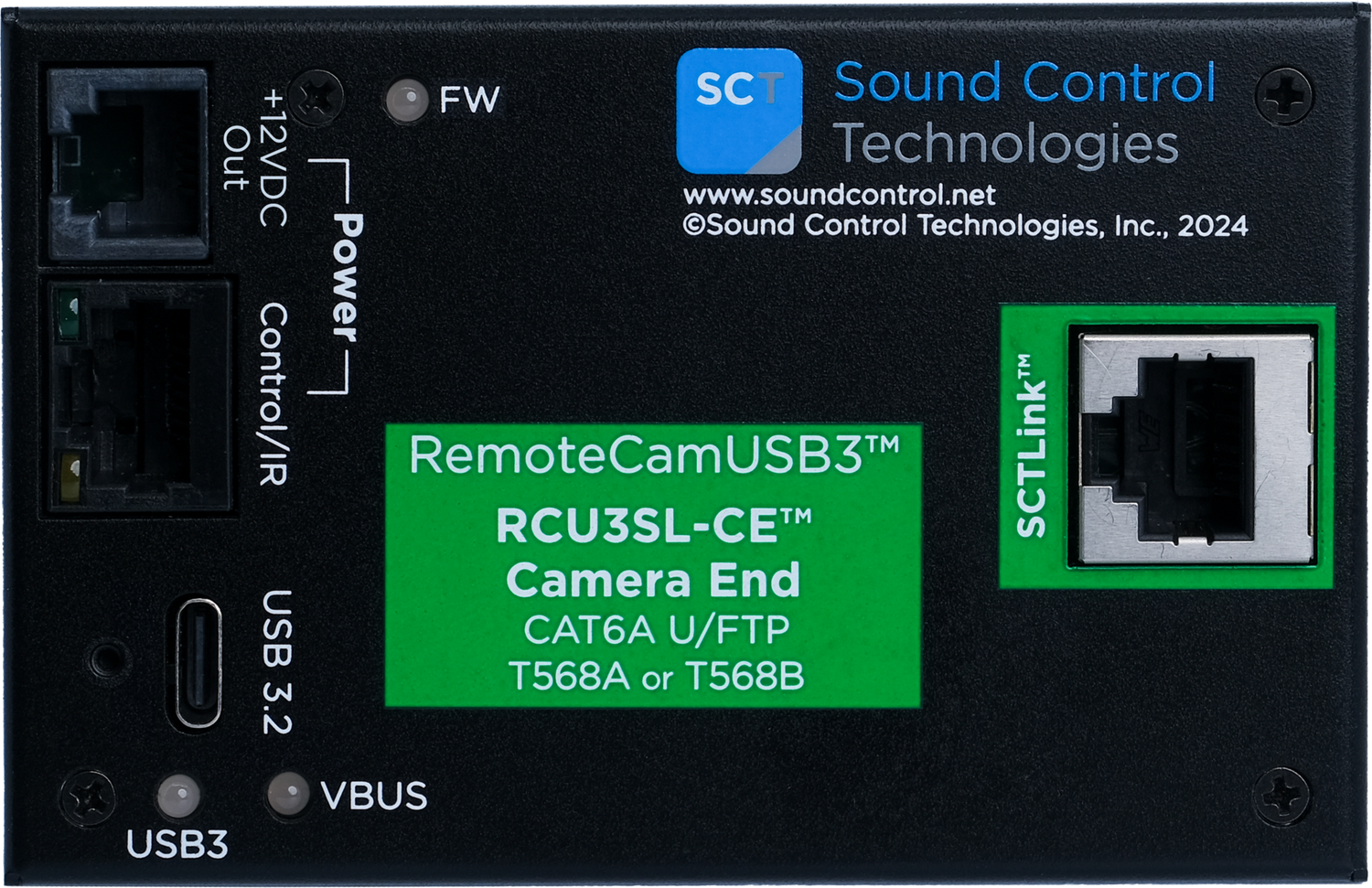

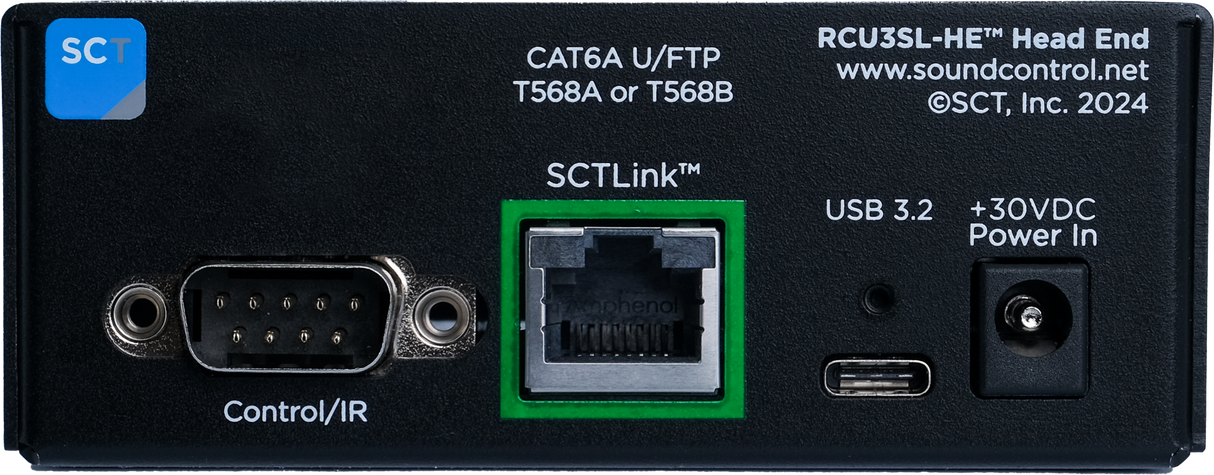

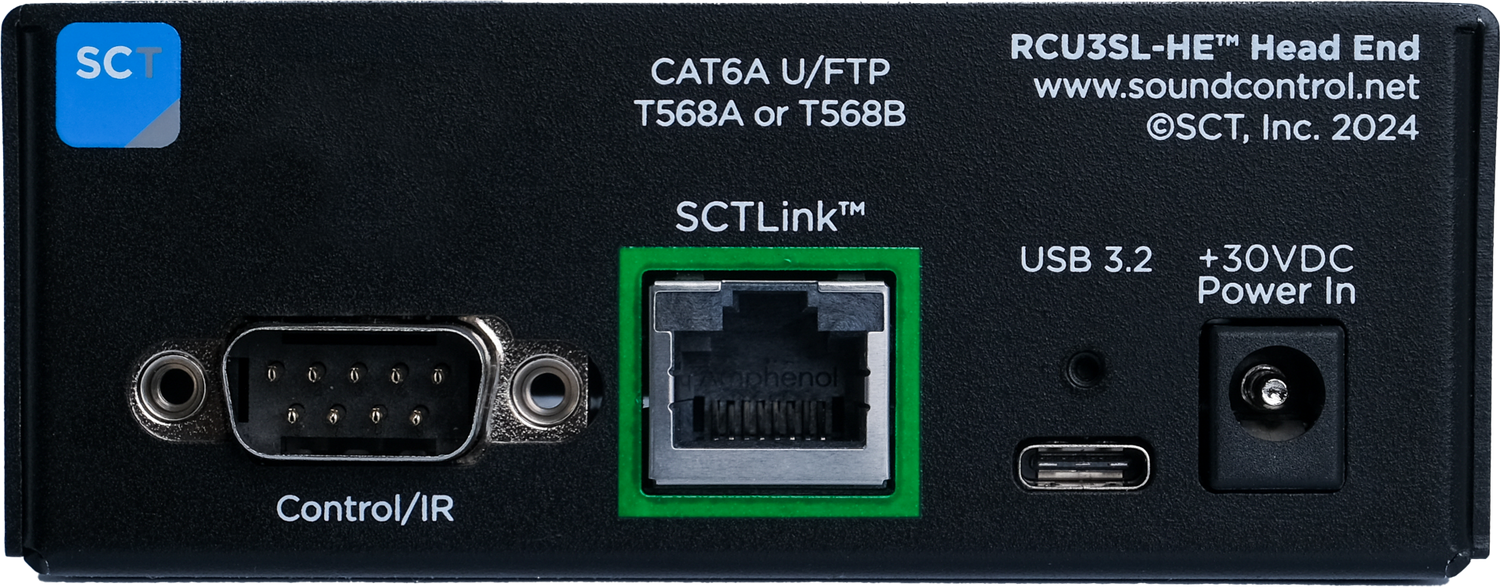

The RCU3SL-C20 carries USB 3.2 Gen1 data, RS-232 VISCA PTZ control, and USB Power Delivery over a single structured CAT cable between the camera-end (CE) and head-end (HE) modules. The camera-end module is configured specifically for the Logitech MeetUp and MeetUp 2 camera connector and power interface, ensuring proper power delivery and USB data throughput without additional adapters.
For integrators deploying Logitech MeetUp cameras in conference rooms or huddle spaces with structured cabling, the RCU3SL-C20 eliminates the constraint of USB cable length while maintaining USB 3.2 Gen1 bandwidth and camera control. Power Delivery supports 5V/9V/12V at 3A (36W maximum) and 15V at 2.4A, plus a 5V camera power path at up to 1.2A. MSRP: $2,155. Country of origin: USA/Taiwan.
Key Features
- Configured for Logitech MeetUp and MeetUp 2 — CE module cabling matched to the Logitech MeetUp and MeetUp 2 interface for correct power and data connectivity.
- Up to 100m USB 3.2 Gen1 Extension — Extends USB 3.2 Gen1 (5 Gbps) camera data up to 100 meters over a single CAT cable.
- RS-232 VISCA Camera Control — Carries VISCA PTZ control over the same CAT cable for pan, tilt, and zoom operation.
- USB Power Delivery (USB-PD) — Delivers 5V/9V/12V at 3A or 15V at 2.4A (36W maximum) over the CAT cable run.
- 5V Camera Power Path — Independent 5V at up to 1.2A for auxiliary camera power needs.

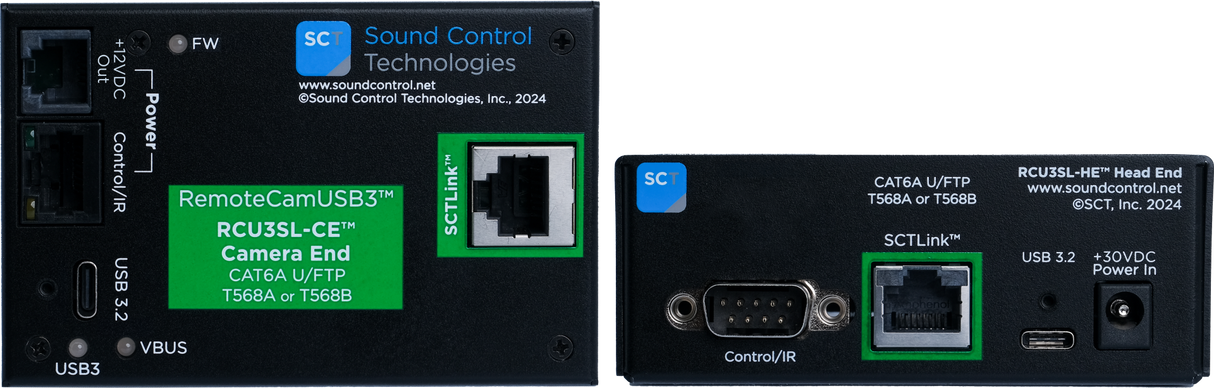

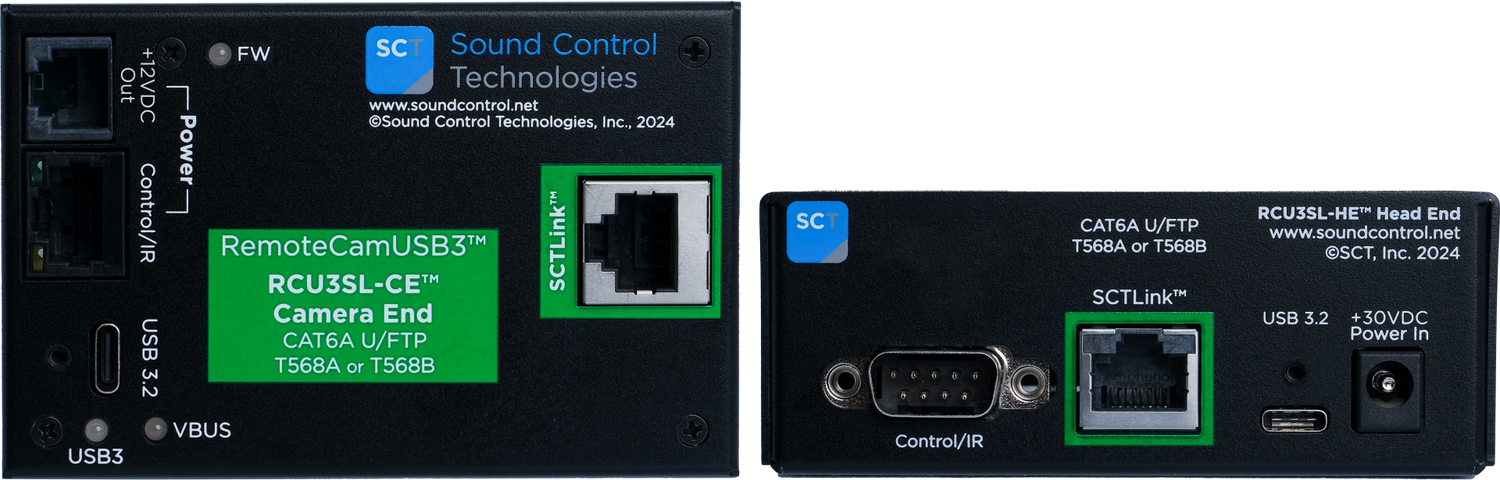

- Complete CE/HE Kit — Ships with both camera-end and head-end modules for a complete installation.
Typical Applications
- Conference room with Logitech MeetUp or MeetUp 2 requiring extended USB cabling beyond native range
- Huddle room where the camera must be mounted away from the host device
- Commercial meeting space with structured CAT cabling and Logitech-based conferencing
- BYOD/BYOM conference room where the Logitech MeetUp is used as the room camera
Technical Specifications
| Specification | Detail |
|---|---|
| Model/SKU | RCU3SL-C20 |
| Compatible Cameras | Logitech MeetUp, Logitech MeetUp 2 |
| USB Standard | USB 3.2 Gen1 (5 Gbps) |
| Maximum Extension Distance | Up to 100 meters |
| Camera Control | RS-232 VISCA |
| USB-PD Output | 5V/9V/12V @ 3A or 15V @ 2.4A (36W max) |
| 5V Camera Power | Up to 1.2A |
| Cable Infrastructure | Single CAT cable (CE to HE) |
| Kit Includes | RCU3SL-CE (Camera End), RCU3SL-HE (Head End) |
| MSRP | $2,155 |
| Unit of Measure | Each (kit) |
| Country of Origin | USA/Taiwan |
Frequently Asked Questions
Does the RCU3SL-C20 work with both the original MeetUp and the MeetUp 2?
Yes. The RCU3SL-C20 is configured for both the Logitech MeetUp and MeetUp 2 conference cameras.
What is the maximum distance the camera can be extended?
Up to 100 meters over a single CAT cable carrying USB 3.2 Gen1 data, VISCA control, and camera power simultaneously.
Does the RCU3SL-C20 carry PTZ control for the MeetUp?
Yes. RS-232 VISCA control signals are carried over the same CAT cable, enabling PTZ control of the Logitech MeetUp or MeetUp 2 from the host system.
Are replacement modules available separately?
Yes. The RCU3SL-CE and RCU3SL-HE replacement modules are available individually through Creation Networks.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for the RCU3SL-C20.
