Sound Control Technologies RCU3SL-B20 – USB3 Camera Extension Kit for AVer and Poly E60

Product Overview

The Sound Control Technologies RCU3SL-B20 RemoteCamUSB3SL is a USB 3.2 Gen1 camera extension kit designed for AVer cameras and the Poly Studio E60. It extends USB 3.2 Gen1 (5 Gbps), RS-232 VISCA camera control, and camera power delivery up to 100 meters over a single CAT cable, making it a reliable solution for conference room PTZ camera placement beyond USB cable reach. The kit ships with both camera-end (CE) and head-end (HE) modules.

Product Description

The RCU3SL-B20 is part of SCT's RemoteCamUSB3SL family, which uses a single structured CAT cable to carry high-speed USB 3.2 Gen1 data, RS-232 VISCA control signaling, and USB Power Delivery (USB-PD) simultaneously. For AV integrators deploying AVer cameras or the Poly Studio E60, this means the camera can be positioned at the ideal location in the room — up to 100 meters from the host codec or computer — without compromising USB data rate, camera control, or power delivery.

Power Delivery specifications support 5V, 9V, or 12V at 3A (36W maximum), plus 15V at 2.4A — accommodating cameras with varying power requirements. A separate 5V camera power path at up to 1.2A is also available for cameras that draw power independently of the USB-PD spec. RS-232 VISCA support enables PTZ camera pan, tilt, and zoom control from the host system over the same cable run. MSRP: $2,155. Country of origin: USA/Taiwan.

Key Features

• Up to 100m USB 3.2 Gen1 Extension — Extends USB 3.2 Gen1 (5 Gbps) camera data up to 100 meters over a single CAT cable, well beyond the 5-meter native USB limit.
• RS-232 VISCA Camera Control — Carries RS-232 VISCA PTZ control signals over the same CAT cable, enabling full pan, tilt, and zoom control of compatible cameras.
• USB Power Delivery (USB-PD) — Delivers 5V/9V/12V at 3A or 15V at 2.4A (36W maximum) to power the camera over the CAT cable run.
• 5V Camera Power Path — Separate 5V at up to 1.2A power output for cameras requiring independent power.

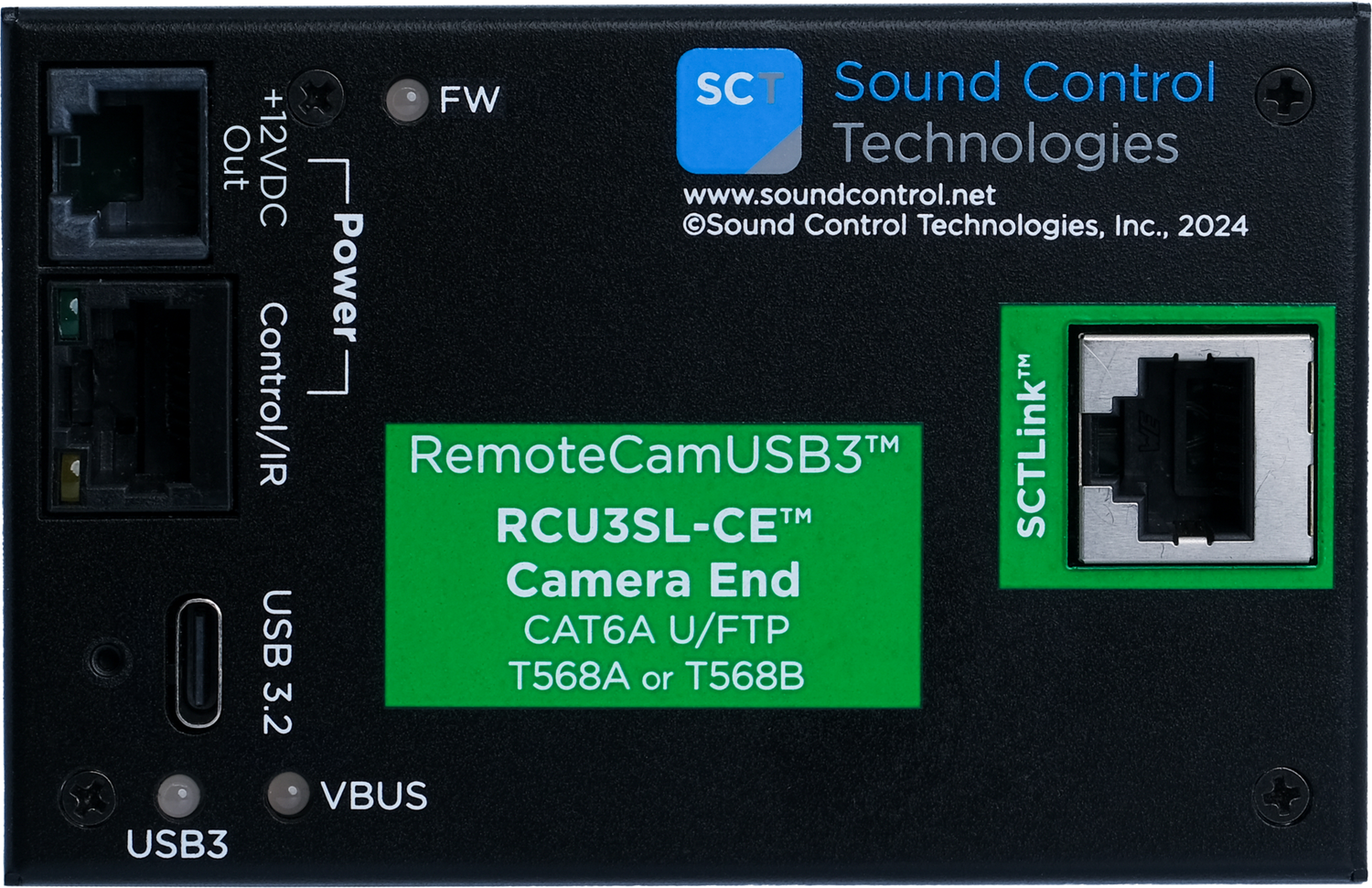

• Specific to AVer and Poly E60 — Camera-end (CE) module cabling is configured for AVer cameras and the Poly Studio E60, ensuring correct connector and power compatibility.

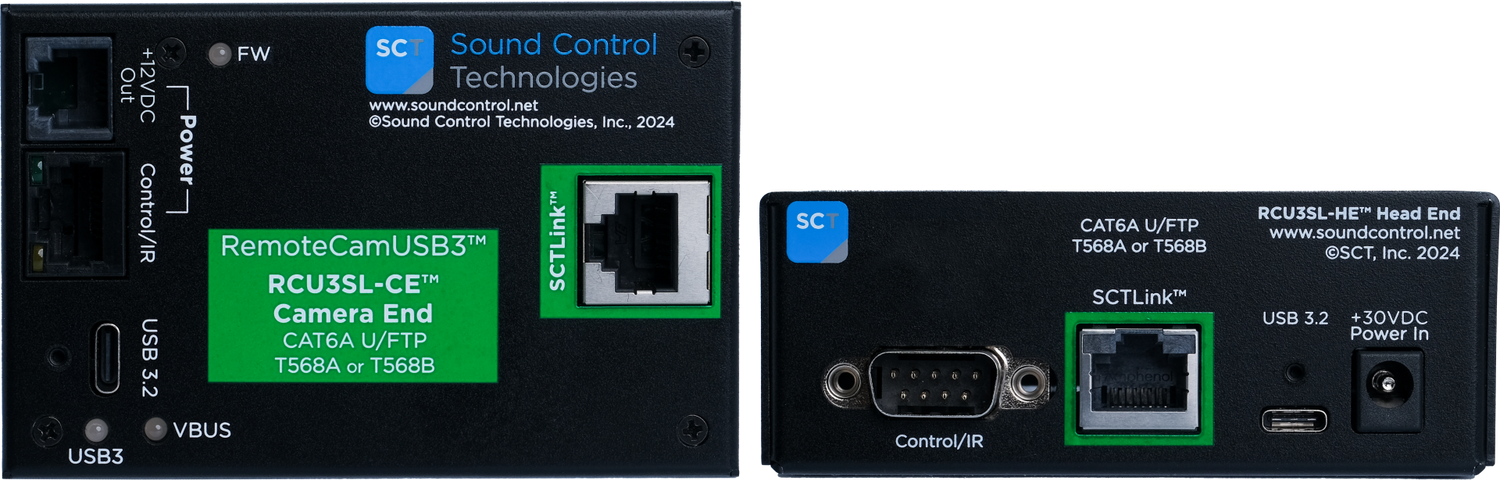

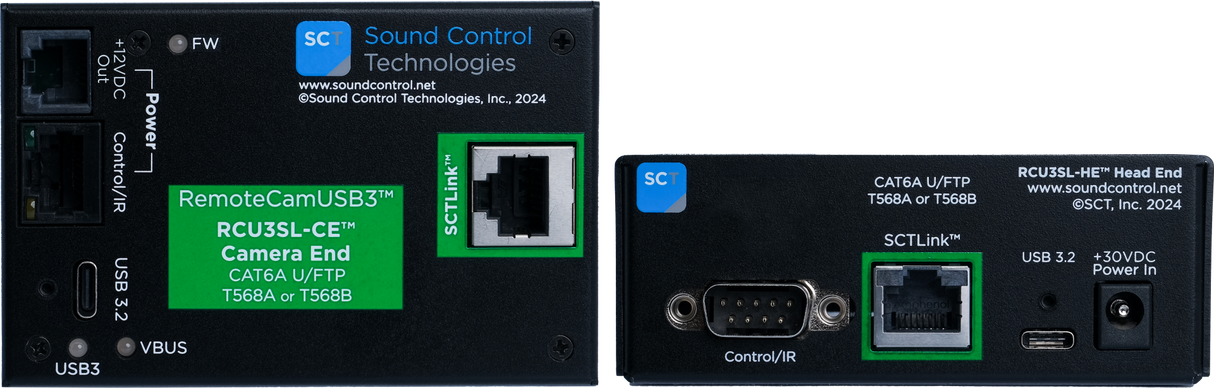

• Complete CE/HE Kit — Ships with both the camera-end (CE) and head-end (HE) modules for a complete, ready-to-install extension system.

Typical Applications

• Conference room with AVer PTZ camera placed beyond USB cable reach of the codec
• Boardroom with Poly Studio E60 requiring extended USB and control cabling
• Government or commercial meeting space with structured CAT cabling infrastructure
• Training room or auditorium with AVer camera positioned at the front of the room
• Multi-purpose room where the camera location is fixed by room architecture

Technical Specifications

Frequently Asked Questions

Which cameras are compatible with the RCU3SL-B20?

The RCU3SL-B20 is configured for AVer cameras and the Poly Studio E60. The camera-end (CE) module cabling matches the connector and power requirements of these specific devices. For other camera models, a different RCU3SL variant may be required — contact Creation Networks for guidance.

What is the maximum extension distance?

The RCU3SL-B20 extends USB 3.2 Gen1 (5 Gbps), VISCA control, and camera power up to 100 meters over a single CAT cable. Actual performance may vary based on cable quality and installation conditions.

Does the RCU3SL-B20 carry PTZ camera control?

Yes. RS-232 VISCA control signals are carried over the same CAT cable as USB data and power, enabling full PTZ (pan, tilt, zoom) control of compatible cameras from the host codec or control system.

Can I replace individual modules if one fails?

Yes. The RCU3SL-CE (camera end) and RCU3SL-HE (head end) are available as separate replacement modules through Creation Networks.

What warranty applies to the RCU3SL-B20?

Contact Creation Networks for current Sound Control Technologies warranty terms for the RCU3SL-B20.
