Sound Control Technologies RCU2S-PSU – USB 2.0 Extension Kit for Poly Studio & X30/X50
Sound Control Technologies RCU2S-PSU – USB 2.0 Extension Kit for Poly Studio & X30/X50 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RCU2S-PSU – USB 2.0 Extension Kit for Po...
Product Overview
The Sound Control Technologies RCU2S-PSU is a USB 2.0 camera extension kit designed for Poly Studio and Poly X30/X50 devices used in Device Mode. It extends USB 2.0/UVC video, bi-directional audio, and 5V/12V camera power up to 300 feet over a single CAT cable, enabling these Poly collaboration bar systems to be deployed as USB cameras at distance from a codec or host system. The PSU cable kit is matched to the Poly USB device interface. This kit is ideal for AV integrators deploying Poly Studio or Poly X-Series bars as peripheral USB cameras in conference rooms and multi-purpose meeting spaces.
Product Description

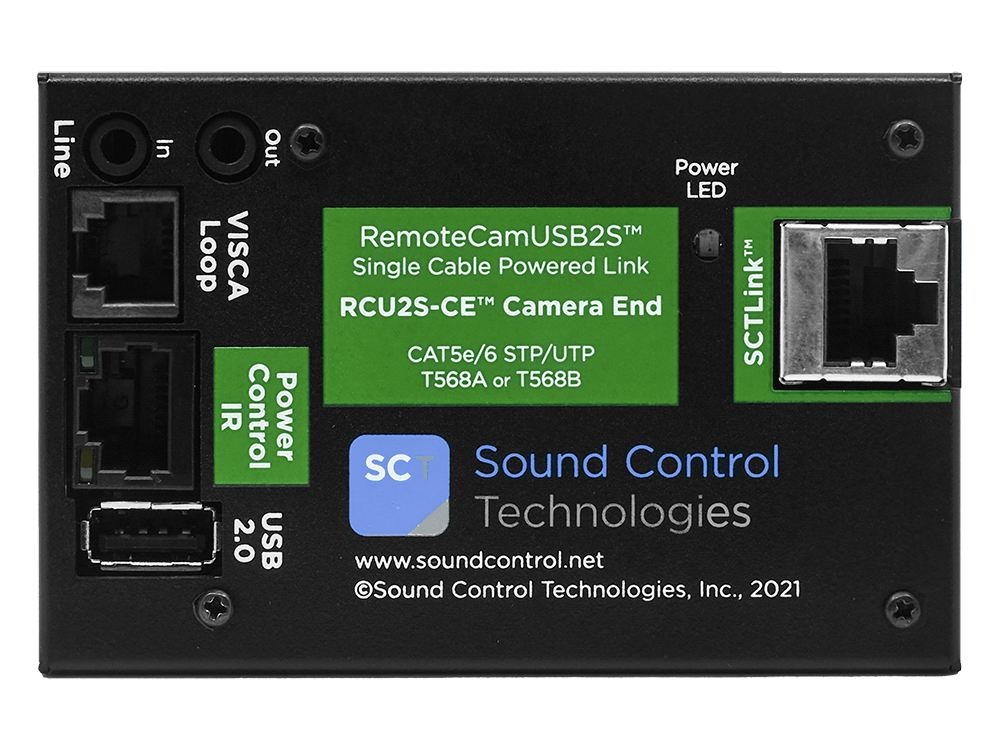

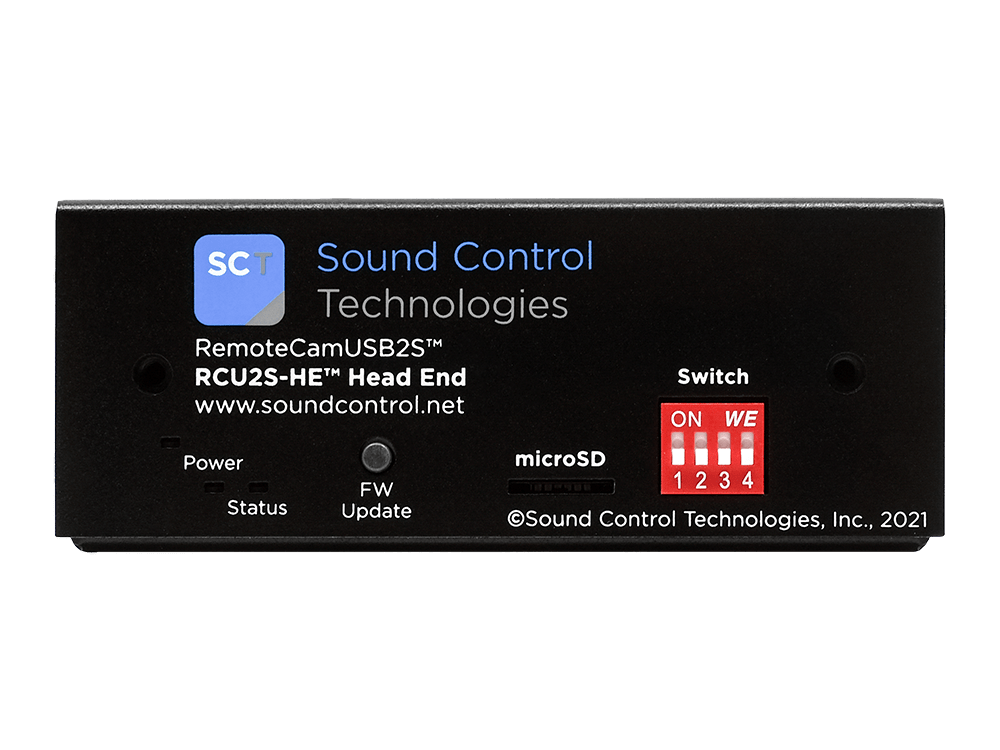

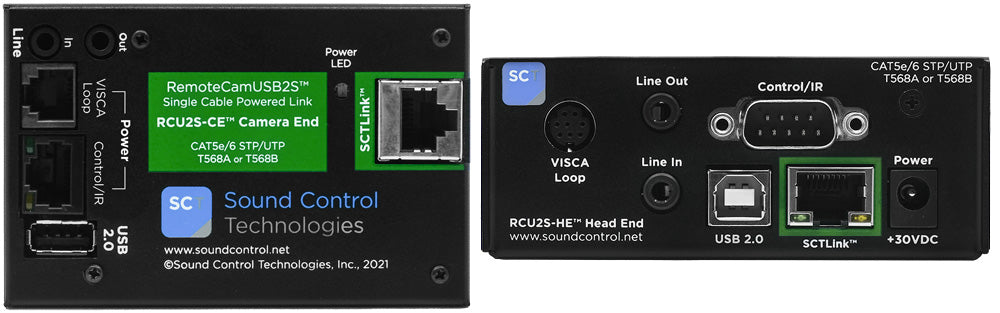

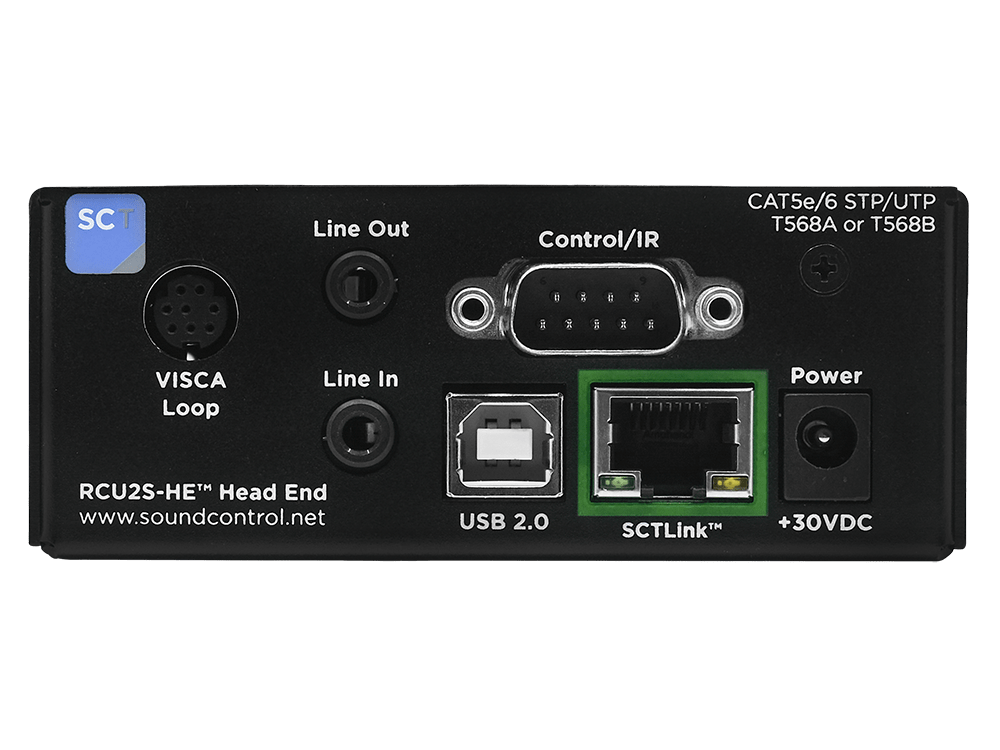

When operated in Device Mode, the Poly Studio, Poly X30, and Poly X50 function as USB cameras and speakerphones connected to a host computer or third-party codec. The RCU2S-PSU extends this USB device connection up to 300 feet over a single CAT5e or CAT6 cable run, using a Head End (HE) at the codec or host and a Camera End (CE) at the Poly bar location. The PSU cable kit provides the correct USB connections for these Poly devices.
Power delivery at the camera end supports 5V and 12V DC, and the bi-directional audio channel enables audio signal transport between the Poly bar and the head end — critical for speakerphone functionality in Device Mode deployments. UVC compliance ensures the Poly device is recognized as a standard USB video device by any USB 2.0 host without proprietary drivers. This makes the RCU2S-PSU compatible with Microsoft Teams Rooms, Zoom Rooms, and Cisco or Poly codec platforms accepting USB peripherals.
The RCU2S-PSU provides a clean installation path for rooms where the Poly collaboration bar needs to be placed at the table or display wall while the host codec is rack-mounted at distance. Replacement modules (RCU2S-CE and RCU2S-HE) are available separately.
Key Features
- Poly Studio & X30/X50 Device Mode Compatible — Cable kit matched to Poly USB device interfaces for verified connectivity in Device Mode deployments.
- 300-Foot USB 2.0 Extension — Extends USB/UVC signal up to 300 feet over a single CAT5e or CAT6 cable.
- Integrated 5V/12V Camera Power — Delivers power at the Poly device location over the CAT run; no separate power adapter required at the camera end.
- Bi-Directional Audio Transport — Carries audio between the Poly bar and head end, supporting Device Mode speakerphone functionality.
- UVC Plug-and-Play — No proprietary drivers required; compatible with Windows, macOS, and Linux hosts.
- Single CAT Cable Run — USB video, audio, and power in one structured cabling path.
- Commercial-Grade Construction — USA/Taiwan manufactured for commercial AV installation reliability.
Typical Applications
- Conference room Poly Studio Device Mode deployments with rack-mounted codecs
- Boardroom Poly X30/X50 installations requiring extended USB device cable runs
- Multi-purpose room setups using Poly bars as peripheral USB cameras at distance
- Corporate meeting space Microsoft Teams Rooms builds with Poly collaboration bars
- Huddle room deployments with Poly Studio at display wall and host at rack
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RCU2S-PSU |
| Product Family | RemoteCamUSB2S |
| Compatible Devices | Poly Studio, Poly X30, Poly X50 (Device Mode) |
| Signal Types Carried | USB 2.0/UVC video, bi-directional audio, 5V/12V camera power |
| Maximum Extension Distance | 300 feet (approx. 90 m) over CAT5e/CAT6 |
| Camera Power Output | 5V and 12V DC |
| Unit of Measure | Each (complete kit) |
| Country of Origin | USA / Taiwan |
| MSRP | $1,945.00 |
Frequently Asked Questions
Does this kit work with Poly Studio, X30, and X50 in Device Mode?
Yes. The RCU2S-PSU is designed for Poly Studio, X30, and X50 when operated in Device Mode (USB device/camera mode). Confirm your specific model and firmware version with Creation Networks before ordering.
Will the Poly bar's audio (speakerphone) work through the extension?
The bi-directional audio channel is carried through the extension kit. Device Mode audio functionality depends on the Poly device's USB audio implementation and host configuration.
Is this compatible with Microsoft Teams Rooms and Zoom Rooms?
Yes. When the Poly bar operates as a USB device, it is recognized as a standard UVC/UAC device by any compatible host platform, including Microsoft Teams Rooms and Zoom Rooms.
What cable is required?
A single CAT5e or CAT6 cable run up to 300 feet between the Head End and Camera End units. Standard TIA-568 structured cabling practices apply.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for this product.
