Sound Control Technologies RCU2S-PD2 – USB 2.0 Extension Kit for Poly EagleEye Director II

Product Overview

The Sound Control Technologies RCU2S-PD2 is a USB 2.0 camera extension kit designed for the Poly EagleEye Director II camera. It extends USB 2.0/UVC video, bi-directional audio, and 5V/12V camera power up to 300 feet over a single CAT cable, enabling the Poly EagleEye Director II to be placed at distance from a rack-mounted codec or host system. The PD2 cable kit is matched to the Poly EagleEye Director II USB interface. This is the purpose-built SCT solution for AV integrators deploying the Poly EagleEye Director II in conference rooms and boardrooms requiring extended USB camera cable runs.

Product Description

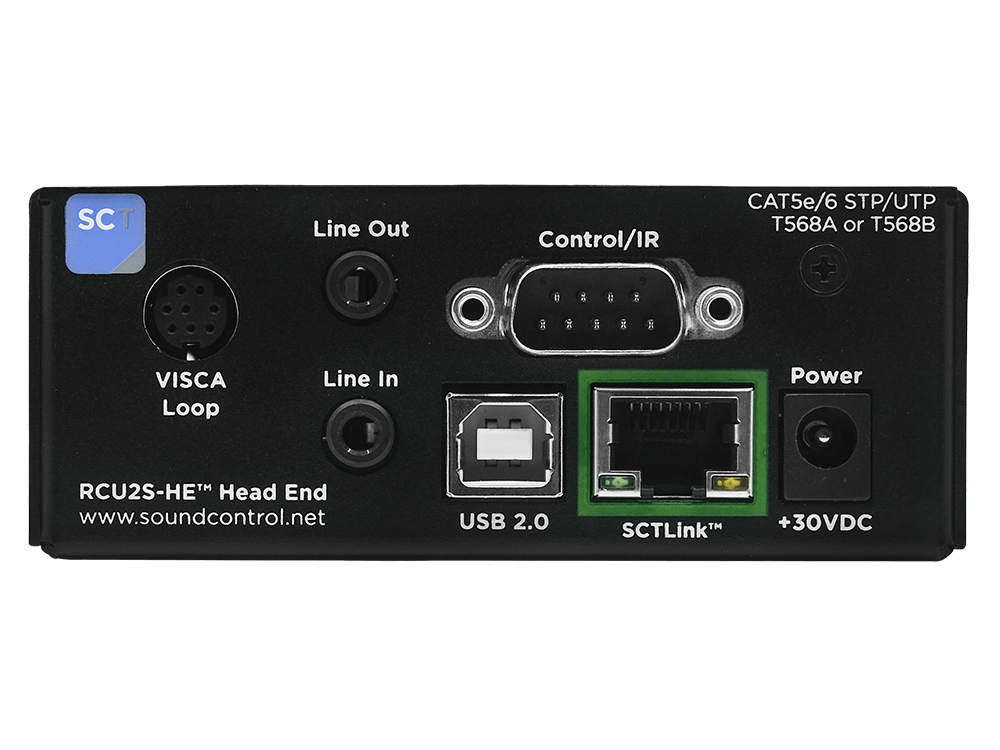

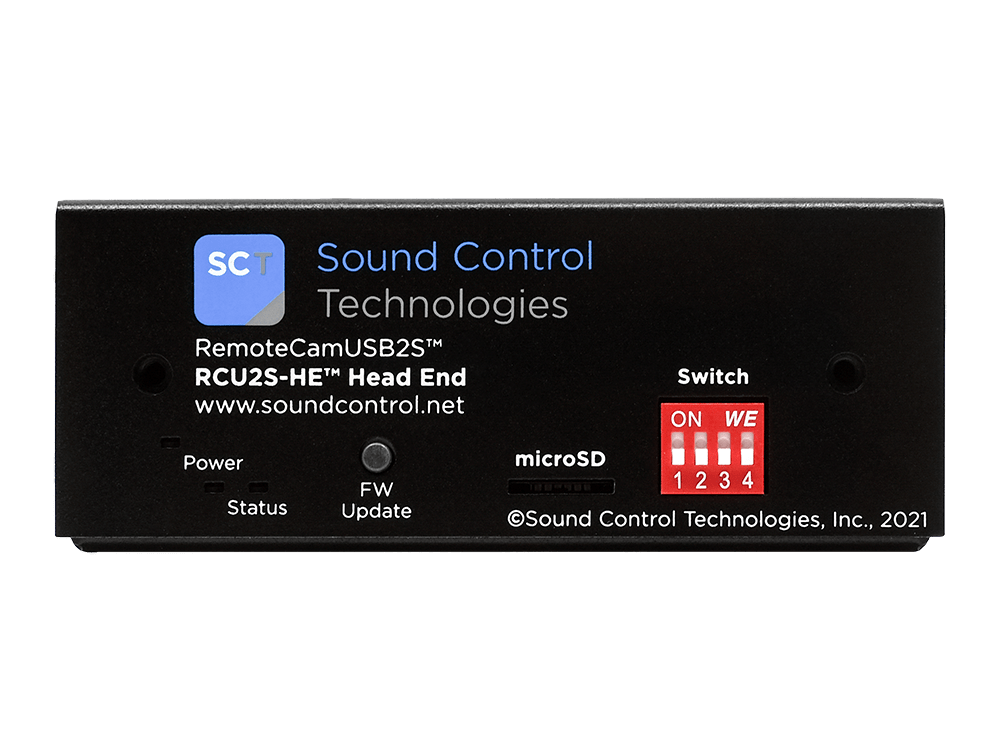

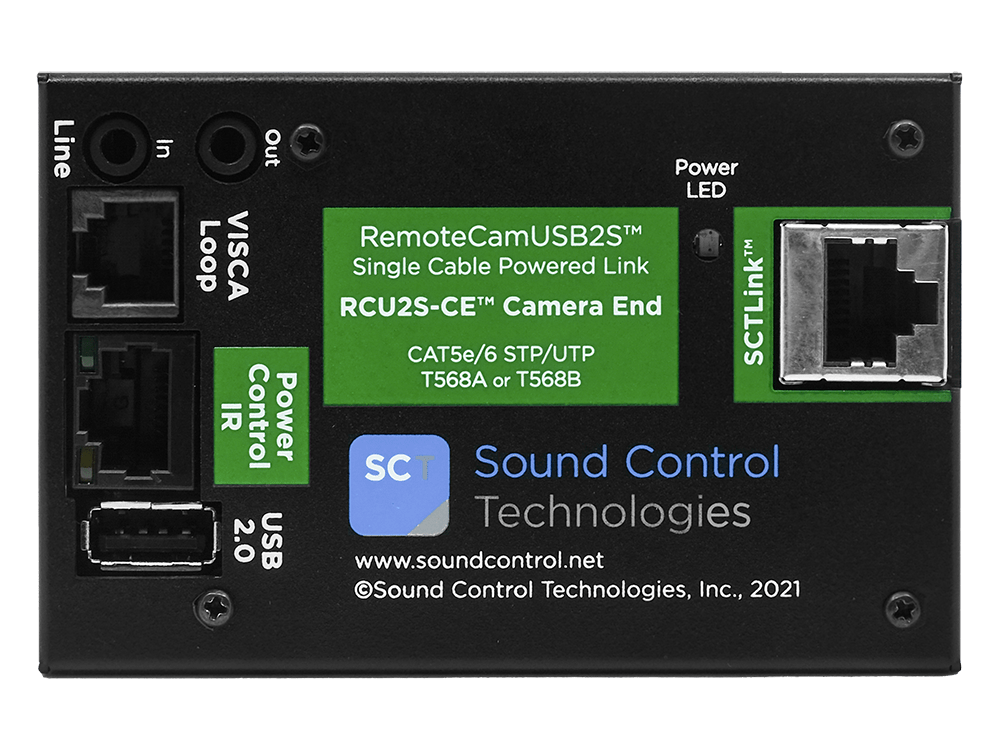

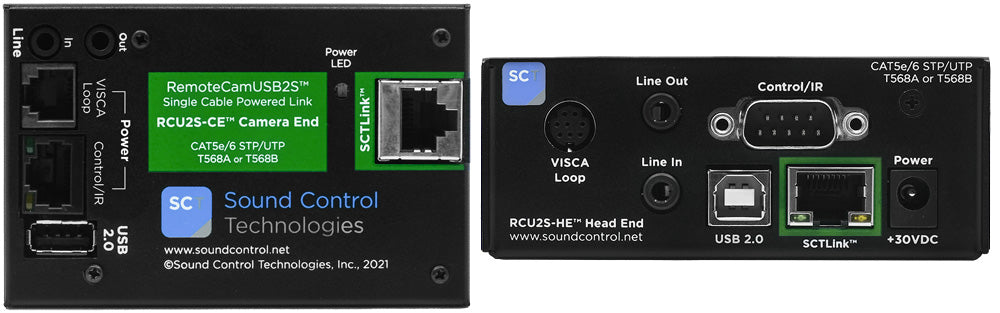

The RCU2S-PD2 places a Head End (HE) unit at the codec or USB host and a Camera End (CE) unit at the Poly EagleEye Director II mounting location. A single CAT5e or CAT6 cable run between these units carries USB 2.0/UVC video, bi-directional audio, and 5V/12V camera power. The PD2 cable kit provides the specific connections matched to the Poly EagleEye Director II USB interface, enabling a clean and verified installation.

Power delivery at the camera end supports 5V and 12V DC, so the Poly EagleEye Director II does not require a separate local power supply at the camera mount. The bi-directional audio channel carries audio signal transport. UVC compliance ensures the Poly EagleEye Director II appears as a standard USB video device on any USB 2.0 host without proprietary drivers — compatible with Poly, Cisco, Microsoft Teams Rooms, Zoom Rooms, and BYOM codec platforms. The single-cable approach replaces separate USB, audio, and power cable runs to the Director II location.

Key Features

• Poly EagleEye Director II Specific Cable Kit — PD2 cable kit matched to the Poly EagleEye Director II USB interface.
• 300-Foot USB 2.0 Extension — Extends USB/UVC signal up to 300 feet over a single CAT5e or CAT6 cable.
• Integrated 5V/12V Camera Power — No separate power supply required at the Poly EagleEye Director II location.
• Bi-Directional Audio Transport — Carries audio channel between camera and head end.
• UVC Plug-and-Play — No proprietary drivers required on Windows, macOS, or Linux hosts.
• Single CAT Cable Run — USB video, audio, and power in one structured cabling path.
• Commercial-Grade Construction — USA/Taiwan manufactured for commercial AV installations.

Typical Applications

• Conference room Poly EagleEye Director II installations with rack-mounted codecs
• Boardroom AV builds deploying Poly EagleEye Director II at extended cable distances
• Multi-purpose room builds with Poly EagleEye Director II cameras
• Corporate meeting space Poly camera deployments requiring extended USB runs
• Government space AV installations with Poly EagleEye Director II cameras

Technical Specifications

Frequently Asked Questions

Is this kit specific to the Poly EagleEye Director II?

Yes. The RCU2S-PD2 is matched to the Poly EagleEye Director II. Contact Creation Networks to confirm compatibility with your specific Poly camera model before ordering.

Does the RCU2S-PD2 support the EagleEye Director II's automatic speaker-tracking feature?

Speaker-tracking functionality is managed by the camera's on-board processing over the USB connection. The RCU2S-PD2 extends the USB connection, so tracking functions that operate via USB should pass through. Contact Creation Networks for deployment-specific guidance.

What cabling is required?

A single CAT5e or CAT6 cable run up to 300 feet between the Head End and Camera End. Standard TIA-568 structured cabling practices apply.

What warranty applies?

Contact Creation Networks for current Sound Control Technologies warranty terms for this product.
