Sound Control Technologies RCU2S-J50 – USB 2.0 Extension Kit for Jabra PanaCast 50

Product Overview

The Sound Control Technologies RCU2S-J50 is a USB 2.0 camera extension kit designed for the Jabra PanaCast 50 video bar. It extends USB 2.0/UVC video, bi-directional audio, and 5V/12V camera power up to 300 feet over a single CAT cable, allowing the Jabra PanaCast 50 to be deployed at distance from a rack-mounted codec or host system. The J50 cable kit is matched to the Jabra PanaCast 50 USB interface. This kit is the purpose-built SCT solution for AV integrators deploying the Jabra PanaCast 50 in conference rooms and boardrooms where the device must be placed remotely from the codec or host over structured CAT cabling.

Product Description

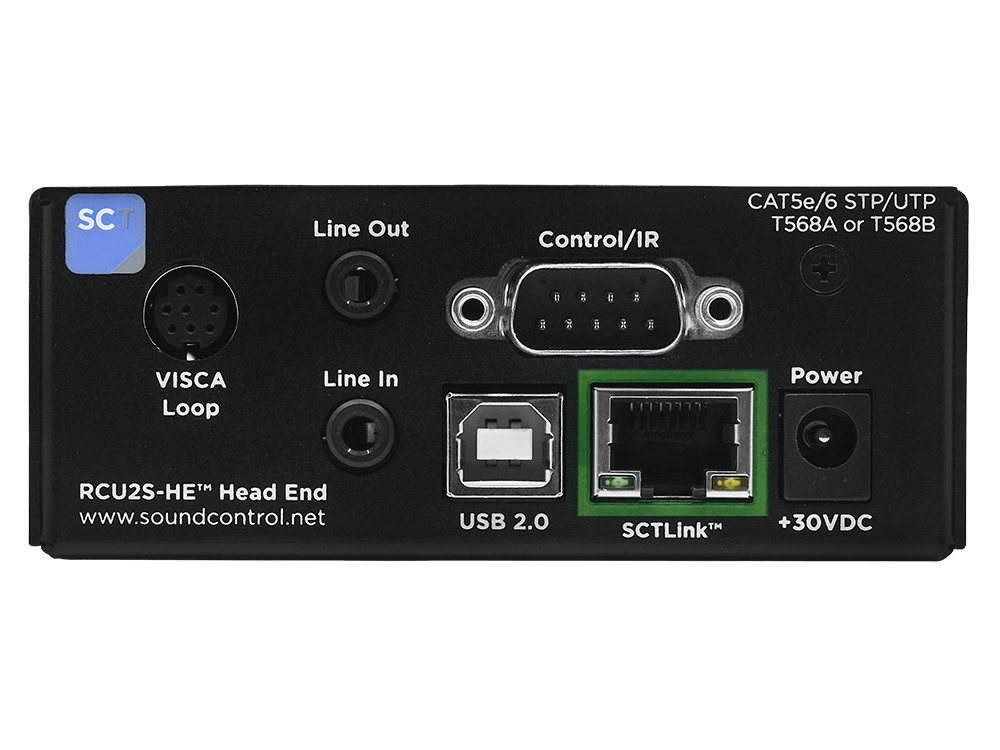

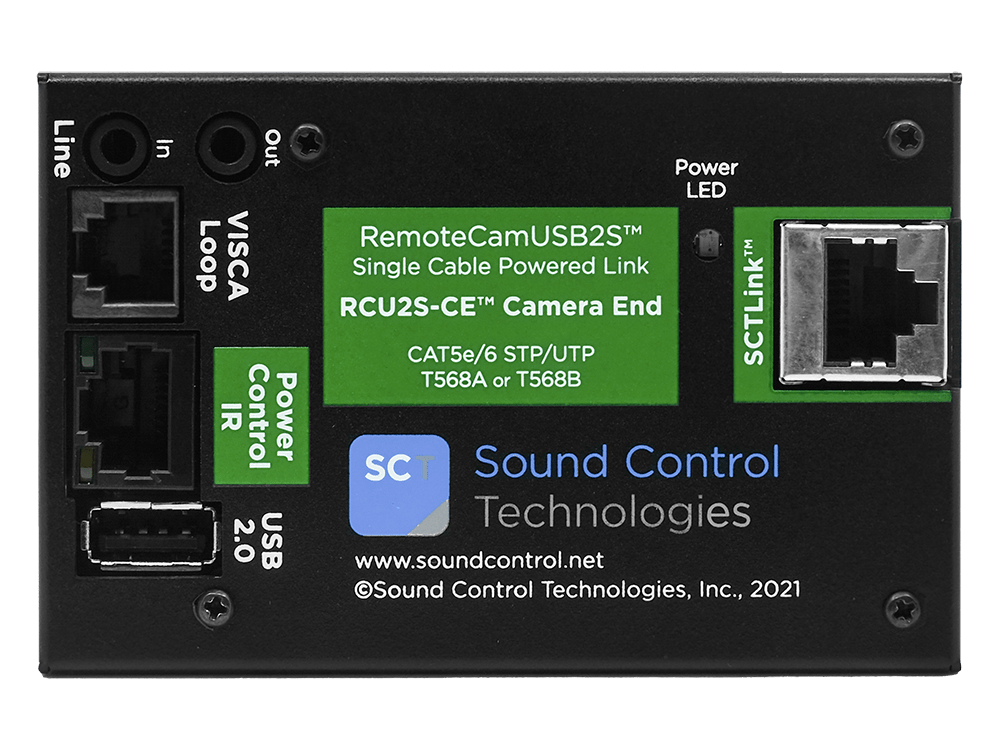

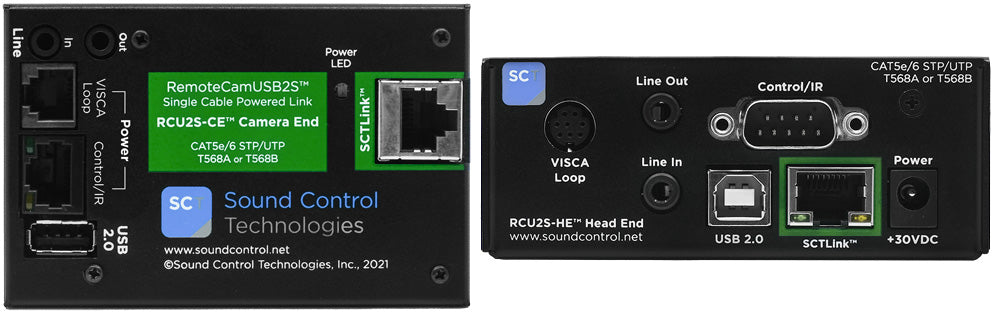

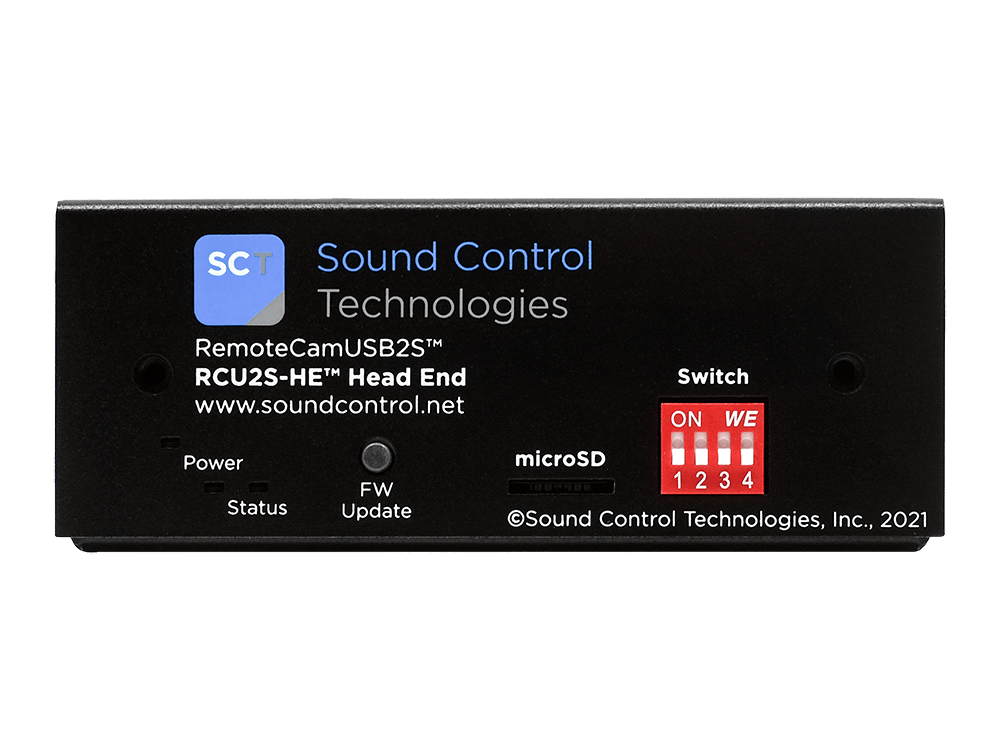

The RCU2S-J50 places a Head End (HE) unit at the codec or USB host and a Camera End (CE) unit at the Jabra PanaCast 50 mounting location. A single CAT5e or CAT6 cable run between these units carries USB 2.0/UVC video, bi-directional audio, and 5V/12V camera power — replacing multiple discrete cable runs with a single structured cabling path. The J50 cable kit provides the specific USB connection matched to the Jabra PanaCast 50.

Power delivery at the camera end supports 5V and 12V DC, so the Jabra PanaCast 50 does not require a separate local power supply at the mount location. The bi-directional audio channel supports audio signal transport — relevant for the Jabra PanaCast 50's integrated microphone and speaker capabilities when used in UC hub configurations. UVC compliance ensures the PanaCast 50 is recognized as a standard USB video device on any USB 2.0 host without proprietary drivers, compatible with Microsoft Teams Rooms, Zoom Rooms, Cisco, and Poly platforms.

Key Features

• Jabra PanaCast 50 Specific Cable Kit — Matched to the Jabra PanaCast 50 USB interface for verified connectivity.
• 300-Foot USB 2.0 Extension — Extends USB/UVC signal up to 300 feet over a single CAT5e or CAT6 cable.
• Integrated 5V/12V Camera Power — No separate power supply required at the Jabra PanaCast 50 location.
• Bi-Directional Audio Transport — Carries audio between the PanaCast 50 and head end for microphone and speaker functionality.
• UVC Plug-and-Play — No proprietary drivers required on Windows, macOS, or Linux hosts.
• Single CAT Cable Run — USB video, audio, and power in one structured cabling path.
• Commercial-Grade Construction — USA/Taiwan manufactured for commercial AV installation reliability.

Typical Applications

• Conference room Jabra PanaCast 50 deployments with rack-mounted codecs
• Boardroom AV installations using the Jabra PanaCast 50 at extended cable distances
• Multi-purpose room builds standardizing on Jabra collaboration bars
• Corporate Microsoft Teams Rooms or Zoom Rooms integration with Jabra PanaCast 50
• All-hands room and huddle room Jabra PanaCast 50 deployments with centralized AV equipment

Technical Specifications

Frequently Asked Questions

Is this kit specific to the Jabra PanaCast 50?

Yes. The RCU2S-J50 is matched to the Jabra PanaCast 50. Contact Creation Networks to confirm compatibility with other Jabra PanaCast models before ordering.

Will the Jabra PanaCast 50 audio work through the extension?

The bi-directional audio channel is carried through the extension. Audio functionality depends on the Jabra PanaCast 50's USB audio implementation and the host system's configuration.

Is this compatible with Microsoft Teams Rooms?

Yes. When the Jabra PanaCast 50 operates as a USB device, it is recognized as a standard UVC/UAC device by any compatible host, including Microsoft Teams Rooms and Zoom Rooms.

What cabling is required?

A single CAT5e or CAT6 cable run up to 300 feet between the Head End and Camera End. Standard TIA-568 structured cabling practices apply.

What warranty applies?

Contact Creation Networks for current Sound Control Technologies warranty terms for this product.
