Sound Control Technologies RCU2S-H00 – USB 2.0 Camera Extension Kit Variant
Sound Control Technologies RCU2S-H00 – USB 2.0 Camera Extension Kit Variant is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RCU2S-H00 – USB 2.0 Camera Extension Kit...
Product Overview
The Sound Control Technologies RCU2S-H00 is a USB 2.0 camera extension kit that carries USB 2.0/UVC video, bi-directional audio, and 5V/12V camera power up to 300 feet over a single CAT cable. Part of the RemoteCamUSB2S platform, the H00 variant includes a camera-specific cable kit — contact Creation Networks for the camera models supported by this configuration. Designed for commercial AV integrators deploying USB cameras at distance from rack-mounted codecs or host systems over structured CAT cabling in conference rooms, boardrooms, and multi-purpose commercial spaces.
Product Description

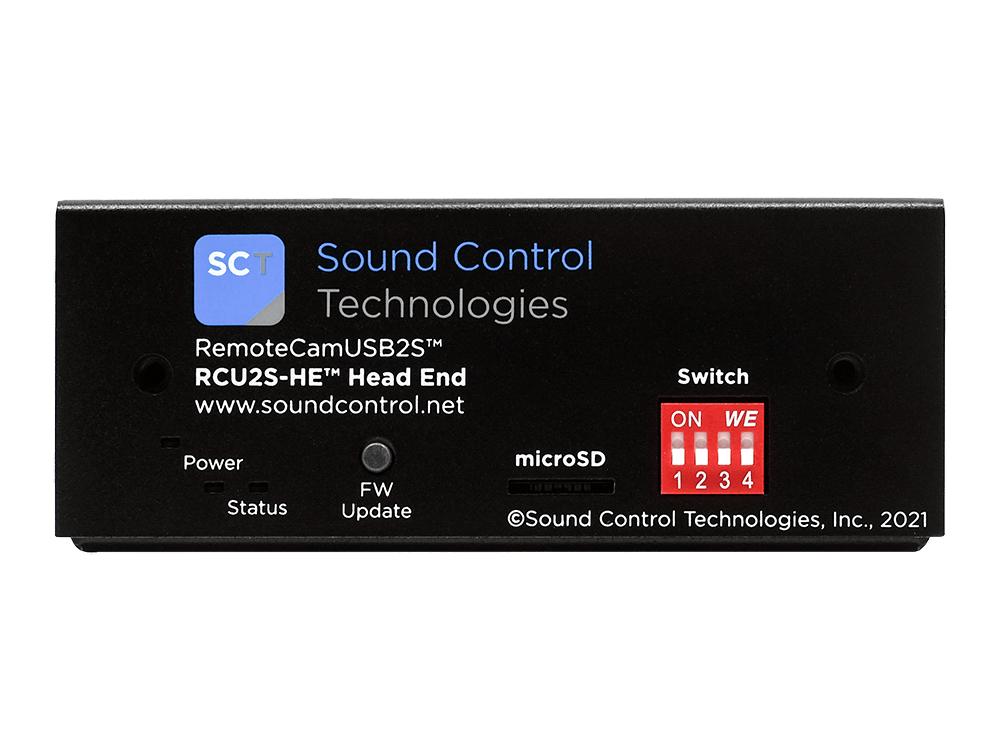

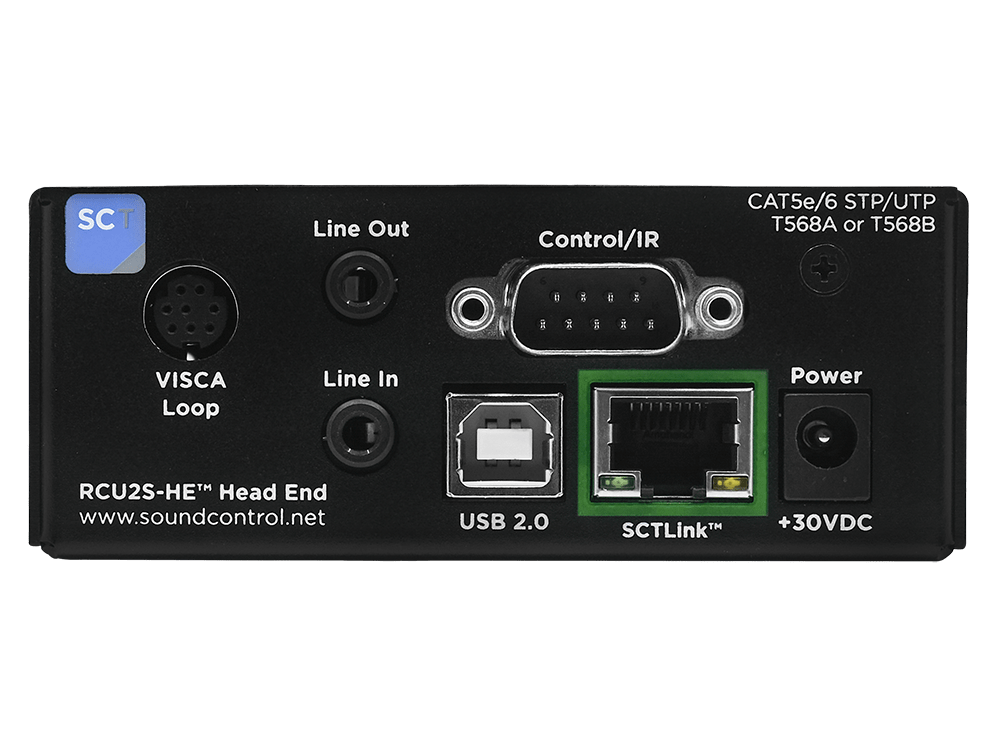

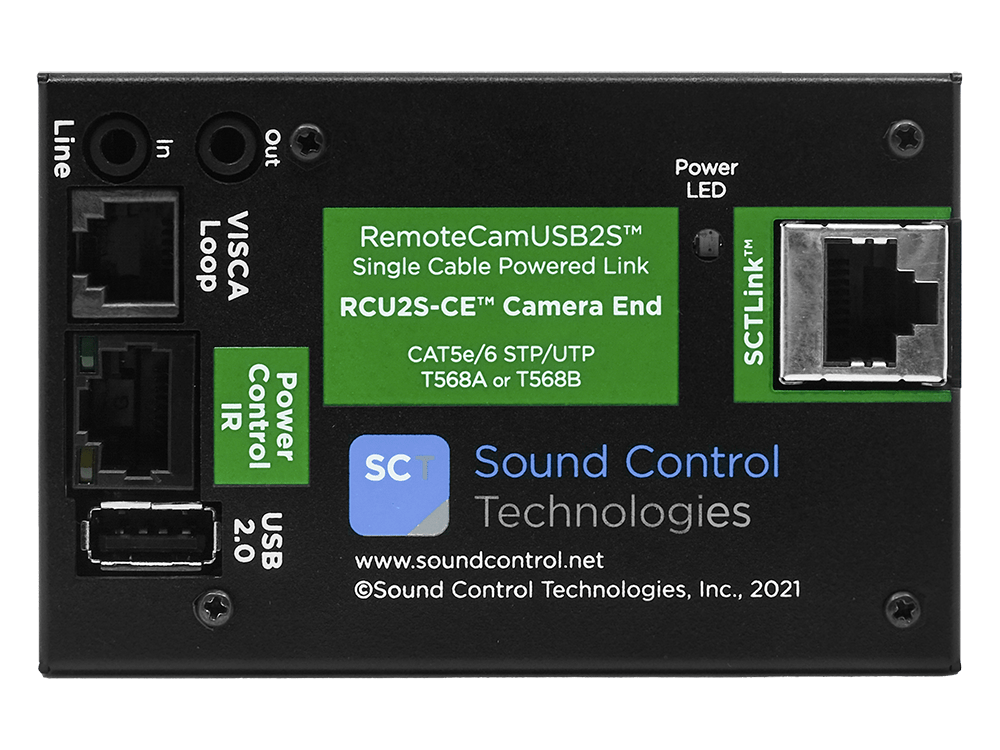

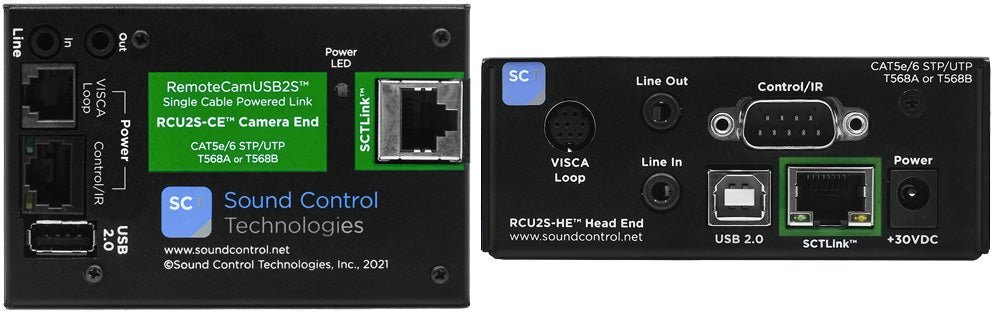

The RCU2S-H00 uses a Head End (HE) unit at the codec or host and a Camera End (CE) unit at the camera mounting location. A single CAT5e or CAT6 cable run carries USB 2.0/UVC video, bi-directional audio, and 5V/12V camera power. The 5V/12V power delivery at the camera end eliminates the need for a local power supply at the camera mount. UVC compliance ensures the camera is recognized as a standard USB video device on Windows, macOS, or Linux without proprietary drivers. The bi-directional audio channel supports microphone or intercom signal transport.
The H00 cable kit variant is matched to specific camera models — verify camera compatibility with Creation Networks before ordering. For installations requiring RS-232 PTZ control over the same CAT run, see RCU2S variants with the A8 designation. Replacement modules (RCU2S-CE and RCU2S-HE) are available separately.
Key Features
- 300-Foot USB 2.0 Extension — Extends USB/UVC camera signal up to 300 feet over a single CAT5e or CAT6 cable run.
- Integrated 5V/12V Camera Power — Powers the camera over the CAT cable; no separate local power supply needed.
- Bi-Directional Audio — Audio channel for microphone or intercom use between camera and head end.
- UVC Plug-and-Play — No proprietary drivers required on Windows, macOS, or Linux.
- Single CAT Cable Run — Video, audio, and power in one structured cabling path.
- Camera-Specific Cable Kit — H00 configuration matched to supported camera models.
- Commercial-Grade Manufacturing — USA/Taiwan made for commercial AV environments.
Typical Applications
- Conference room USB camera installations with rack-mounted codecs
- Boardroom deployments requiring extended USB camera cable runs
- Multi-purpose room AV builds over existing structured CAT cabling
- Corporate commercial meeting space AV integration
- Training room fixed USB camera deployments
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RCU2S-H00 |
| Product Family | RemoteCamUSB2S |
| Signal Types Carried | USB 2.0/UVC video, bi-directional audio, 5V/12V camera power |
| Maximum Extension Distance | 300 feet (approx. 90 m) over CAT5e/CAT6 |
| Camera Power Output | 5V and 12V DC |
| Unit of Measure | Each (complete kit) |
| Country of Origin | USA / Taiwan |
| MSRP | $1,945.00 |
Frequently Asked Questions
Which cameras are compatible with the RCU2S-H00?
The H00 variant is matched to specific camera models. Contact Creation Networks for the current SCT compatibility list for this configuration.
Does this kit include RS-232 PTZ control?
No. The RCU2S-H00 carries USB 2.0, audio, and camera power only. For RS-232 serial control, see RCU2S variants with the A8 suffix.
What cable is required?
A single CAT5e or CAT6 cable run up to 300 feet. Standard TIA-568 structured cabling practices apply.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for this product.
