Sound Control Technologies RCU2S-GC8 – USB 2.0 + RS-232 Extension Kit for Panasonic Cameras

Product Overview

The Sound Control Technologies RCU2S-GC8 is a USB 2.0 camera extension kit with RS-232 serial control loop, designed for Panasonic PTZ camera deployments requiring both USB video and RS-232 camera control over a single CAT cable. It extends USB 2.0/UVC video, bi-directional audio, RS-232 PTZ control, and 5V/12V camera power up to 300 feet. The GC8 cable kit is matched to supported Panasonic camera models — the C8 designation indicates inclusion of the RS-232 control loop. Contact Creation Networks for the specific Panasonic models supported by this configuration. Suitable for conference rooms, boardrooms, and government space AV installations using Panasonic PTZ cameras with RS-232 control.

Product Description

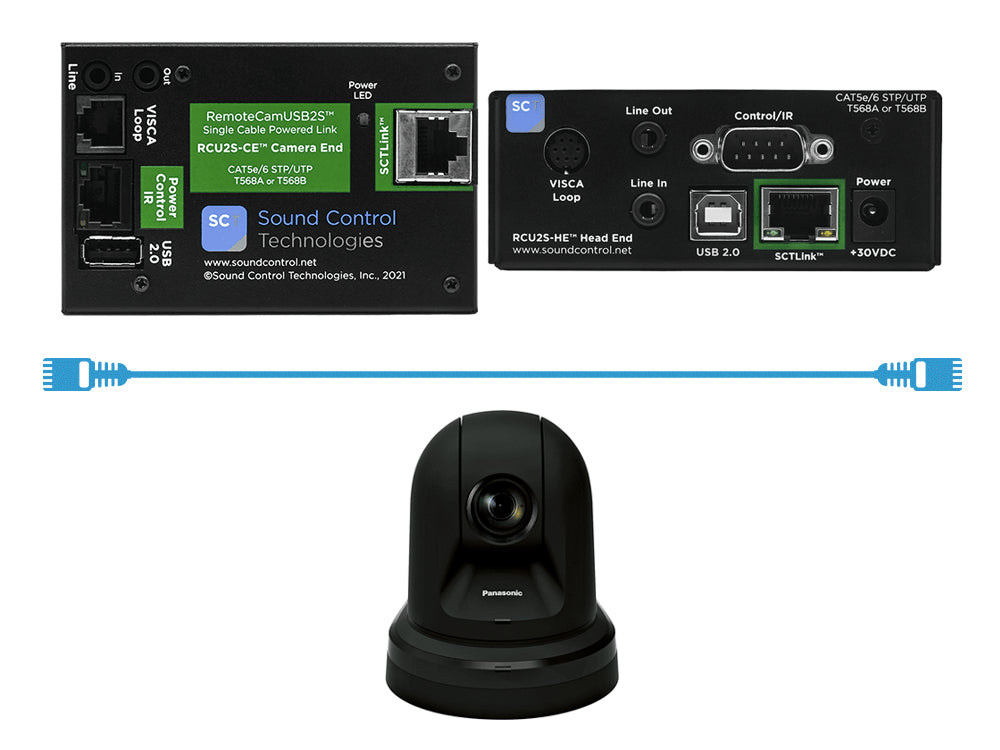

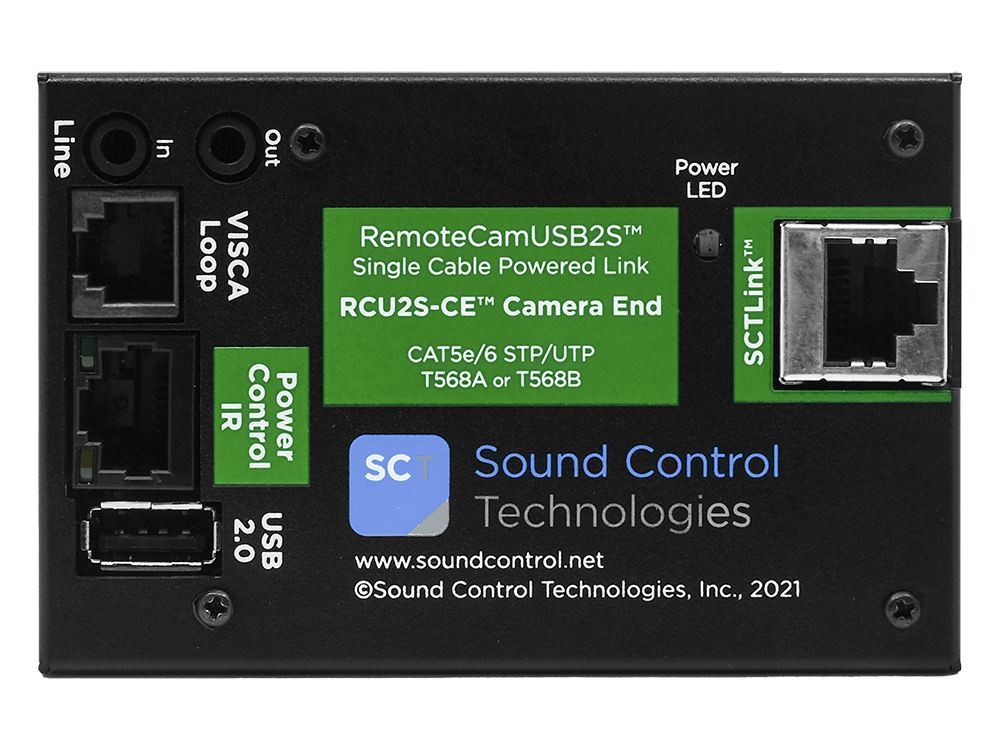

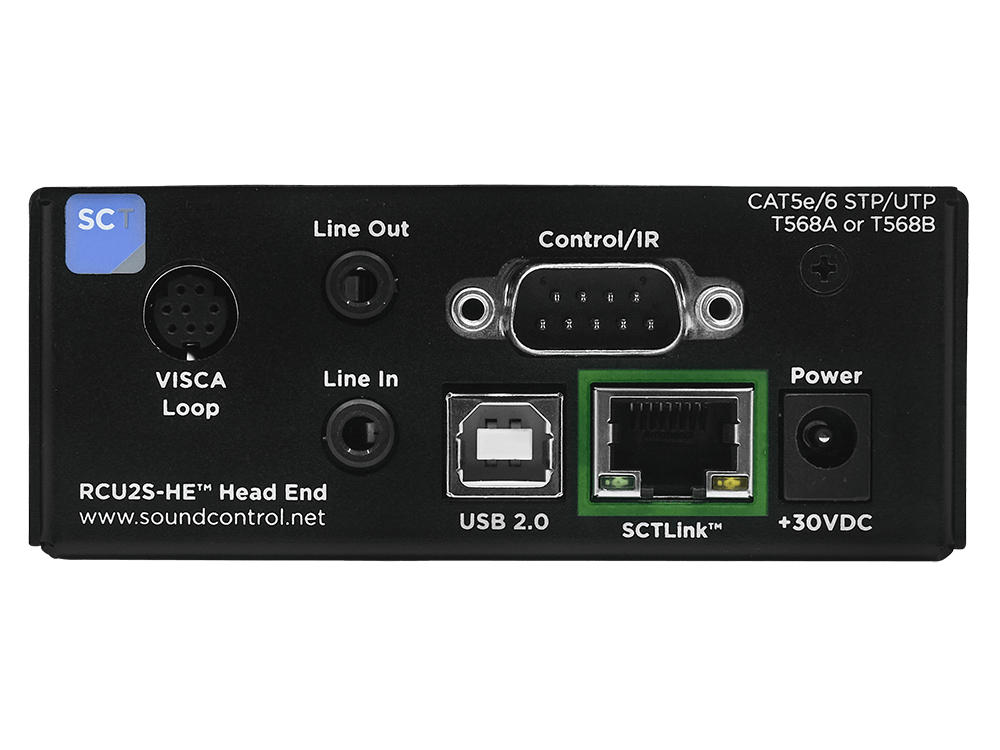

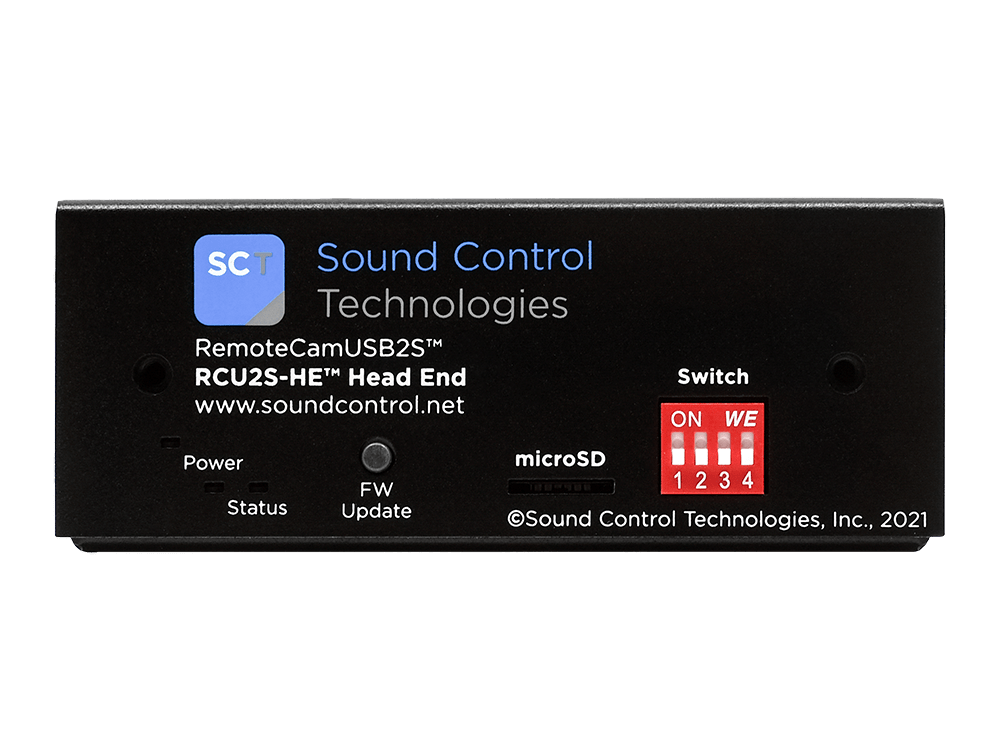

The RCU2S-GC8 uses a Head End (HE) unit at the codec or RS-232 control source and a Camera End (CE) at the Panasonic camera location. A single CAT5e or CAT6 cable between these units carries USB 2.0/UVC video, bi-directional RS-232 serial control, bi-directional audio, and 5V/12V camera power. The RS-232 channel is bidirectional, enabling PTZ control commands from the codec or control system and returning status feedback where supported by the Panasonic camera.

Power delivery supports 5V and 12V DC at the camera end, so no local power supply is needed. The bi-directional audio channel carries microphone or intercom signals. UVC compliance ensures the Panasonic camera appears as a standard USB video device on any USB 2.0 host without proprietary drivers. The single-cable solution replaces separate USB, serial, and power cable runs to the Panasonic camera location.

Key Features

• RS-232 PTZ Control for Panasonic Cameras — Bi-directional RS-232 serial control loop alongside USB video and power in one CAT cable.
• Panasonic Camera Compatibility — GC8 cable kit matched to supported Panasonic USB PTZ camera interfaces.
• 300-Foot USB 2.0 Extension — Extends USB/UVC signal up to 300 feet over a single CAT5e or CAT6 cable.
• Integrated 5V/12V Camera Power — No separate power supply required at the Panasonic camera location.
• Bi-Directional Audio — Audio channel for microphone or intercom use between camera and head end.
• UVC Plug-and-Play — No proprietary drivers required on Windows, macOS, or Linux.
• Single CAT Cable Infrastructure — USB video, RS-232, audio, and power consolidated in one structured cabling run.

Typical Applications

• Conference room Panasonic PTZ camera installations with codec RS-232 control
• Boardroom AV builds using Panasonic PTZ cameras with centralized RS-232 control
• Government space AV deployments with Panasonic PTZ cameras under serial control
• Training room Panasonic PTZ camera installations at extended cable distances
• Multi-purpose rooms with Panasonic PTZ cameras and control system integration

Technical Specifications

Frequently Asked Questions

Which Panasonic camera models are supported by the RCU2S-GC8?

The GC8 cable kit supports specific Panasonic models. Contact Creation Networks for the current SCT compatibility matrix for this configuration.

Can the RS-232 control work with a third-party control system?

Yes. The RS-232 loop is a standard bi-directional serial interface compatible with Crestron, AMX, QSC, and codec-native RS-232 control outputs.

Can I use this kit without using the RS-232 control?

Yes. USB video, audio, and camera power operate independently of the RS-232 channel.

What cabling is required?

A single CAT5e or CAT6 cable run up to 300 feet. Standard TIA-568 structured cabling practices apply.

What warranty applies?

Contact Creation Networks for current Sound Control Technologies warranty terms for this product.
