Sound Control Technologies RCU2S-EA8 – USB 2.0 + RS-232 Extension Kit for AVer Cameras

Product Overview

The Sound Control Technologies RCU2S-EA8 is a USB 2.0 camera extension kit with RS-232 serial control loop, designed for AVer PTZ camera deployments requiring both USB video and RS-232 PTZ control over a single CAT cable. It extends USB 2.0/UVC video, bi-directional audio, RS-232 PTZ control, and 5V/12V camera power up to 300 feet. The EA8 cable kit is matched to supported AVer camera interfaces — the A8 designation indicates inclusion of the RS-232 control loop. Contact Creation Networks for the specific AVer models supported. This kit suits conference rooms, boardrooms, and commercial spaces using AVer PTZ cameras with RS-232 camera control.

Product Description

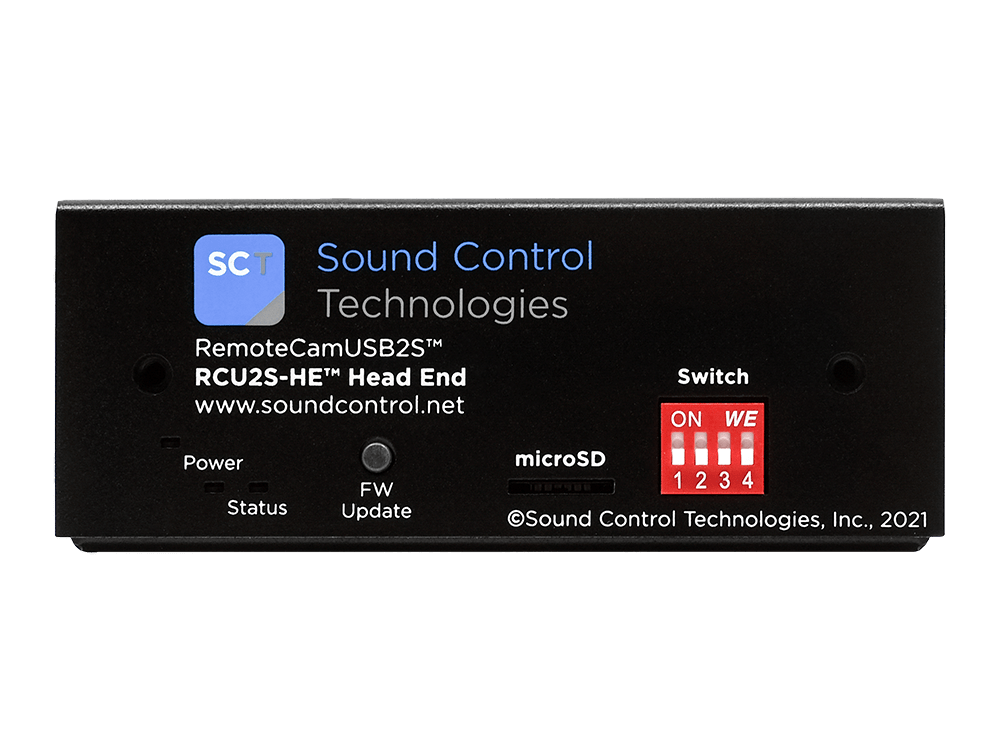

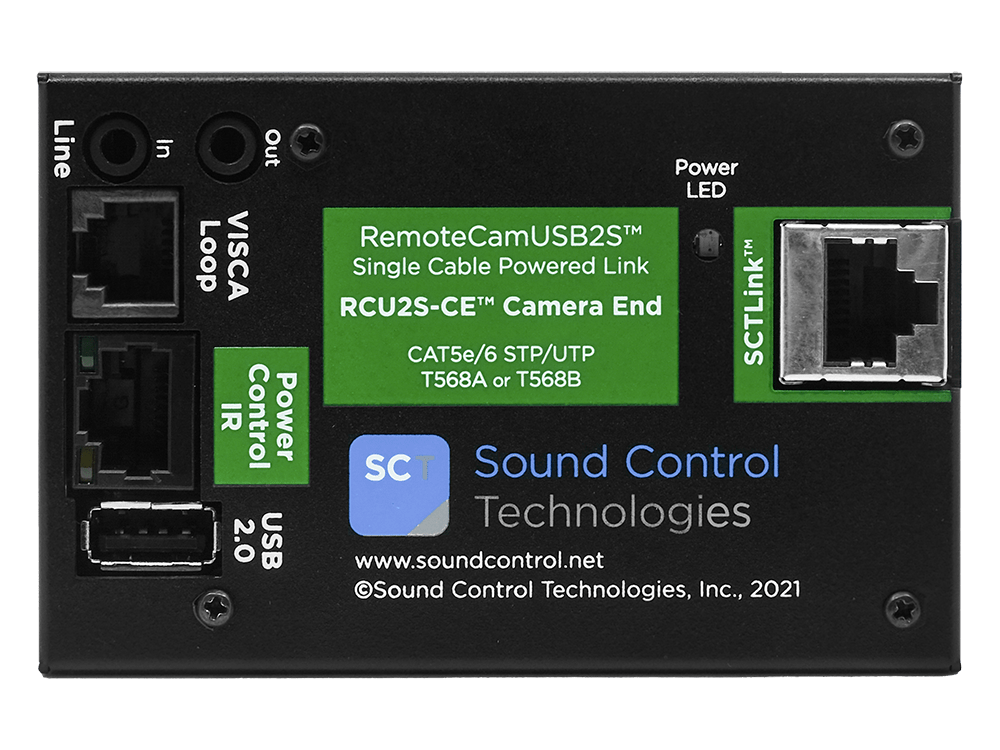

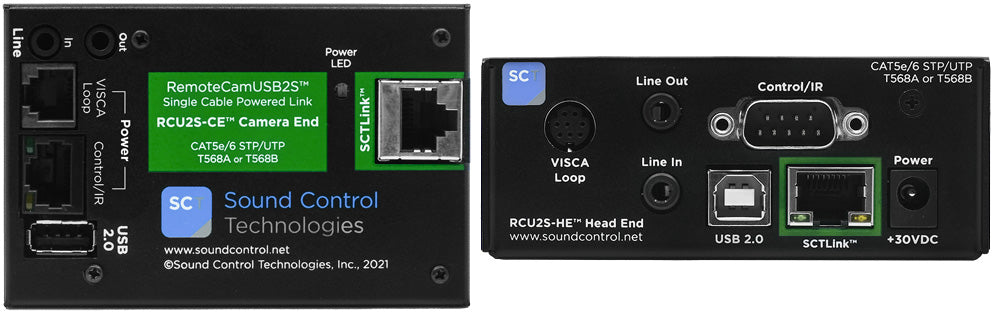

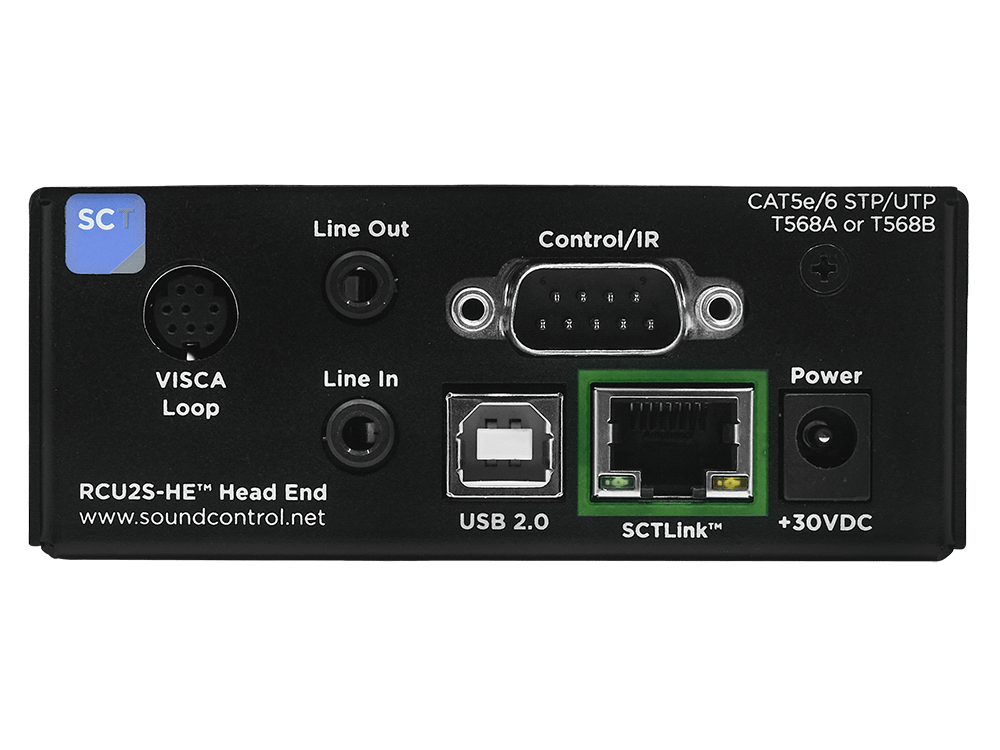

The RCU2S-EA8 extends all required signals for AVer PTZ camera installations over a single CAT5e or CAT6 cable run up to 300 feet. The Head End (HE) connects to the codec or host and RS-232 control output; the Camera End (CE) connects to the AVer camera via the EA8 cable kit. The RS-232 control loop is bidirectional, enabling PTZ control commands from the codec or control system and returning feedback where supported.

Power delivery supports 5V and 12V DC at the camera end, eliminating a separate local power supply. The bi-directional audio channel carries microphone or intercom signals. UVC compliance ensures the AVer camera appears as a standard USB video device on any USB 2.0 host without proprietary drivers. The single-cable approach replaces separate USB, serial, and power cable runs to the AVer camera location. Replacement modules (RCU2S-CE and RCU2S-HE) are available separately.

Key Features

• RS-232 PTZ Control for AVer Cameras — Bi-directional RS-232 serial control loop alongside USB video and power over a single CAT cable.
• AVer Camera Compatibility — EA8 cable kit matched to supported AVer USB PTZ camera interfaces.
• 300-Foot USB 2.0 Extension — Extends USB/UVC signal up to 300 feet over a single CAT5e or CAT6 cable.
• Integrated 5V/12V Camera Power — No separate power supply at the AVer camera mount location.
• Bi-Directional Audio — Audio channel for microphone or intercom use between camera and head end.
• UVC Plug-and-Play — No proprietary drivers required on Windows, macOS, or Linux.
• Single CAT Cable Infrastructure — USB video, RS-232, audio, and power in one structured cabling run.

Typical Applications

• Conference room AVer PTZ camera installations with codec RS-232 control
• Boardroom AV builds using AVer cameras with centralized RS-232 control systems
• Multi-purpose room deployments with AVer PTZ cameras requiring serial control
• Corporate meeting spaces standardizing on AVer camera platforms with control systems
• Training room AVer PTZ camera installations at extended cable distances
• Government space AV deployments with AVer PTZ cameras under RS-232 control

Technical Specifications

Frequently Asked Questions

Which AVer camera models are supported by the RCU2S-EA8?

The EA8 cable kit supports specific AVer PTZ camera models. Contact Creation Networks for the current SCT compatibility matrix for this configuration.

Can the RS-232 control work with a third-party control system?

Yes. The RS-232 loop is a standard bi-directional serial interface compatible with Crestron, AMX, QSC, and codec-native RS-232 PTZ control outputs.

Can I use this kit without the RS-232 channel?

Yes. USB video, audio, and camera power operate independently of the RS-232 channel.

What cabling is required?

A single CAT5e or CAT6 cable run up to 300 feet. Standard TIA-568 structured cabling practices apply.

What warranty applies?

Contact Creation Networks for current Sound Control Technologies warranty terms for this product.
