Sound Control Technologies RCU2S-E1B6 – USB 2.0 Extension Kit for AVer Cameras
Sound Control Technologies RCU2S-E1B6 – USB 2.0 Extension Kit for AVer Cameras is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RCU2S-E1B6 – USB 2.0 Extension Kit for A...
Product Overview
The Sound Control Technologies RCU2S-E1B6 is a USB 2.0 camera extension kit for AVer camera deployments. It extends USB 2.0/UVC video, bi-directional audio, and 5V/12V camera power up to 300 feet over a single CAT cable. The E1B6 cable kit is matched to supported AVer camera interfaces — contact Creation Networks for the specific AVer models supported by this configuration. Designed for conference rooms, boardrooms, and commercial AV spaces where AVer cameras need to be placed at distance from a codec or host system over structured CAT cabling.
Product Description

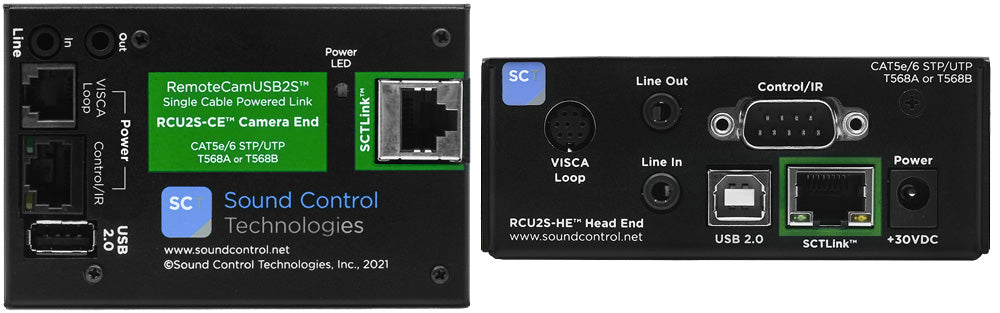

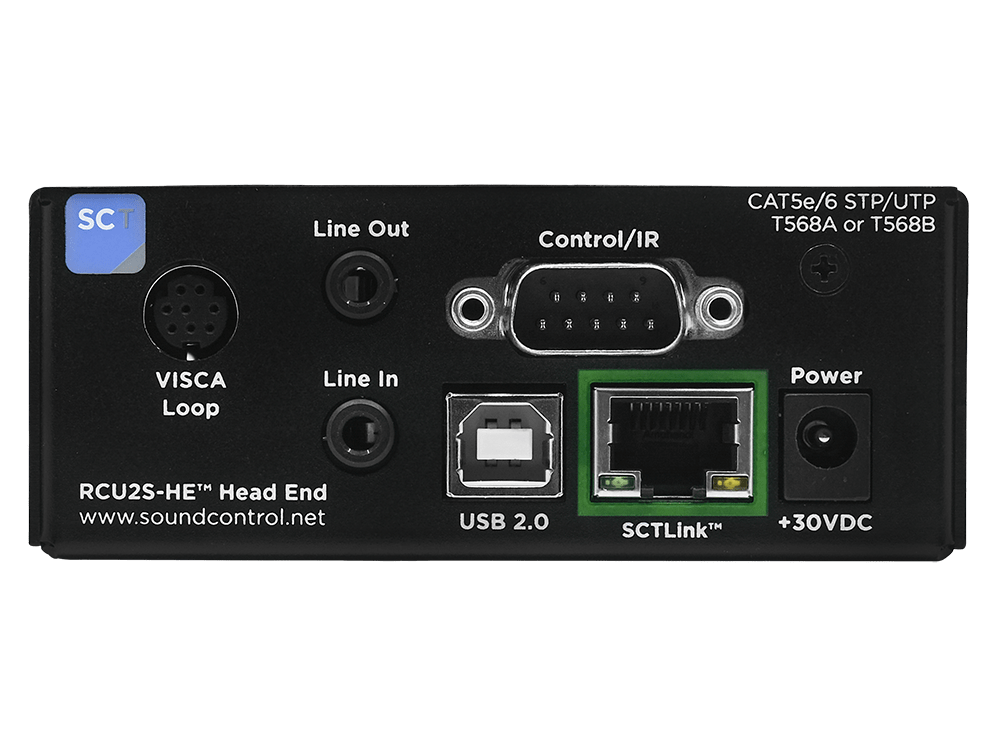

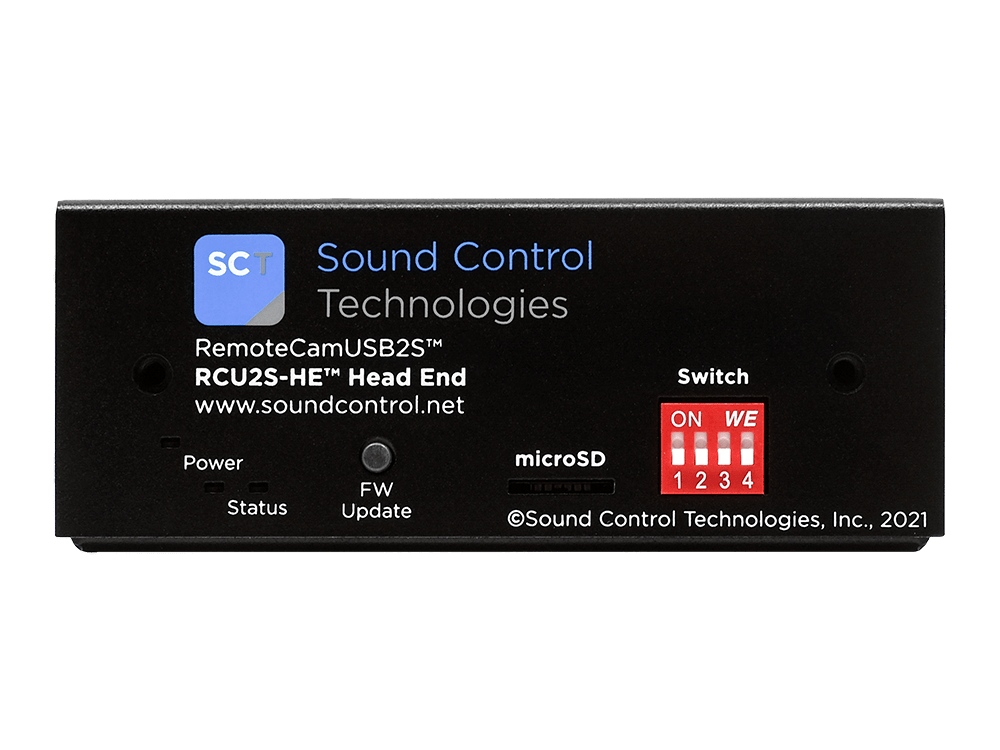

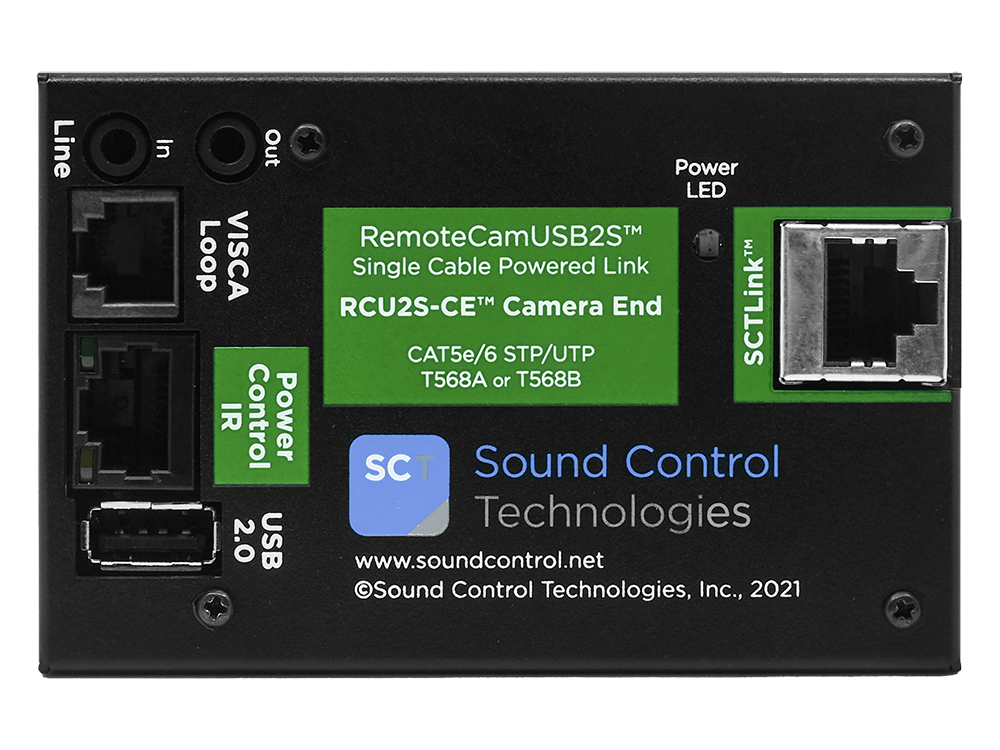

The RCU2S-E1B6 uses a Head End (HE) at the codec or USB host and a Camera End (CE) at the AVer camera location. A single CAT5e or CAT6 cable between these units carries USB 2.0/UVC video, bi-directional audio, and 5V/12V camera power. Power delivery at the camera end eliminates the need for a separate local power supply. UVC compliance ensures the AVer camera is recognized as a standard USB video device on Windows, macOS, or Linux without proprietary drivers.
The bi-directional audio channel supports microphone or intercom signal transport. The E1B6 variant is a standard RCU2S kit without RS-232 control — for AVer cameras requiring RS-232 PTZ control, see the RCU2S-EA8 or other A8-designated variants. Replacement modules (RCU2S-CE and RCU2S-HE) are available separately.
Key Features
- AVer Camera Compatibility — E1B6 cable kit matched to supported AVer USB camera interfaces.
- 300-Foot USB 2.0 Extension — Extends USB/UVC signal up to 300 feet over a single CAT5e or CAT6 cable.
- Integrated 5V/12V Camera Power — No separate power supply at the AVer camera location.
- Bi-Directional Audio — Audio channel for microphone or intercom use between camera and head end.
- UVC Plug-and-Play — No proprietary drivers required on Windows, macOS, or Linux.
- Single CAT Cable Run — USB video, audio, and power in one structured cabling path.
- Commercial-Grade Manufacturing — USA/Taiwan made for commercial AV environments.
Typical Applications
- Conference room AVer camera installations with rack-mounted codecs
- Boardroom AV builds requiring extended AVer USB camera runs
- Multi-purpose room systems with AVer cameras over existing CAT infrastructure
- Corporate meeting spaces standardizing on AVer camera platforms
- Training room AVer camera deployments
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RCU2S-E1B6 |
| Product Family | RemoteCamUSB2S |
| Compatible Camera Brand | AVer |
| Signal Types Carried | USB 2.0/UVC video, bi-directional audio, 5V/12V camera power |
| Maximum Extension Distance | 300 feet (approx. 90 m) over CAT5e/CAT6 |
| Camera Power Output | 5V and 12V DC |
| Unit of Measure | Each (complete kit) |
| Country of Origin | USA / Taiwan |
| MSRP | $1,945.00 |
Frequently Asked Questions
Which AVer models are supported by the RCU2S-E1B6?
The E1B6 variant supports specific AVer camera models. Contact Creation Networks for the current SCT compatibility list.
Does this kit include RS-232 PTZ control?
No. The RCU2S-E1B6 carries USB 2.0, audio, and camera power only. For RS-232 control, see RCU2S-EA8 or RCU2S-CA8.
What cabling is required?
A single CAT5e or CAT6 cable run up to 300 feet. Standard TIA-568 structured cabling practices apply.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for this product.
