Sound Control Technologies RCU2S-CC8 – USB 2.0 + RS-232 Extension Kit for Panasonic Cameras
Sound Control Technologies RCU2S-CC8 – USB 2.0 + RS-232 Extension Kit for Panasonic Cameras is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RCU2S-CC8 – USB 2.0 + RS-232 Extension K...
Product Overview
The Sound Control Technologies RCU2S-CC8 is a USB 2.0 camera extension kit with RS-232 serial control loop, designed for Panasonic PTZ camera deployments requiring both USB video and RS-232 camera control over a single CAT cable. It extends USB 2.0/UVC video, bi-directional audio, RS-232 PTZ control, and 5V/12V camera power up to 300 feet. The CC8 cable kit is matched to supported Panasonic camera interfaces — the C8 designation indicates inclusion of the RS-232 control loop. Contact Creation Networks for the specific Panasonic models supported. Suitable for conference rooms, boardrooms, and commercial AV installations using Panasonic PTZ cameras with codec or control system RS-232 control.
Product Description

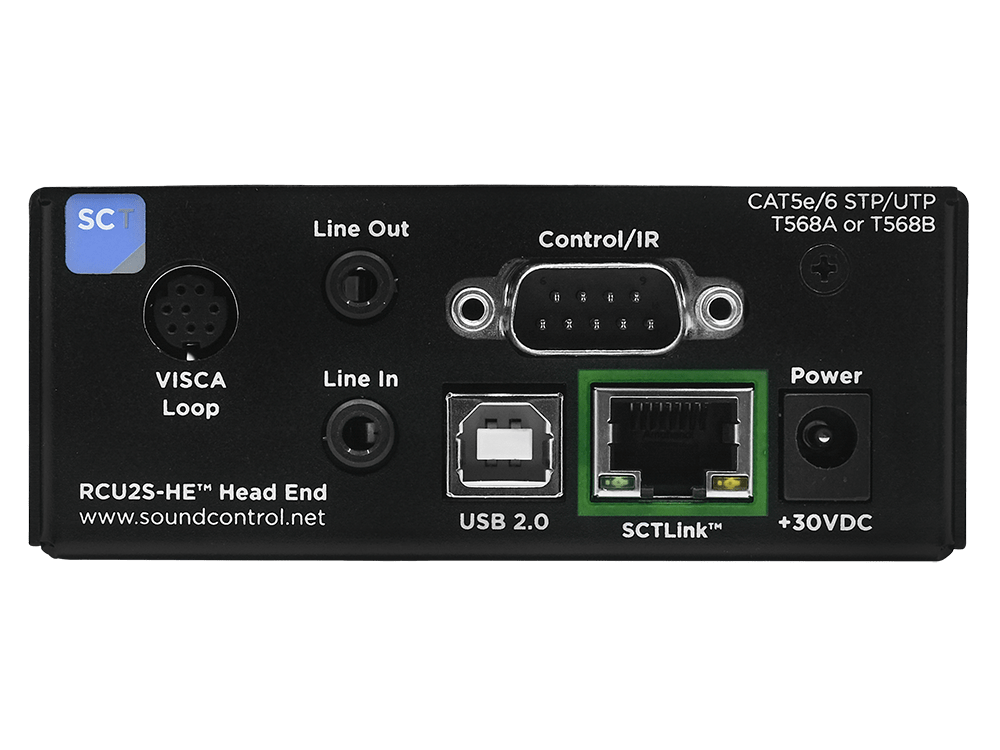

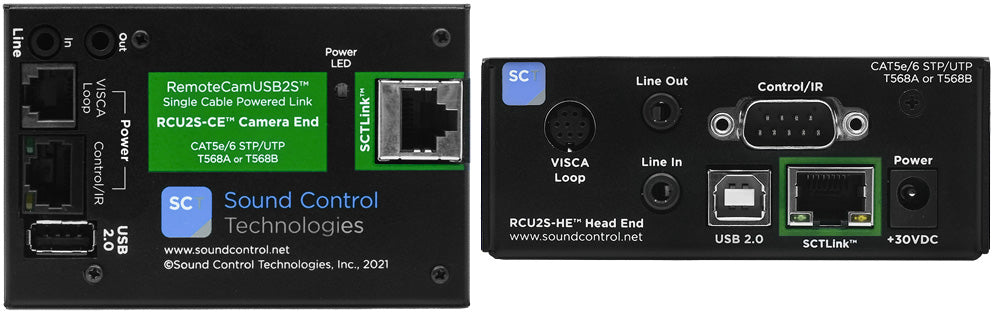

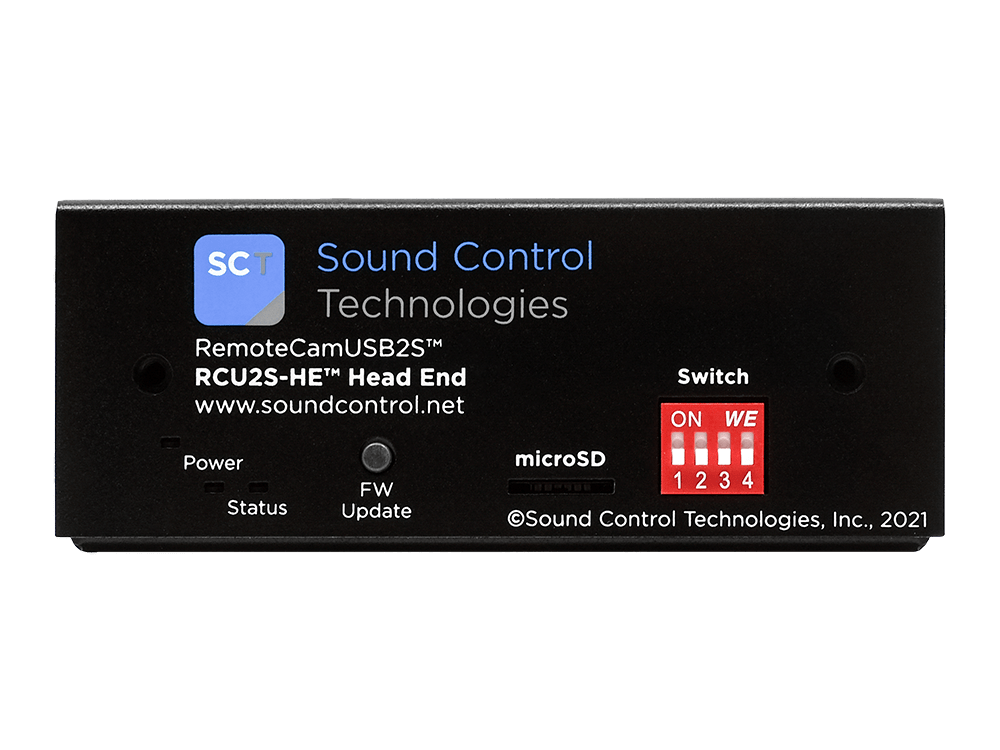

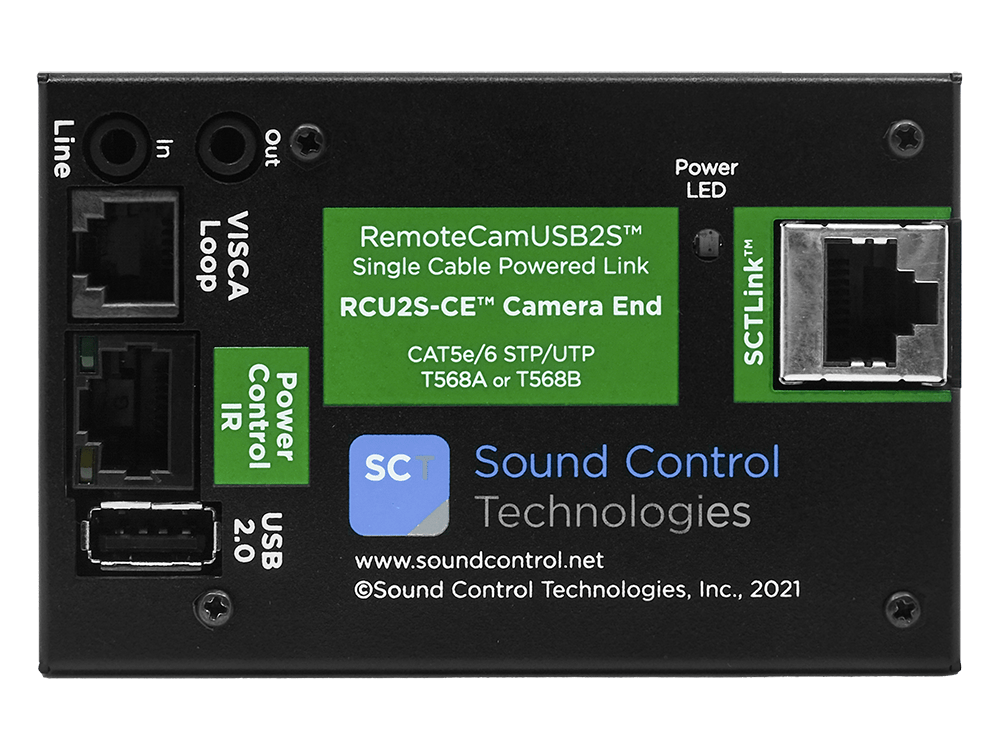

The RCU2S-CC8 extends all required signals for Panasonic PTZ camera installations over a single CAT5e or CAT6 cable run up to 300 feet. The Head End (HE) unit connects to the codec or host and RS-232 control output; the Camera End (CE) connects to the Panasonic camera via the CC8 cable kit. The RS-232 control loop is bidirectional, carrying PTZ commands from the codec or control system and returning feedback where supported by the Panasonic camera.
Power delivery supports 5V and 12V DC at the camera end — no separate power supply required. The bi-directional audio channel carries microphone or intercom signal transport. UVC compliance ensures the Panasonic camera appears as a standard USB video device on any USB 2.0 host without proprietary drivers. The single-cable infrastructure replaces separate USB, serial, and power cable runs to the Panasonic camera location.
Key Features
- RS-232 PTZ Control for Panasonic Cameras — Bi-directional RS-232 serial control loop carries PTZ commands alongside USB video and power.
- Panasonic Camera Compatibility — CC8 cable kit matched to supported Panasonic USB camera interfaces.
- 300-Foot USB 2.0 Extension — Extends USB/UVC signal up to 300 feet over a single CAT5e or CAT6 cable.
- Integrated 5V/12V Camera Power — No separate power supply required at the Panasonic camera location.
- Bi-Directional Audio — Audio channel for microphone or intercom use between camera and head end.
- UVC Plug-and-Play — No proprietary drivers required on Windows, macOS, or Linux.
- Single CAT Cable Infrastructure — USB video, RS-232 control, audio, and power in one structured cabling run.
Typical Applications
- Conference room Panasonic PTZ camera installations with codec RS-232 control
- Boardroom AV builds using Panasonic PTZ cameras with centralized control systems
- Government space AV deployments with Panasonic cameras under RS-232 control
- Training room installations with Panasonic PTZ cameras at extended cable distances
- Multi-purpose rooms with Panasonic PTZ cameras and control system integration
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RCU2S-CC8 |
| Product Family | RemoteCamUSB2S |
| Compatible Camera Brand | Panasonic |
| Signal Types Carried | USB 2.0/UVC video, RS-232 serial control loop, bi-directional audio, 5V/12V camera power |
| Maximum Extension Distance | 300 feet (approx. 90 m) over CAT5e/CAT6 |
| Camera Power Output | 5V and 12V DC |
| Serial Control | Bi-directional RS-232 |
| Unit of Measure | Each (complete kit) |
| Country of Origin | USA / Taiwan |
| MSRP | $1,945.00 |
Frequently Asked Questions
Which Panasonic camera models are supported?
The CC8 cable kit supports specific Panasonic models. Contact Creation Networks for the current SCT compatibility matrix for this configuration.
Can the RS-232 control work with a third-party control system?
Yes. The RS-232 loop is a standard bi-directional serial interface compatible with Crestron, AMX, QSC, and codec-native RS-232 PTZ control outputs.
Can I use this kit without using the RS-232 control?
Yes. USB video, audio, and camera power operate independently of the RS-232 channel.
What cabling is required?
A single CAT5e or CAT6 cable run up to 300 feet. Standard TIA-568 structured cabling practices apply.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for this product.
