Sound Control Technologies RCU2S-C2B6 – USB 2.0 Extension Kit for AVer Cameras
Sound Control Technologies RCU2S-C2B6 – USB 2.0 Extension Kit for AVer Cameras is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RCU2S-C2B6 – USB 2.0 Extension Kit for A...
Product Overview
The Sound Control Technologies RCU2S-C2B6 is a USB 2.0 camera extension kit designed for AVer camera deployments. It extends USB 2.0/UVC video, bi-directional audio, and 5V/12V camera power up to 300 feet over a single CAT cable. The C2B6 cable kit is matched to supported AVer camera interfaces. Contact Creation Networks for the specific AVer models supported by this configuration. Suitable for conference rooms, boardrooms, and commercial spaces where AVer cameras need to be placed at distance from the codec or host system over structured CAT cabling.
Product Description

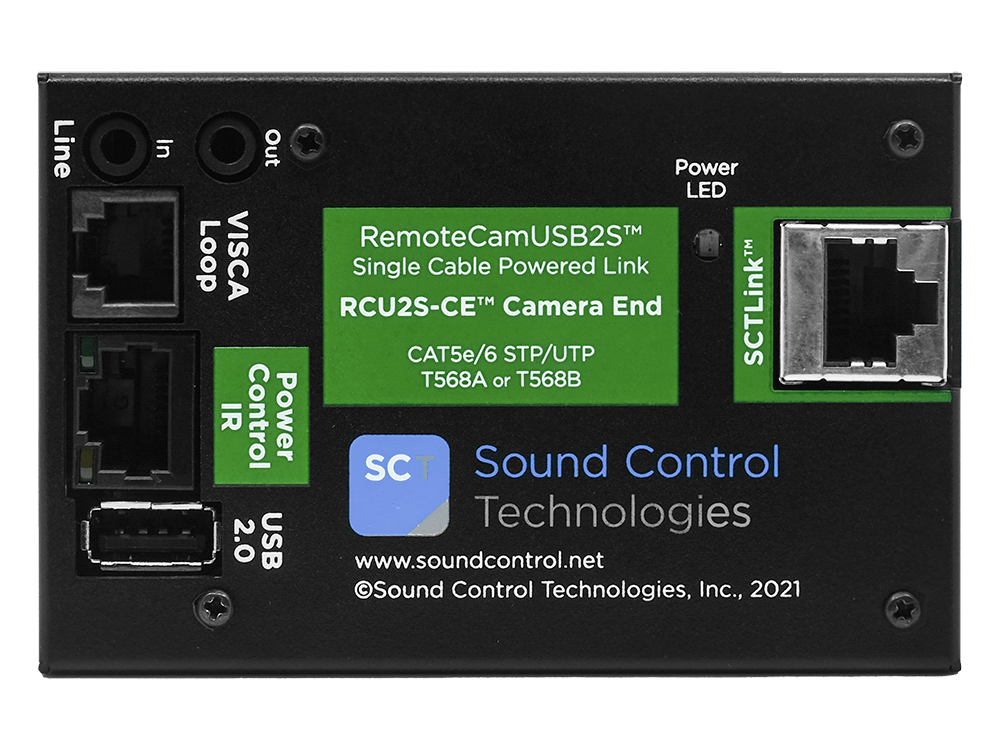

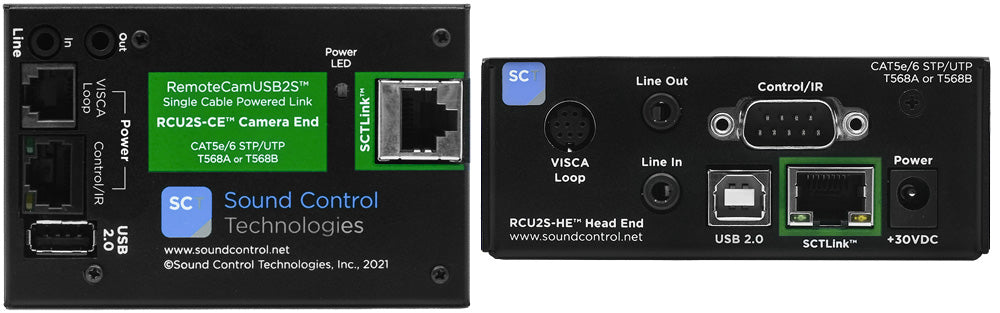

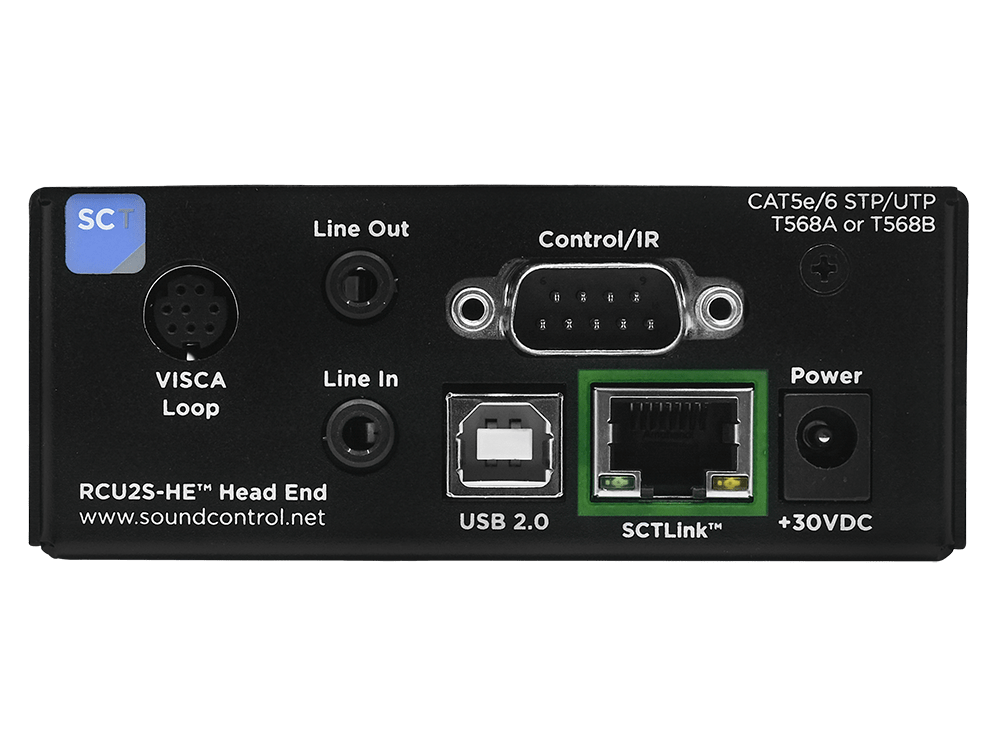

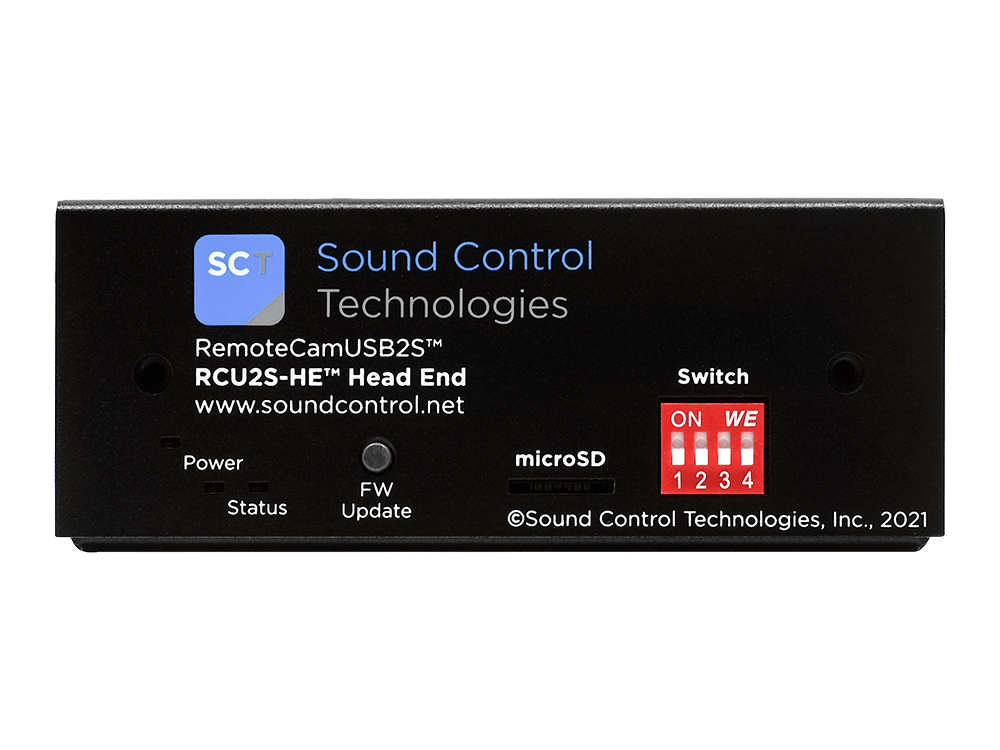

The RCU2S-C2B6 places a Head End (HE) unit at the codec or USB host and a Camera End (CE) unit at the AVer camera location. A single CAT5e or CAT6 cable between these units carries USB 2.0/UVC video, bi-directional audio, and 5V/12V camera power, replacing multiple discrete cable runs with a single structured cabling path. Power delivery at the camera end eliminates the need for a separate local power supply at the AVer camera mount.
UVC compliance ensures the AVer camera is recognized as a standard USB video device on any USB 2.0 host on Windows, macOS, or Linux without proprietary drivers. The bi-directional audio channel supports microphone or intercom signal transport. The C2B6 variant is a standard RCU2S kit without RS-232 control — for AVer cameras requiring RS-232 PTZ control over the same CAT run, see RCU2S variants with the A8 designation such as the RCU2S-CA8 or RCU2S-EA8.
Key Features
- AVer Camera Compatibility — Cable kit matched to supported AVer camera USB interfaces.
- 300-Foot USB 2.0 Extension — Extends USB/UVC signal up to 300 feet over a single CAT5e or CAT6 cable.
- Integrated 5V/12V Camera Power — No separate power supply required at the AVer camera mount location.
- Bi-Directional Audio — Audio channel for microphone or intercom use between camera and head end.
- UVC Plug-and-Play — No proprietary drivers on Windows, macOS, or Linux.
- Single CAT Cable Run — USB video, audio, and power in one structured cabling path.
- Commercial-Grade Manufacturing — USA/Taiwan made for commercial AV installations.
Typical Applications
- Conference room AVer camera installations with rack-mounted codecs
- Boardroom AV builds with AVer cameras requiring extended USB runs
- Multi-purpose room systems over existing structured CAT cabling
- Corporate meeting spaces standardizing on AVer camera platforms
- Training room AVer camera deployments
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RCU2S-C2B6 |
| Product Family | RemoteCamUSB2S |
| Compatible Camera Brand | AVer |
| Signal Types Carried | USB 2.0/UVC video, bi-directional audio, 5V/12V camera power |
| Maximum Extension Distance | 300 feet (approx. 90 m) over CAT5e/CAT6 |
| Camera Power Output | 5V and 12V DC |
| Unit of Measure | Each (complete kit) |
| Country of Origin | USA / Taiwan |
| MSRP | $1,945.00 |
Frequently Asked Questions
Which AVer camera models are supported by the RCU2S-C2B6?
The C2B6 variant is matched to specific AVer camera models. Contact Creation Networks for the current SCT compatibility matrix for this configuration.
Does this kit include RS-232 PTZ control?
No. The RCU2S-C2B6 carries USB 2.0, audio, and camera power only. For RS-232 serial control with AVer cameras, see RCU2S-CA8 or RCU2S-EA8.
What cabling is required?
A single CAT5e or CAT6 cable run up to 300 feet. Standard TIA-568 structured cabling practices apply.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for this product.
