Sound Control Technologies RCU2S-C20 – USB 2.0 Camera Extension Kit Variant
Sound Control Technologies RCU2S-C20 – USB 2.0 Camera Extension Kit Variant is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RCU2S-C20 – USB 2.0 Camera Extension Kit...
Product Overview
The Sound Control Technologies RCU2S-C20 is a USB 2.0 camera extension kit that carries USB 2.0/UVC video, bi-directional audio, and 5V/12V camera power up to 300 feet over a single CAT cable. Part of the RemoteCamUSB2S platform, the C20 variant includes a camera-specific cable kit — contact Creation Networks for the supported camera models. This kit is designed for commercial AV integrators deploying USB cameras at distance from rack-mounted codecs or host systems over existing structured CAT cabling infrastructure in conference rooms, boardrooms, and multi-purpose commercial spaces.
Product Description

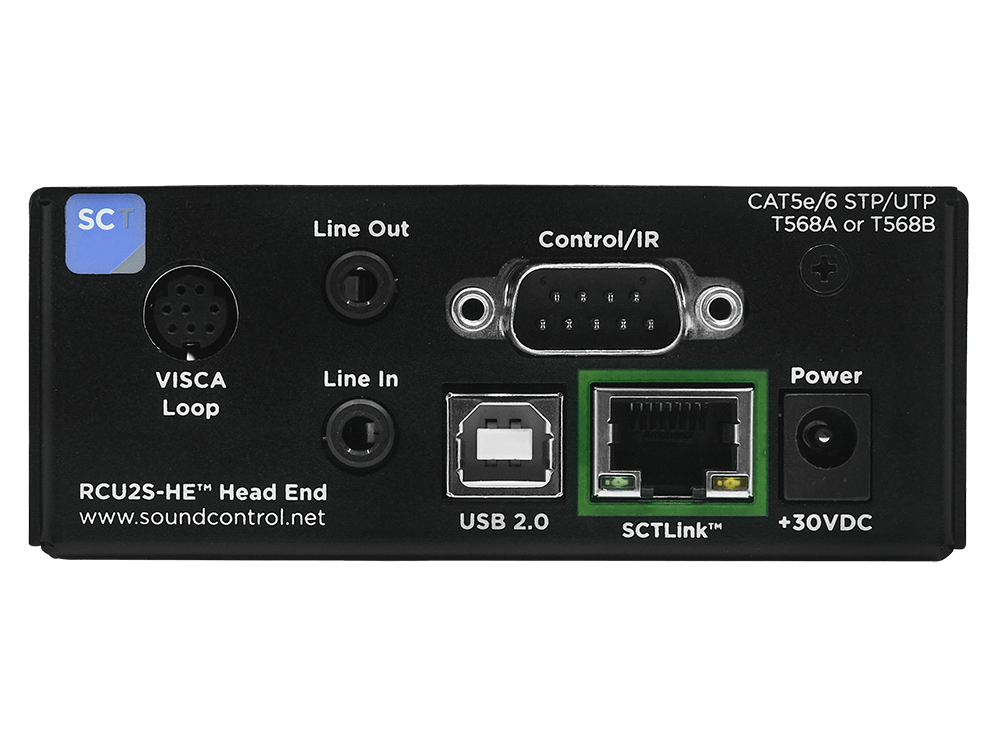

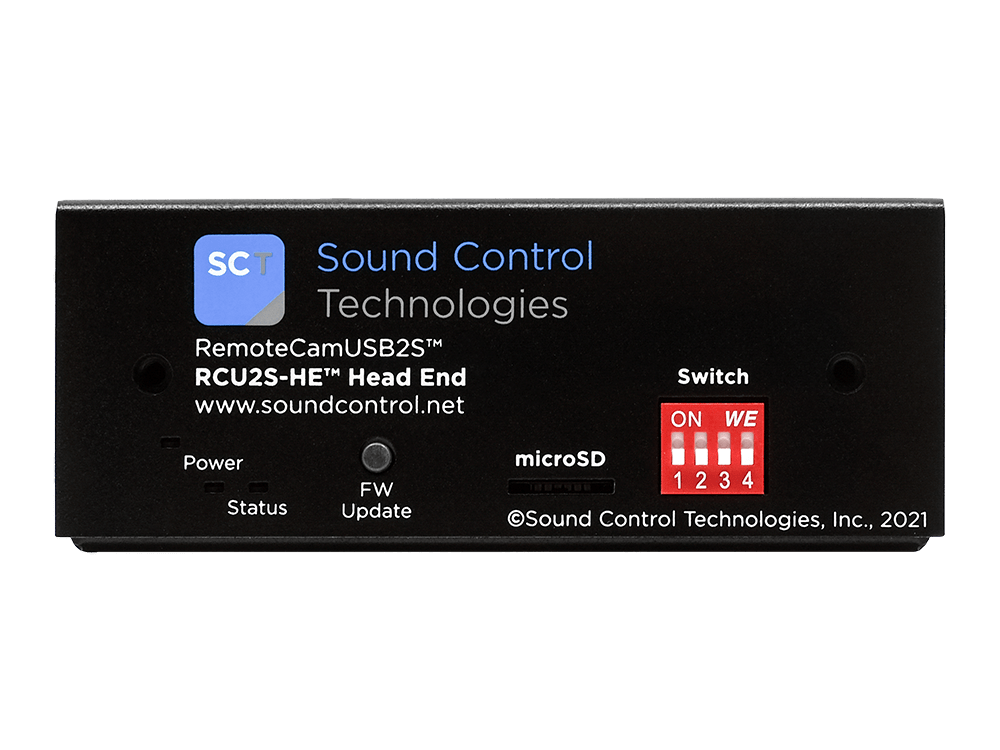

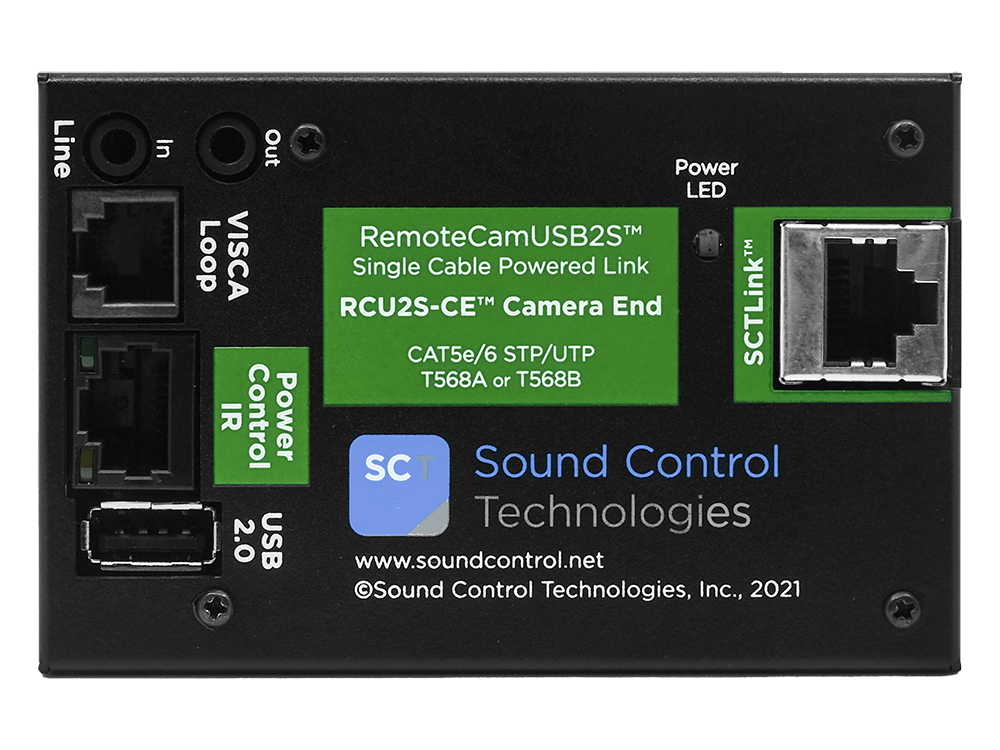

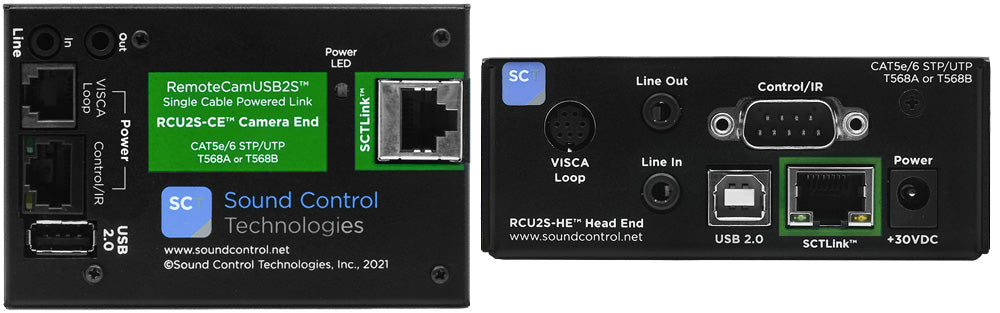

The RCU2S-C20 uses a Head End (HE) unit at the codec or host and a Camera End (CE) unit at the camera location. A single CAT5e or CAT6 cable run between these units carries USB 2.0/UVC video, bi-directional audio, and 5V/12V camera power. Power delivery at the camera end eliminates the need for a separate local power supply. UVC compliance ensures the camera is recognized as a standard USB video device on Windows, macOS, or Linux without proprietary drivers.
The bi-directional audio channel supports microphone or intercom signal transport. The C20 cable kit variant is matched to specific camera models — verify compatibility with Creation Networks before ordering. Replacement modules (RCU2S-CE and RCU2S-HE) are available separately for service and spares planning.
Key Features
- 300-Foot USB 2.0 Extension — Extends USB/UVC signal up to 300 feet over a single CAT5e or CAT6 cable.
- Integrated 5V/12V Camera Power — Delivers camera power over the CAT run; no separate power supply at the camera end.
- Bi-Directional Audio — Audio channel for microphone or intercom use between camera and head end.
- UVC Plug-and-Play — No proprietary drivers required on Windows, macOS, or Linux.
- Single CAT Cable Run — Video, audio, and power in one structured cabling path.
- Camera-Specific Cable Kit — C20 configuration matched to supported camera models.
- Commercial-Grade Manufacturing — USA/Taiwan made for commercial AV installations.
Typical Applications
- Conference room USB camera installations with rack-mounted codecs
- Boardroom AV builds requiring extended USB camera cable runs
- Multi-purpose room systems over existing structured CAT cabling
- Corporate commercial meeting space AV integration
- Training room fixed USB camera deployments
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RCU2S-C20 |
| Product Family | RemoteCamUSB2S |
| Signal Types Carried | USB 2.0/UVC video, bi-directional audio, 5V/12V camera power |
| Maximum Extension Distance | 300 feet (approx. 90 m) over CAT5e/CAT6 |
| Camera Power Output | 5V and 12V DC |
| Unit of Measure | Each (complete kit) |
| Country of Origin | USA / Taiwan |
| MSRP | $1,945.00 |
Frequently Asked Questions
Which cameras are compatible with the RCU2S-C20?
The C20 variant is matched to specific camera models. Contact Creation Networks for the current SCT compatibility matrix for this configuration.
Does this kit include RS-232 PTZ control?
No. The RCU2S-C20 carries USB 2.0, audio, and camera power only. For RS-232 control, see RCU2S variants with A8 or B6 in the suffix.
What cable is required?
A single CAT5e or CAT6 cable run up to 300 feet. Standard TIA-568 structured cabling practices apply.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for this product.
