Sound Control Technologies RCU2S-C10 – USB 2.0 Camera Extension Kit...
Product Overview
The Sound Control Technologies RCU2S-C10 is a USB 2.0 camera extension kit that carries USB 2.0/UVC video, bi-directional audio, and 5V/12V camera power up to 300 feet over a single CAT cable. Built on the RemoteCamUSB2S platform, it is designed for AV integrators who need to place USB cameras at distance from rack-mounted codecs or host computers over existing structured cabling. The C10 variant includes a camera-specific cable kit — contact Creation Networks for the exact supported camera models. Suitable for conference rooms, boardrooms, and commercial meeting spaces of all types.
Product Description

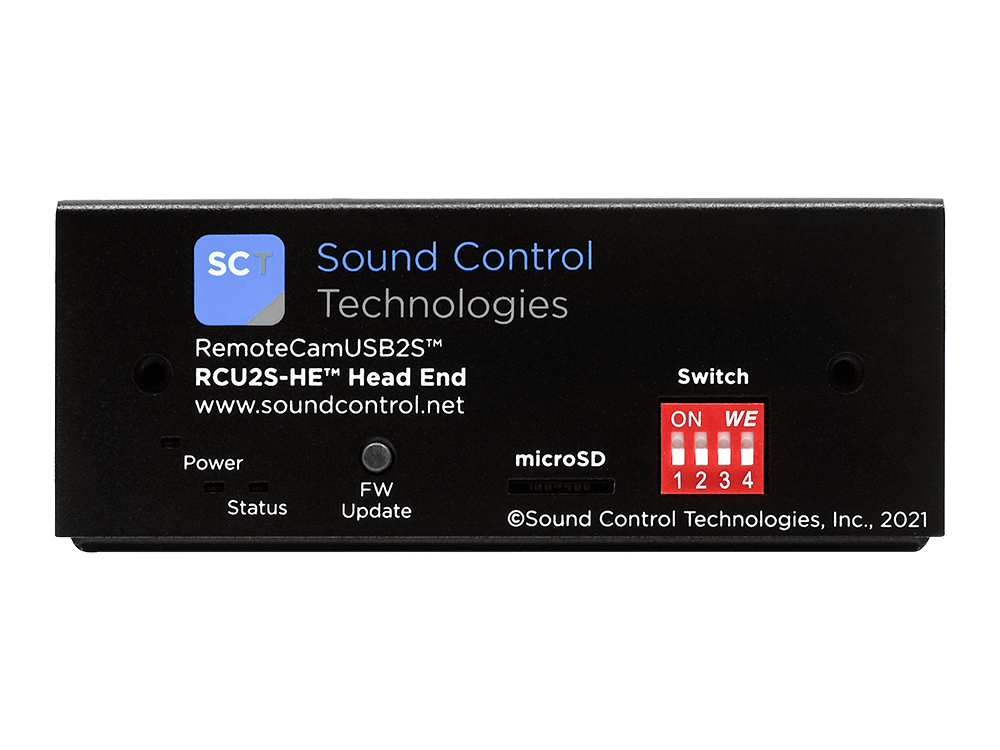

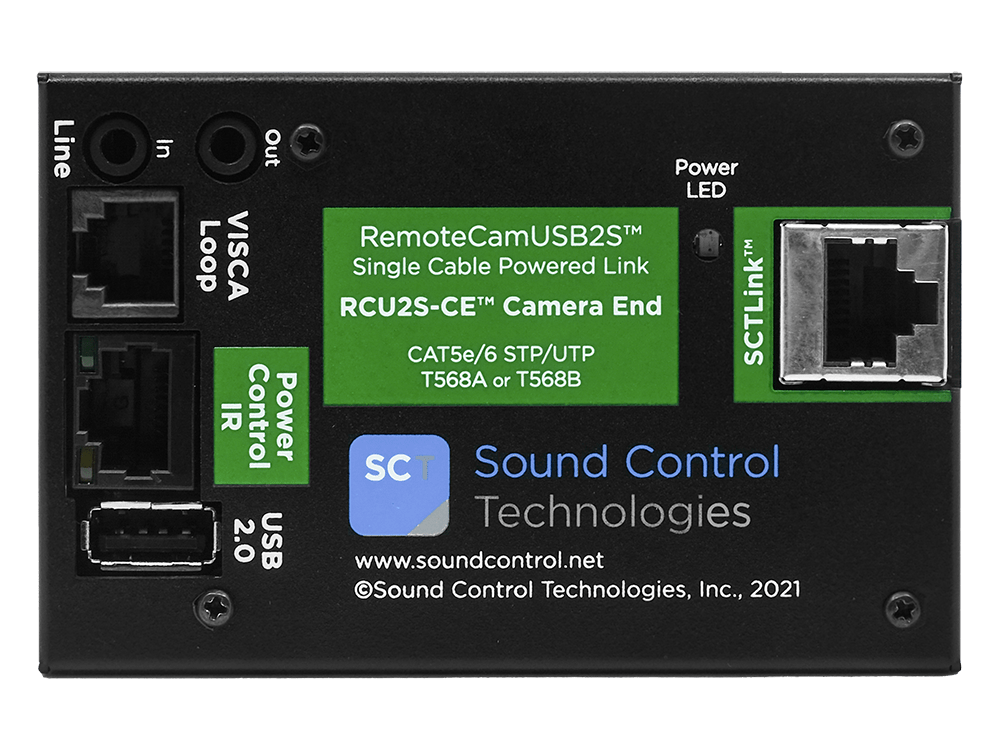

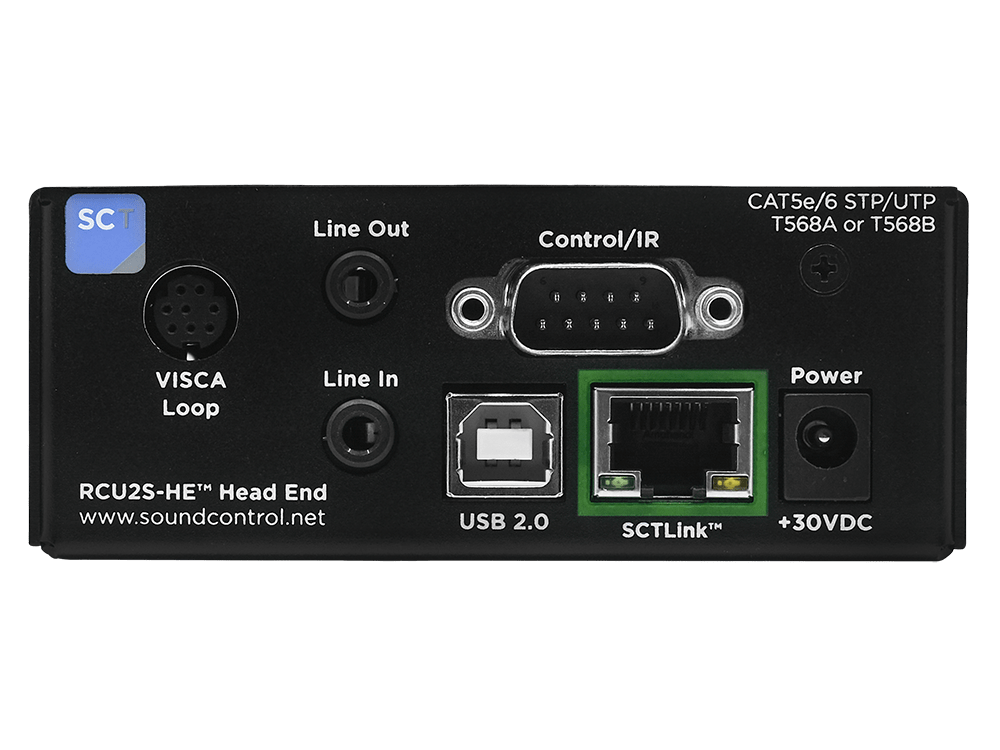

The RCU2S-C10 uses a Head End (HE) unit at the codec or host and a Camera End (CE) unit at the camera location. A single CAT5e or CAT6 cable run carries USB 2.0/UVC video, bi-directional audio, and camera power — eliminating multiple cable runs and USB extender dongles. Power delivery at the camera end supports 5V and 12V DC, so no separate power supply is required at the camera mount location.
UVC compliance means the camera is recognized as a standard USB video device by any USB 2.0 host on Windows, macOS, or Linux without proprietary drivers. The bi-directional audio channel supports microphone or intercom signal transport depending on the connected camera. The C10 cable kit configuration is matched to specific camera models — verify compatibility with Creation Networks before ordering.

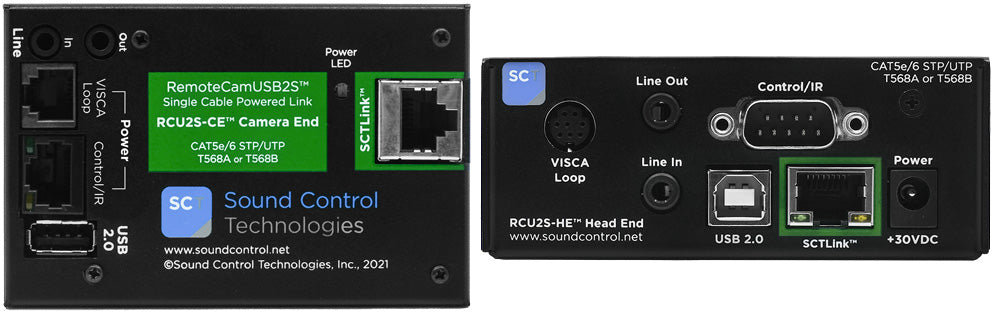

Replacement modules (RCU2S-CE and RCU2S-HE) are available separately for spares or service planning. For deployments requiring Ethernet camera control in addition to USB extension, the RCU2E family adds an Ethernet channel over the same CAT infrastructure.
Key Features
- 300-Foot USB 2.0 Extension — Extends USB/UVC signal up to 300 feet over a single CAT5e or CAT6 cable.
- Integrated Camera Power — 5V and 12V DC power at the camera end over the CAT run; no local power supply required.
- Bi-Directional Audio — Audio channel for microphone or intercom use between camera and head end.
- UVC Plug-and-Play — No drivers required; compatible with Windows, macOS, and Linux hosts.
- Single CAT Cable Run — Video, audio, and power in one structured cabling path.
- Camera-Specific Cable Kit — C10 configuration provides verified connection to supported camera models.
- Commercial-Grade Manufacturing — USA/Taiwan made for commercial AV environments.
Typical Applications
- Conference room USB camera installations with rack-mounted codecs
- Boardroom AV builds requiring extended USB runs over CAT cabling
- Multi-purpose room systems using existing structured cabling infrastructure
- Corporate commercial meeting space AV integration
- Training room fixed USB camera deployments
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RCU2S-C10 |
| Product Family | RemoteCamUSB2S |
| Signal Types Carried | USB 2.0/UVC video, bi-directional audio, 5V/12V camera power |
| Maximum Extension Distance | 300 feet (approx. 90 m) over CAT5e/CAT6 |
| Camera Power Output | 5V and 12V DC |
| Unit of Measure | Each (complete kit) |
| Country of Origin | USA / Taiwan |
| MSRP | $1,945.00 |
Frequently Asked Questions
Which cameras are compatible with the RCU2S-C10?
The C10 variant is matched to specific camera models. Contact Creation Networks for the current SCT compatibility list.
Does this kit include RS-232 PTZ control?
No. The RCU2S-C10 carries USB 2.0, audio, and camera power only. For RS-232 serial control, see RCU2S variants with A8 or B6 suffix.
What cable is required?
A single CAT5e or CAT6 cable run up to 300 feet. Standard TIA-568 structured cabling applies.
Can I use this kit in a BYOD meeting room?
Yes. The camera appears as a UVC device on any USB 2.0 host, including personal laptops used in BYOD/BYOM meeting rooms.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for this product.
