Sound Control Technologies RCU2S-BA8 – USB 2.0 + RS-232 Camera Extension Kit Variant
Sound Control Technologies RCU2S-BA8 – USB 2.0 + RS-232 Camera Extension Kit Variant is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RCU2S-BA8 – USB 2.0 + RS-232 Camera Exte...
Product Overview
The Sound Control Technologies RCU2S-BA8 is a USB 2.0 camera extension kit with RS-232 serial control loop, extending USB 2.0/UVC video, bi-directional audio, RS-232 PTZ control, and 5V/12V camera power up to 300 feet over a single CAT cable. The A8 designation indicates this kit includes the RS-232 serial control loop. The BA8 variant includes a specific camera cable kit — contact Creation Networks for the exact camera models supported by this configuration. Suitable for conference rooms, boardrooms, and commercial spaces where PTZ cameras require both USB video and RS-232 control over extended CAT cable runs.
Product Description

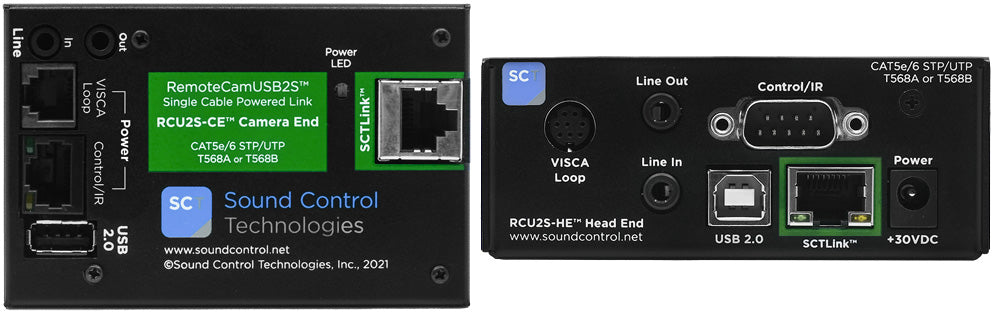

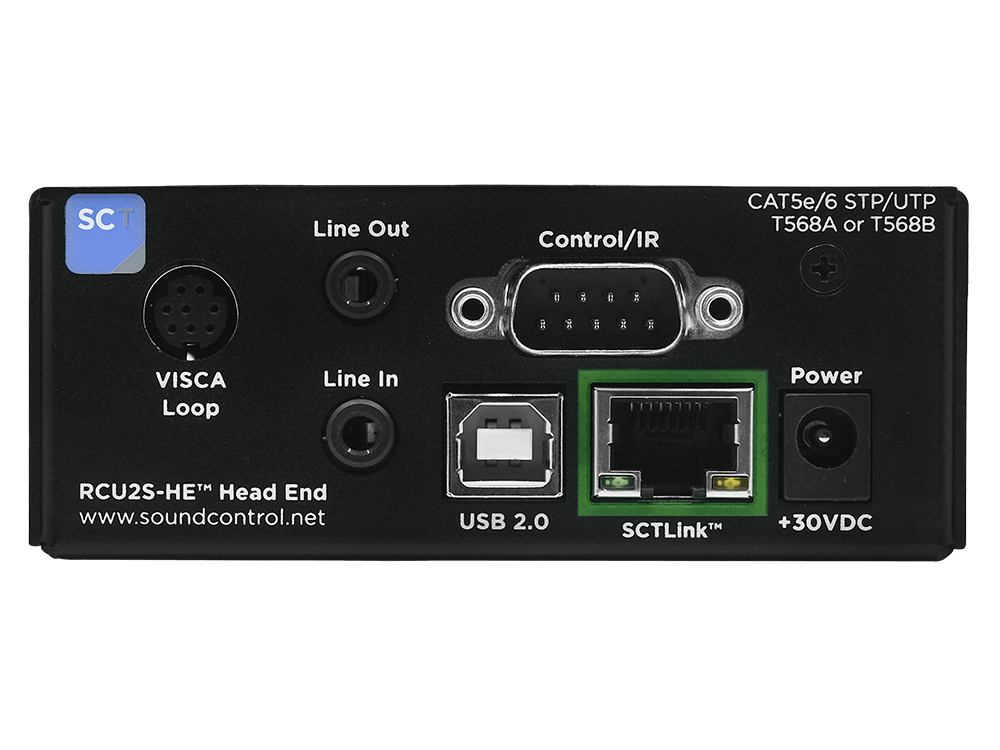

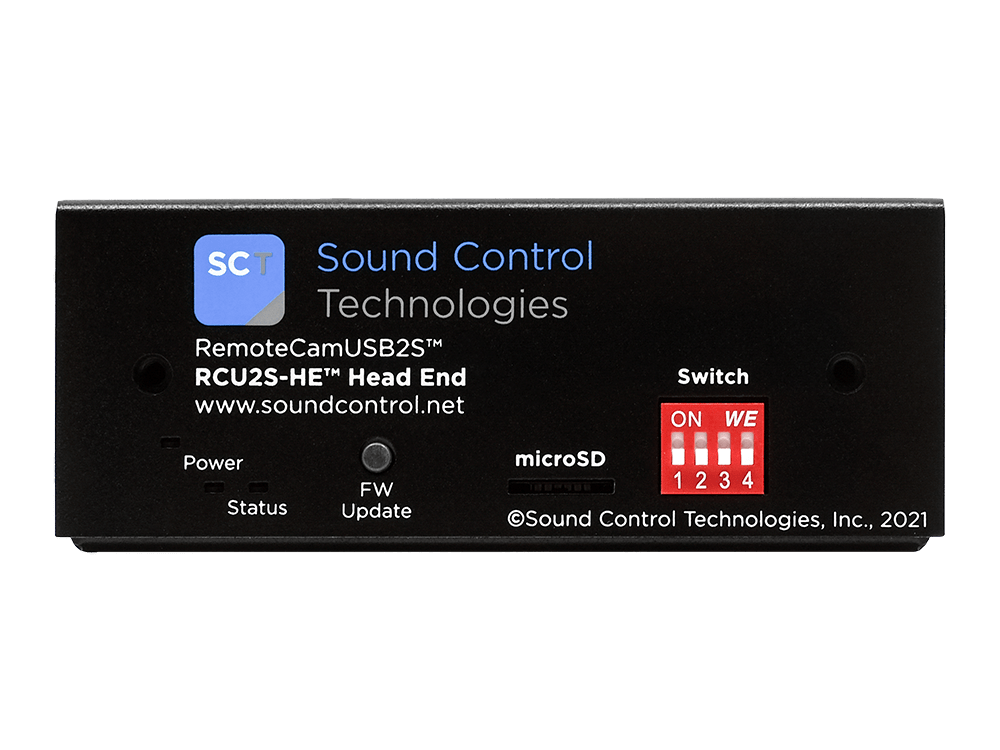

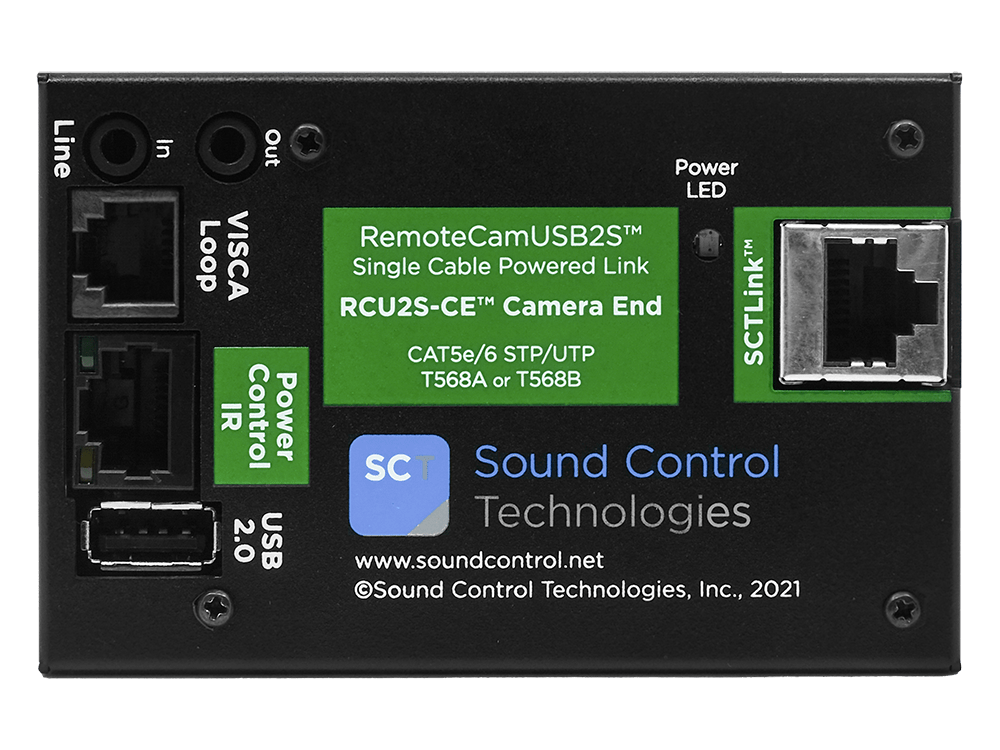

The RCU2S-BA8 uses a Head End (HE) at the codec or RS-232 control source and a Camera End (CE) at the camera location. A single CAT5e or CAT6 cable between these units carries USB 2.0/UVC video, bi-directional RS-232 serial control, bi-directional audio, and 5V/12V camera power. The RS-232 channel enables PTZ camera control commands from the codec or control system to reach the camera over the same CAT infrastructure used for USB video.
Power delivery supports 5V and 12V DC at the camera end. UVC compliance ensures the camera appears as a standard USB video device on Windows, macOS, or Linux hosts without proprietary drivers. The bi-directional audio channel supports microphone or intercom signal transport. The BA8 cable kit is matched to specific camera models — verify compatibility with Creation Networks before purchasing. Replacement modules (RCU2S-CE and RCU2S-HE) are available separately.
Key Features
- RS-232 Serial Control Loop — Bi-directional RS-232 PTZ control over the same CAT cable as USB video and power.
- 300-Foot USB 2.0 Extension — Extends USB/UVC signal up to 300 feet over a single CAT5e or CAT6 cable.
- Integrated 5V/12V Camera Power — No separate power supply required at the camera mount location.
- Bi-Directional Audio — Audio channel for microphone or intercom use between camera and head end.
- UVC Plug-and-Play — No proprietary drivers required on Windows, macOS, or Linux.
- Single CAT Cable Infrastructure — USB video, RS-232 control, audio, and power in one structured cabling run.
- Commercial-Grade Construction — USA/Taiwan manufactured for commercial AV installations.
Typical Applications
- Conference room PTZ camera installations with RS-232 codec control
- Boardroom AV builds with serial-controlled PTZ cameras
- Multi-purpose room deployments requiring PTZ control over extended cable runs
- Corporate meeting spaces with RS-232 PTZ camera control systems
- Training room PTZ camera installations at distance from the codec
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RCU2S-BA8 |
| Product Family | RemoteCamUSB2S |
| Signal Types Carried | USB 2.0/UVC video, RS-232 serial control loop, bi-directional audio, 5V/12V camera power |
| Maximum Extension Distance | 300 feet (approx. 90 m) over CAT5e/CAT6 |
| Camera Power Output | 5V and 12V DC |
| Serial Control | Bi-directional RS-232 |
| Unit of Measure | Each (complete kit) |
| Country of Origin | USA / Taiwan |
| MSRP | $1,945.00 |
Frequently Asked Questions
Which cameras are compatible with the RCU2S-BA8?
The BA8 cable kit supports specific camera models. Contact Creation Networks for the current SCT compatibility matrix for this configuration.
Can I use this kit's RS-232 with a third-party control system?
Yes. The RS-232 loop is a standard bi-directional serial interface compatible with Crestron, AMX, QSC, and codec-native RS-232 control outputs.
Can I use this kit without the RS-232 control?
Yes. USB video, audio, and camera power operate independently of the RS-232 channel.
What cabling is required?
A single CAT5e or CAT6 cable run up to 300 feet. Standard TIA-568 structured cabling practices apply.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for this product.
