Sound Control Technologies RCU2S-B00 – USB 2.0 Camera Extension Kit...
Product Overview
The Sound Control Technologies RCU2S-B00 is a USB 2.0 camera extension kit that carries USB 2.0/UVC video, bi-directional audio, and 5V/12V camera power up to 300 feet over a single CAT cable. Part of the RemoteCamUSB2S platform, it provides AV integrators a clean, single-cable solution for USB camera placement at distance from a rack-mounted codec or host system. The B00 variant includes a camera-specific cable kit — contact Creation Networks for the supported camera models. Designed for conference rooms, boardrooms, and commercial meeting spaces with standard USB camera deployments.
Product Description

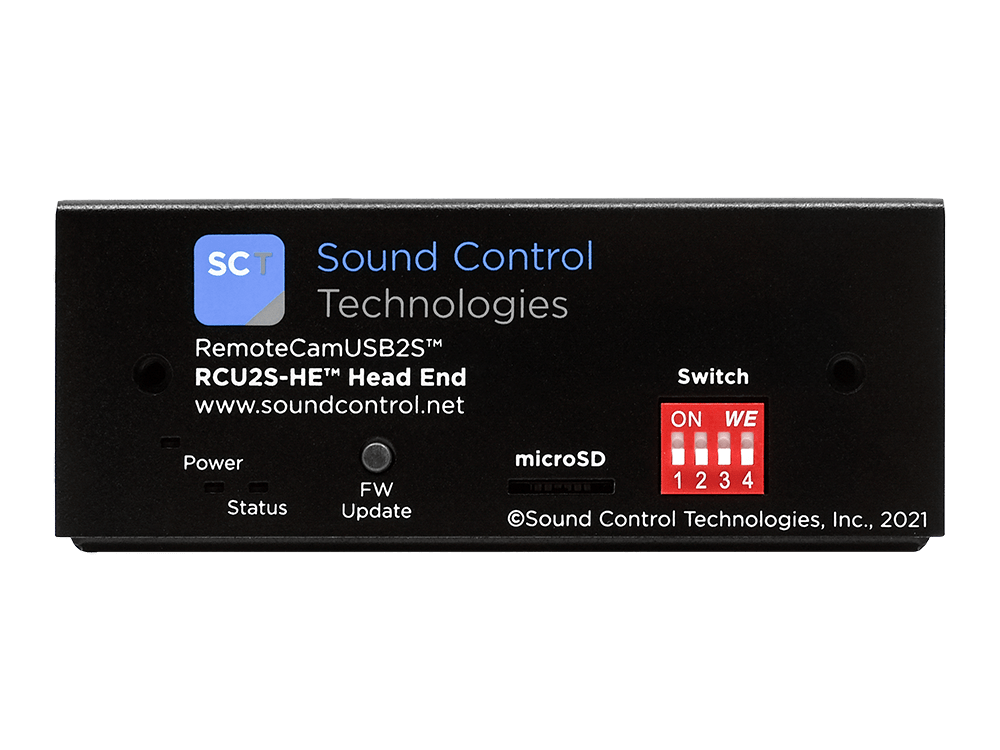

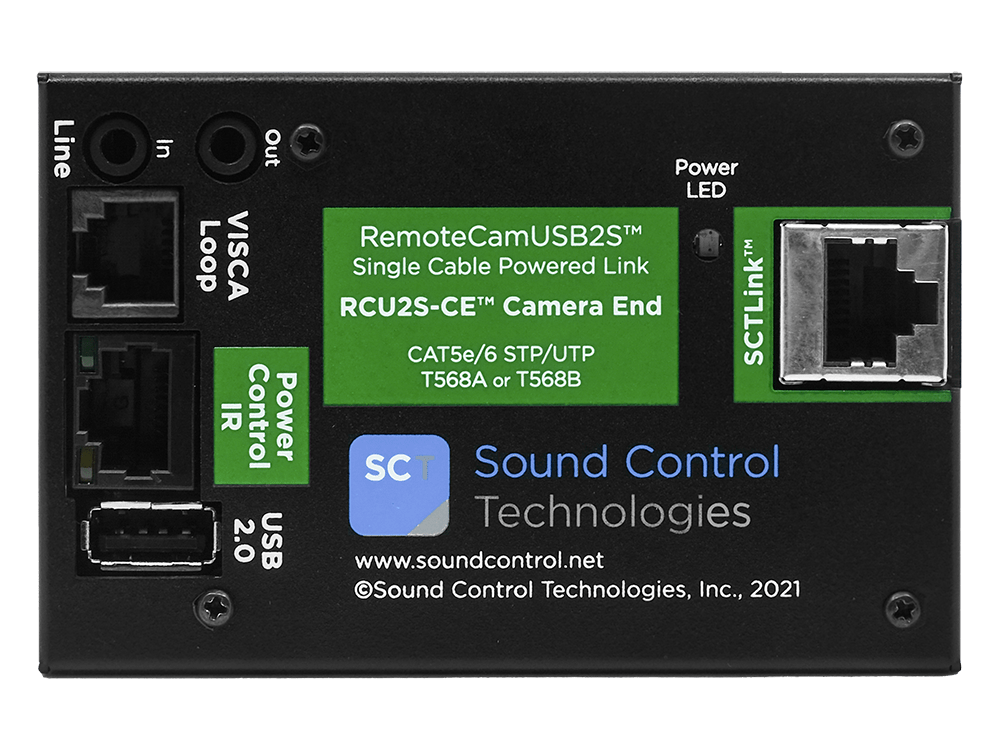

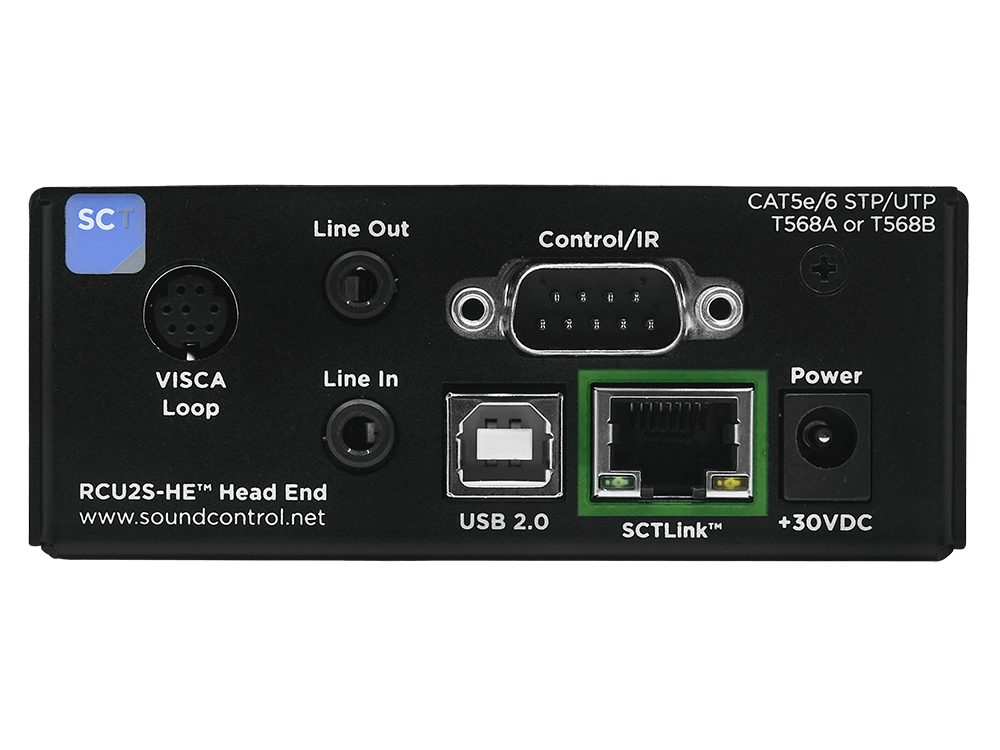

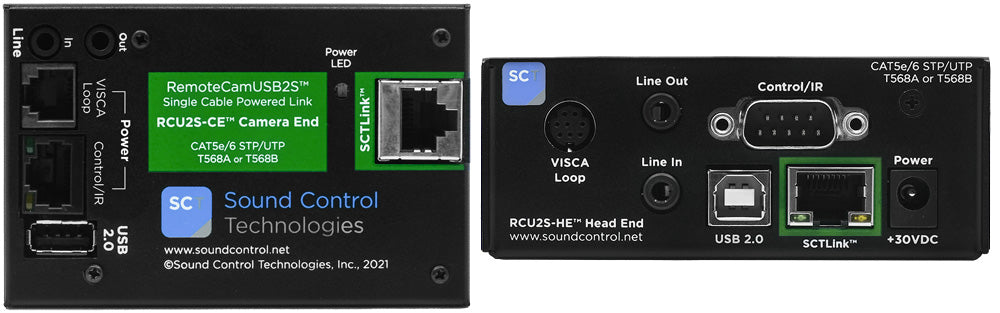

The RCU2S-B00 uses a two-unit design: a Head End (HE) at the codec or USB host, and a Camera End (CE) at the camera mounting location. A single CAT5e or CAT6 cable run between these units transports USB 2.0/UVC video, bi-directional audio, and camera power — removing the need for USB repeaters or multiple cable types. The 5V/12V power output at the camera end eliminates a separate local power supply at the camera position.
The system is UVC-compliant, so the camera appears as a standard USB video device on Windows, macOS, or Linux hosts without proprietary drivers. The bi-directional audio channel supports microphone or intercom signal transport. The B00 cable kit configuration is specific to supported camera models — verify compatibility with Creation Networks before ordering. Replacement modules (RCU2S-CE and RCU2S-HE) are available separately.
Key Features
- 300-Foot USB 2.0 Extension — Extends USB/UVC camera signal up to 300 feet over a single CAT5e or CAT6 cable run.
- Integrated 5V/12V Camera Power — Powers the camera over the CAT cable; no separate power supply needed at the camera end.
- Bi-Directional Audio — Audio channel for microphone or intercom use between camera and head end.
- UVC Plug-and-Play — No drivers required; compatible with Windows, macOS, and Linux hosts.
- Single CAT Cable Run — Video, audio, and power in one structured cabling path.
- Camera-Specific Cable Kit — B00 configuration matched to supported camera models.
- Commercial-Grade Manufacturing — USA/Taiwan made for commercial AV installation environments.
Typical Applications
- Conference room USB camera installations with rack-mounted codecs
- Boardroom deployments requiring extended USB camera cable runs
- Multi-purpose room AV builds over existing structured CAT cabling
- Corporate commercial meeting space integration
- Training room fixed USB camera installations
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RCU2S-B00 |
| Product Family | RemoteCamUSB2S |
| Signal Types Carried | USB 2.0/UVC video, bi-directional audio, 5V/12V camera power |
| Maximum Extension Distance | 300 feet (approx. 90 m) over CAT5e/CAT6 |
| Camera Power Output | 5V and 12V DC |
| Unit of Measure | Each (complete kit) |
| Country of Origin | USA / Taiwan |
| MSRP | $1,945.00 |
Frequently Asked Questions
Which cameras are compatible with the RCU2S-B00?
The B00 variant supports specific camera models. Contact Creation Networks for the current SCT compatibility list for this configuration.
Does this kit include RS-232 PTZ control?
No. The RCU2S-B00 carries USB 2.0, audio, and camera power only. For RS-232 control, see RCU2S variants with the A8 or B6 suffix.
What cable is required?
A single CAT5e or CAT6 cable run up to 300 feet between the Head End and Camera End. Standard TIA-568 structured cabling practices apply.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for this product.
