Product Overview
The Sound Control Technologies RCU2S-AA8 is a USB 2.0 camera extension kit with RS-232 serial control loop, designed for PTZ camera deployments requiring both USB video and serial PTZ control over a single CAT cable run. The AA8 variant extends USB 2.0/UVC video, bi-directional audio, RS-232 serial control, and 5V/12V camera power up to 300 feet over a single CAT5e or CAT6 cable. The A8 designation indicates inclusion of the RS-232 control loop. Contact Creation Networks for the exact camera models supported by this AA8 cable kit configuration. Suitable for conference rooms, boardrooms, and commercial installations with RS-232 PTZ camera control requirements.
Product Description

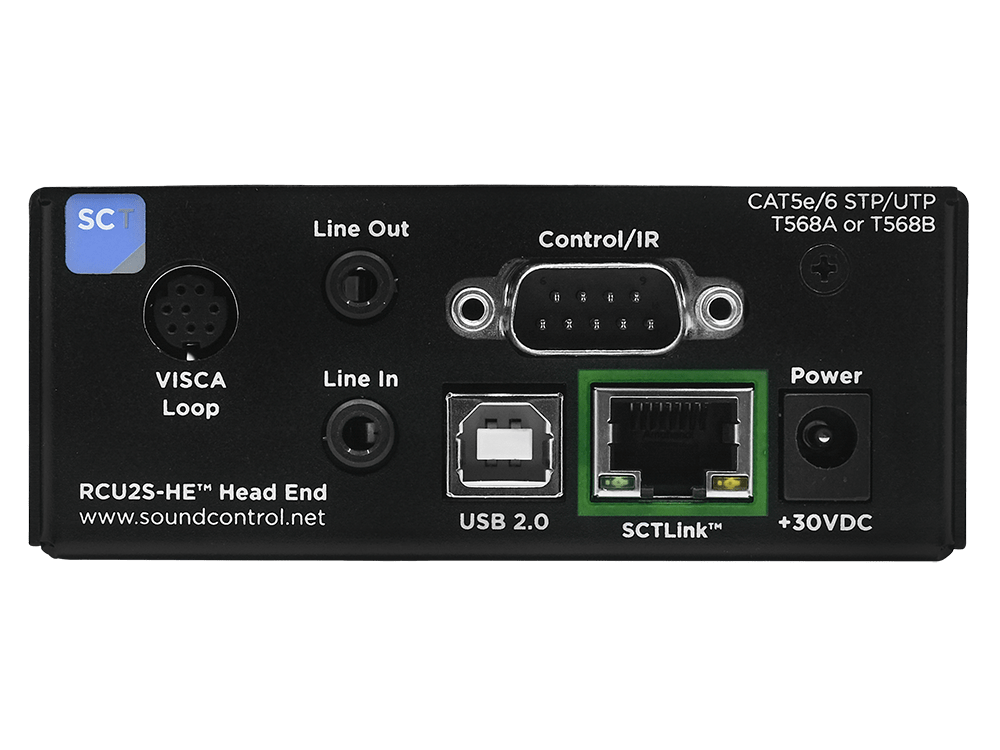

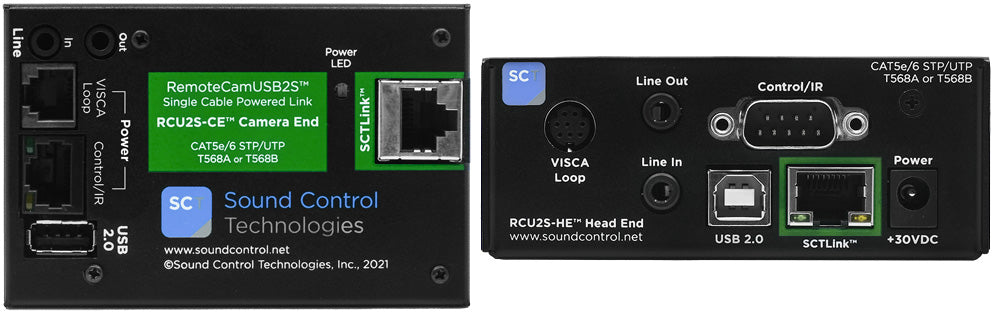

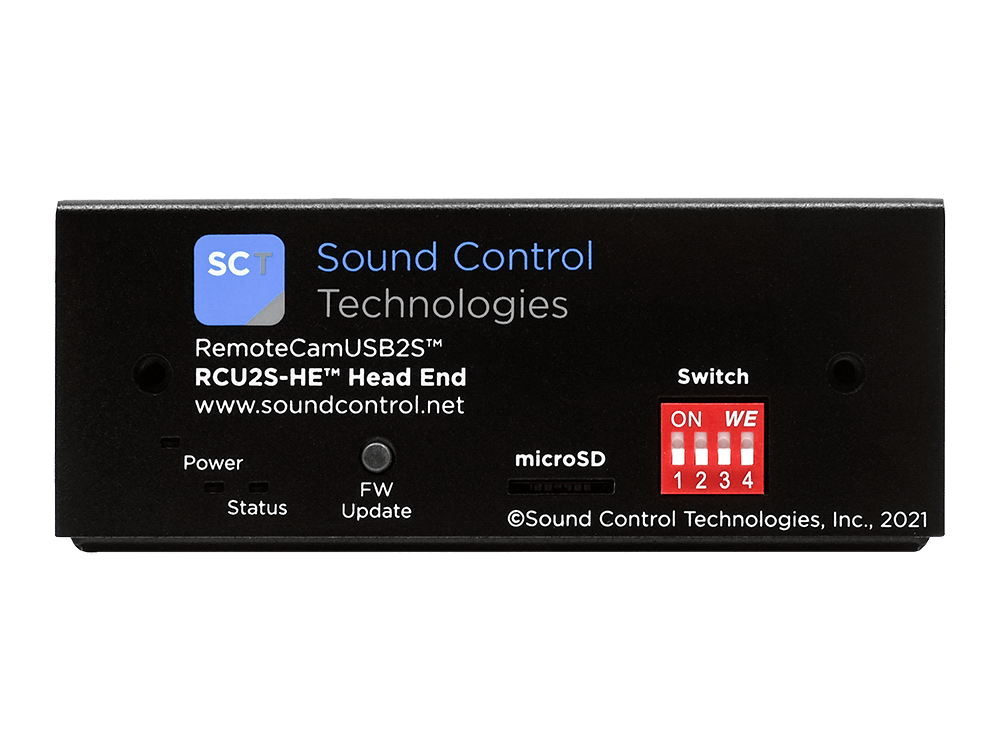

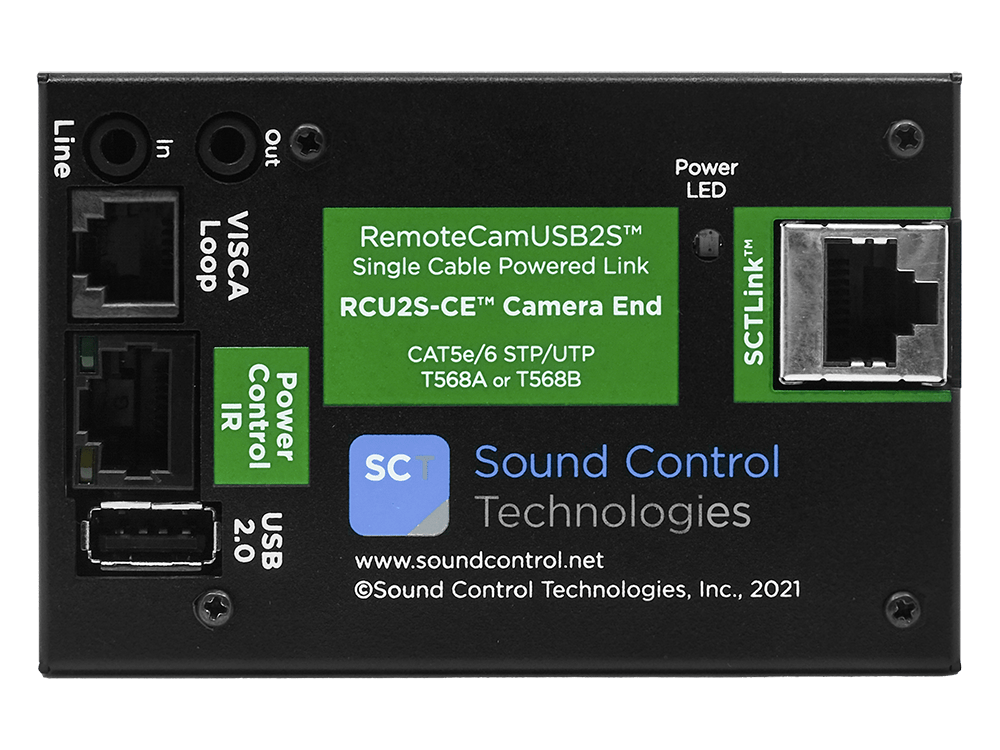

The RCU2S-AA8 places a Head End (HE) unit at the codec or RS-232 control source and a Camera End (CE) unit at the camera location. A single CAT5e or CAT6 cable between these units carries USB 2.0/UVC video, bi-directional RS-232 serial control, bi-directional audio, and 5V/12V camera power. The RS-232 channel enables PTZ camera control commands from the codec or control system to reach the camera over the same structured cabling run used for USB video.
Power delivery at the camera end supports 5V and 12V DC, eliminating the need for a separate local power supply. The bi-directional audio channel carries microphone or intercom signals. UVC compliance ensures the camera appears as a standard USB video device on any USB 2.0 host without proprietary drivers. The AA8 cable kit variant is matched to specific camera models — contact Creation Networks to confirm compatibility before ordering.
Key Features
- RS-232 Serial Control Loop — Bi-directional RS-232 PTZ control channel over the same CAT cable as USB video and power.
- 300-Foot USB 2.0 Extension — Extends USB/UVC signal up to 300 feet over a single CAT5e or CAT6 cable.
- Integrated 5V/12V Camera Power — No separate power supply needed at the camera mount location.
- Bi-Directional Audio — Audio channel for microphone or intercom use between camera and head end.
- UVC Plug-and-Play — No proprietary drivers required on Windows, macOS, or Linux.
- Single CAT Cable Run — USB video, RS-232 control, audio, and power in one structured cabling path.
- Commercial-Grade Construction — USA/Taiwan manufactured for commercial AV installations.
Typical Applications
- Conference room PTZ camera deployments with codec RS-232 control
- Boardroom AV installations with serial-controlled PTZ cameras
- Multi-purpose room builds requiring PTZ control over extended cable runs
- Corporate meeting spaces with PTZ cameras under control system management
- Training room PTZ camera installations with RS-232 control
- Government space AV deployments with serial PTZ camera control
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RCU2S-AA8 |
| Product Family | RemoteCamUSB2S |
| Signal Types Carried | USB 2.0/UVC video, RS-232 serial control loop, bi-directional audio, 5V/12V camera power |
| Maximum Extension Distance | 300 feet (approx. 90 m) over CAT5e/CAT6 |
| Camera Power Output | 5V and 12V DC |
| Serial Control | Bi-directional RS-232 |
| Unit of Measure | Each (complete kit) |
| Country of Origin | USA / Taiwan |
| MSRP | $1,945.00 |
Frequently Asked Questions
Which cameras are compatible with the RCU2S-AA8?
The AA8 cable kit supports specific camera models. Contact Creation Networks for the current SCT compatibility matrix for this configuration.
Can the RS-232 control be used with a third-party control system?
Yes. The RS-232 loop is a standard bi-directional serial interface compatible with Crestron, AMX, QSC, and other RS-232 PTZ control sources.
Can I use this kit without RS-232 control?
Yes. USB video, audio, and camera power operate independently of the RS-232 channel if serial control is not needed.
What cabling is required?
A single CAT5e or CAT6 cable run up to 300 feet between the Head End and Camera End. Standard TIA-568 structured cabling practices apply.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for this product.
