Product Overview
The Sound Control Technologies RCU2S-A10 is a USB 2.0 camera extension kit that carries USB 2.0/UVC video, bi-directional audio, and 5V/12V camera power up to 300 feet over a single CAT cable. Part of the RemoteCamUSB2S platform, it is designed for commercial AV integrators deploying USB cameras at distance from rack-mounted codecs or host systems. The A10 variant includes a camera-specific cable kit — contact Creation Networks for the exact camera models supported by this configuration. Suitable for conference rooms, boardrooms, and commercial meeting spaces requiring reliable single-cable USB camera extension.
Product Description

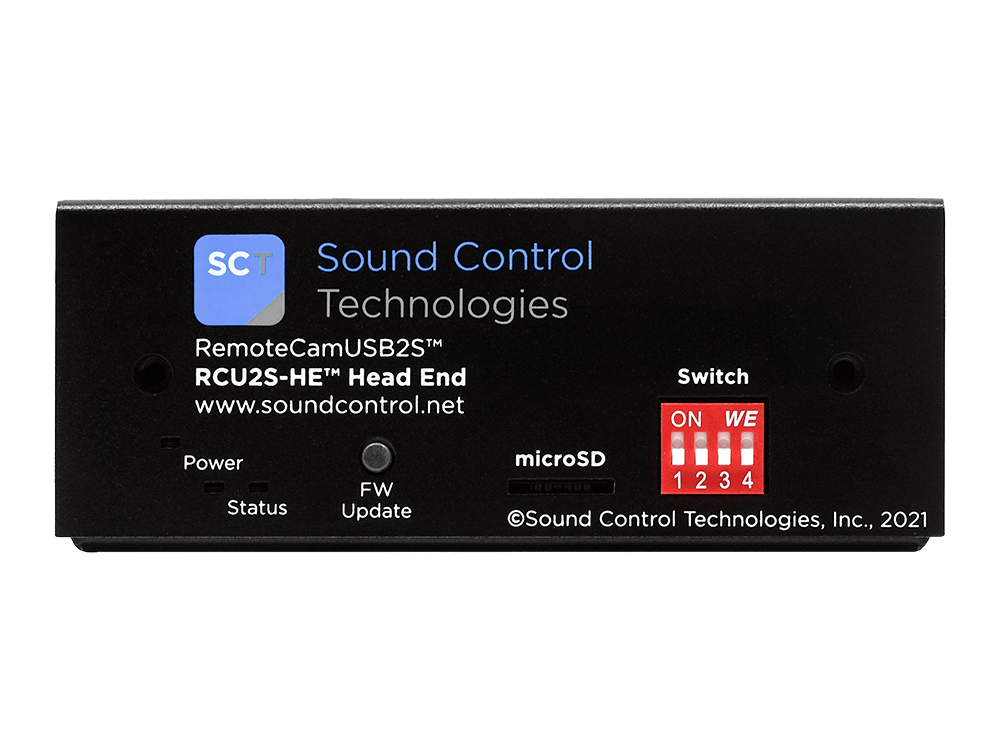

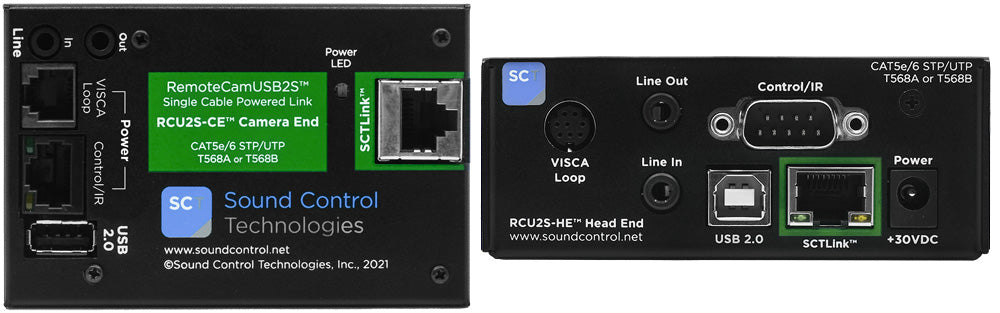

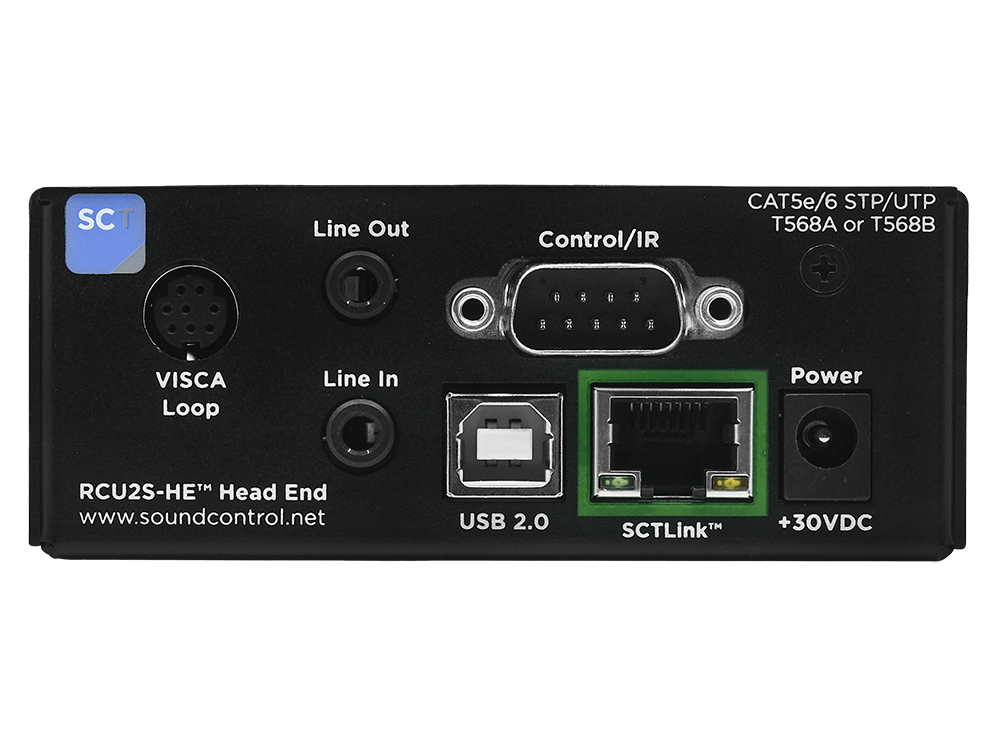

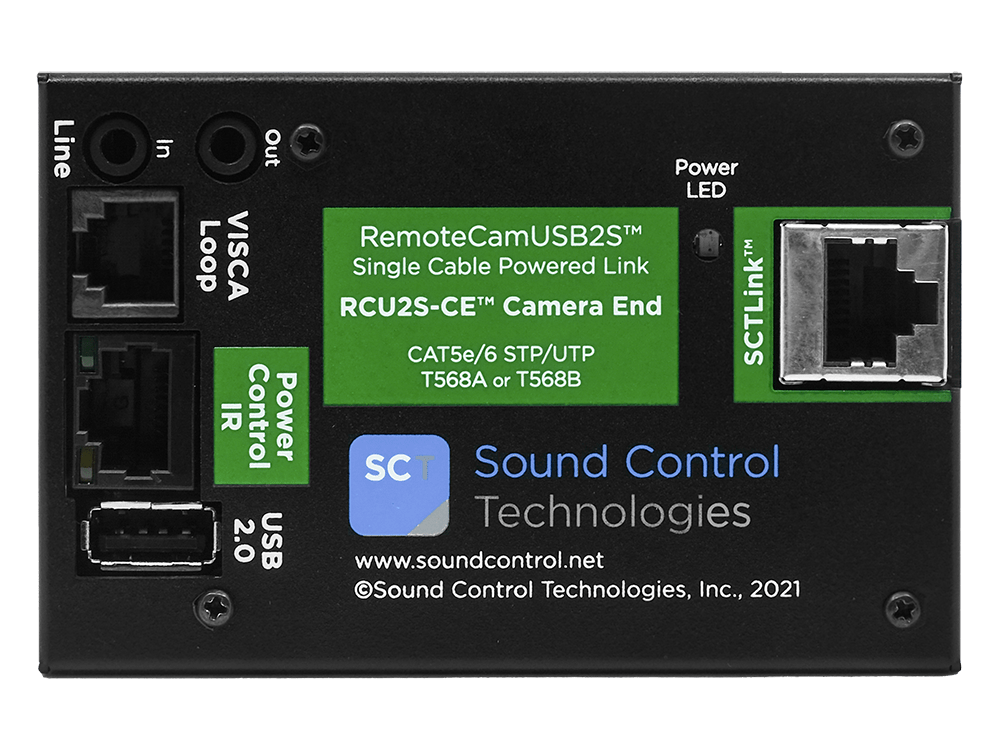

The RCU2S-A10 consists of a Head End (HE) unit at the codec or host and a Camera End (CE) unit at the camera location. A single CAT5e or CAT6 cable between these units carries USB 2.0/UVC video, bi-directional audio, and camera power — replacing multiple discrete cable runs with a single structured cabling infrastructure path. Power delivery supports 5V and 12V DC at the camera end, removing the need for a local power supply at the camera mount.
UVC compliance ensures the camera is recognized as a standard USB video device by any USB 2.0 host on Windows, macOS, or Linux without proprietary drivers. The bi-directional audio channel supports microphone or intercom signal transport. The A10 cable kit is matched to specific camera models — verify compatibility with Creation Networks before ordering.
The RCU2S-A10 is one of multiple kit variants across the RemoteCamUSB2S platform. For installations requiring RS-232 PTZ control over the same CAT run, see RCU2S variants with the A8 designation. Replacement modules (RCU2S-CE and RCU2S-HE) are available separately.
Key Features
- 300-Foot USB 2.0 Extension — Extends USB/UVC camera signal up to 300 feet over a single CAT5e or CAT6 cable run.
- Integrated 5V/12V Camera Power — Supplies camera power over the CAT run; no separate power supply required at the camera location.
- Bi-Directional Audio — Audio channel for microphone or intercom use between camera and head end.
- UVC Plug-and-Play — No drivers required; compatible with Windows, macOS, and Linux hosts.
- Single CAT Cable Run — Video, audio, and power in one structured cabling path, reducing installation complexity.
- Camera-Specific Cable Kit — A10 configuration matched to supported camera models for verified connectivity.
- Commercial-Grade Manufacturing — USA/Taiwan made for commercial AV installation environments.
Typical Applications
- Conference room USB camera installations with rack-mounted codecs
- Boardroom AV builds requiring extended USB camera cable runs
- Multi-purpose room systems over existing structured CAT cabling
- Corporate commercial meeting space AV integration
- Training room fixed USB camera deployments
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RCU2S-A10 |
| Product Family | RemoteCamUSB2S |
| Signal Types Carried | USB 2.0/UVC video, bi-directional audio, 5V/12V camera power |
| Maximum Extension Distance | 300 feet (approx. 90 m) over CAT5e/CAT6 |
| Camera Power Output | 5V and 12V DC |
| Unit of Measure | Each (complete kit) |
| Country of Origin | USA / Taiwan |
| MSRP | $1,945.00 |
Frequently Asked Questions
Which cameras are compatible with the RCU2S-A10?
The A10 cable kit variant is matched to specific camera models. Contact Creation Networks for the current SCT compatibility list for this configuration.
Does this kit include RS-232 PTZ control?
No. The RCU2S-A10 carries USB 2.0, audio, and camera power only. For RS-232 serial control, see RCU2S variants with the A8 suffix designation.
What cable is required between the Head End and Camera End?
A single CAT5e or CAT6 cable run up to 300 feet. Standard TIA-568 structured cabling practices apply.
Is the RCU2S-A10 compatible with BYOD setups?
Yes. As a UVC device, the camera connected through the RCU2S-A10 is recognized by any USB 2.0 host, including personal laptops used in BYOD/BYOM conference rooms.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for this product.
