Product Overview
The Sound Control Technologies RCU2E-B40 is a USB 2.0 camera extension kit for AVer and Lumens PTZ cameras, built on the RemoteCamUSB2E platform. It extends USB 2.0/UVC video, Ethernet, 5V/12V/PoE camera power, and bi-directional audio over a single CAT cable, with the camera-specific cable assemblies for AVer and Lumens cameras included. Designed for AV integrators specifying PTZ camera deployments in conference rooms, boardrooms, and corporate meeting spaces.
Product Description

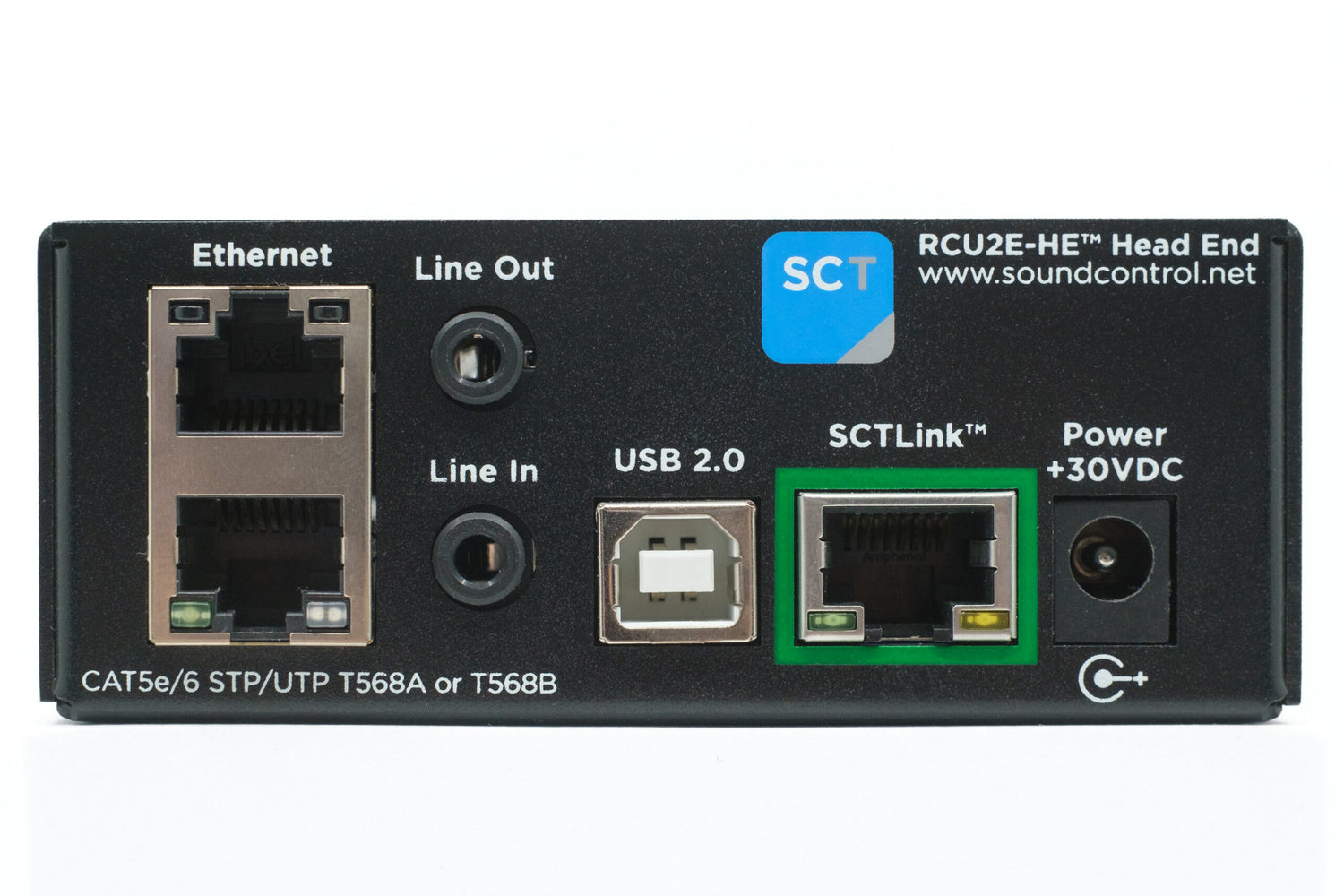

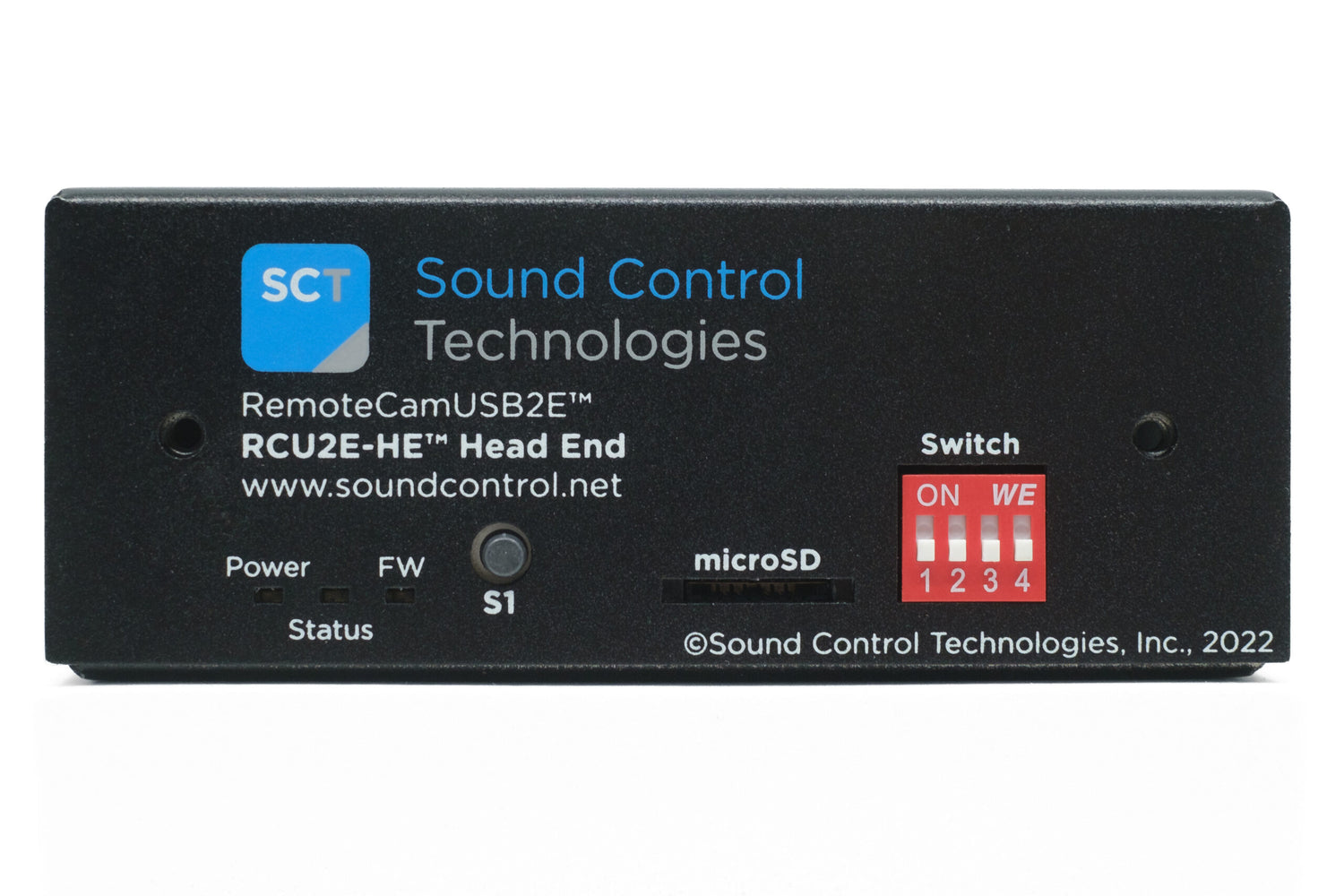

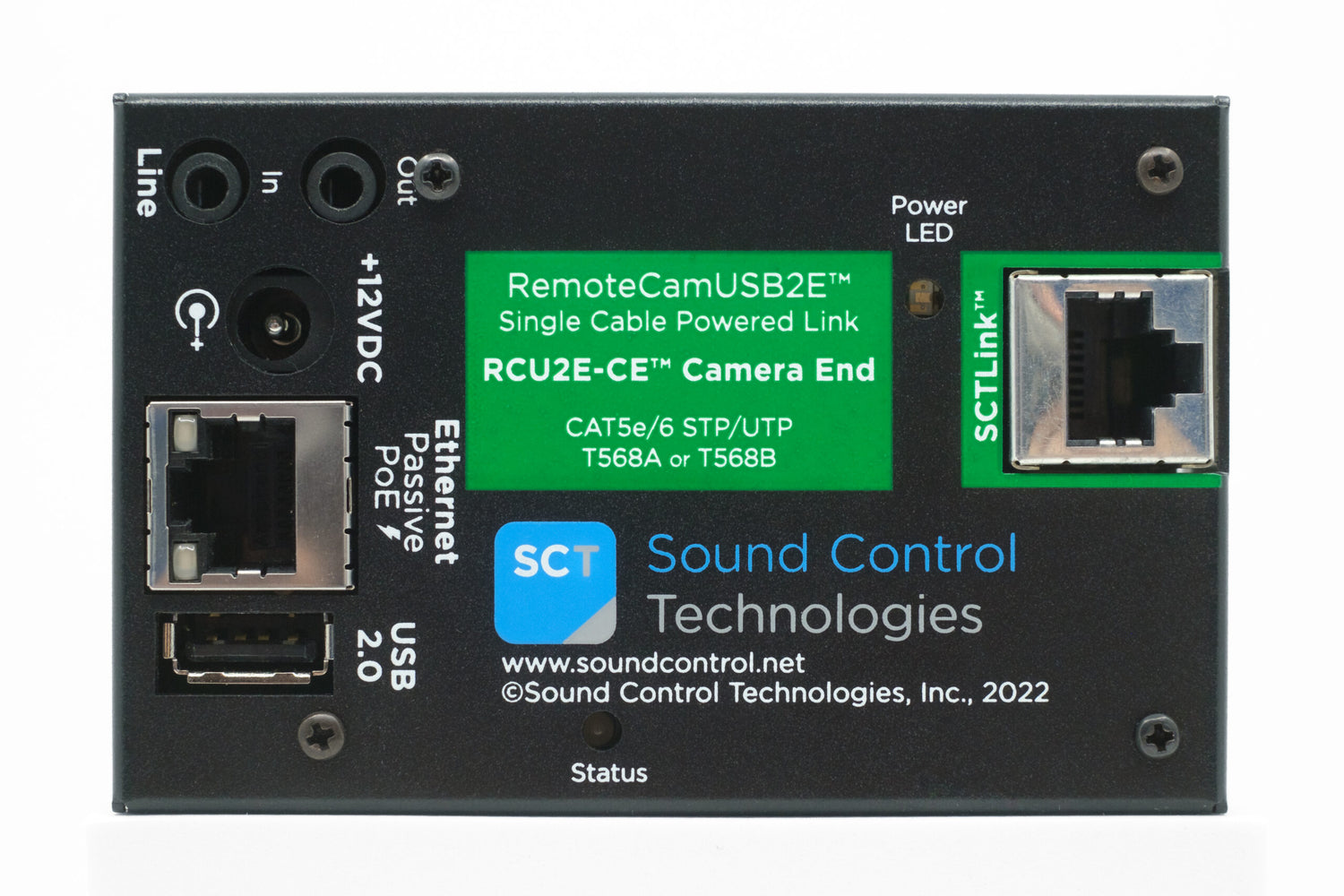

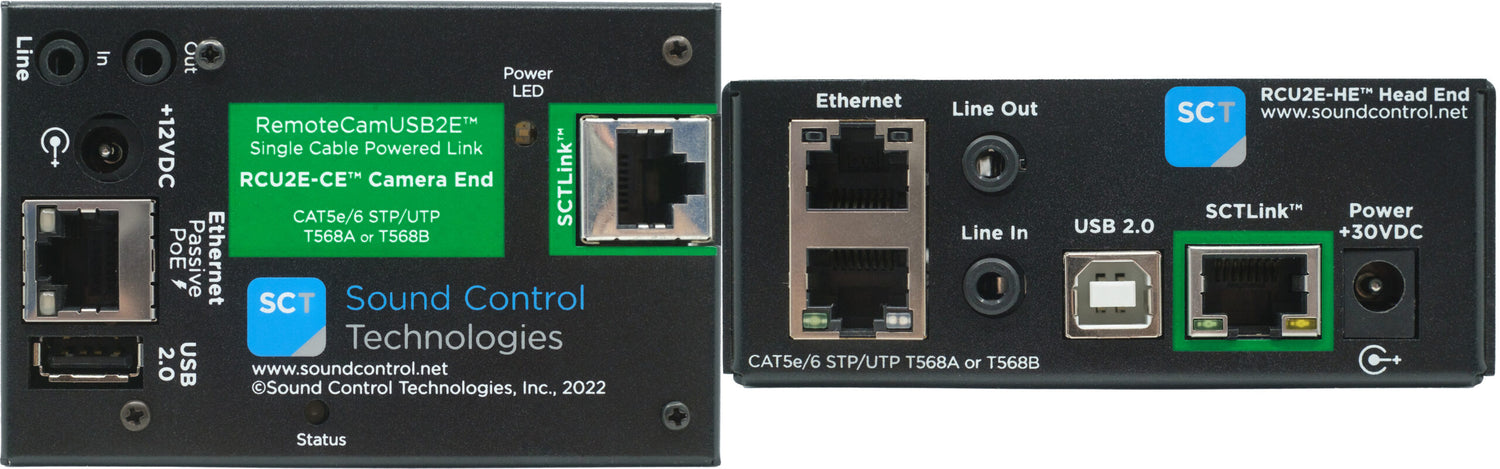

The RCU2E-B40 ships as a matched CE/HE module pair pre-configured with cable assemblies for AVer and Lumens PTZ cameras. The head-end connects to a USB host and Ethernet switch; the camera-end delivers USB data, network connectivity, and camera power over a single CAT 5e/6 run to the installed PTZ camera. Bi-directional audio is carried on the same infrastructure. Compatible cameras do not require a local power outlet at the mount location. The kit is appropriate for permanent installation in conference rooms, training rooms, all-hands spaces, and commercial meeting rooms where camera placement flexibility is a design requirement.
Key Features
- AVer and Lumens PTZ Camera Support — Includes camera-specific cable assemblies for both supported brands.
- USB 2.0/UVC Over CAT — Full USB 2.0 bandwidth for UVC cameras over CAT cable.
- Integrated Ethernet — Dedicated Ethernet channel for IP camera management.
- 5V/12V/PoE Power — Camera power over CAT — no local outlet at the camera mount.
- Bi-Directional Audio — Audio carried on the same CAT run.
- Complete Kit — CE module, HE module, and camera-specific cable assemblies included.
- Commercial-Grade — USA/Taiwan manufacture for permanent AV installation.
Typical Applications
- Conference rooms with AVer or Lumens PTZ cameras
- Boardroom AV systems with extended camera runs
- Corporate meeting spaces with BYOD/BYOM platforms
- Training rooms and multi-purpose rooms
- All-hands rooms and commercial meeting spaces
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RCU2E-B40 |
| Product Family | RemoteCamUSB2E |
| Compatible Cameras | AVer, Lumens PTZ cameras |
| Signal Types Carried | USB 2.0/UVC, Ethernet, 5V/12V/PoE Camera Power, Bi-Directional Audio |
| Cable Medium | CAT 5e/6 (field-terminated) |
| Includes | Camera-End (CE) module, Head-End (HE) module, camera-specific cable assembly |
| Unit of Measure | Each (matched pair) |
| Country of Origin | USA/Taiwan |
| MSRP | $1,945.00 |
Frequently Asked Questions
Which AVer and Lumens camera models are compatible?
Contact Creation Networks or review SCT documentation to confirm compatible AVer and Lumens models before ordering.
Is a local power supply needed at the camera?
No. The RCU2E platform delivers camera power over the CAT cable for compatible cameras.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms.
