Sound Control Technologies RCU2E-B30 – USB Camera Extension Kit for 1 Beyond, AVer, VHD

Product Overview

The Sound Control Technologies RCU2E-B30 is a USB 2.0 camera extension kit for PTZ cameras from 1 Beyond, AVer, and VHD, built on the RemoteCamUSB2E platform. It carries USB 2.0/UVC video, Ethernet, 5V/12V/PoE camera power, and bi-directional audio over a single CAT cable run, with camera-specific cable assemblies for all supported brands included. This kit is designed for AV integrators who need to extend supported PTZ cameras to locations dictated by room design in conference rooms, boardrooms, and commercial meeting spaces.

Product Description

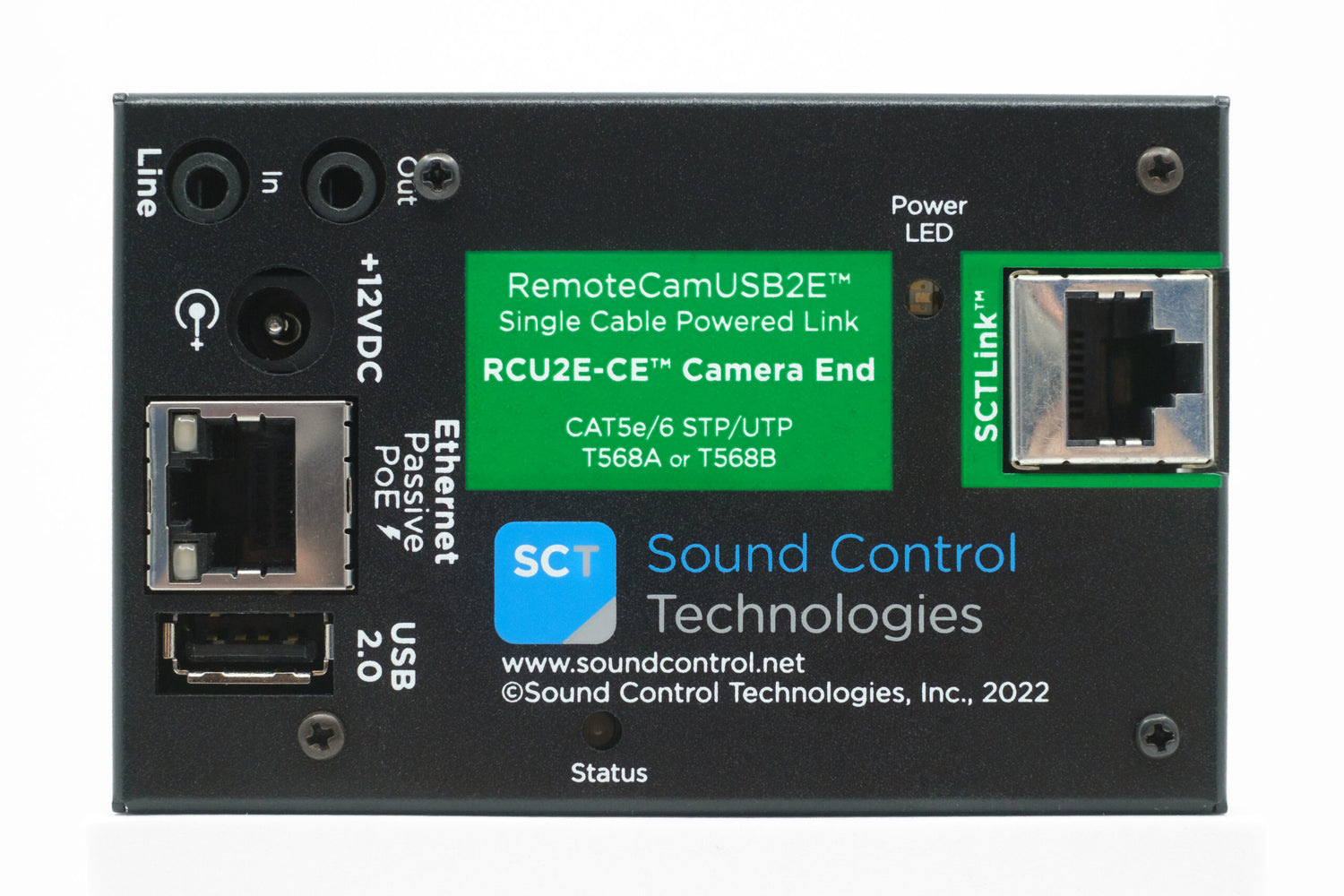

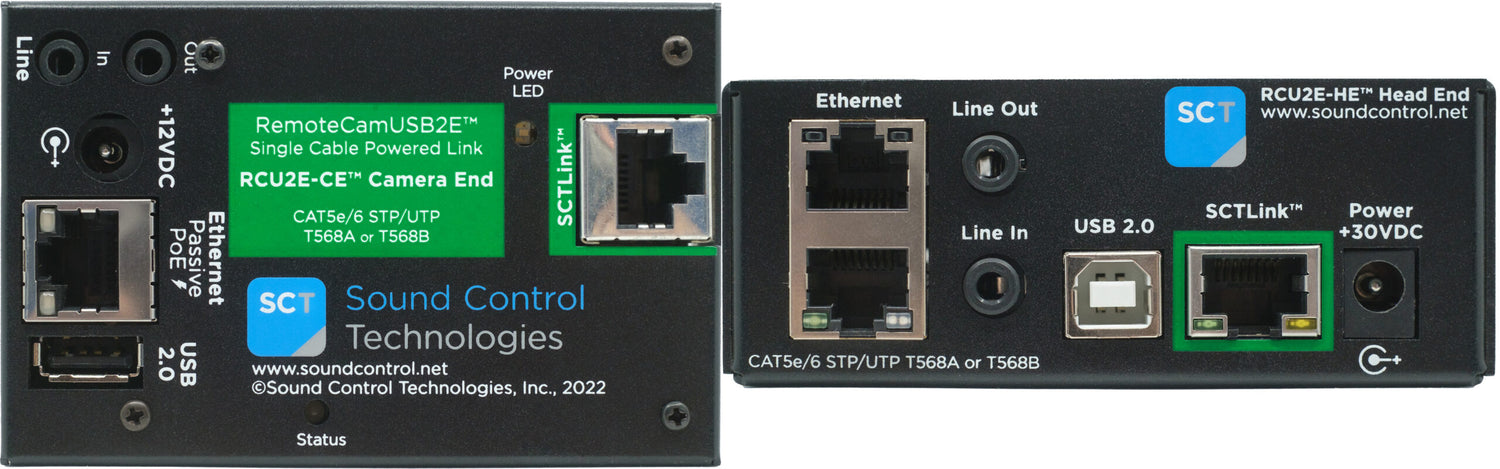

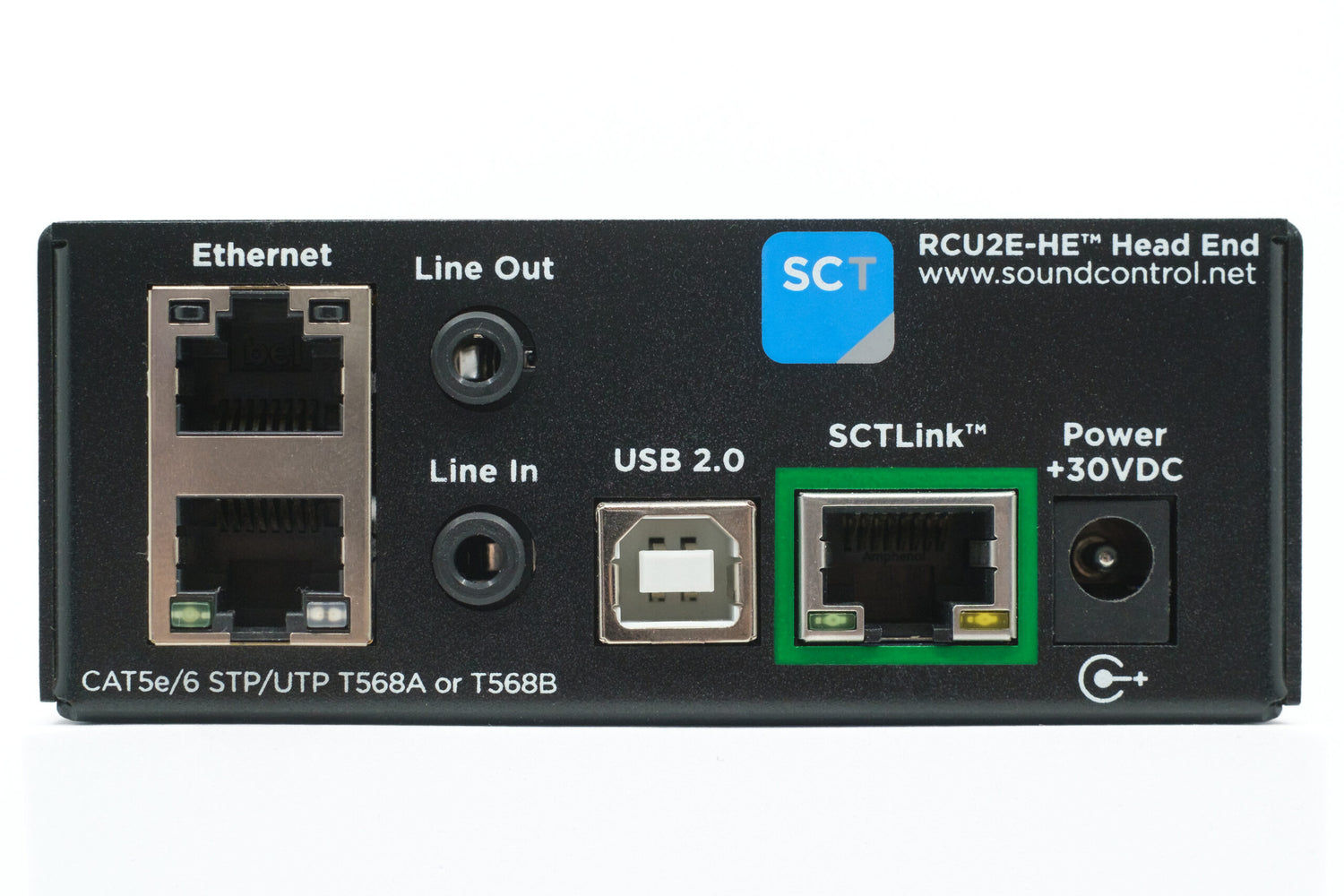

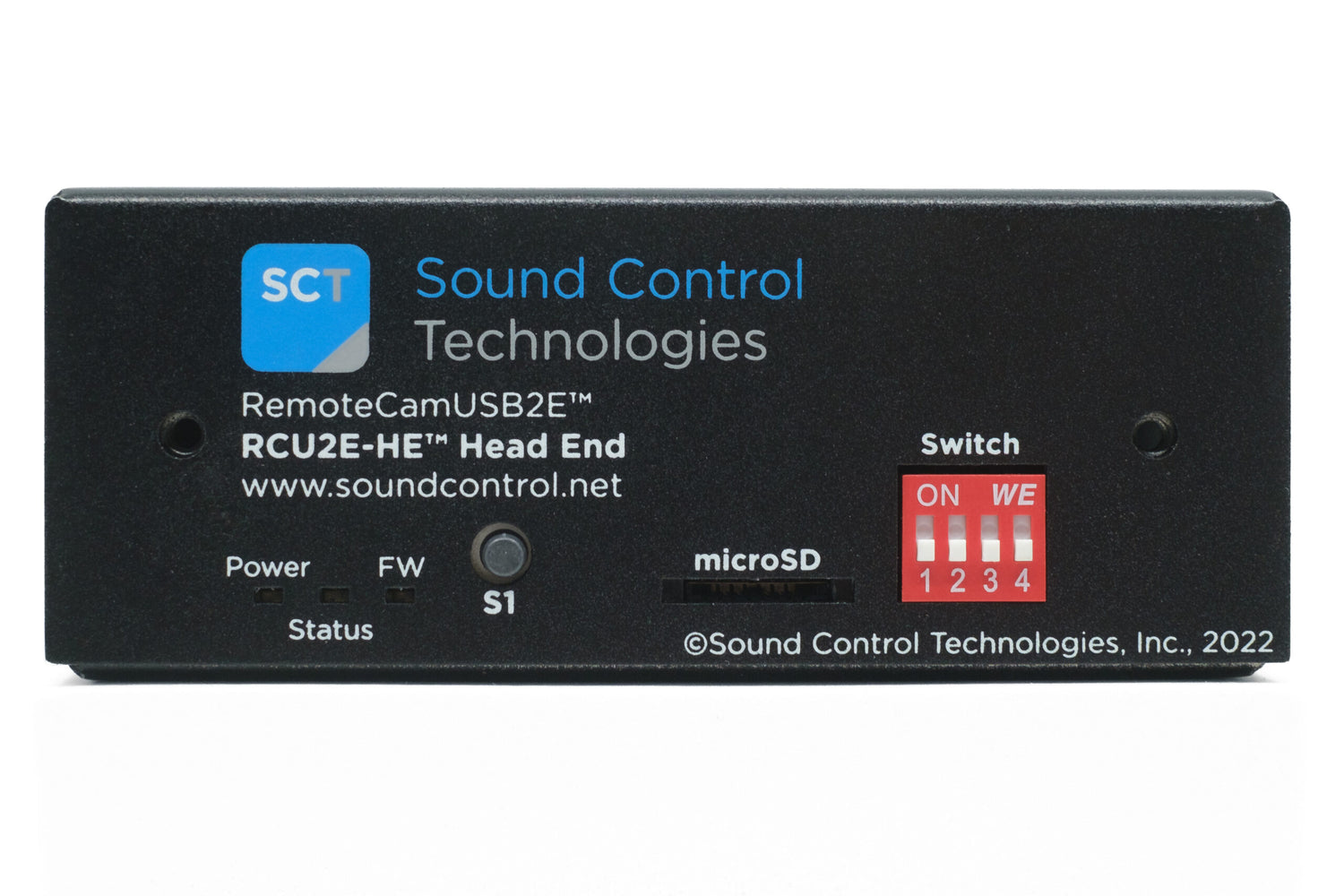

The RCU2E-B30 ships as a matched camera-end (CE) and head-end (HE) module pair with camera-specific cable assemblies for 1 Beyond, AVer, and VHD cameras. The head-end module interfaces with the room's USB host and local network switch; the camera-end delivers USB, Ethernet, and camera power to the installed PTZ camera over a single CAT 5e/6 run. Bi-directional audio is supported on the same cable, allowing integrated AV systems to minimize separate audio cable paths. For compatible cameras, no local power outlet is required at the camera mount location. The kit is suited for permanent installation in conference rooms, training rooms, government spaces, and all-hands rooms where camera placement is driven by room acoustics or sight lines.

Key Features

• Supports 1 Beyond, AVer, and VHD PTZ Cameras — Pre-configured cable assemblies for all three supported camera brands are included.
• USB 2.0/UVC Extension over CAT — Full USB 2.0 bandwidth delivered over CAT cable for UVC-class cameras.
• Integrated Ethernet — Dedicated Ethernet channel for camera IP control on the same CAT run.
• 5V/12V/PoE Power Delivery — Camera power over CAT cable eliminates local outlets at the camera end.
• Bi-Directional Audio — Audio transport included on the same cable infrastructure.
• Complete Matched Kit — Both CE and HE modules plus camera-specific cable assemblies ship together.
• Single CAT Cable — Reduces conduit fill by consolidating USB, Ethernet, power, and audio.
• Commercial-Grade — USA/Taiwan manufacture for permanent AV installation.

Typical Applications

• Conference rooms with 1 Beyond, AVer, or VHD PTZ camera installations
• Boardroom AV systems with extended camera cable runs
• Corporate meeting spaces with BYOD/BYOM codec deployments
• Training rooms and multi-purpose rooms
• All-hands rooms and government spaces

Technical Specifications

Frequently Asked Questions

Which 1 Beyond, AVer, and VHD models are compatible?

Refer to the SCT compatibility list or contact Creation Networks to confirm specific model compatibility before ordering.

Is a separate power supply required at the camera?

No. The RCU2E platform powers the camera over the CAT cable. No local outlet is needed at the camera mount for compatible cameras.

What warranty applies?

Contact Creation Networks for current Sound Control Technologies warranty terms.
