Sound Control Technologies RCU2E-A40 – USB Camera Extension Kit for Minrray, Lumens

Product Overview

The Sound Control Technologies RCU2E-A40 is a USB 2.0 camera extension kit for Minrray and Lumens PTZ cameras, built on the RemoteCamUSB2E platform. It extends USB 2.0/UVC video, Ethernet, 5V/12V/PoE camera power, and bi-directional audio over a single CAT cable run, with the specific cable assembly required for Minrray and Lumens cameras included in the kit. This is a purpose-built solution for AV integrators installing PTZ cameras in conference rooms and corporate meeting spaces where long cable runs and clean infrastructure are required.

Product Description

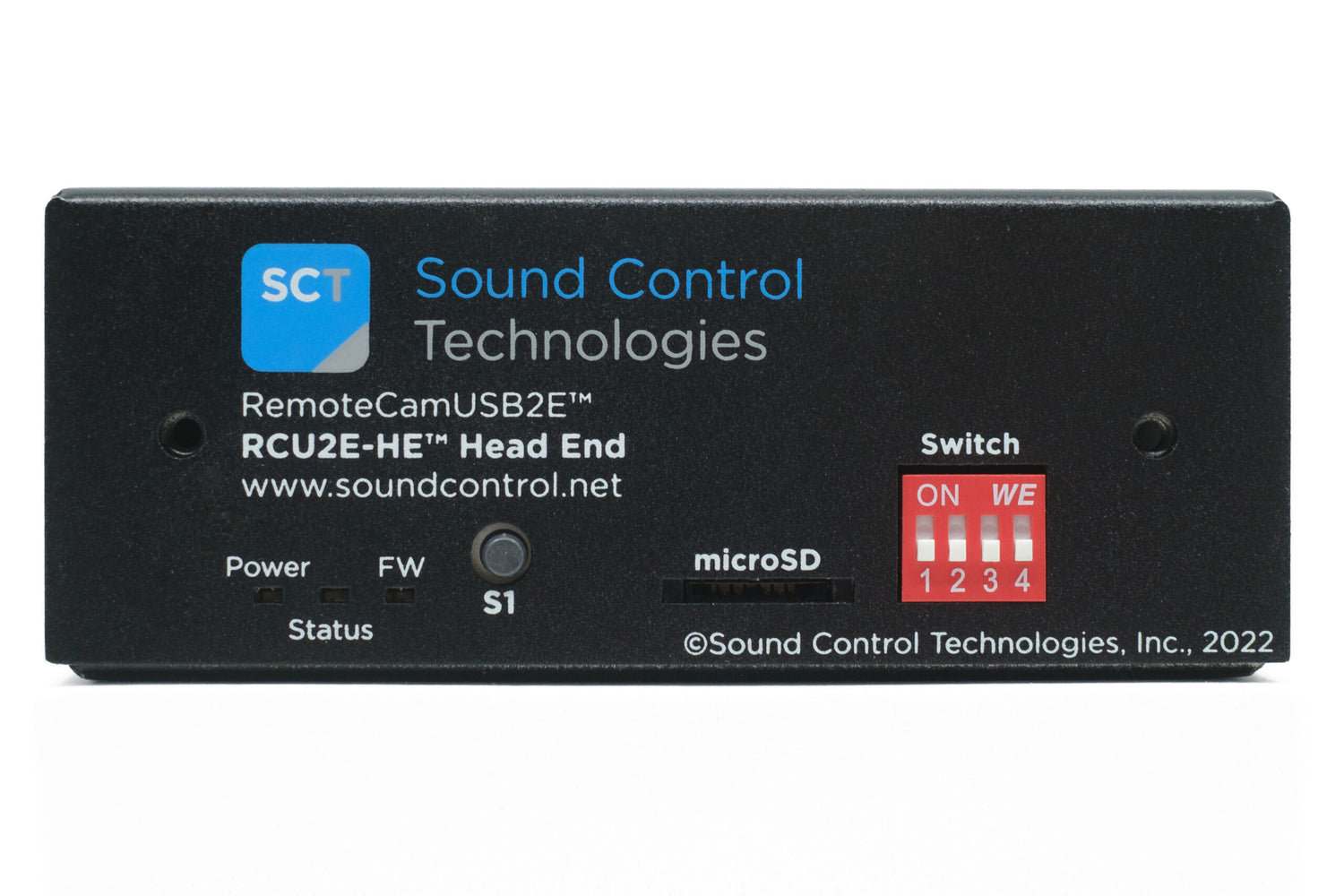

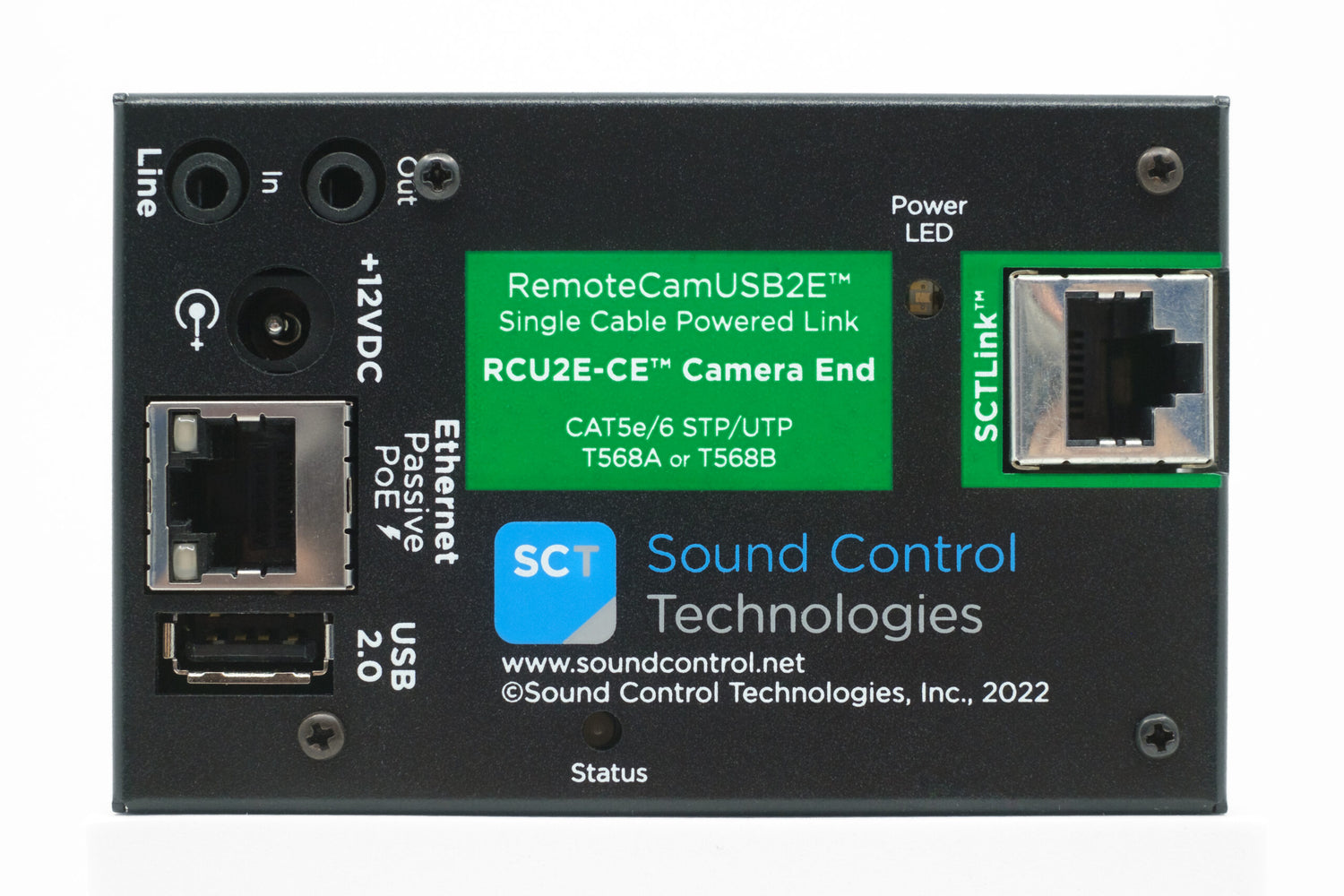

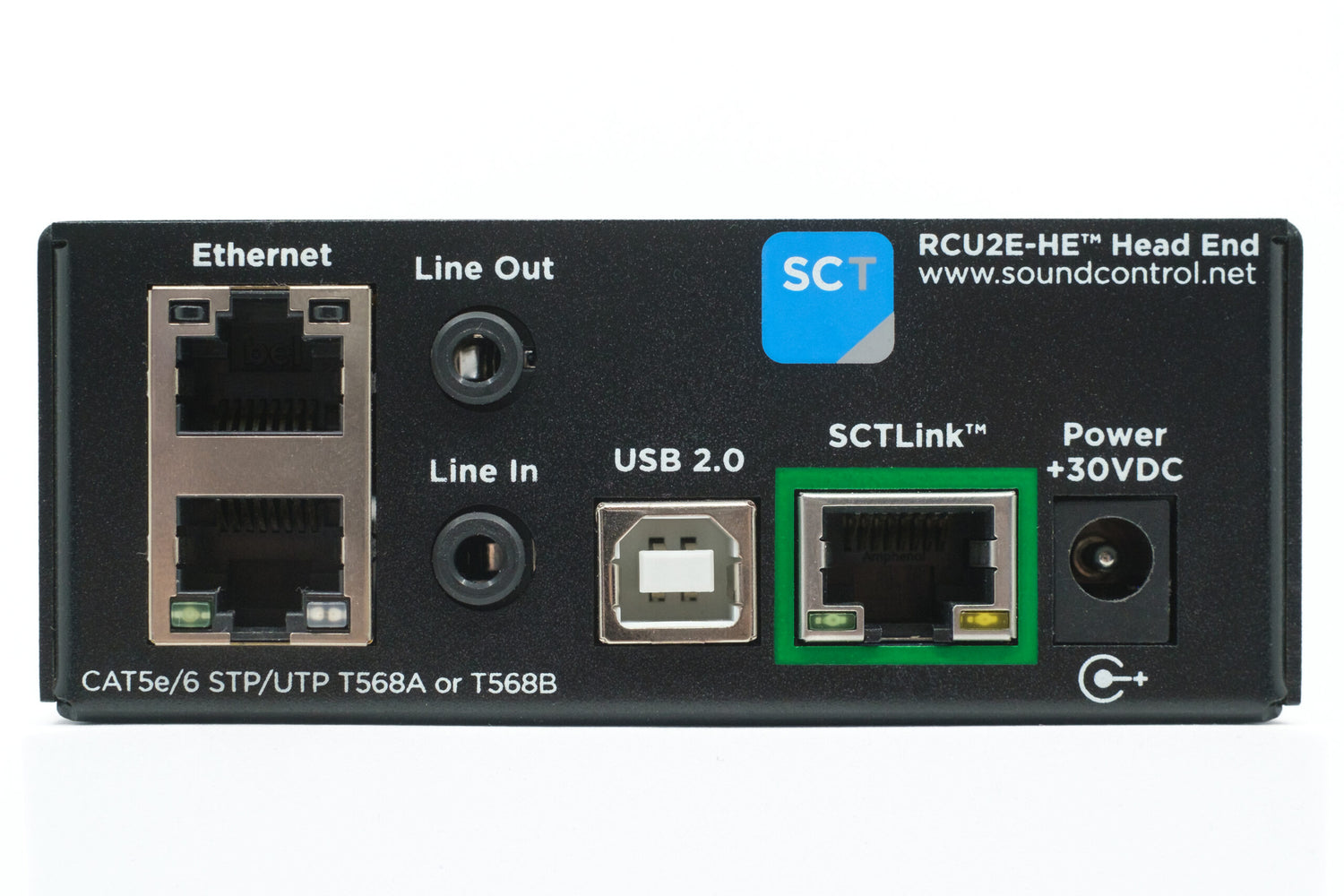

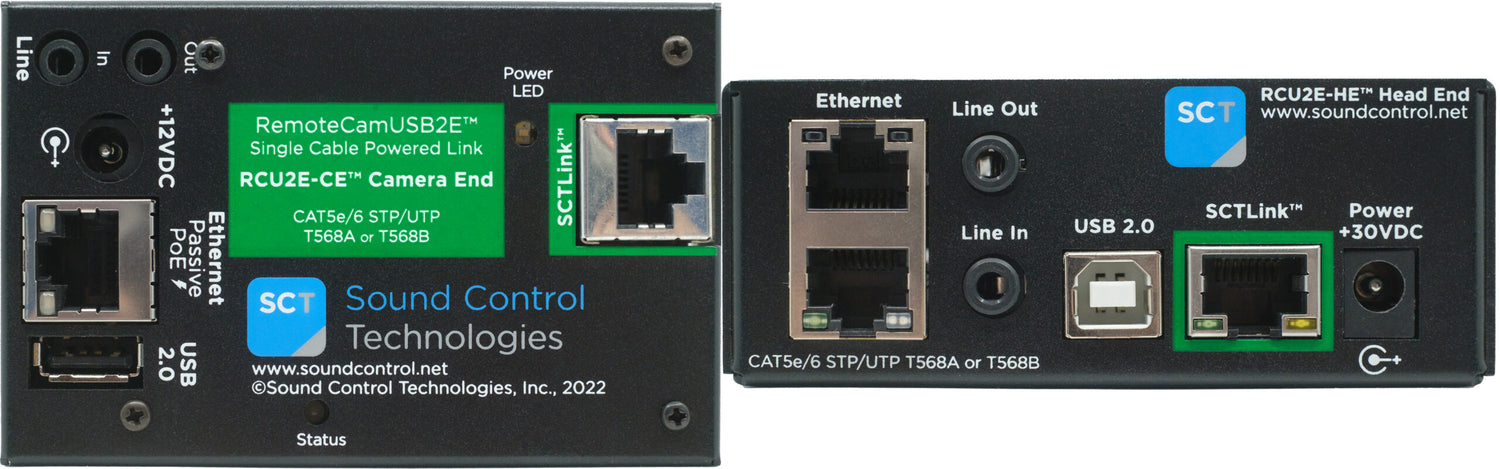

The RCU2E-A40 ships as a matched camera-end (CE) and head-end (HE) module pair, pre-configured with the cable assembly for Minrray and Lumens PTZ cameras. The head-end module connects to a USB host — codec, PC, or BYOM device — and a local Ethernet switch, while the camera-end module supplies USB data, network connectivity, and camera power to the supported camera. Bi-directional audio is carried concurrently on the same CAT cable. No external power supply is required at the camera mount location for compatible cameras. The RCU2E platform consolidates USB, Ethernet, power, and audio on a single CAT 5e/6 run, simplifying conduit planning and reducing installation time in conference rooms, boardrooms, training rooms, and all-hands spaces. The camera-specific cable assembly is included, eliminating the need to source proprietary connectors in the field.

Key Features

• USB 2.0/UVC Extension — Extends full USB 2.0 bandwidth for UVC PTZ cameras over CAT cable without signal loss.
• Integrated Ethernet Channel — Dedicated Ethernet on the same CAT run for camera network management and IP control.
• 5V/12V/PoE Camera Power — Powers the camera over the CAT cable — no local outlet required at the camera end.
• Bi-Directional Audio — Bi-directional audio transport on the same cable run for integrated AV installations.
• Minrray and Lumens Camera Compatible — Includes the camera-specific cable assembly for both Minrray and Lumens PTZ cameras.
• Matched CE/HE Module Pair — Complete kit with both modules and camera cable assembly for straightforward deployment.
• Single CAT Cable Infrastructure — Consolidates four signal types on one cable, reducing conduit fill and labor.
• Commercial-Grade — Manufactured in the USA/Taiwan for permanent commercial AV installation.

Typical Applications

• Conference room PTZ camera installations with extended cable runs
• Boardroom AV systems with Minrray or Lumens PTZ cameras
• Corporate meeting spaces with BYOD/BYOM codec deployments
• Training rooms requiring flexible camera placement
• All-hands rooms and large meeting spaces
• Government spaces with consolidated AV cable infrastructure

Technical Specifications

Frequently Asked Questions

Which Minrray and Lumens camera models are supported?

The RCU2E-A40 is configured for Minrray and Lumens PTZ cameras. Contact Creation Networks or review SCT compatibility documentation to verify support for your specific models.

Is a power supply required at the camera location?

No. The RCU2E platform delivers 5V, 12V, and PoE power from the head-end over the CAT cable. No local power outlet is needed at the camera mount for compatible cameras.

What cabling is required between modules?

A field-terminated CAT 5e or CAT 6 cable connects the CE and HE modules. Camera-specific cable assemblies at each end are included in the kit.

Can this kit be used with a BYOM conferencing platform?

Yes. The head-end presents a standard USB 2.0 UVC device to the host, making it compatible with BYOD and BYOM platforms supporting USB cameras.

What warranty applies?

Contact Creation Networks for current Sound Control Technologies warranty terms for the RCU2E product line.
