Product Overview

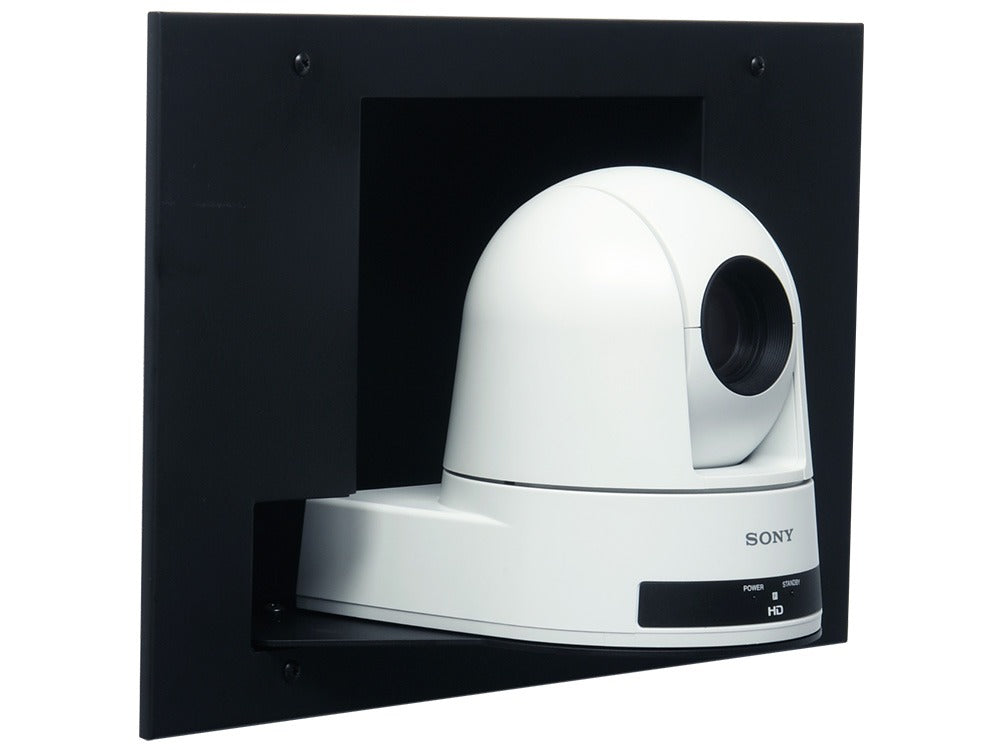

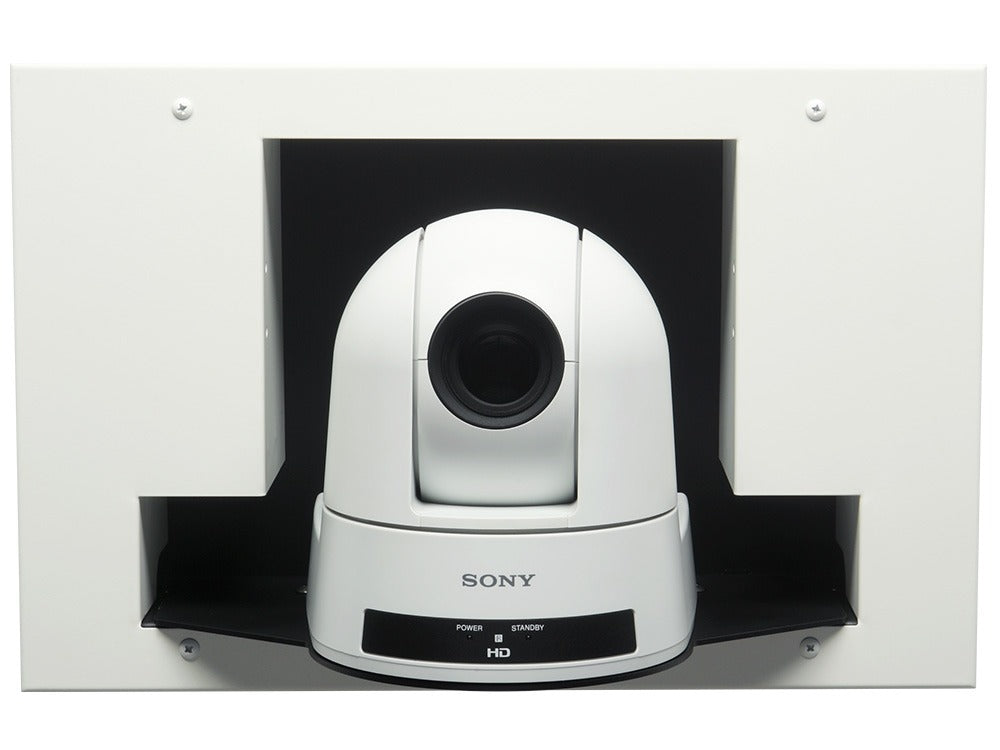

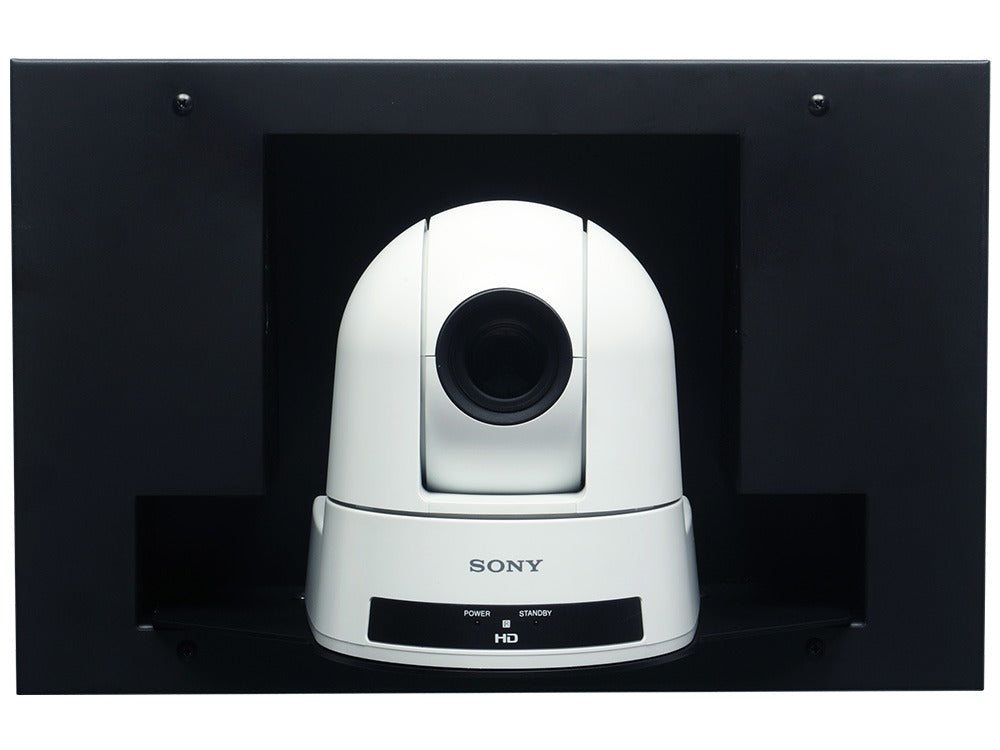

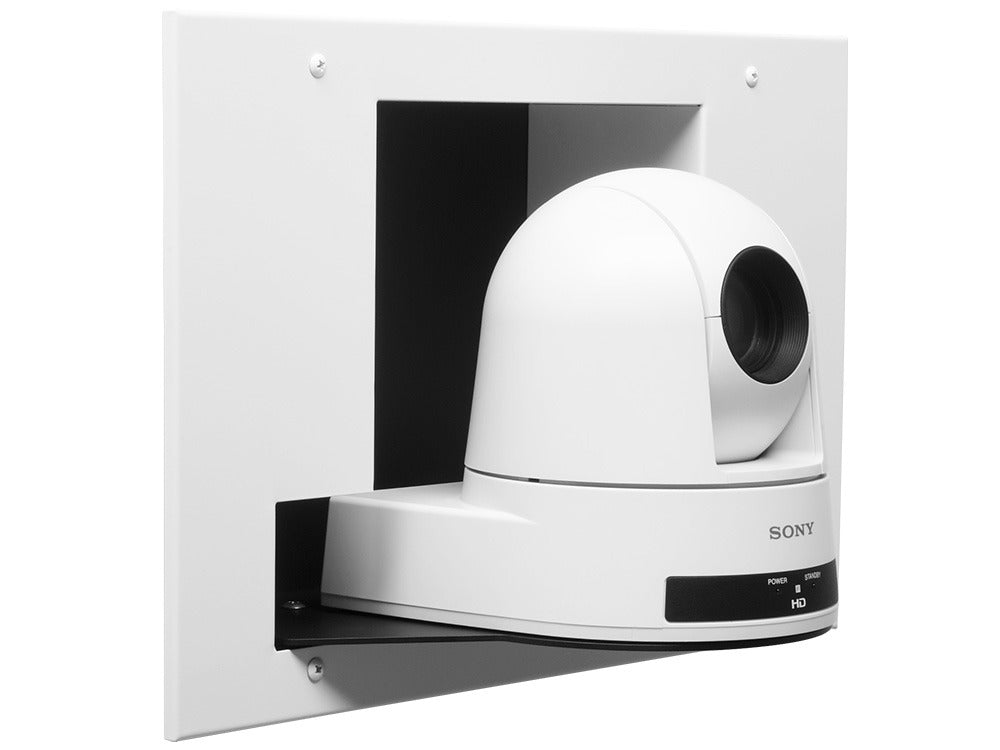

The Sound Control Technologies RCR-SD3 is a recessed wall mount for Sony EVI-HD3 and EVI-HD7 cameras, recessing the PTZ camera into the wall for a flush, finished installation in conference rooms and production spaces. As part of the SCT RCR Series of in-wall camera mounts, it pairs a wall backbox with a base shelf contoured to the EVI camera base. It serves installed-base Sony EVI rooms where the camera should sit flush with the wall rather than on a surface bracket.
Product Description
Sony EVI-HD3 and EVI-HD7 PTZ cameras remain in service across conference rooms, training rooms, and broadcast support spaces. The RCR-SD3 recesses the camera into the wall cavity: the backbox installs between studs, the camera seats on a shelf matched to its base, and video, control, and power cabling terminate inside the enclosure with no visible wiring. The camera sits at the correct presentation height behind a clean wall line, protected from incidental contact in busy commercial meeting spaces. The mount works with SCT camera extension solutions, allowing video, RS-232 control, and power to travel over a single CAT cable to a remote equipment rack. Per the vendor, ADA protrusion compliance is unlikely due to the depth of cameras in this category; verify wall depth and code requirements during design. Finish options are denoted by the SKU suffix. Note this is a legacy RCR Series model matched to the EVI-HD3/HD7; for current Sony SRG-series cameras (SRG-A12, SRG-A40, SRG-120DH, SRG-X40UH, SRG-300H), specify the universal RCR-UNI round-base mount.
Key Features
- Sony EVI-HD3/HD7 Specific — The base shelf is contoured to the EVI camera base for a secure, correctly aligned seat.
- Recessed In-Wall Design — The backbox sets the camera into the wall plane for a clean, architectural appearance.
- Concealed Cable Management — Video, RS-232, and power cabling terminate inside the backbox, hidden from the room.
- Finish Options — Finish variants (SKU suffix) coordinate with conference room wall treatments.
- Extension-Kit Friendly — Compatible with SCT camera extension kits for long single-cable runs to a remote rack.
- Installed-Base Support — Lets rooms with legacy Sony EVI cameras achieve a flush, modern installation.
Typical Applications
- Conference rooms and training rooms with installed Sony EVI-HD3/HD7 cameras
- House of worship venues using EVI PTZ capture
- Broadcast studio support spaces and multi-purpose rooms
- Government spaces maintaining standardized legacy camera fleets
Technical Specifications
| Model | RCR-SD3 (RCR Series) |
| Mount Type | Recessed in-wall camera mount |
| Supported Cameras | Sony EVI-HD3, Sony EVI-HD7 |
| Design | In-wall backbox with base shelf matched to the camera base |
| Finish | Available in finish options (SKU suffix denotes finish) |
| ADA Note | Per vendor, ADA protrusion compliance is unlikely due to camera depth |
| Manufacturer | Sound Control Technologies, Norwalk, CT |
Frequently Asked Questions
Which cameras does the RCR-SD3 support?
The Sony EVI-HD3 and EVI-HD7 PTZ cameras.
What about current Sony SRG cameras?
Current round-base Sony SRG models (SRG-A12, SRG-A40, SRG-120DH, SRG-X40UH, SRG-300H) are supported by the universal RCR-UNI mount in the same series.
Is this model still current?
The RCR-SD3 is a legacy RCR Series model. Contact our sales team to confirm availability and lead time.
Does it hide the cabling?
Yes. All camera cabling terminates inside the recessed backbox and runs within the wall.
How do I order?
RCR Series mounts are quoted per project with finish options identified by SKU suffix. Use the Contact Sales option on this page.
