Sound Control Technologies RCM-USM – Wall Mount for Square Base PTZ Cameras
Sound Control Technologies RCM-USM – Wall Mount for Square Base PTZ Cameras is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RCM-USM – Wall Mount for Square Base PTZ...
Product Overview

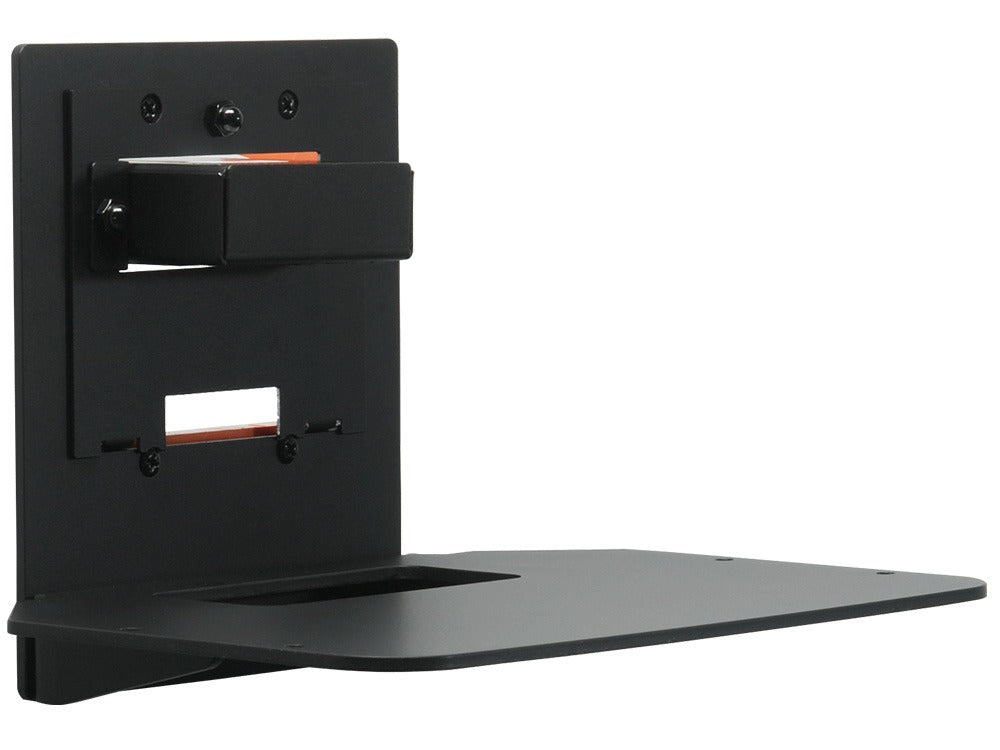

The Sound Control Technologies RCM-USM is an on-wall camera mount for square base PTZ cameras in commercial video conferencing rooms. Part of the SCT RCM Series of dual-gang on-wall mounts, it conceals cabling and SCT camera-end extension modules behind the mount, with a finished cover hiding the 2-gang wall box for a clean installation above or below the display.
Product Description

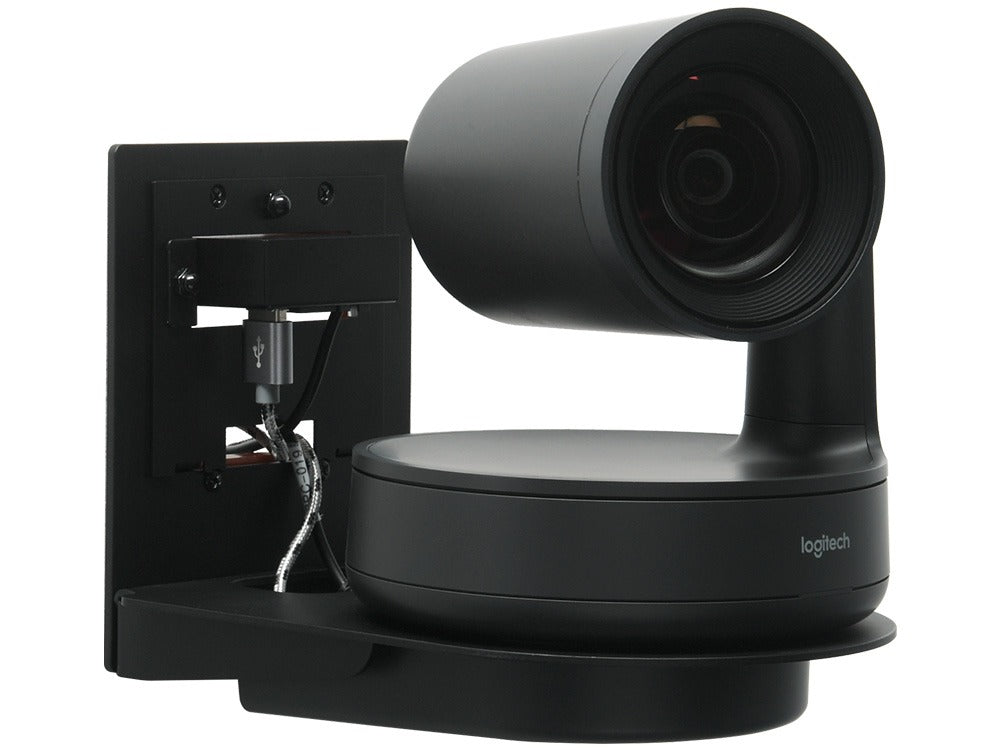

The RCM-USM anchors a square base PTZ camera to the wall over a standard 2-gang electrical box, routing cabling through the wall and concealing connections behind the mount plate. Supported cameras include the Atlona HDVS-CAM series, AVer CAM520/CAM530/CAM570, AVer PTC and PTZ series, AVer TR tracking cameras, ClearOne Unite 150, Minrray UV510A, Panasonic AW-UE4, VDO360 CompassX, and VHD V60/V61/V63 models. The included cover hides the gang box and cabling, and a break-out tab at the bottom of the cover provides a pass-through for surface-run cables when in-wall routing is not possible. Like the rest of the RCM Series, the mount conceals the camera-end modules of SCT RC4, RC5, RCU2S, RCU2E, and RCU3SL extension kits, so an extended camera needs no visible electronics at the wall. Vendor-published installation instructions plus PDF, CAD, and Revit drawings support AV design coordination.
Key Features
- Square Base Camera Fit — Supports square base PTZ cameras from Atlona, AVer, ClearOne, Minrray, Panasonic, VDO360, and VHD.
- Dual-Gang Wall Box Installation — Mounts over a standard 2-gang electrical box, simplifying rough-in coordination with electrical contractors.
- Concealed Module Storage — Hides SCT RC4, RC5, RCU2S, RCU2E, and RCU3SL camera-end modules and cabling behind the mount.
- Finished Cover — The included cover conceals the gang box and cabling for a clean, client-facing appearance.
- Break-Out Cable Tab — A break-out tab at the bottom of the cover offers a pass-through option for surface-run cable management.
- Complete Design Documentation — Vendor-published installation instructions plus PDF, CAD, and Revit drawings support construction documentation.
Technical Specifications
| Model | RCM-USM |
|---|---|
| Series | RCM Series Dual-Gang On-Wall Mounts |
| Mount Type | On-wall mount over 2-gang wall box, with finished cover |
| Supported Cameras | Atlona HDVS-CAM / HDVS-CAM-HDMI; AVer CAM520, CAM530, CAM570, MD120UI, MD330, PTC300, PTC310/330 series, PTZ310/313/330, TR311–TR335 series; ClearOne Unite 150; Minrray UV510A; Panasonic AW-UE4; VDO360 CompassX; VHD V60UL/V61UL/V63UL and V60CL/V61CL/V63CL |
| Module Concealment | Houses SCT RC4 / RC5 / RCU2S / RCU2E / RCU3SL camera-end modules |
| Cable Management | In-wall routing plus break-out tab pass-through on cover |
| Manufacturer | Sound Control Technologies, Norwalk, CT (USA) |
| Documentation | RCM Series installation instructions, PDF, CAD, and Revit drawings published by vendor |
