Product Overview

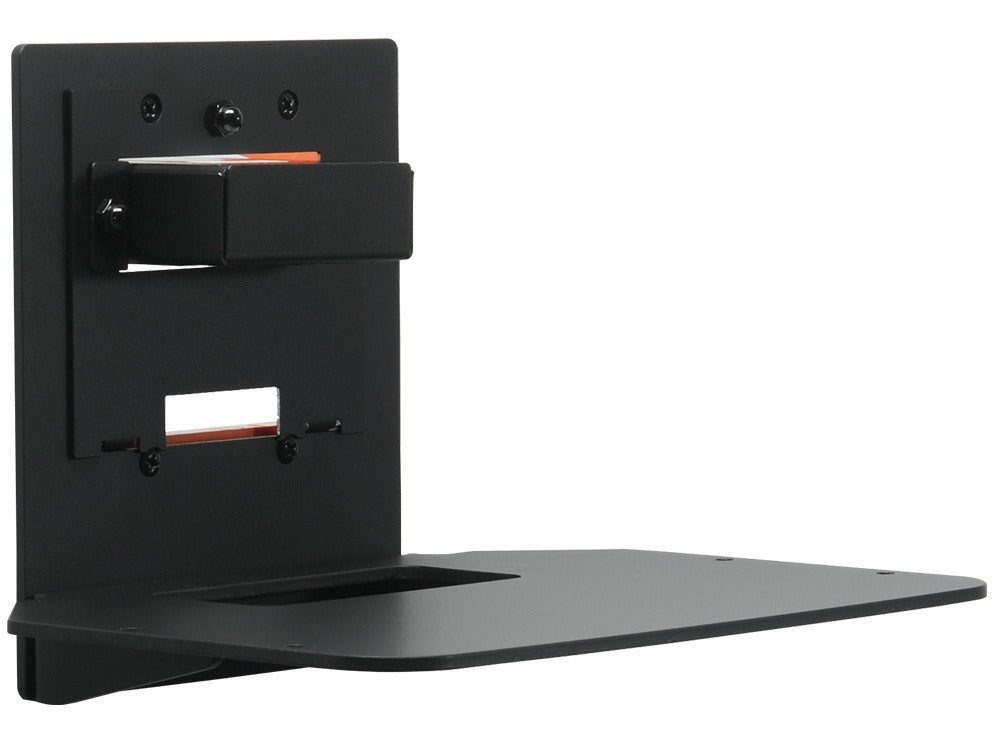

The Sound Control Technologies RCM-URM is an on-wall camera mount for rectangular base PTZ cameras in commercial video conferencing rooms. Part of the SCT RCM Series of dual-gang on-wall mounts, it conceals cabling and SCT camera-end extension modules behind the mount, with a finished cover hiding the 2-gang wall box for a clean installation above or below the display.
Product Description

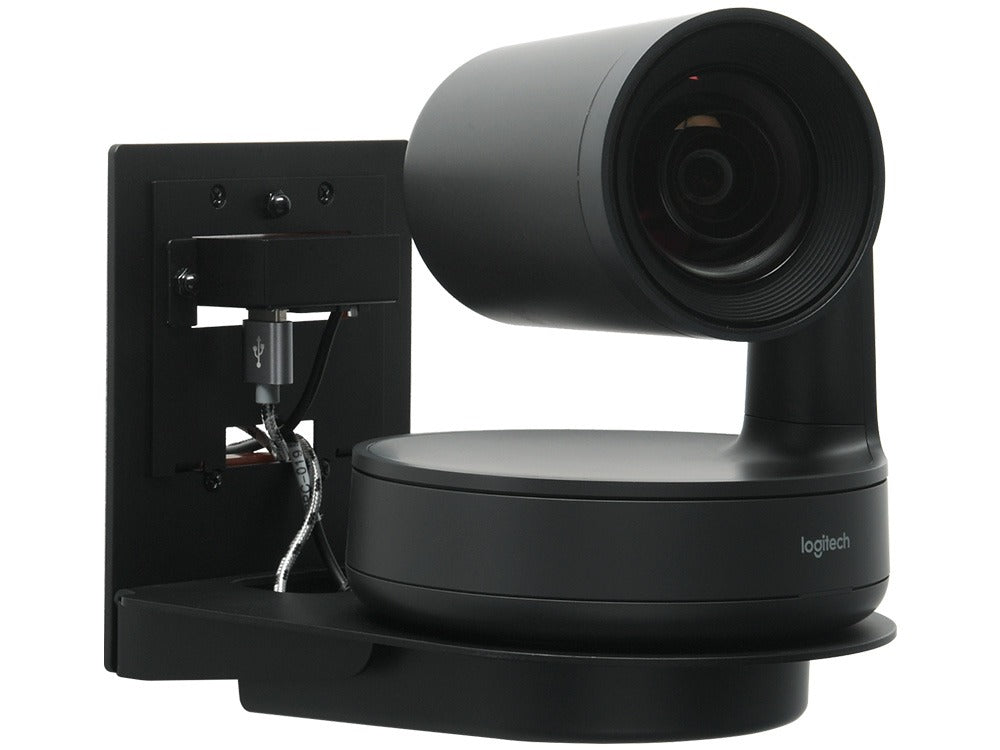

The RCM-URM anchors a rectangular base PTZ camera to the wall over a standard 2-gang electrical box, routing cabling through the wall and concealing connections behind the mount plate. Supported cameras include the Cisco Precision 40, 12XS2, and 4XS1, Crestron AutoFinder, AutoFramer, and IV-CAM-I12-B, ClearOne Unite 200, Avonic CM70-IP, HuddleCam HC12X HuddleView and HC20X SimplTrack2, Lumens VC-B30U and VC-TR1, Minrray UV570 and UV950A, VHD VX and V300-series models, and the Yealink UVC86. The included cover hides the gang box and cabling, and a break-out tab at the bottom of the cover provides a pass-through for surface-run cables when in-wall routing is not possible. Like the rest of the RCM Series, the mount conceals the camera-end modules of SCT RC4, RC5, RCU2S, RCU2E, and RCU3SL extension kits, so an extended camera needs no visible electronics at the wall. Vendor-published installation instructions plus PDF, CAD, and Revit drawings support AV design coordination. For the larger HP Poly E60 base, see the SCT RCM-URMX.
Key Features
- Broad Rectangular Base Support — Fits rectangular base PTZ cameras from Cisco, Crestron, ClearOne, Avonic, HuddleCam, Lumens, Minrray, VHD, and Yealink.
- Dual-Gang Wall Box Installation — Mounts over a standard 2-gang electrical box, simplifying rough-in coordination with electrical contractors.
- Concealed Module Storage — Hides SCT RC4, RC5, RCU2S, RCU2E, and RCU3SL camera-end modules and cabling behind the mount.
- Finished Cover — The included cover conceals the gang box and cabling for a clean, client-facing appearance.
- Break-Out Cable Tab — A break-out tab at the bottom of the cover offers a pass-through option for surface-run cable management.
- Complete Design Documentation — Vendor-published installation instructions plus PDF, CAD, and Revit drawings support construction documentation.
Technical Specifications
| Model | RCM-URM |
|---|---|
| Series | RCM Series Dual-Gang On-Wall Mounts |
| Mount Type | On-wall mount over 2-gang wall box, with finished cover |
| Supported Cameras | Avonic CM70-IP; Cisco 12XS2, 4XS1, Precision 40; ClearOne Unite 200; Crestron AutoFinder, AutoFramer, IV-CAM-I12-B; HuddleCam HC12X HuddleView, HC20X SimplTrack2; Lumens VC-B30U, VC-TR1; Minrray UV570, UV950A; VHD VX110, VX710N, VX701L, VX120, V302, V320; Yealink UVC86 |
| Module Concealment | Houses SCT RC4 / RC5 / RCU2S / RCU2E / RCU3SL camera-end modules |
| Cable Management | In-wall routing plus break-out tab pass-through on cover |
| Manufacturer | Sound Control Technologies, Norwalk, CT (USA) |
| Documentation | RCM Series installation instructions, PDF, CAD, and Revit drawings published by vendor |
