Sound Control Technologies RCF2-CQC – Fiber Camera Extension for Cisco Quad Camera

Product Overview

The Sound Control Technologies RCF2-CQC is a dual-channel fiber optic camera extension system engineered specifically for the Cisco Quad Camera (CQC) with SX80, Codec Plus, Codec EQ, and Codec Pro codecs. This fiber camera extender transports dual HDMI video signals, Ethernet control, serial VISCA loop, 12V QuadCam power, ARC/analog audio I/O, and dual HDMI distribution amp output over a single fiber run up to 300 meters. It is the correct solution for integrators who need to separate the Cisco Quad Camera from the codec in large conference rooms, boardrooms, and auditoriums where plenum-rated or in-wall cabling over extended distances is required. The RCF2-CQC eliminates the need for separate extenders and adapters by consolidating all signal transport into one rack-mount system.

Product Description

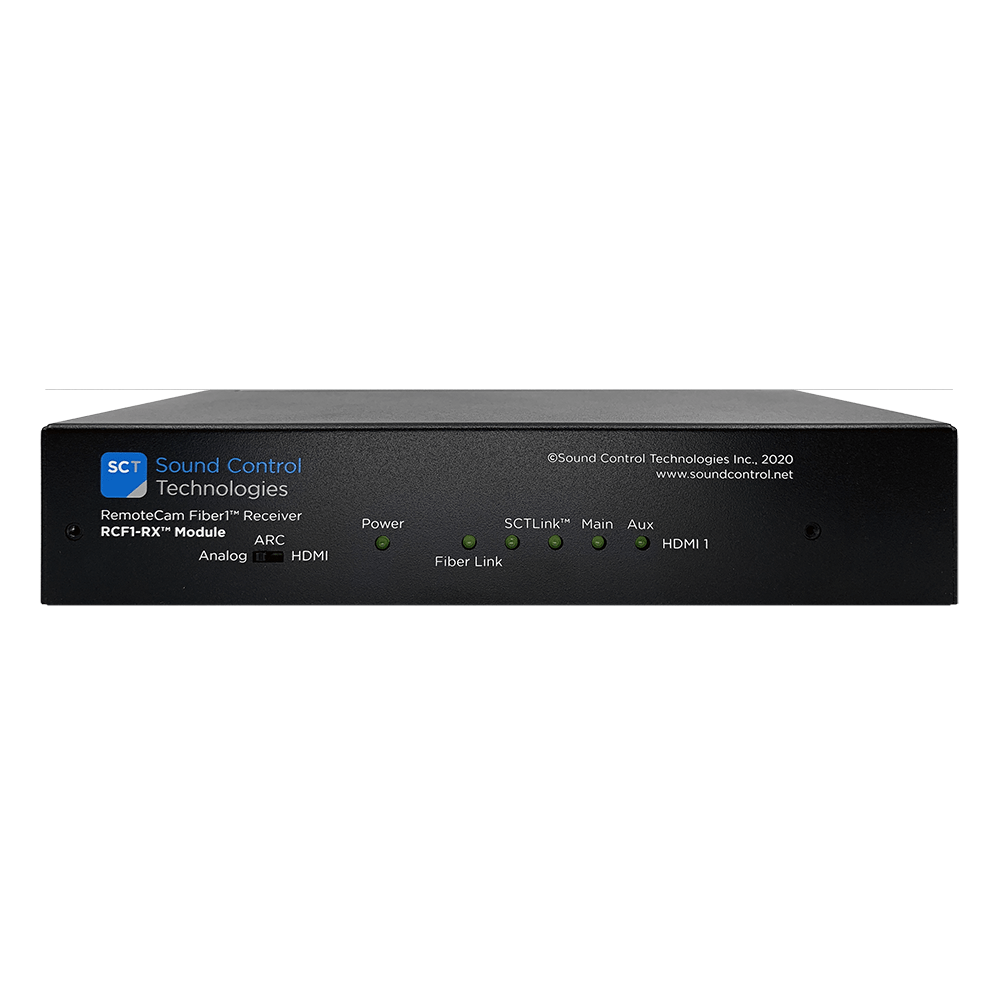

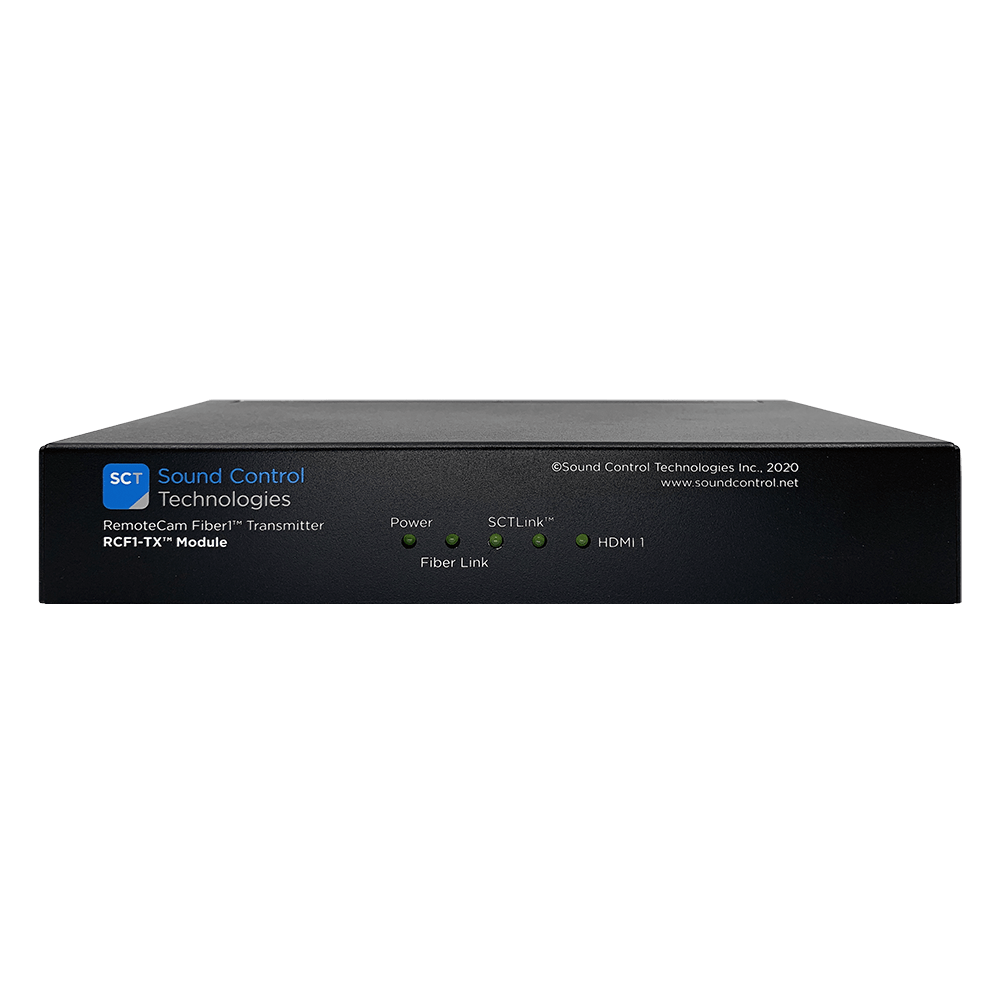

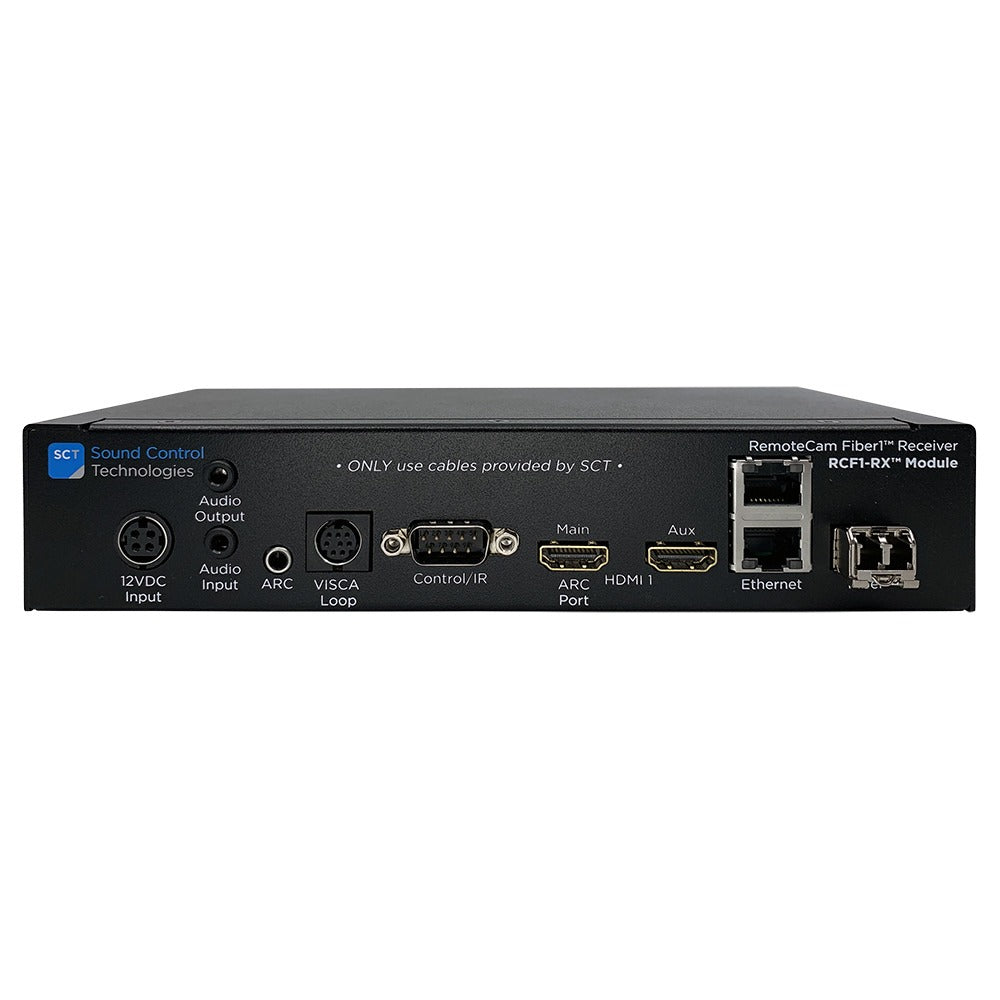

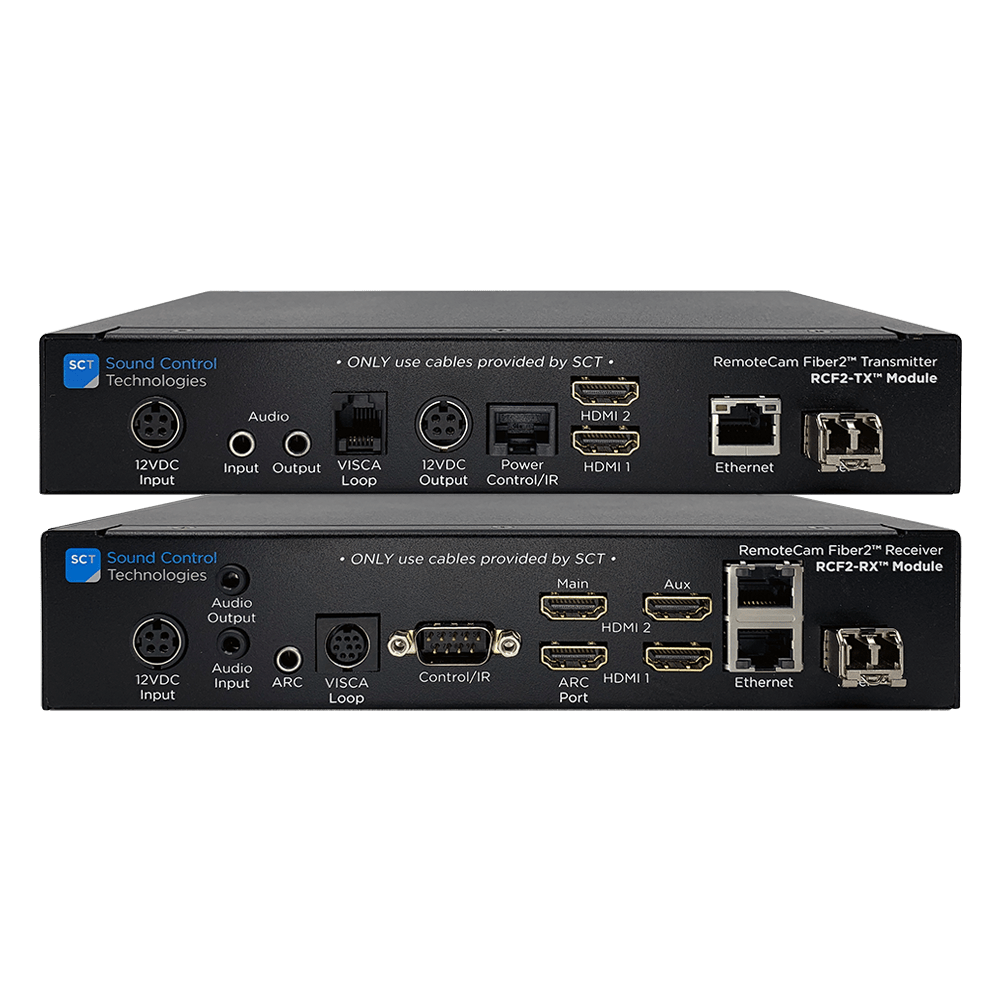

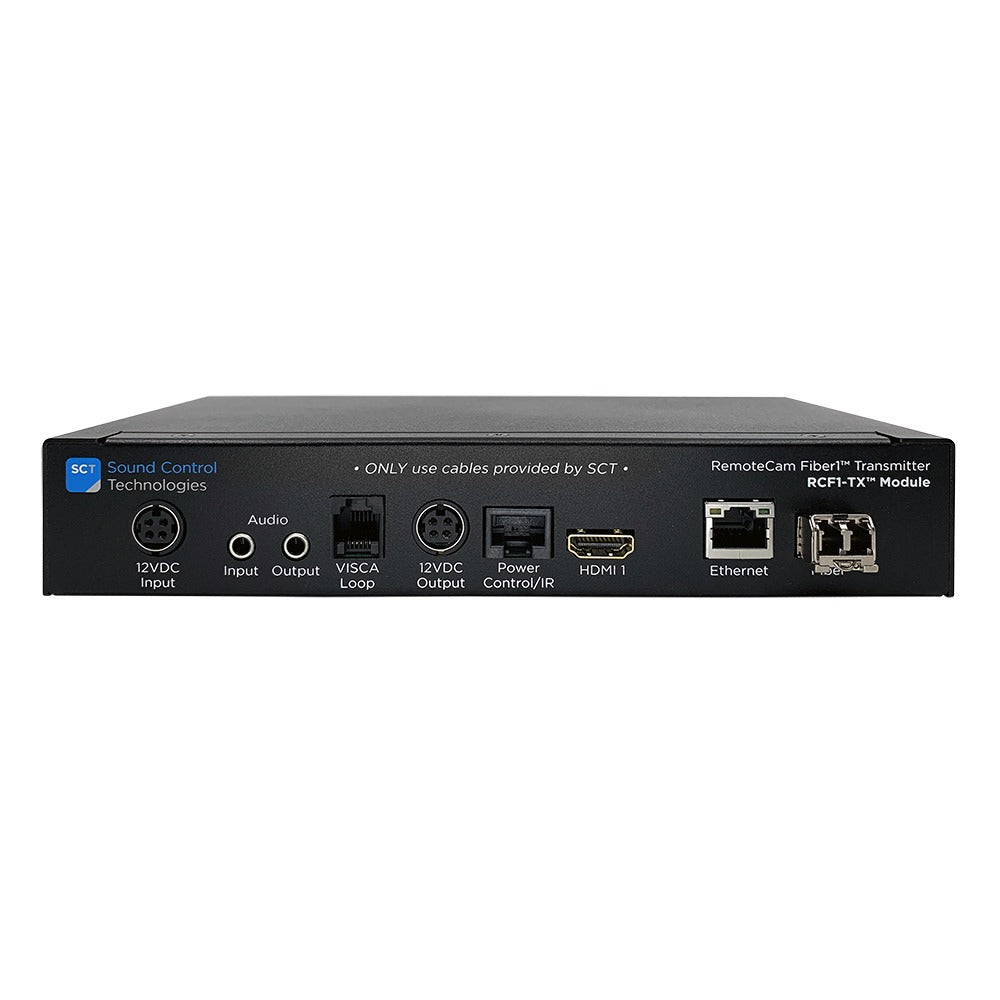

The RCF2-CQC consists of a transmitter module (camera end) and a receiver module (codec end), connected over fiber to achieve reliable long-distance camera placement in commercial AV installations. The system carries dual HDMI video paths simultaneously, making it uniquely suited to the Cisco Quad Camera's dual-output architecture. Ethernet control allows full PTZ and camera management to pass transparently to the codec. Serial VISCA loop support ensures compatibility with existing VISCA-based control systems. The integrated 12V power output supplies the Quad Camera directly from the receiver module, reducing power infrastructure at the camera end. ARC and analog audio I/O are included for rooms requiring audio return or analog microphone signals over the same fiber run. A dual HDMI distribution amp on the receiver allows a secondary display or confidence monitor to be driven without an external splitter. Rated for runs up to 300 meters, this system is appropriate for large floor plan deployments, government facilities, and enterprise boardrooms where the codec resides in a central equipment room. The RCF2-CQC is manufactured in the USA/Taiwan and sold as an each unit. Contact Creation Networks for quantity pricing and system design support.

Key Features

• Dual HDMI Fiber Transport — Carries two simultaneous HDMI video channels over a single fiber run to support the Cisco Quad Camera's dual-output design.
• 300-Meter Fiber Range — Extends camera placement up to 300 meters from the codec, enabling centralized equipment rooms in large facilities.
• Ethernet Control Pass-Through — Full IP control of the Cisco Quad Camera passes over fiber, maintaining codec management and diagnostics without a separate network drop at the camera.
• Serial VISCA Loop — Supports VISCA-based PTZ control systems in parallel with Ethernet control for maximum compatibility.
• 12V QuadCam Power Output — Powers the Cisco Quad Camera directly from the receiver module, eliminating a separate power supply at the camera location.
• ARC / Analog Audio I/O — Integrated audio return channel and analog audio input/output allow audio signals to share the fiber infrastructure.
• Dual HDMI Distribution Amp — Built-in distribution amplifier drives a primary codec input and a secondary display or confidence monitor output from the receiver.
• Commercial-Grade Construction — Rack-mount form factor with commercial AV-grade components suitable for permanent installation in enterprise and government environments.

Typical Applications

• Boardroom
• Conference room
• Government space
• All-hands room
• Multi-purpose room
• Training room

Technical Specifications

Frequently Asked Questions

Which Cisco codecs is the RCF2-CQC compatible with?

The RCF2-CQC is designed for use with the Cisco Quad Camera paired with SX80, Codec Plus, Codec EQ, and Codec Pro codecs. It is not intended for use with other camera models or codec families without consulting Sound Control Technologies.

What fiber type is required for the 300-meter run?

The RCF2-CQC is engineered for fiber optic cabling. Consult the Sound Control Technologies installation documentation or contact Creation Networks for specific fiber specification requirements for your project.

Can the RCF2-CQC power the Cisco Quad Camera directly?

Yes. The receiver module includes a 12V power output rated for the Cisco Quad Camera, eliminating the need for a separate power supply at the camera end of the installation.

Is an additional power supply required for the RCF2 system?

The RCF2 system requires an external power supply. The WPS-12V8A (96W, 12V/8A) power supply is sold separately and is rated for the RCF1 and RCF2 families. Contact Creation Networks for bundled pricing.

What is the warranty on this product?

Contact Creation Networks for current Sound Control Technologies warranty terms applicable to the RCF2-CQC.

Can individual modules be replaced if one fails?

Yes. Replacement modules are available separately: the RCF2-RCVR (receiver) and RCF2-XMTR (transmitter) are stocked at Creation Networks for field replacement without replacing the entire system.
