Sound Control Technologies RCF1-UNI – Fiber Camera Extension for Sony and Compatible PTZ

Product Overview

The Sound Control Technologies RCF1-UNI is a single-channel fiber optic camera extension system designed for Sony cameras and other compatible PTZ camera models. This universal fiber camera extender carries HDMI video, Ethernet control, serial VISCA loop, 12V power output, ARC/analog audio I/O, and an HDMI distribution amp over fiber up to 300 meters. The RCF1-UNI is the appropriate choice for installations involving Sony PTZ cameras or other VISCA-compatible cameras where a purpose-specific RCF1 variant is not available, providing a single-fiber infrastructure for all signal types. It is suited for conference rooms, boardrooms, and commercial spaces where extended camera placement from the codec is required.

Product Description

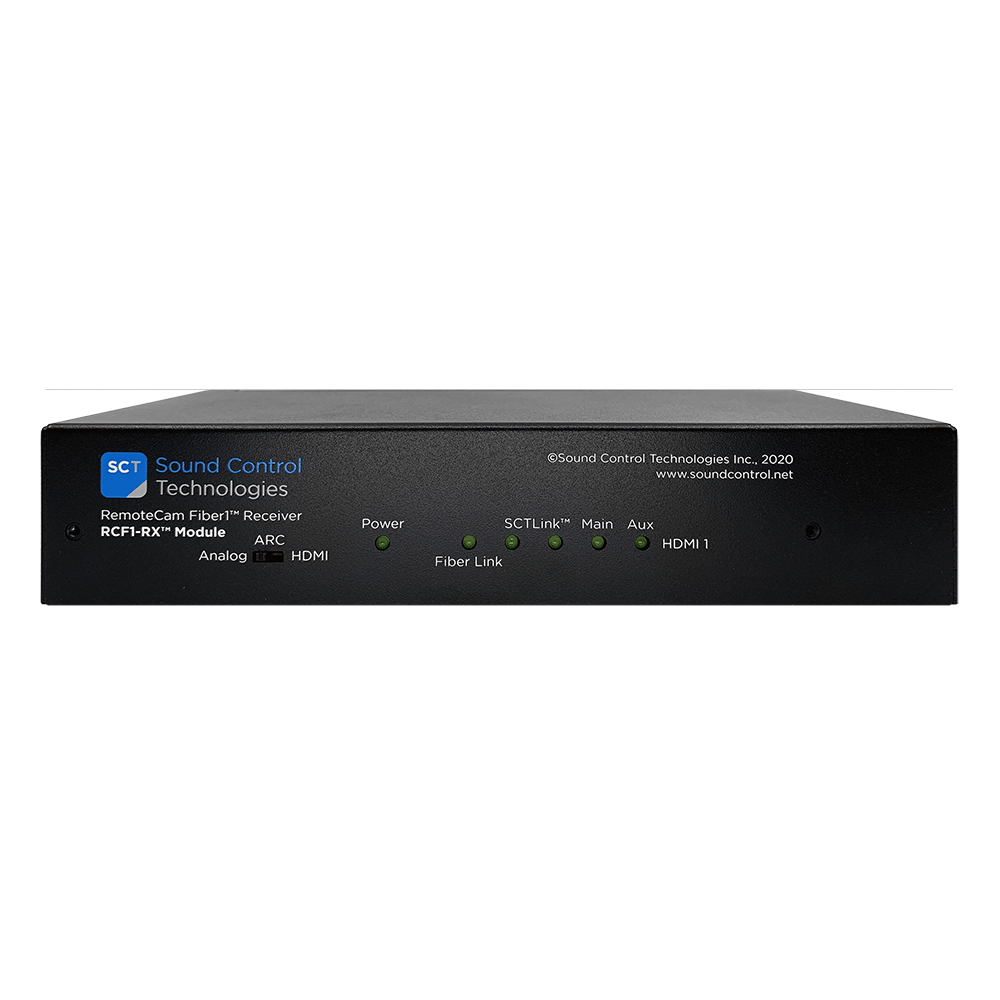

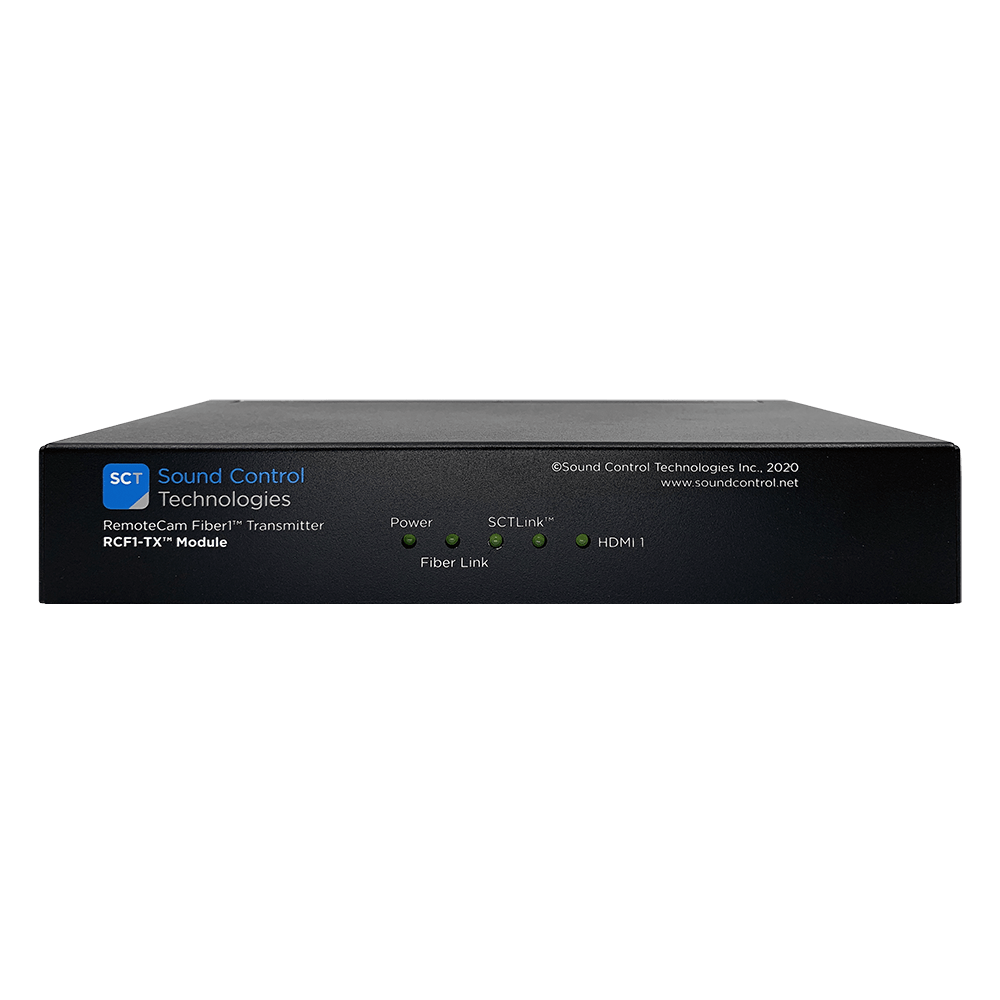

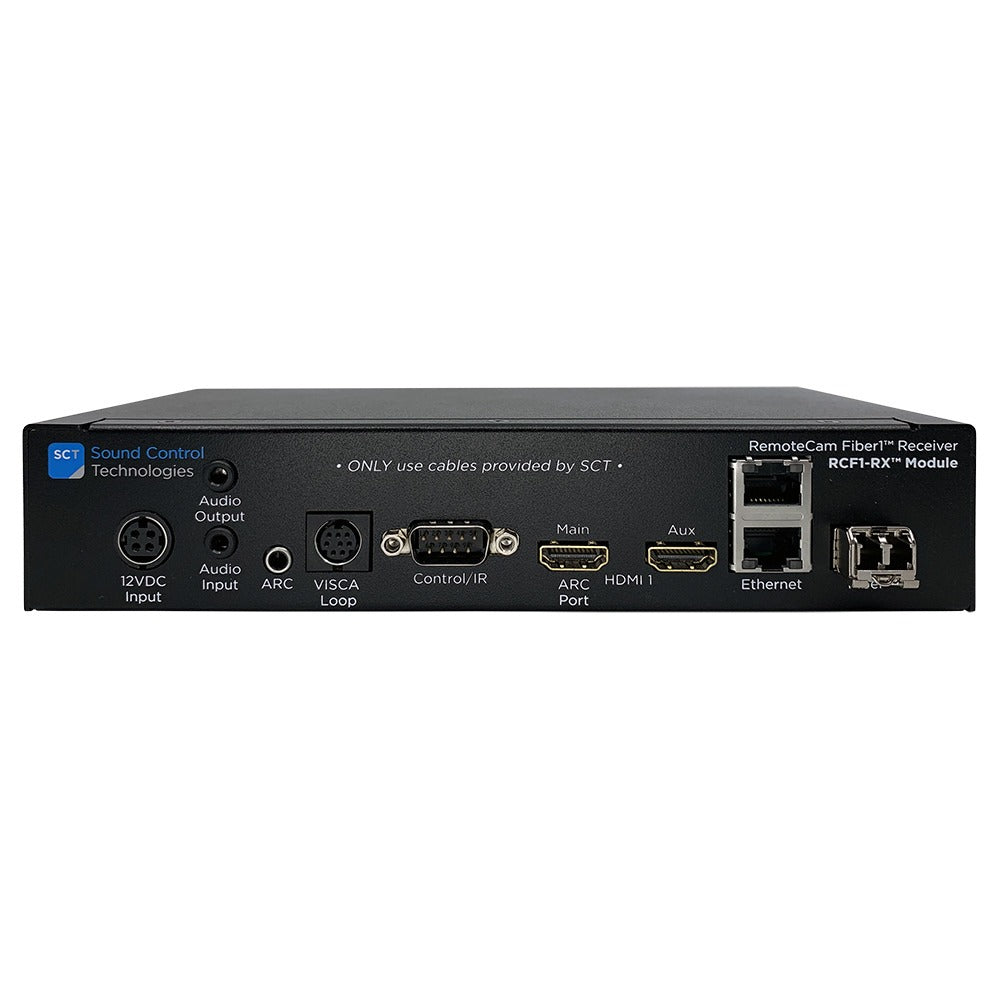

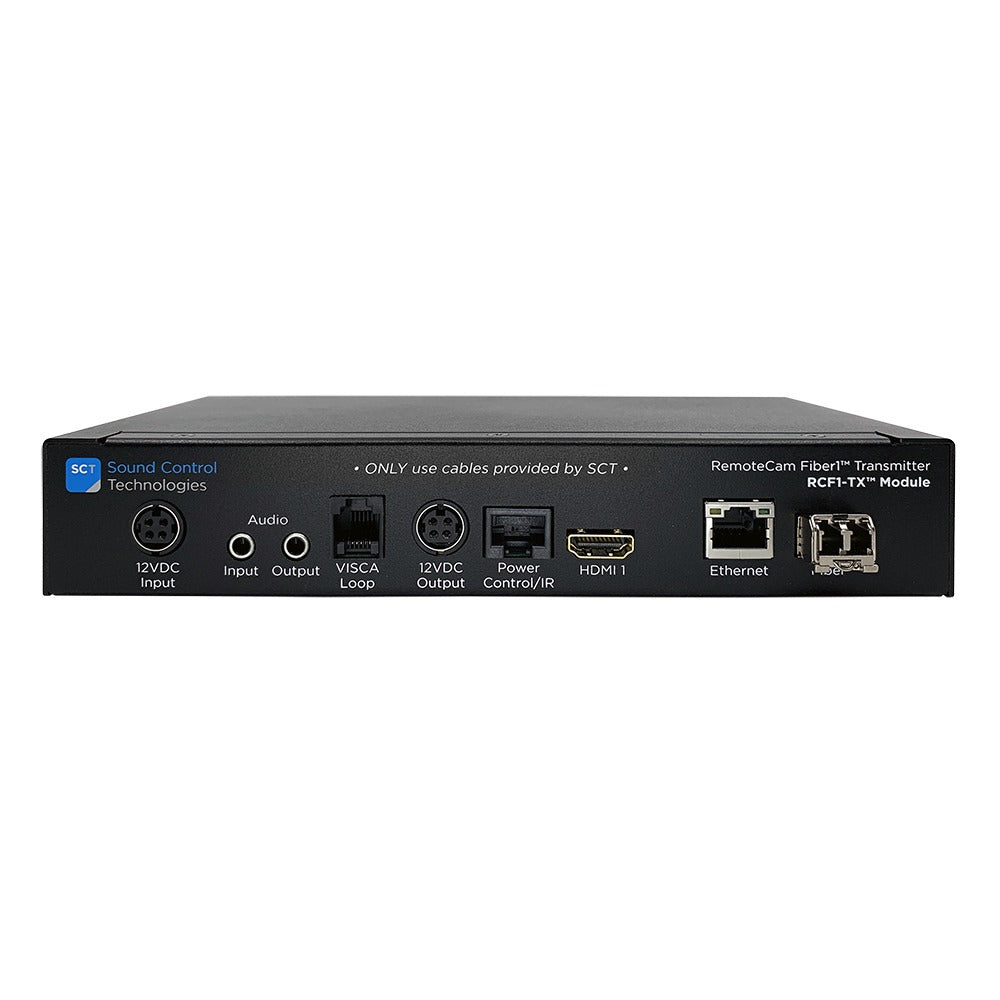

The RCF1-UNI consists of a transmitter module at the camera end and a receiver module at the codec end, with all signals transported over fiber. HDMI video from a Sony or compatible PTZ camera transits the fiber with signal integrity at distances up to 300 meters. Ethernet control allows IP-based camera management and control to pass over the fiber link without a separate network drop at the camera. The serial VISCA loop enables PTZ camera control over VISCA for integration with third-party control systems, which is common in Sony PTZ deployments. A 12V power output on the receiver module can supply compatible cameras directly. ARC and analog audio I/O allow audio return and analog signals to share the fiber run. The built-in HDMI distribution amp on the receiver drives a primary codec input plus a secondary display simultaneously. The RCF1-UNI is suited for integrators who need a flexible, VISCA-centric fiber extender for Sony and compatible cameras in commercial AV installations. Manufactured in USA/Taiwan. Sold as each unit.

Key Features

• Universal PTZ Camera Compatibility — Designed for Sony cameras and other VISCA-compatible PTZ models where a camera-specific RCF1 variant is not available.
• Fiber HDMI Transport — Carries HDMI video over fiber with signal integrity up to 300 meters.
• 300-Meter Range — Supports camera placement up to 300 meters from the codec for centralized equipment room deployments.
• Ethernet Control Pass-Through — IP-based camera management transits fiber without a separate network connection at the camera end.
• Serial VISCA Loop — VISCA PTZ control support, particularly relevant for Sony and compatible camera control systems.
• 12V Camera Power Output — Powers compatible cameras directly from the receiver module.
• ARC / Analog Audio I/O — Audio return and analog signals share the fiber infrastructure.
• HDMI Distribution Amp — On-board amp drives primary and secondary video outputs from the receiver.

Typical Applications

• Boardroom
• Conference room
• Government space
• All-hands room
• Broadcast studio
• House of worship
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Which cameras is the RCF1-UNI compatible with?

The RCF1-UNI is designed for Sony cameras and other VISCA-compatible PTZ models. Contact Creation Networks to confirm compatibility with your specific camera model before ordering.

Is the RCF1-UNI compatible with Cisco or Poly cameras?

The RCF1-UNI is the universal variant for Sony and compatible cameras. Cisco-specific cameras should use RCF1-CW4 (Webex PTZ 4K), RCF1-P60 (Precision 60), or the RCF2 series (Quad Camera, SpeakerTrack 60). The Poly EagleEye IV should use the RCF1-E4P.

What power supply is required?

The WPS-12V8A (96W, 12V/8A) power supply is compatible with RCF1 systems and is available separately at Creation Networks.

Are replacement modules available?

Yes. The RCF1-RCVR and RCF1-XMTR replacement modules are stocked at Creation Networks.

What is the warranty on this product?

Contact Creation Networks for current Sound Control Technologies warranty terms applicable to the RCF1-UNI.
