Sound Control Technologies RCF1-P60 – Fiber Camera Extension for Cisco Precision 60

Product Overview

The Sound Control Technologies RCF1-P60 is a single-channel fiber optic camera extension system purpose-built for the Cisco Precision 60 camera with SX80, Codec Plus, Codec EQ, and Codec Pro codecs. This fiber camera extender transports HDMI video, Ethernet control, serial VISCA loop, 12V camera power, ARC/analog audio I/O, and an HDMI distribution amp over fiber up to 300 meters. It is the appropriate solution for AV integrators deploying the Cisco Precision 60 PTZ camera at extended distances from the codec in boardrooms, conference rooms, and large commercial facilities. All signal transport is consolidated into a single fiber run, simplifying installation and reducing the number of discrete components required.

Product Description

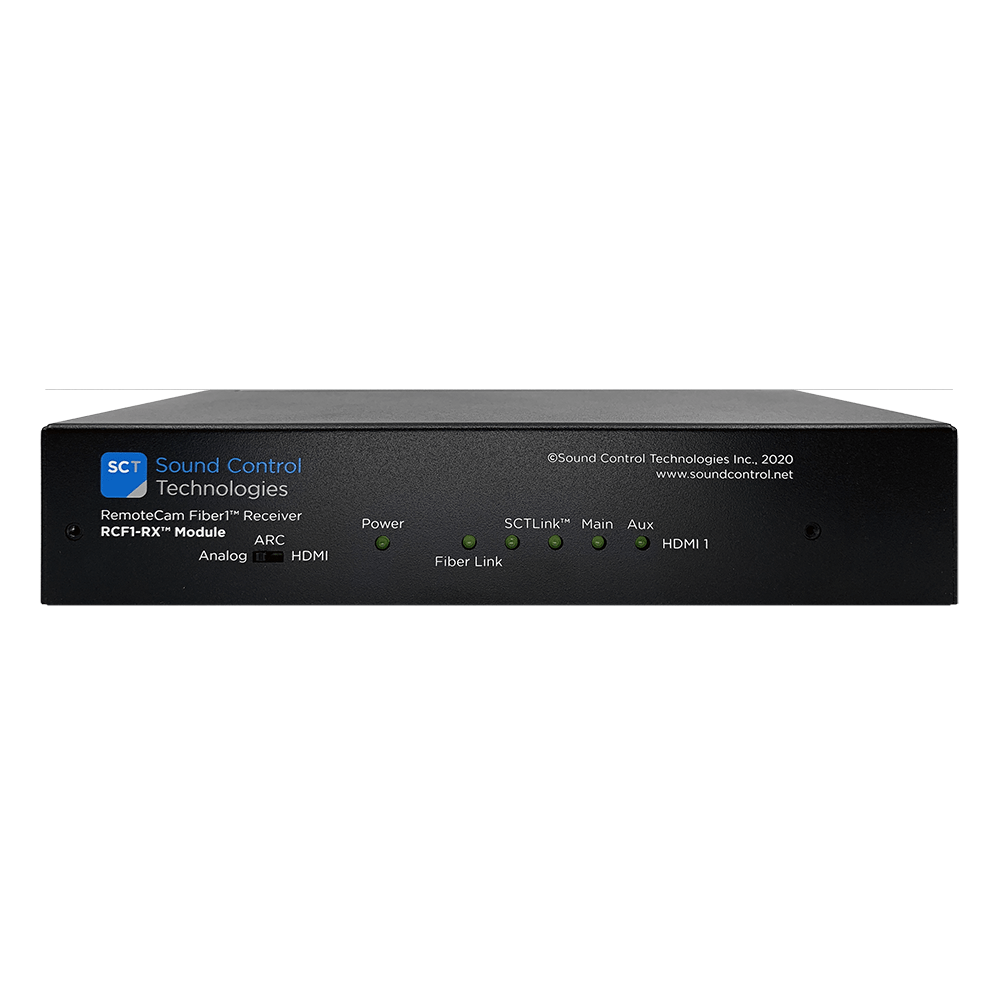

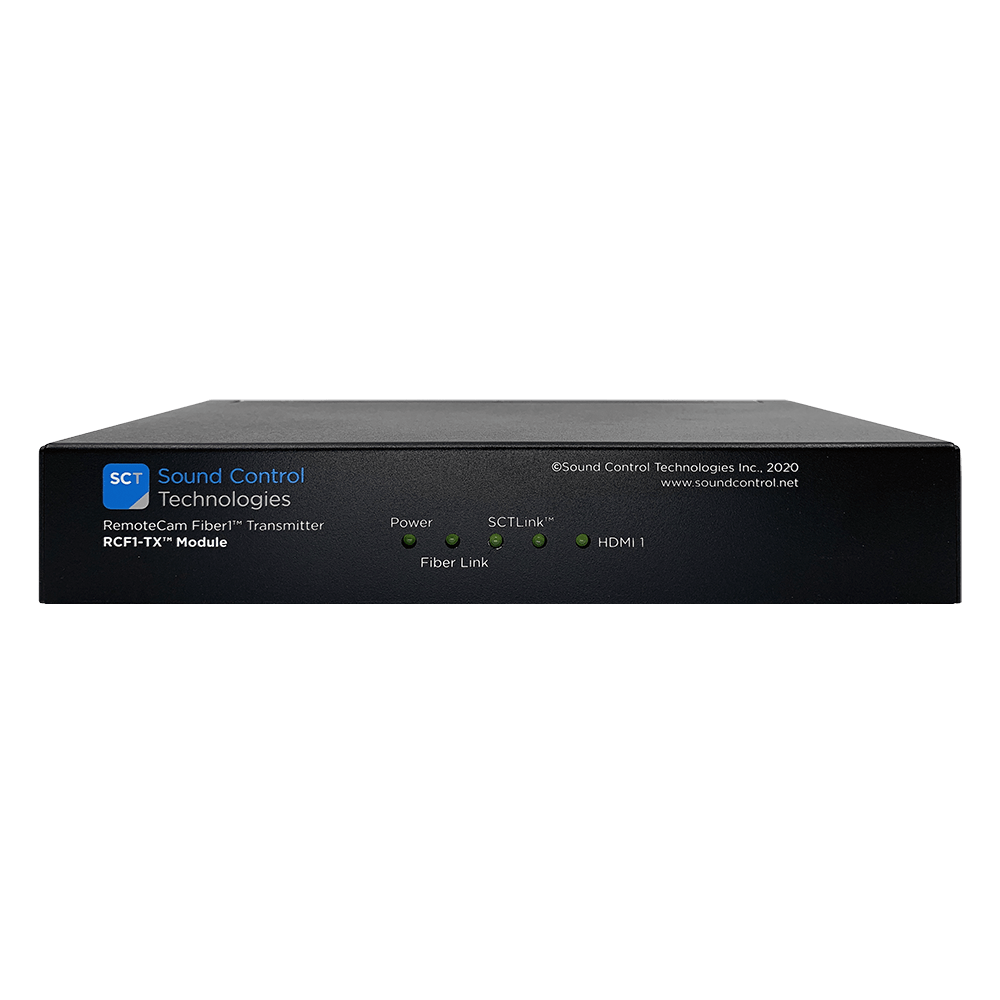

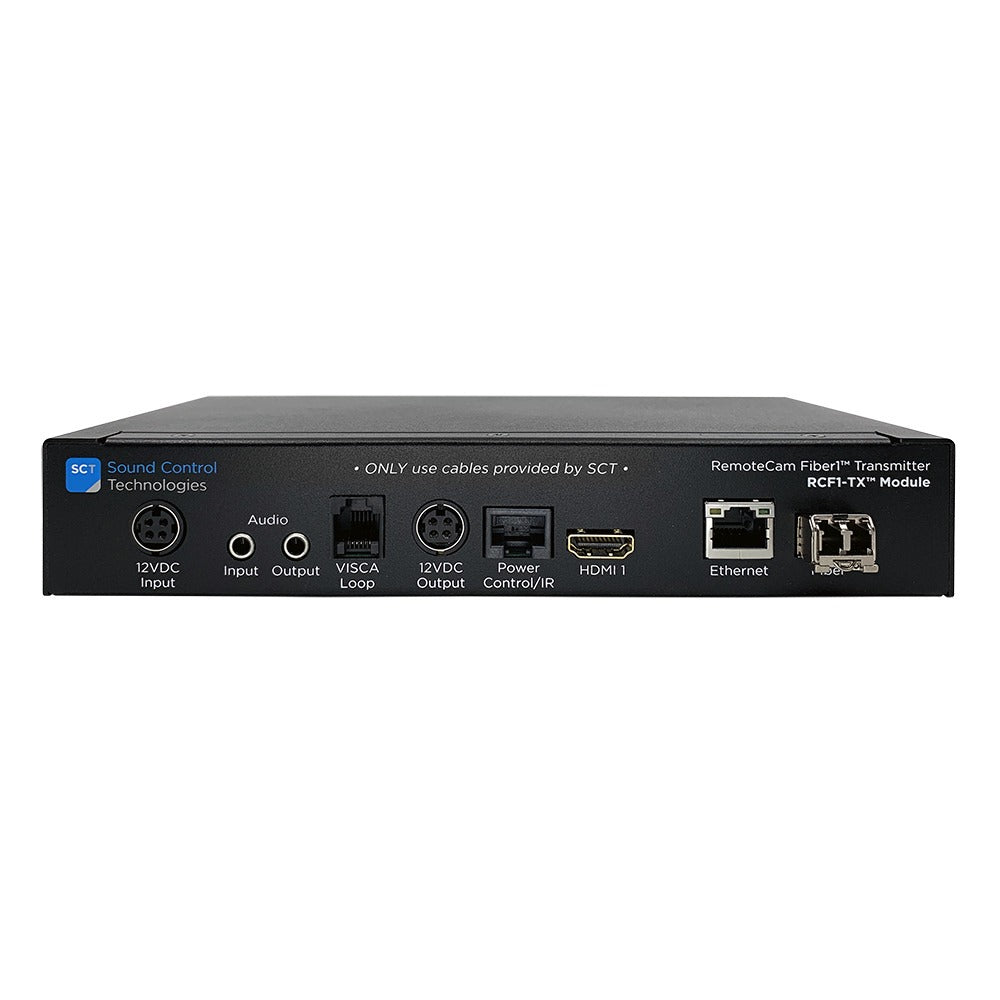

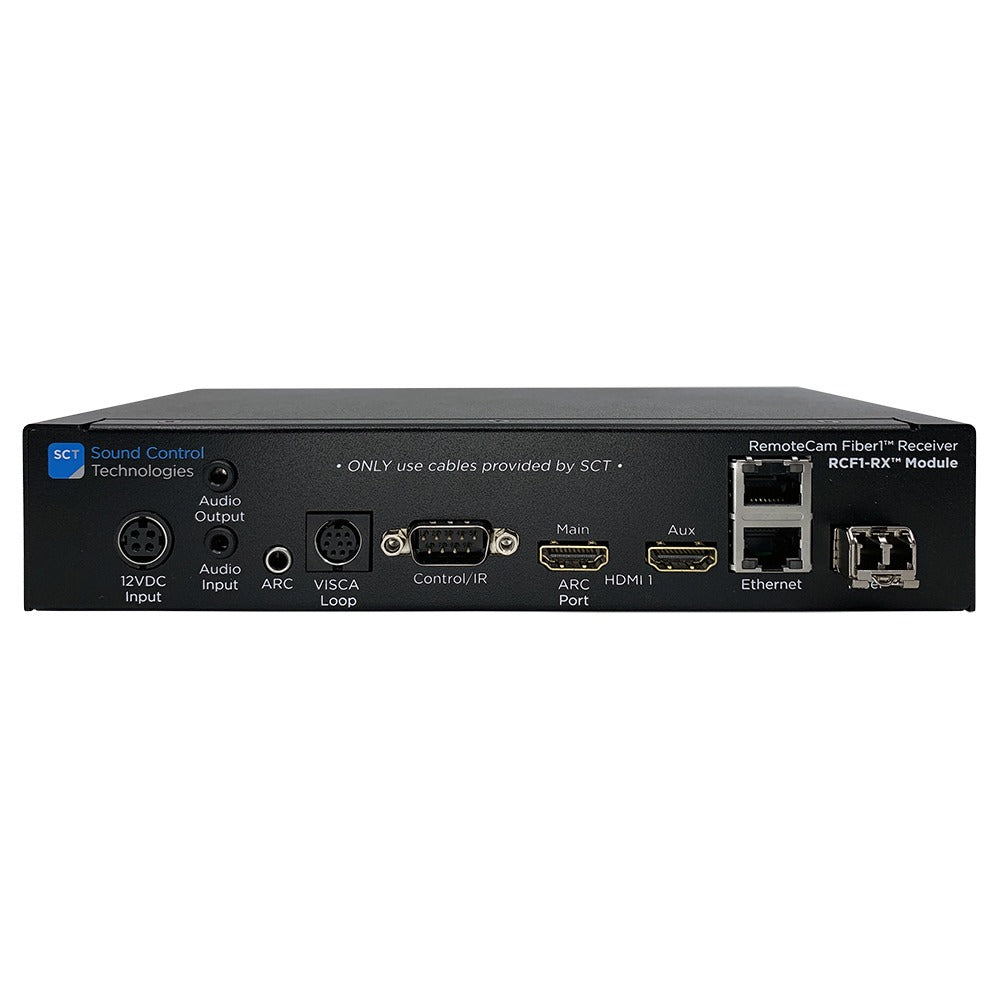

The RCF1-P60 consists of a transmitter module at the camera end and a receiver module at the codec end, with all signals carried over fiber. HDMI video from the Cisco Precision 60 transits the fiber at up to 300 meters without signal degradation. Ethernet control allows PTZ management and codec-to-camera communication to pass over the fiber link, eliminating the need for a separate network drop at the camera location. The serial VISCA loop enables parallel VISCA-based control for third-party or legacy control systems. A 12V power output on the receiver module supplies the Precision 60 directly, removing the need for a separate power supply at the camera end. ARC and analog audio I/O support audio return and analog signals over the same fiber. The built-in HDMI distribution amp on the receiver module can drive both a primary codec input and a secondary display simultaneously. The RCF1-P60 supports runs up to 300 meters and is appropriate for enterprise conference centers, government facilities, and large-format meeting spaces. Manufactured in USA/Taiwan. Sold as each unit.

Key Features

• Fiber HDMI Transport — Carries HDMI video from the Cisco Precision 60 over fiber with full signal integrity at distances up to 300 meters.
• 300-Meter Range — Supports camera-to-codec distances up to 300 meters for centralized rack room deployments.
• Ethernet Control Pass-Through — PTZ management and codec communication transit the fiber without a separate network infrastructure at the camera.
• Serial VISCA Loop — VISCA control support for third-party PTZ control systems operating in parallel.
• 12V Camera Power Output — Powers the Cisco Precision 60 from the receiver, eliminating a dedicated power supply at the camera location.
• ARC / Analog Audio I/O — Audio return channel and analog audio I/O integrated into the fiber transport infrastructure.
• HDMI Distribution Amp — On-board amplifier drives a primary and secondary video output from the receiver module.
• Cisco Precision 60 – Specific Design — Engineered for the Precision 60 camera with SX80, Codec Plus, Codec EQ, and Codec Pro codec families.

Typical Applications

• Boardroom
• Conference room
• Government space
• All-hands room
• Multi-purpose room
• Training room

Technical Specifications

Frequently Asked Questions

Which codecs does the RCF1-P60 support?

The RCF1-P60 is designed for the Cisco Precision 60 camera paired with SX80, Codec Plus, Codec EQ, and Codec Pro. Contact Creation Networks to confirm compatibility with your codec version.

Is the RCF1-P60 compatible with other Cisco cameras?

No. The RCF1-P60 is engineered specifically for the Cisco Precision 60. Other camera models require different RCF1 variants (e.g., RCF1-CW4 for the Webex PTZ 4K).

What power supply is required for the RCF1-P60?

The WPS-12V8A (96W, 12V/8A) power supply is compatible and available separately at Creation Networks.

Are replacement modules available?

Yes. The RCF1-RCVR and RCF1-XMTR replacement modules are available at Creation Networks.

What is the warranty on this product?

Contact Creation Networks for current Sound Control Technologies warranty terms applicable to the RCF1-P60.
