Sound Control Technologies RCF1-E4P – Fiber Camera Extension for Poly EagleEye IV

Product Overview

The Sound Control Technologies RCF1-E4P is a single-channel fiber optic camera extension system designed specifically for the Poly EagleEye IV camera with RealPresence and G7500 codecs. This fiber camera extender transports HDMI video, Ethernet control, serial VISCA loop, 12V camera power, ARC/analog audio I/O, and an HDMI distribution amp over fiber up to 300 meters. It is the correct solution for AV integrators who need to separate the Poly EagleEye IV PTZ camera from the codec in large conference rooms, boardrooms, or commercial facilities requiring extended camera placement. The RCF1-E4P consolidates all signal transport into a single fiber run, eliminating the need for separate extenders and adapters.

Product Description

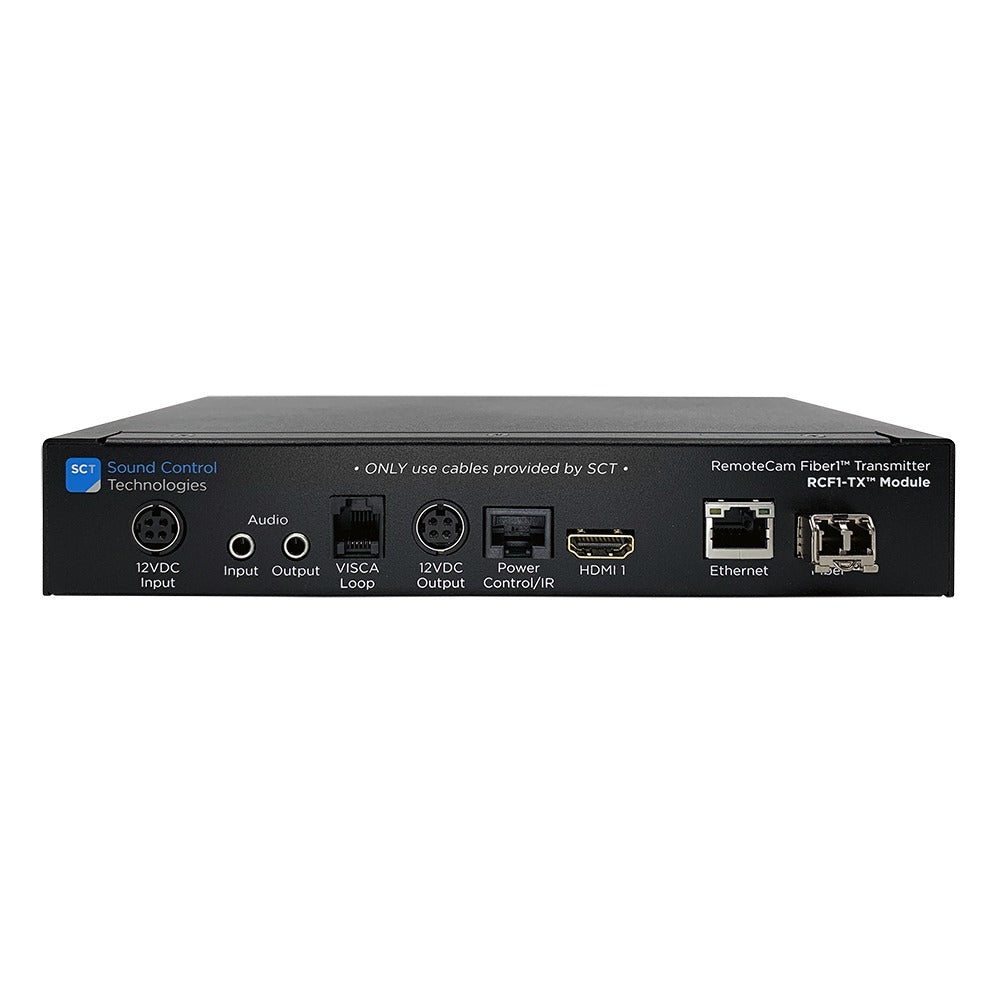

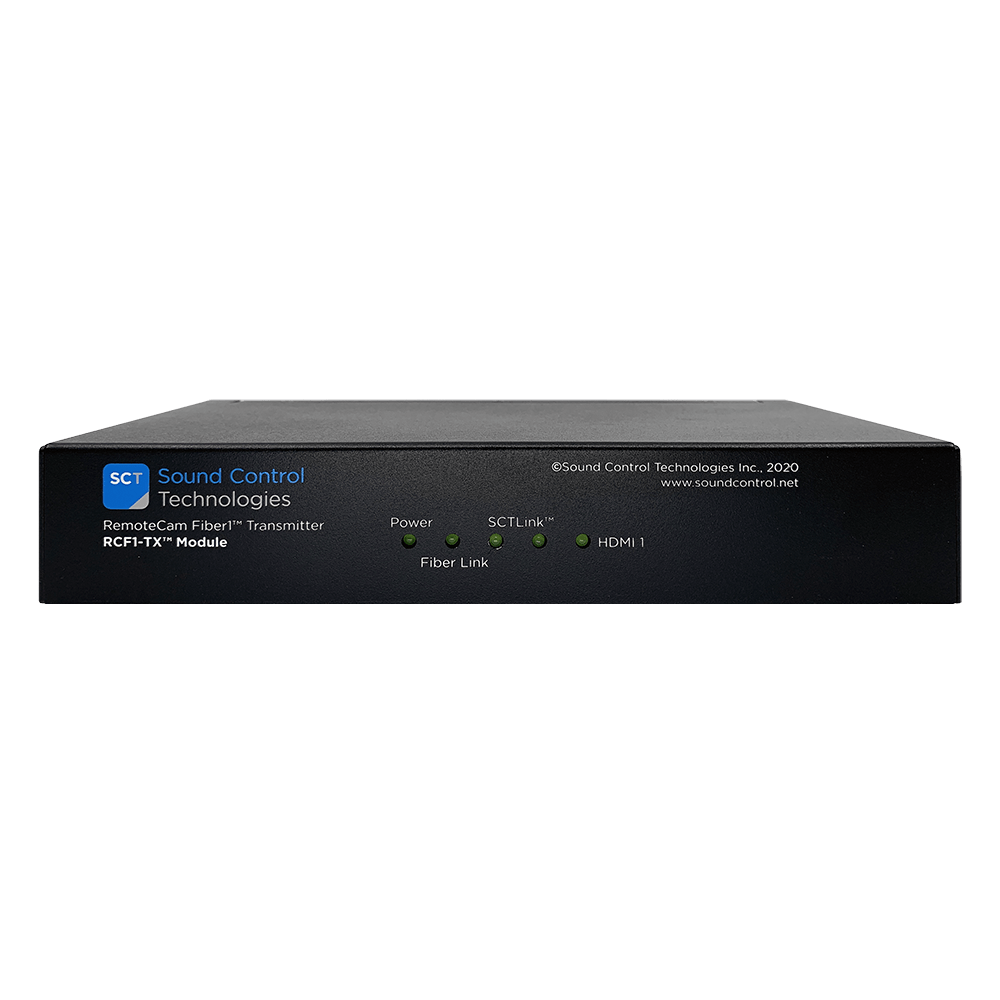

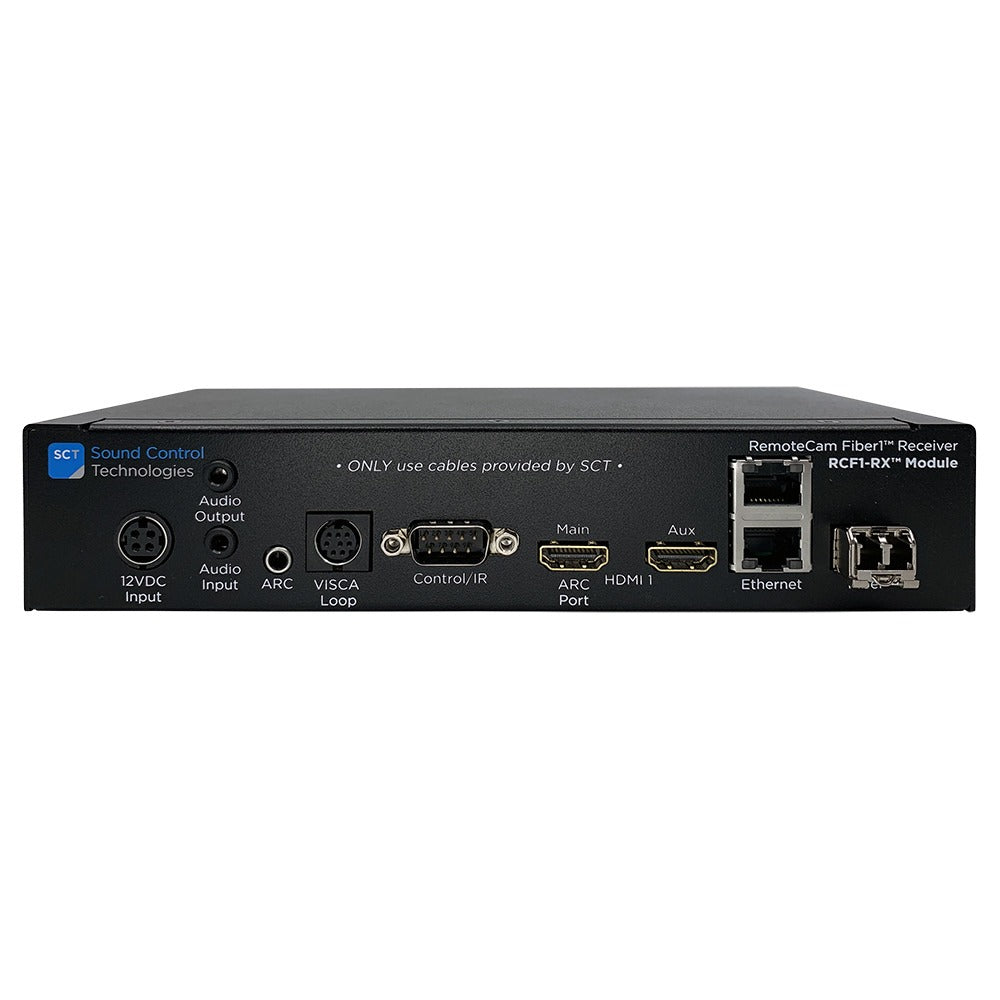

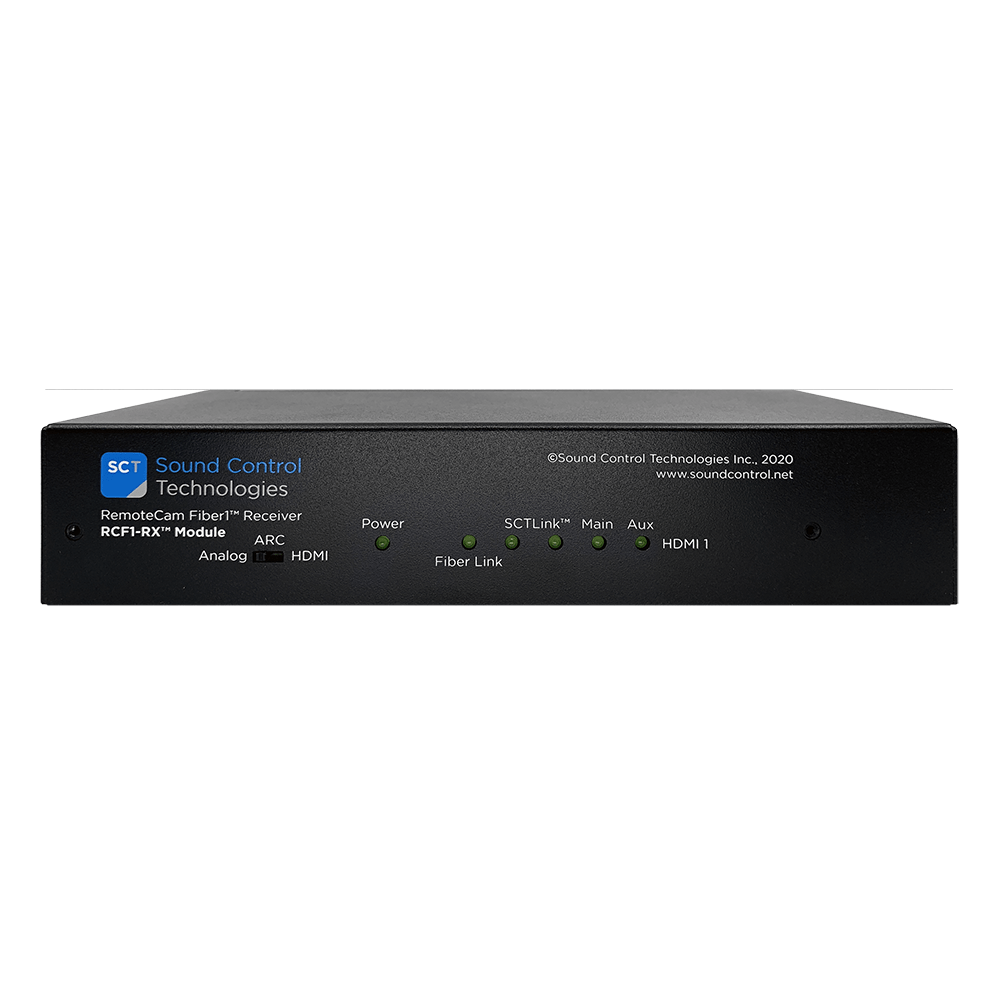

The RCF1-E4P consists of a transmitter module at the camera end and a receiver module at the codec end, connected over fiber. HDMI video from the Poly EagleEye IV passes over the fiber link with full fidelity up to 300 meters. Ethernet control allows PTZ management and codec-to-camera communication to traverse the fiber without a separate network connection at the camera. The serial VISCA loop supports third-party or legacy VISCA-based PTZ control alongside Ethernet control. A 12V power output on the receiver module supplies the EagleEye IV camera directly, eliminating a separate power supply at the camera location. ARC and analog audio I/O allow audio return and analog signals to share the fiber run. The integrated HDMI distribution amp on the receiver drives a primary codec input plus a secondary display or confidence monitor without an external splitter. Rated for 300-meter runs, the RCF1-E4P is suited for large floor plan deployments where the codec resides in a central equipment room. Manufactured in USA/Taiwan. Sold as each unit.

Key Features

• Fiber HDMI Transport — Carries HDMI video from the Poly EagleEye IV over fiber with signal integrity up to 300 meters.
• 300-Meter Range — Supports camera-to-codec distances up to 300 meters for central equipment room architectures.
• Ethernet Control Pass-Through — IP-based PTZ and codec management transit the fiber without a separate network drop at the camera.
• Serial VISCA Loop — VISCA control support for third-party control system integration.
• 12V Camera Power Output — Powers the Poly EagleEye IV directly from the receiver module.
• ARC / Analog Audio I/O — Audio return and analog signals share the fiber without additional cabling runs.
• HDMI Distribution Amp — On-board amp drives codec input plus a secondary output from the receiver.
• Purpose-Built Poly EagleEye IV Compatibility — Engineered to work with Poly RealPresence and G7500 codec families.

Typical Applications

• Boardroom
• Conference room
• Government space
• All-hands room
• Multi-purpose room
• Training room

Technical Specifications

Frequently Asked Questions

Which Poly codecs is the RCF1-E4P compatible with?

The RCF1-E4P is designed for the Poly EagleEye IV camera with RealPresence and G7500 codecs. Contact Creation Networks to verify compatibility with your specific Poly system configuration.

How does the RCF1-E4P differ from the RCF2 series?

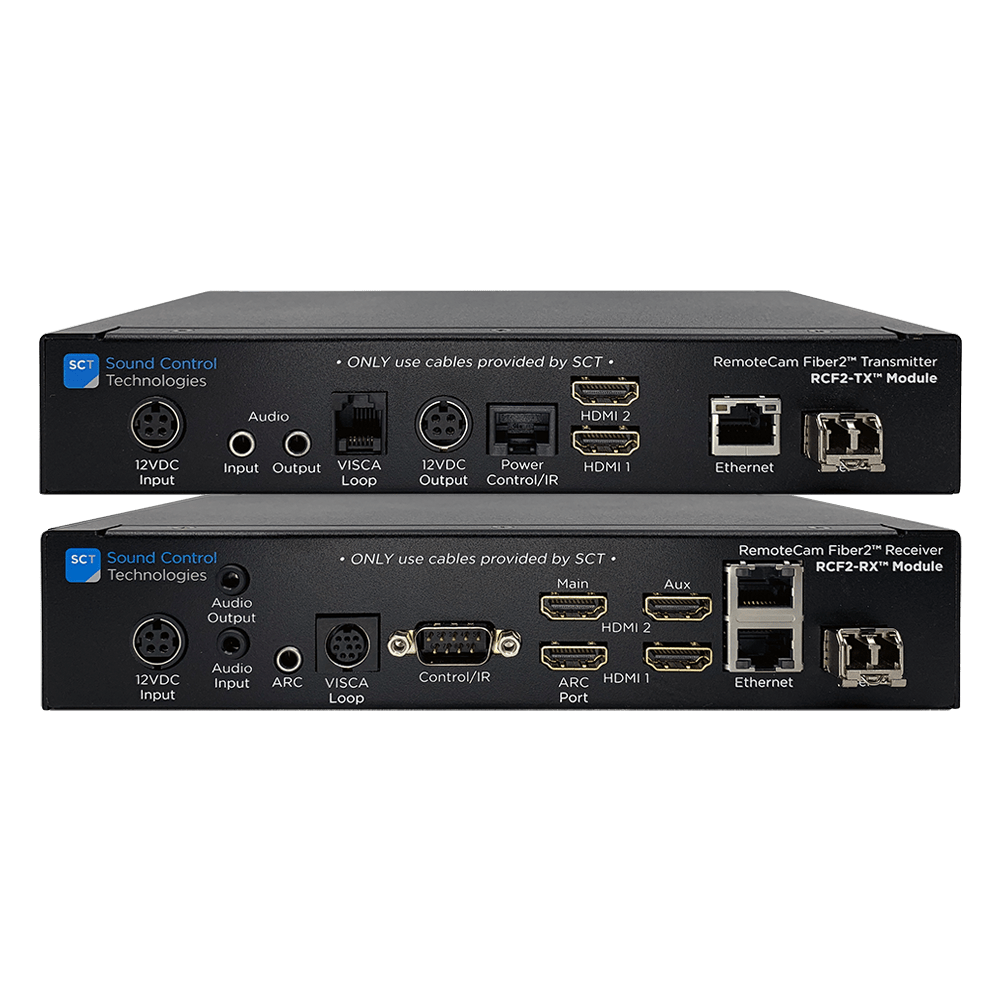

The RCF1 series carries a single HDMI video channel and is designed for single-output cameras like the Poly EagleEye IV. The RCF2 series carries dual HDMI for cameras requiring two simultaneous video paths.

What power supply is required?

The RCF1-E4P requires an external power supply. The WPS-12V8A (96W) is compatible with RCF1 and RCF2 systems and is available separately at Creation Networks.

Are replacement modules available?

Yes. The RCF1-RCVR and RCF1-XMTR replacement modules are available at Creation Networks for field servicing.

What is the warranty on this product?

Contact Creation Networks for current Sound Control Technologies warranty terms applicable to the RCF1-E4P.
