Sound Control Technologies RCF1-CW4 – Fiber Camera Extension for Cisco Webex PTZ 4K

Product Overview

The Sound Control Technologies RCF1-CW4 is a single-channel fiber optic camera extension system designed for the Cisco Webex PTZ 4K camera with SX80, Codec Plus, Codec EQ, and Codec Pro codecs. This fiber camera extender transports HDMI video, Ethernet control, serial VISCA loop, 12V camera power output, ARC/analog audio I/O, and an HDMI distribution amp over fiber up to 300 meters. It is the purpose-built solution for integrators who need to separate the Cisco Webex PTZ 4K camera from the codec in large conference rooms, boardrooms, or government facilities using a single fiber infrastructure. The RCF1-CW4 replaces the need for multiple disjointed extenders with a single, professionally integrated system.

Product Description

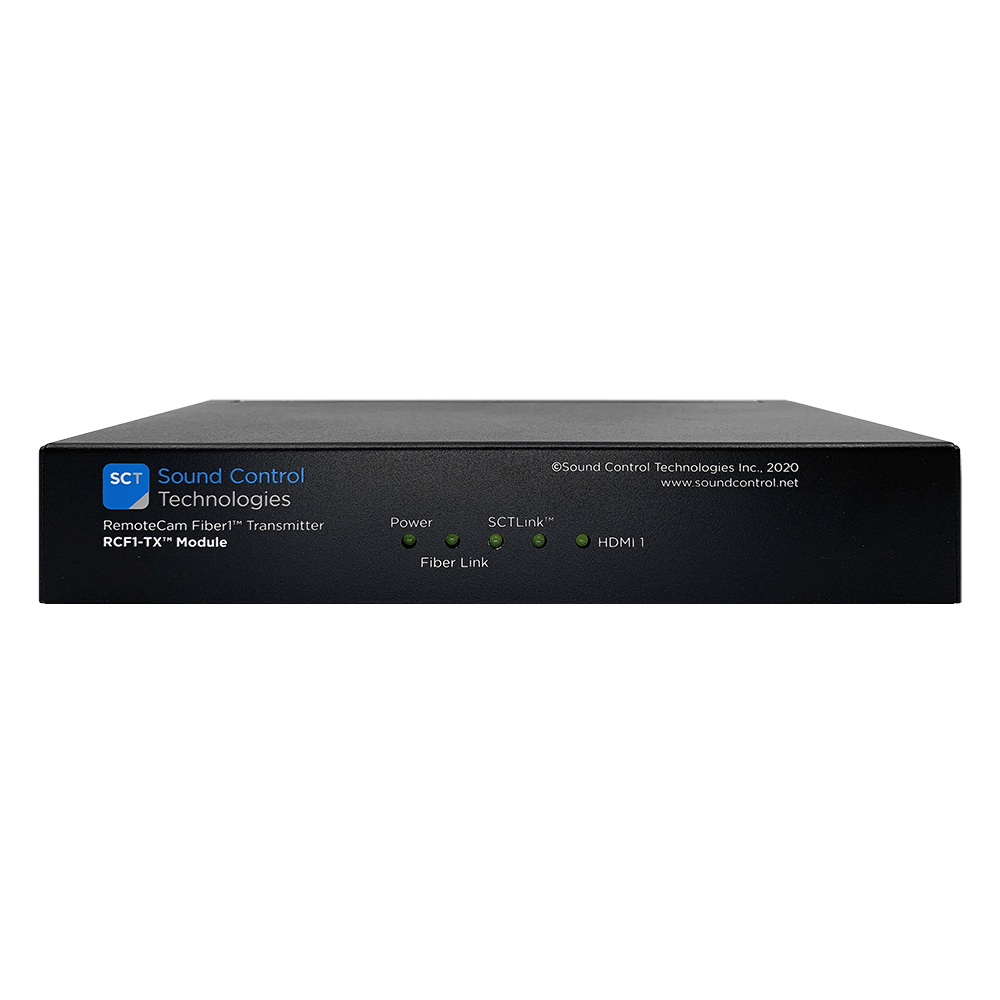

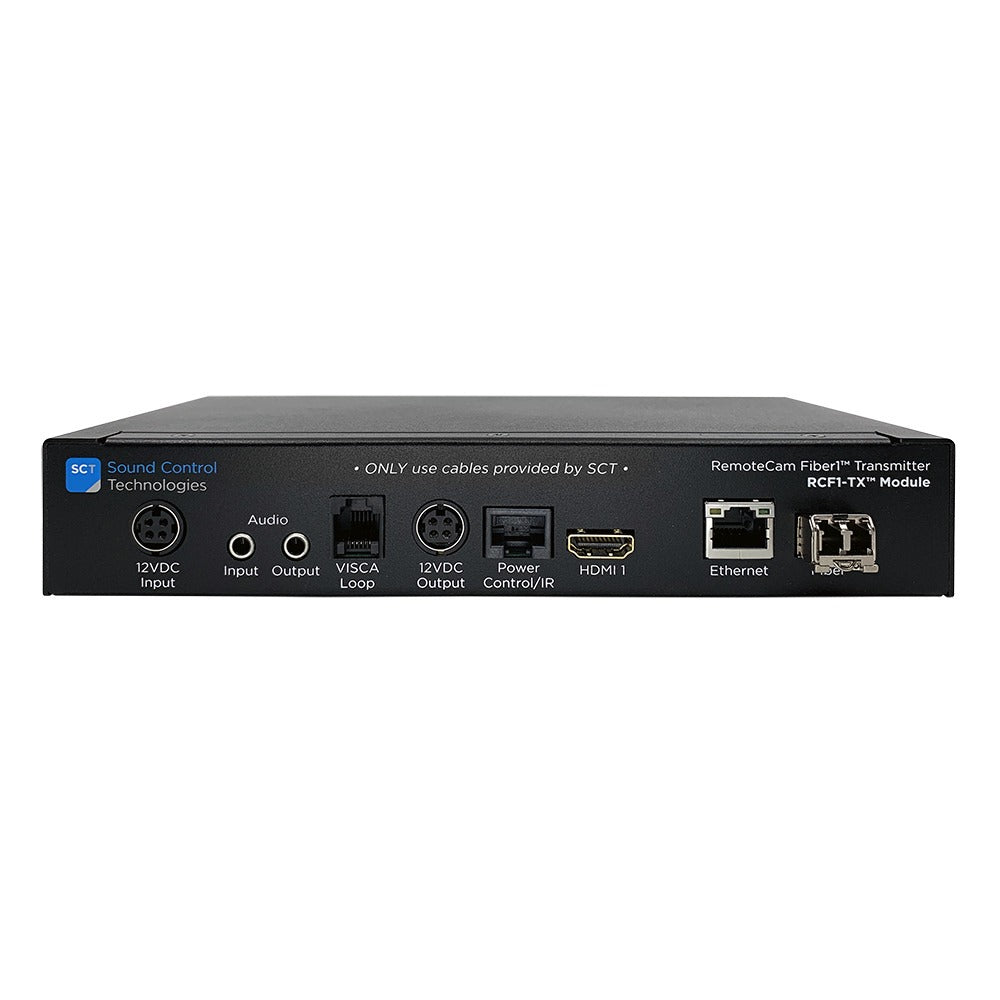

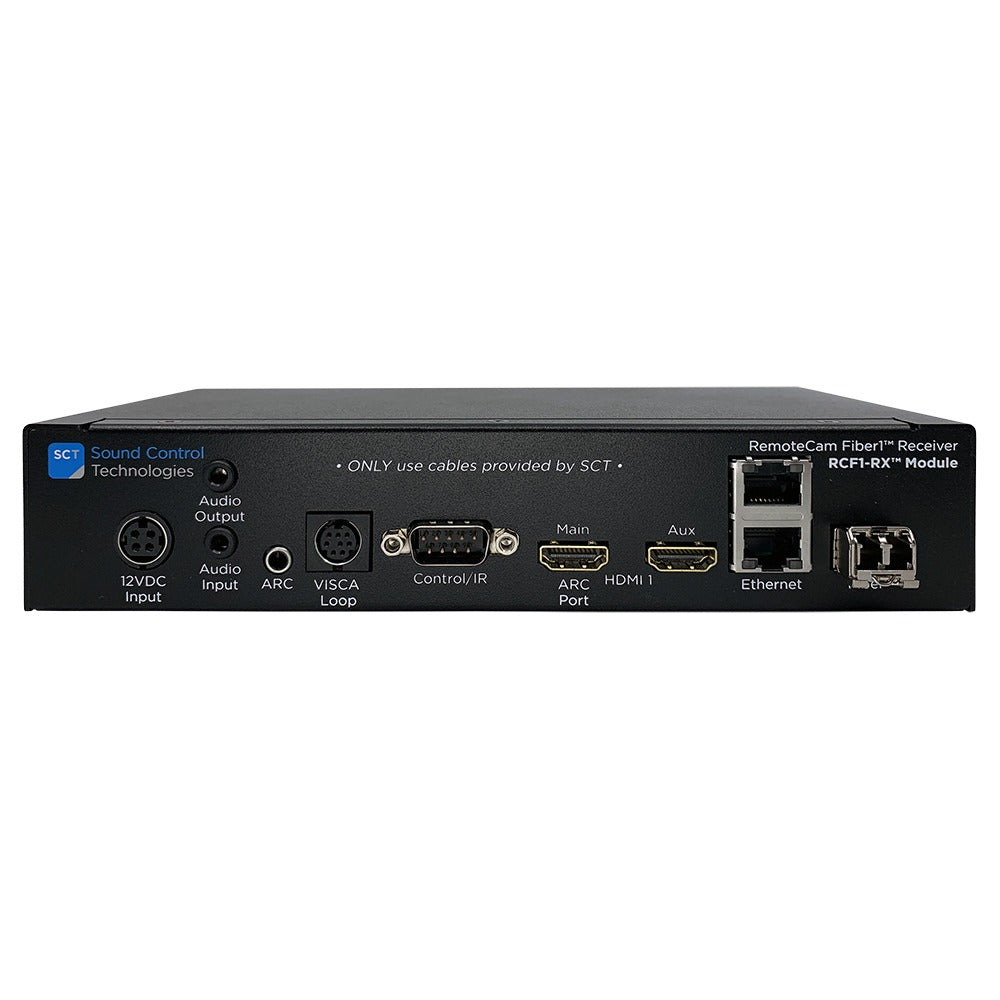

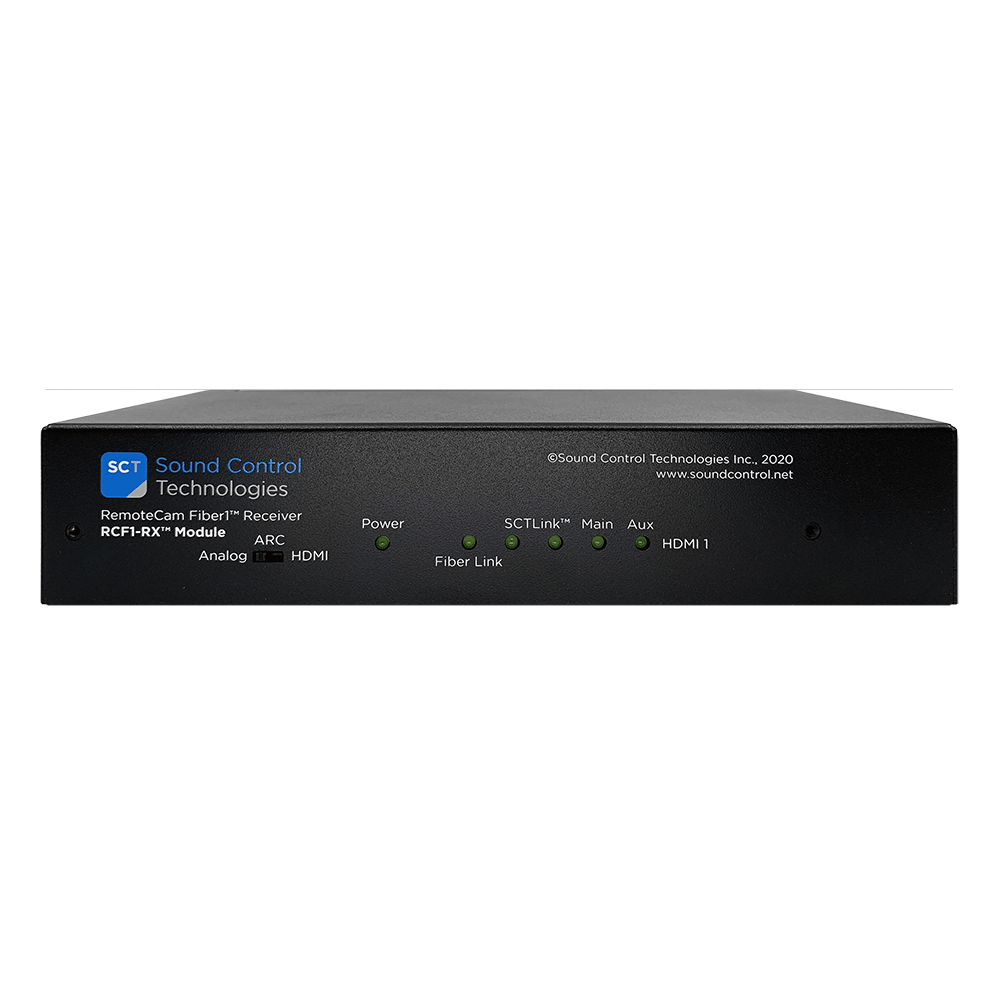

The RCF1-CW4 system consists of a transmitter module at the camera end and a receiver module at the codec end, linked over fiber. HDMI video from the Cisco Webex PTZ 4K camera passes over the fiber link with full signal integrity up to 300 meters. Ethernet control allows PTZ management, diagnostics, and codec communication to transit the fiber without a separate network connection at the camera. The serial VISCA loop enables parallel VISCA-based PTZ control for integration with third-party control systems. A 12V power output on the receiver supplies the camera directly, eliminating a dedicated power supply at the camera location. ARC and analog audio I/O support audio return and analog microphone signals over the same fiber run. The built-in HDMI distribution amp on the receiver module allows the video signal to be distributed to a primary codec input and a secondary display simultaneously. The RCF1-CW4 is rated for distances up to 300 meters and is manufactured in USA/Taiwan. Sold as each unit.

Key Features

• Fiber HDMI Transport — Carries HDMI video from the Cisco Webex PTZ 4K camera over fiber with signal integrity at distances up to 300 meters.
• 300-Meter Range — Allows camera placement up to 300 meters from the codec, supporting centralized equipment room architectures.
• Ethernet Control Pass-Through — Full IP camera management transits the fiber, eliminating a separate network drop at the camera location.
• Serial VISCA Loop — VISCA PTZ control support for integration with third-party or legacy control systems.
• 12V Camera Power Output — Powers the Cisco Webex PTZ 4K camera directly from the receiver, removing the need for separate power at the camera end.
• ARC / Analog Audio I/O — Audio return and analog audio signals share the fiber infrastructure without additional cabling.
• HDMI Distribution Amp — On-board amp on the receiver drives a codec input plus a secondary output from a single connection.
• Single-Fiber All-in-One Architecture — Consolidates video, control, power, and audio into one fiber run, simplifying installation and reducing conduit requirements.

Typical Applications

• Boardroom
• Conference room
• Government space
• All-hands room
• Multi-purpose room
• Training room

Technical Specifications

Frequently Asked Questions

Which Cisco codecs is the RCF1-CW4 compatible with?

The RCF1-CW4 is designed for the Cisco Webex PTZ 4K camera with SX80, Codec Plus, Codec EQ, and Codec Pro codecs. Contact Creation Networks to confirm compatibility with your specific codec firmware version.

Is the RCF1-CW4 different from the RCF2 series?

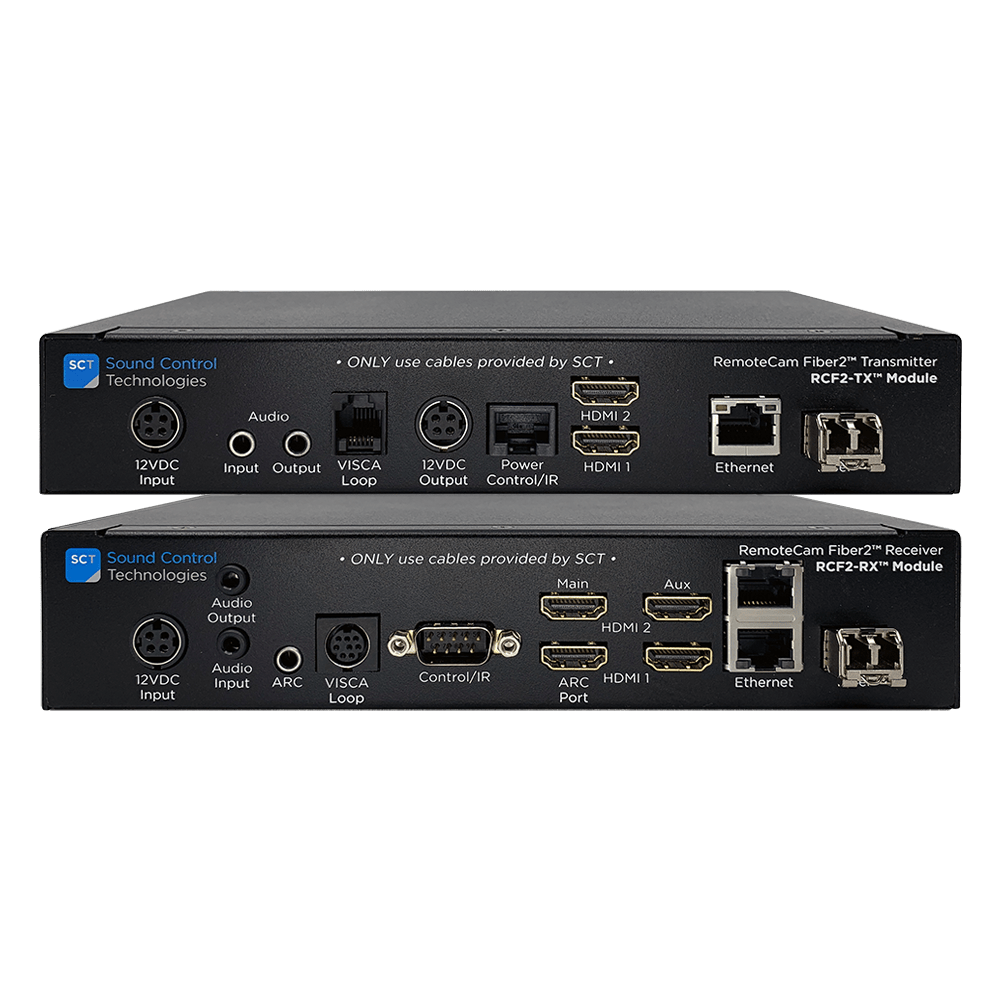

Yes. The RCF1 series carries a single HDMI channel and is suited to single-output cameras like the Cisco Webex PTZ 4K. The RCF2 series carries dual HDMI channels for cameras like the Cisco Quad Camera and SpeakerTrack 60 that require two simultaneous video paths.

What power supply is required for the RCF1-CW4?

The RCF1 system requires an external power supply. The WPS-12V8A (96W, 12V/8A) is compatible with RCF1 and RCF2 systems and is available separately at Creation Networks.

Are individual replacement modules available?

Yes. The RCF1-RCVR (receiver) and RCF1-XMTR (transmitter) replacement modules are available at Creation Networks for field servicing without replacing the full system.

What is the warranty on this product?

Contact Creation Networks for current Sound Control Technologies warranty terms applicable to the RCF1-CW4.
