Product Overview

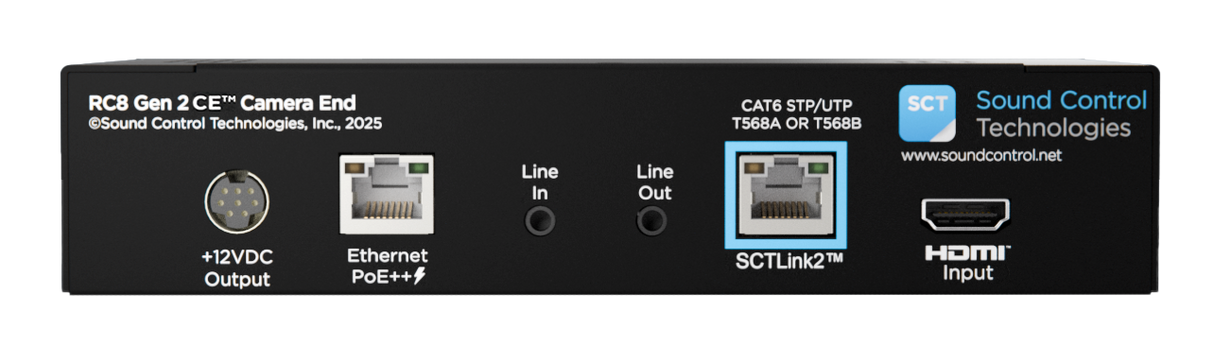

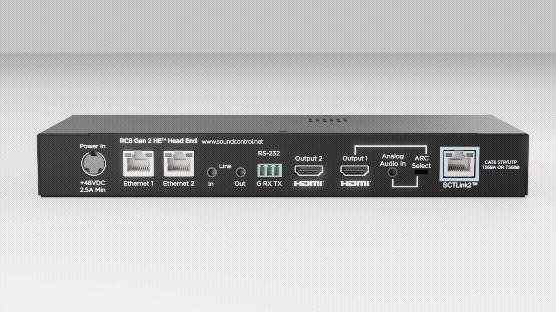

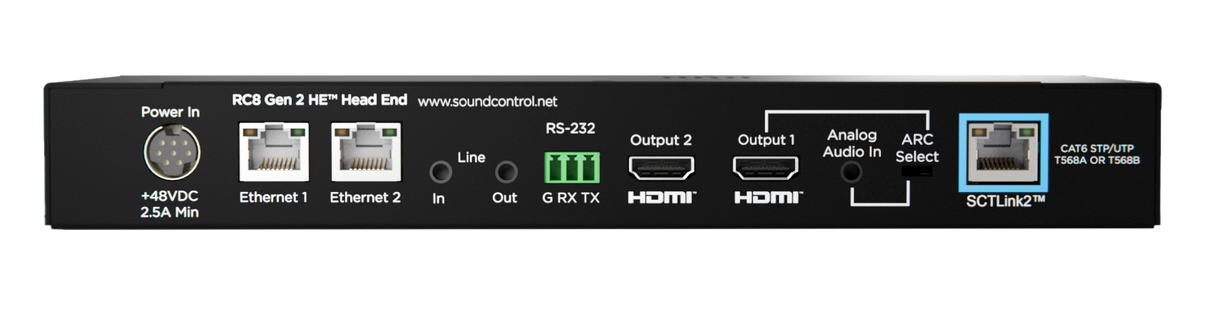

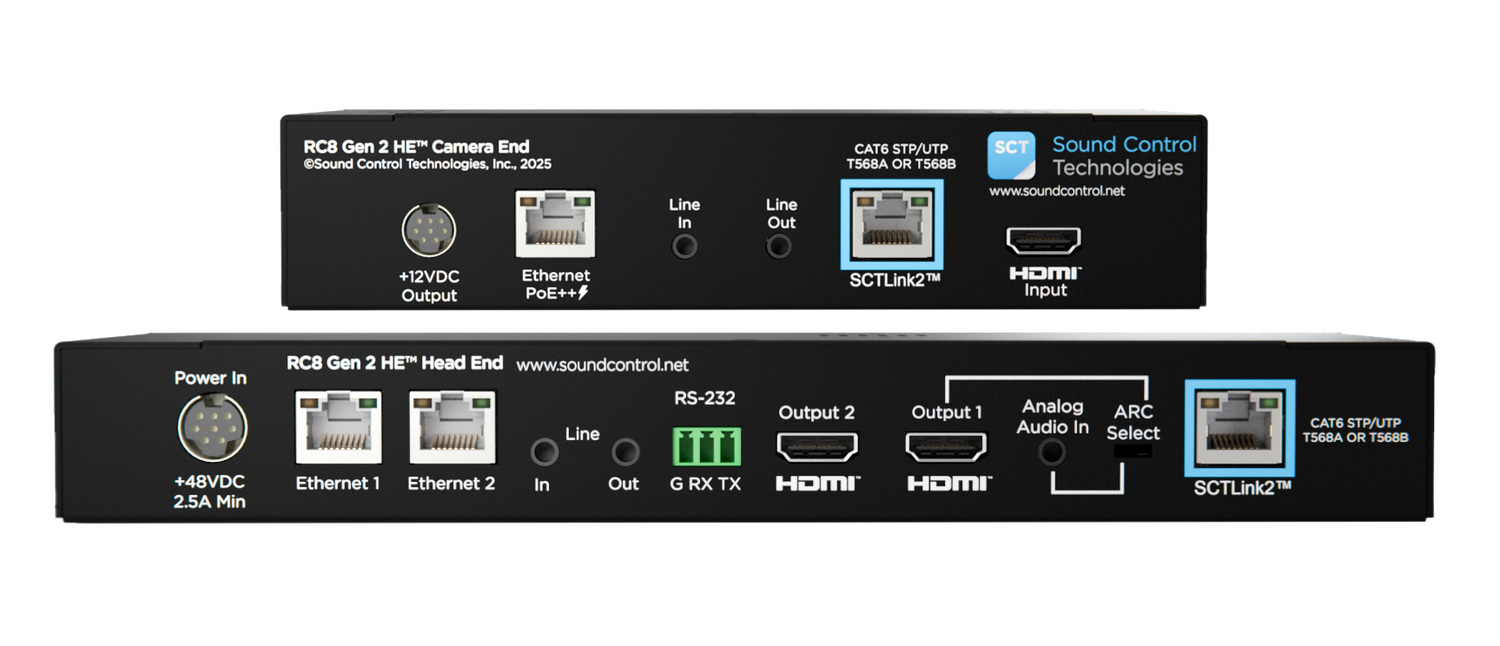

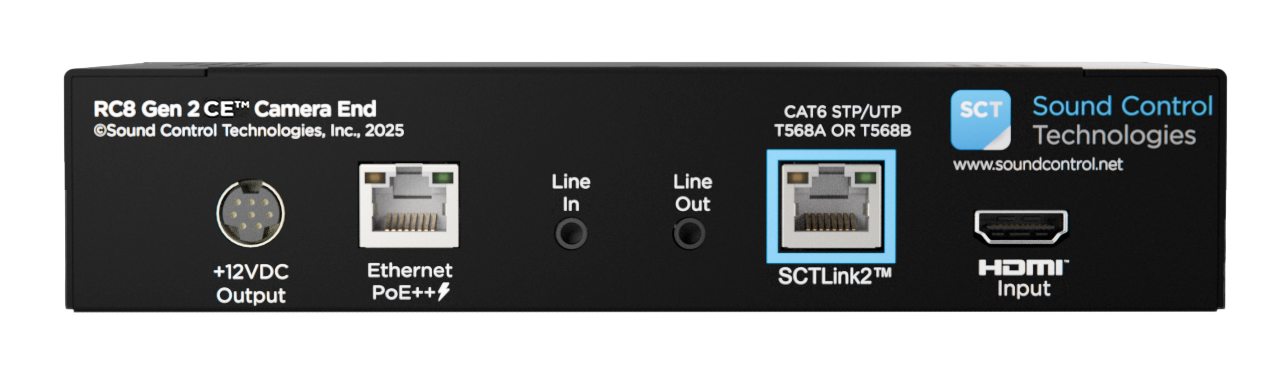

The Sound Control Technologies RC8-CQC-PA-K is a complete camera extension project pack for Cisco SX80, Plus, and Pro EQ conference room deployments with the Cisco Quad Camera. The RC8 Gen2 RemoteCam8 platform extends HDMI, IP control, bidirectional audio with ARC (HDMI), and 12V QuadCam power over structured cabling. This kit bundles the RC8 Gen2 extension kit with the RC-RCPA rack shelf and the RC-CUBBY-CQC camera cubby.
Product Description
The RC8-CQC-PA-K replaces the original RC8-CQC-K and delivers a complete, all-in-one project pack for Cisco SX80, Plus, and Pro EQ rooms using the Cisco Quad Camera. RC8 Gen2 head-end and camera-end modules carry HDMI, IP control, bidirectional audio including HDMI ARC, and 12V camera power on a single structured cable run. The RC-RCPA rack shelf is purpose-designed for SX80/Plus/Pro EQ installation, providing clean rack mounting at the head end. The RC-CUBBY-CQC provides a finished camera-end enclosure for the RC8 module at the Quad Camera location. IP control passthrough enables full PTZ camera management from the Cisco codec. HDMI DA capability supports signal distribution at the head end. All required head-end and camera-end components are included in this single SKU, streamlining procurement for AV integrators and system designers specifying Cisco SX80, Codec Plus, or Pro EQ rooms.
Key Features
- RC8 Gen2 Extension Platform — Extends HDMI, IP control, bidirectional audio/ARC, and 12V QuadCam power over structured cabling.
- RC-RCPA Rack Shelf Included — Purpose-built rack shelf for Cisco SX80, Plus, and Pro EQ head-end integration.
- RC-CUBBY-CQC Camera Cubby Included — Professional camera-end enclosure for a clean installation at the Quad Camera position.
- Replaces RC8-CQC-K — Direct replacement for the discontinued RC8-CQC-K, maintaining full system compatibility.
- Bidirectional Audio with HDMI ARC — Carries audio both directions including HDMI ARC for room audio integration.
- 12V QuadCam Power Delivery — Regulated 12V power to the Cisco Quad Camera over the cable run.
- IP Camera Control Passthrough — Full PTZ camera command passthrough from the Cisco codec.
- HDMI DA Support — Built-in HDMI distribution amplifier at the head end.
Typical Applications
- Boardroom
- Conference room
- Commercial meeting space
- Government space
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RC8-CQC-PA-K |
| Replaces | RC8-CQC-K |
| Platform | RC8 Gen2 RemoteCam8 |
| What's Included | RC8 Gen2 Extension Kit (head-end + camera-end modules) + RC-RCPA Rack Shelf + RC-CUBBY-CQC Camera Cubby |
| Signals Extended | HDMI, IP Control, Bidirectional Audio / ARC (HDMI), 12V QuadCam Power, HDMI DA |
| Compatible Camera | Cisco Quad Camera |
| Compatible Codecs | Cisco SX80, Codec Plus, Pro EQ |
| Unit of Measure | Each |
| Country of Origin | USA / Taiwan |
| MSRP | $4,310 |
Frequently Asked Questions
What codecs is the RC8-CQC-PA-K compatible with?
The RC8-CQC-PA-K is designed for Cisco SX80, Codec Plus, and Pro EQ systems. For Codec EQ deployments, use the RC8-CQC-F3-K; for Crossview, use the RC8-CQC-F2-K.
Does this kit replace the RC8-CQC-K?
Yes. The RC8-CQC-PA-K is the direct replacement for the RC8-CQC-K and maintains the same system functionality.
Is a camera-end enclosure included?
Yes. The RC-CUBBY-CQC camera cubby is included in this project pack. For the kit without the cubby, see the RC8-CQC-PA (without the -K suffix).
What cable infrastructure is required?
The RC8 Gen2 platform uses structured CAT cable. Contact Creation Networks for cable type and distance specifications for your specific installation.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for the RC8-CQC-PA-K.
