Sound Control Technologies RC8-CQC-F2-K – Cisco Quad Camera Crossview Project Pack
Sound Control Technologies RC8-CQC-F2-K – Cisco Quad Camera Crossview Project Pack is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RC8-CQC-F2-K – Cisco Quad Camera Crossvi...
Product Overview

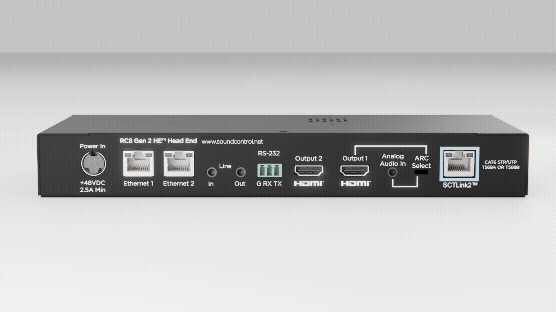

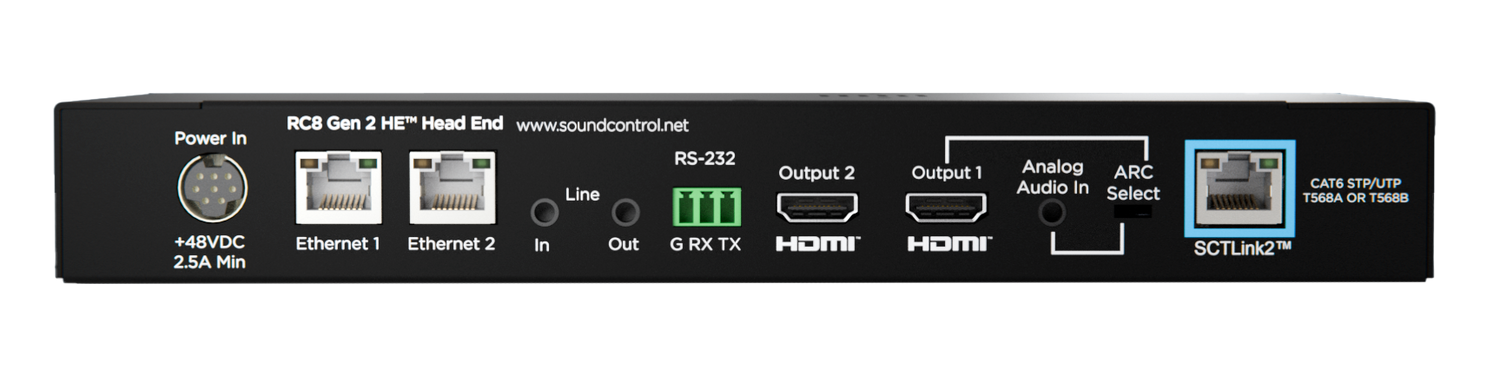

The Sound Control Technologies RC8-CQC-F2-K is a complete camera extension project pack for Cisco Crossview conference room deployments using the Cisco Quad Camera. The RC8 Gen2 RemoteCam8 platform extends HDMI video, IP control, bidirectional audio with ARC (HDMI), and 12V QuadCam power over a single structured cable run. This kit bundles the RC8 Gen2 extension kit with the RC-RCF2 Crossview rack shelf and the RC-CUBBY-CQC camera cubby for a turnkey Crossview installation.
Product Description

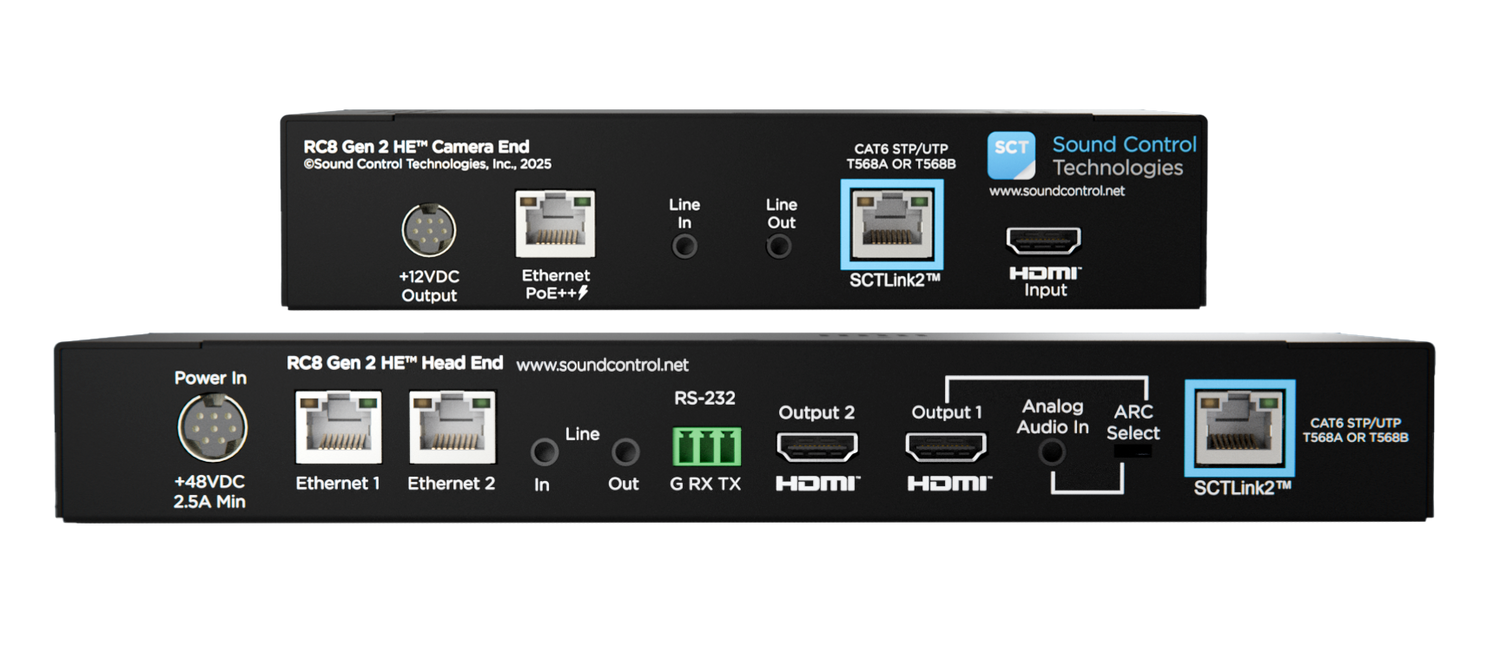

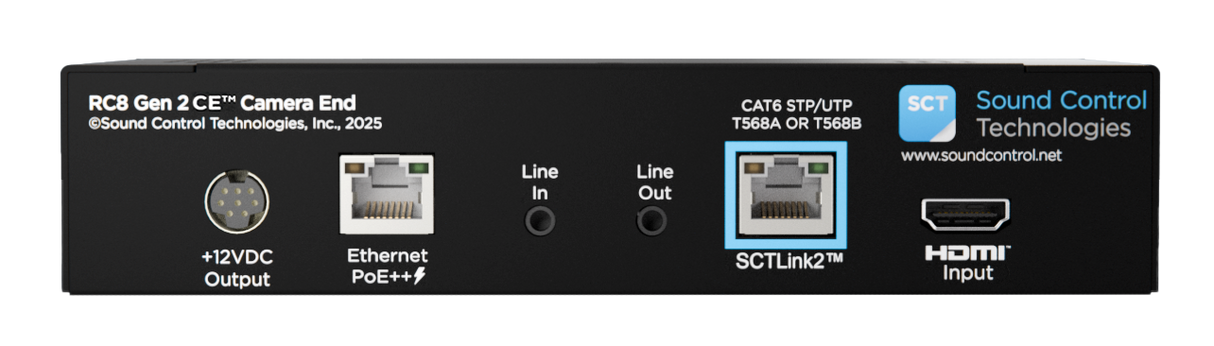

The RC8-CQC-F2-K is engineered for Cisco Crossview room configurations equipped with the Cisco Quad Camera PTZ system. The RC8 Gen2 head-end and camera-end modules extend HDMI, IP control, bidirectional audio including HDMI ARC, and 12V camera power across a single structured cable — replacing multiple discrete cable runs. The included RC-RCF2 rack shelf is purpose-built for Cisco Crossview systems, providing clean rack integration at the head end. The RC-CUBBY-CQC provides a professional enclosure for the camera-end module at the camera position. This project pack simplifies procurement for AV integrators by delivering all required components in a single SKU. The IP control path enables full PTZ camera command passthrough from the Crossview system to the Quad Camera. HDMI DA capability at the head end supports signal distribution requirements typical in Crossview deployments. Ideal for AV integrators specifying Cisco Crossview in boardrooms, large conference rooms, and executive meeting spaces.
Key Features
- RC8 Gen2 Extension Platform — Extends HDMI, IP control, bidirectional audio/ARC, and 12V QuadCam power over structured cabling.
- RC-RCF2 Crossview Rack Shelf Included — Purpose-designed rack shelf for Cisco Crossview integration at the head end.
- RC-CUBBY-CQC Camera Cubby Included — Professional camera-end enclosure for a finished installation at the Quad Camera location.
- Bidirectional Audio with HDMI ARC — Supports room audio integration including HDMI ARC for speaker system connectivity.
- 12V QuadCam Power Delivery — Regulated 12V power delivered to the Cisco Quad Camera over the cable infrastructure.
- IP Camera Control Passthrough — Full IP control path for PTZ camera commands from Cisco Crossview to the Quad Camera.
- HDMI DA Support — Built-in HDMI distribution amplifier capability at the head end.
- Turnkey Project Pack — Complete head-end and camera-end components in a single SKU for streamlined procurement.
Typical Applications
- Boardroom
- Conference room
- Commercial meeting space
- Government space
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RC8-CQC-F2-K |
| Platform | RC8 Gen2 RemoteCam8 |
| What's Included | RC8 Gen2 Extension Kit (head-end + camera-end modules) + RC-RCF2 Crossview Rack Shelf + RC-CUBBY-CQC Camera Cubby |
| Signals Extended | HDMI, IP Control, Bidirectional Audio / ARC (HDMI), 12V QuadCam Power, HDMI DA |
| Compatible Camera | Cisco Quad Camera |
| Compatible System | Cisco Crossview Configuration |
| Unit of Measure | Each |
| Country of Origin | USA / Taiwan |
| MSRP | $5,005 |
Frequently Asked Questions
What Cisco system does the RC8-CQC-F2-K support?
The RC8-CQC-F2-K is configured for Cisco Crossview deployments. The RC-RCF2 rack shelf is purpose-built for the Crossview system. For Codec EQ, use the RC8-CQC-F3-K; for SX80/Plus/Pro EQ, use the RC8-CQC-PA-K.
What cable type is required for the RC8 Gen2 platform?
The RC8 Gen2 platform uses structured CAT cable. Contact Creation Networks for specific cable type and distance specifications for your installation.
What is the difference between the RC8-CQC-F2 and the RC8-CQC-F2-K?
The RC8-CQC-F2-K adds the RC-CUBBY-CQC camera cubby enclosure to the RC8-CQC-F2 base kit. The cubby provides a professional camera-end housing for the RC8 module.
Does this kit power the Cisco Quad Camera?
Yes. The RC8-CQC platform provides 12V power to the Cisco Quad Camera over the same cable run as signal and control.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for the RC8-CQC-F2-K.
